ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-117

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• Always tighten brake tubes to specification when installing.

• Never reuse drained brake fluid.

• After installation of the ABS actuator and electric unit (control unit), perform the following.

- Refill brake system with new brake fluid. Then bleed the air from the system. Refer to

BR-17, "Bleed-

ing Brake System"

.

- Adjust the steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR

NEUTRAL POSITION : Special Repair Requirement"

.

- Calibrate the decel G sensor. Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Special Repair

Requirement"

.

BRC-118

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000005148102

REMOVAL

1. Remove spiral cable. Refer to

SR-7, "Removal and Installation"

.

2. Remove the screws and remove the steering angle sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation of spiral cable, adjust steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

G SENSOR

BRC-119

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

G SENSOR

Removal and Installation

INFOID:0000000005148103

REMOVAL

1. Remove front center console. Refer to

IP-20, "Removal and

Installation"

.

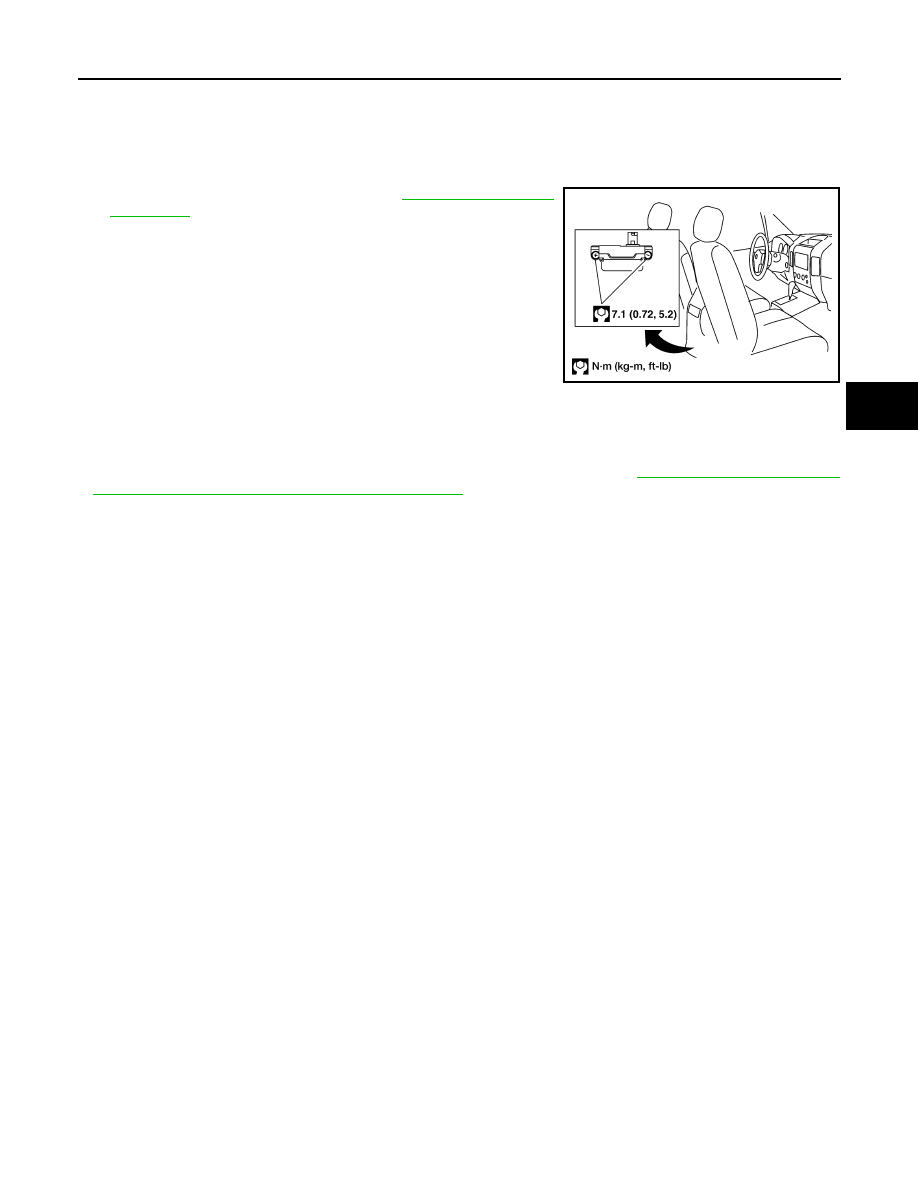

2. Remove yaw rate/side/decel G sensor attaching nuts.

CAUTION:

• Do not use power tools to remove or install yaw rate/side/

decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

3. Disconnect harness connector and remove the yaw rate/side/

decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or strike the yaw rate/side/decel G sensor.

• After installation, calibrate the yaw rate/side/decel G sensor. Refer to

BRC-9, "CALIBRATION OF

DECEL G SENSOR : Special Repair Requirement"

.

WFIA0202E

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P
