Infiniti QX56 (JA60). Manual - part 1007





WCS-26

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

ABNIA1321GB

WCS

WARNING CHIME SYSTEM

WCS-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

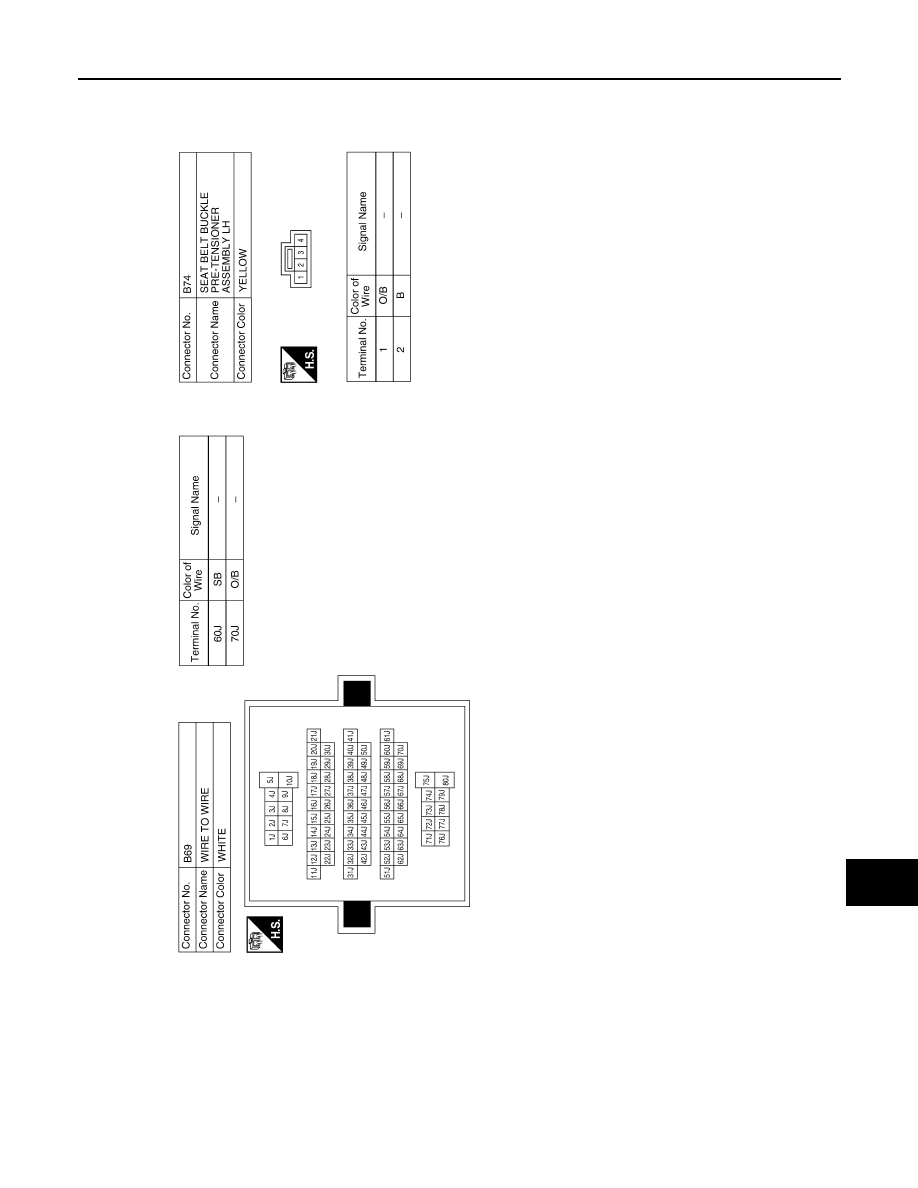

ABNIA1315GB

WCS-28

< ECU DIAGNOSIS >

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000005382408

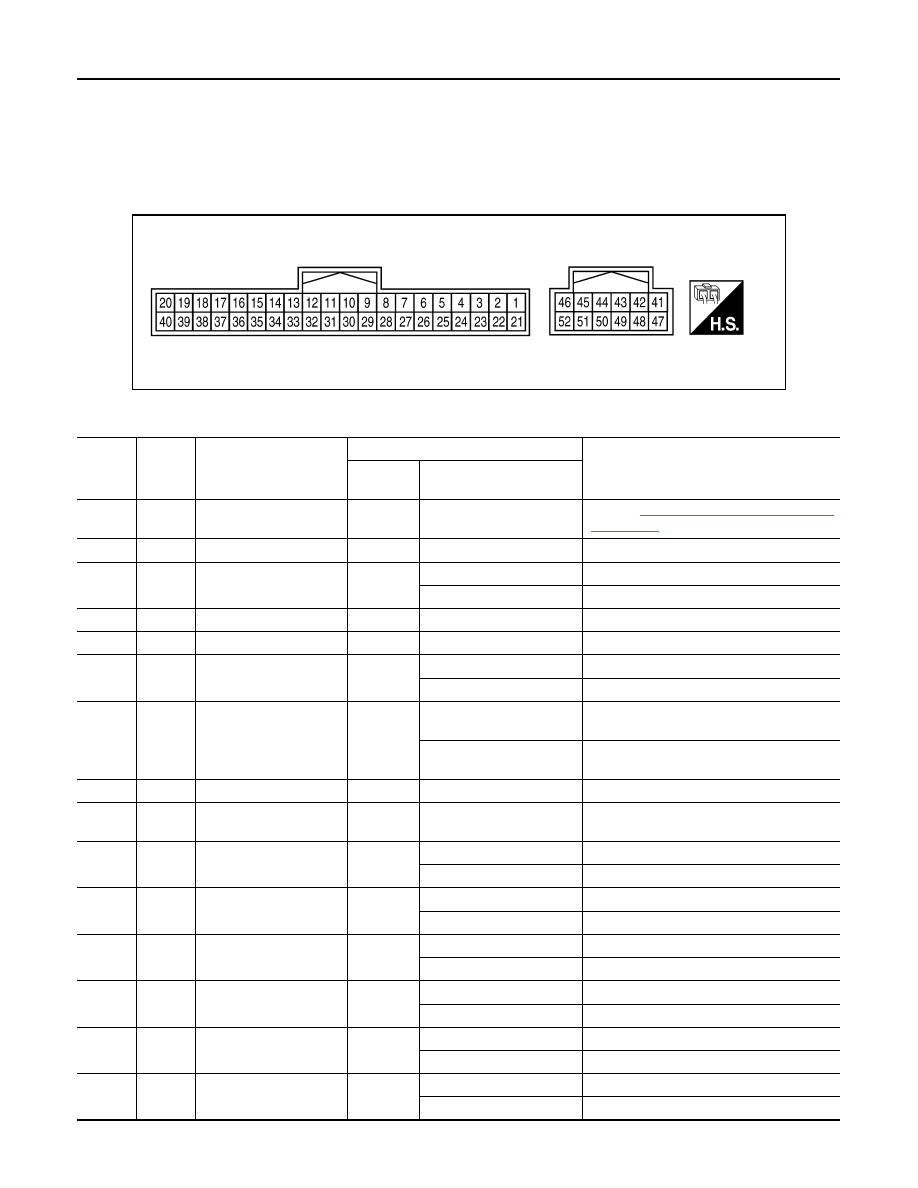

TERMINAL LAYOUT

PHYSICAL VALUES

WKIA5724E

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

3

Y/L

Fuel level sensor signal

Refer to

MWI-12, "FUEL GAUGE : System

Description"

.

4

B/P

Fuel level sensor ground

ON

0

6

BR/W

Generator

ON

Generator voltage low

0

Generator voltage normal

Battery voltage

10

L

CAN-H

11

P

CAN-L

13

P

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

4

Air bag warning lamp OFF

0

15

BR

CK SUSP warning lamp
input

CK SUSP warning lamp
ON

0

CK SUSP warning lamp
OFF

Battery voltage

20

B

Ground

0

21

O/L

Ignition switch ON or
START

ON

Battery voltage

23

W/L

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

24

O/B

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

25

P/L

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

31

G

Parking brake switch

ON

Parking brake applied

0

Parking brake released

Battery voltage

32

P/B

Brake fluid level switch

ON

Brake fluid level low

0

Brake fluid level normal

Battery voltage

35

G/O

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage

WCS

COMBINATION METER

WCS-29

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

37

O

Ignition switch ACC or
ON

Battery voltage

40

P

Battery power supply

Battery voltage

46

BR

Illumination output

Refer to

INL-9, "System Description"

.

47

B

Ground

0

50

W/R

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
Maximum voltage may be 12V due to spec-
ifications (connected units).

52

B

Ground

0

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

PKIC0643E
