BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< FUNCTION DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000005146399

WORK SUPPORT

* : Initial setting

DATA MONITOR

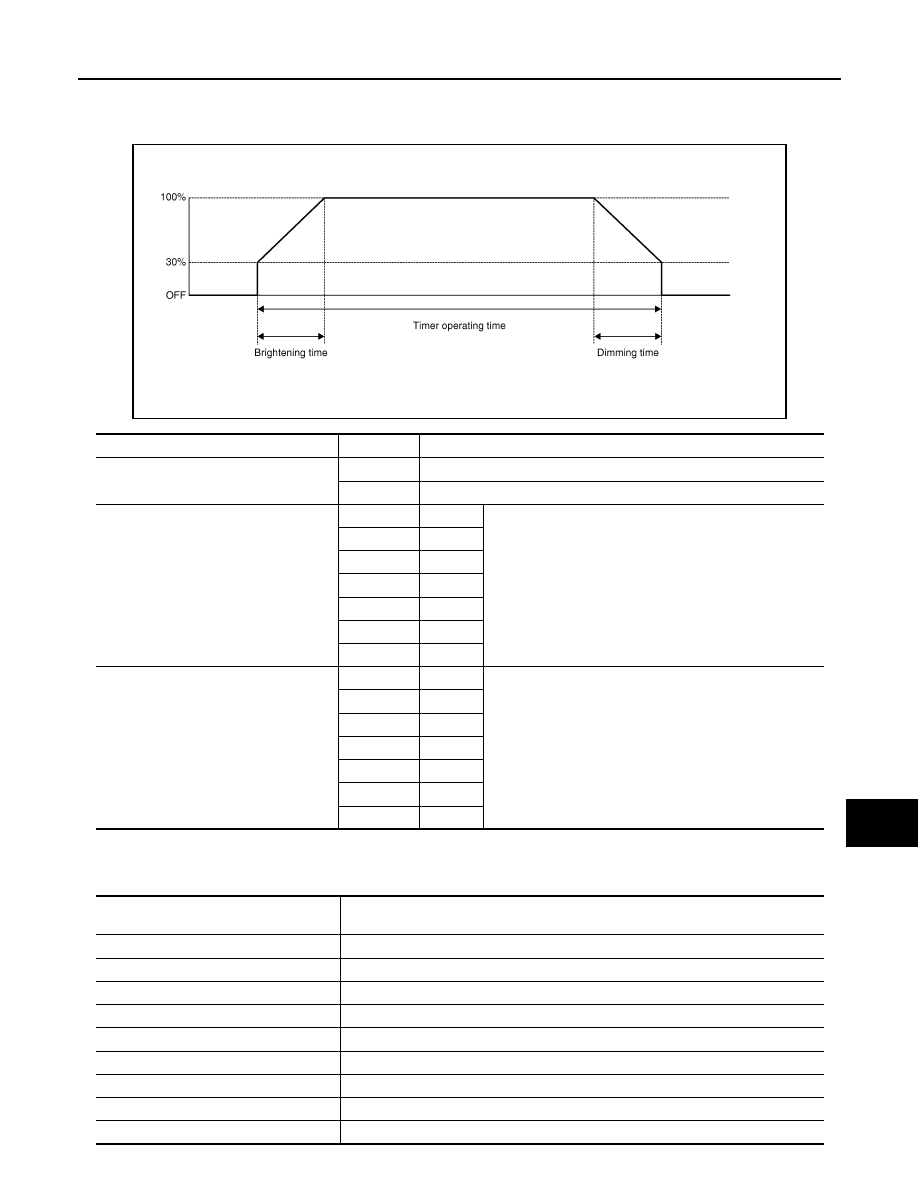

JPLIA0093GB

Work Item

Setting item

Setting

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

KEY ON SW [ON/OFF]

The switch status input from key switch

DOOR SW-DR [ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL [ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW [ON/OFF]

The switch status input from back door switch

KEY CYL LK-SW [ON/OFF]

Lock switch status input from door lock and unlock switch

KEY CYL UN-SW [ON/OFF]

Lock switch status input from door lock and unlock switch

BCS-20

< FUNCTION DIAGNOSIS >

[BCM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

MULTIREMOTE ENT
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000005146400

WORK SUPPORT

Hazard and horn reminder mode

CDL LOCK SW [ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Unlock switch status input from door lock and unlock switch

I-KEY LOCK [ON/OFF]

Lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK [ON/OFF]

Unlock signal status received from Intelligent Key unit by CAN communication

Monitor Item

[Unit]

Description

Test Item

Operation

Description

IGN ILLUM

ON

Outputs the ignition keyhole illumination control signal to turn the ignition keyhole il-
lumination lamp ON.

OFF

Stops the ignition keyhole illumination control signal to turn the ignition keyhole illu-
mination lamp OFF.

INT LAMP

ON

Outputs the interior room lamp control signal to turn the interior room lamps ON.

OFF

Stops the interior room lamp control signal to turn the interior room lamps OFF.

STEP LAMP TEST

ON

Outputs the step lamp control signal to turn the step lamps ON.

OFF

Stops the step lamp control signal to turn the step lamps OFF.

LUGGAGE LAMP TEST

ON

Outputs the luggage lamp control signal to turn the luggage lamp ON.

OFF

Stops the luggage lamp control signal to turn the luggage lamp OFF.

Test Item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered.

REMO CONT ID ERASUR

Keyfob ID code can be erased.

REMO CONT ID CONFIR

It can be checked whether keyfob ID code is registered or not in this mode.

HORN CHIRP SET

Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

HAZARD LAMP SET

Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

MULTI ANSWER BACK SET

Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-III screen is touched.

AUTO LOCK SET

Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PANIC ALRM SET

Panic alarm operation mode can be changed in this mode. The operation mode will be changed when
"CHANG SETT" on CONSULT-III screen is touched.

PW DOWN SET

Keyless power window down (open) operation mode can be changed in this mode. The operation
mode will be changed when "CHANG SETT" on CONSULT-III screen is touched.

MODE 1

(C mode)

MODE 2

(S mode)

MODE  3

MODE  4

MODE  5

MODE  6

Keyfob
operation

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Lock

Unlock

Hazard warning
lamp flash

Twice

Once

Twice

—

—

—

Twice

Once

Twice

—

—

Once

Horn  sound

Once

—

—

—

—

—

—

—

Once

—

Once

—

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< FUNCTION DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Auto locking function mode

Panic alarm operation mode

Back door open operation mode

Keyless power window down operation mode

DATA MONITOR

ACTIVE TEST

HEADLAMP

MODE  1

MODE  2

MODE  3

Auto locking function

5 minutes

Nothing

1 minute

MODE  1

MODE  2

MODE  3

Keyfob operation

0.5 seconds

Nothing

1.5 seconds

MODE  1

MODE  2

MODE  3

Keyfob operation

0.5 seconds

Nothing

0.5 seconds

MODE 1

MODE 2

MODE 3

Keyfob operation

3 seconds

Nothing

5 seconds

Monitored Item

Description

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEYLESS PANIC

Indicates [ON/OFF] condition of panic signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder switch.

KEY CYL UN-SW

Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from lock/unlock switch.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

RKE LCK-UNLCK

Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.

RKE KEEP UNLK

Indicates [ON/OFF] condition of unlock signal from keyfob.

Test Item

Description

FLASHER

This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-III screen is touched and the left hazard lamp turns on when "LH" on CON-
SULT-III screen is touched.

POWER WINDOW DOWN

This test is able to check power window down operation. The windows are lowered when “ON” on
CONSULT-III screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

DOOR LOCK

This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-III screen touched.

BCS-22

< FUNCTION DIAGNOSIS >

[BCM]

DIAGNOSIS SYSTEM (BCM)

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000005146401

WORK SUPPORT

*: Initial setting

DATA MONITOR

ACTIVE TEST

Work Item

Setting item

Setting

BATTERY SAVER SET

ON*

With the exterior lamp battery saver function

OFF

Without the exterior lamp battery saver function

CUSTOM A/LIGHT SET-
TING

MODE1*

Normal

MODE2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

ILL DELAY SET

MODE1*

45 sec.

Sets delay timer function timer operation time
(All doors closed)

MODE2

Without the func-
tion

MODE3

30 sec.

MODE4

60 sec.

MODE5

90 sec.

MODE6

120 sec.

MODE7

150 sec.

MODE8

180 sec.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC ON SW [ON/OFF]

Ignition switch (ACC) status judged from ACC signal (accessory power supply)

HI BEAM SW [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

HEAD LAMP SW 1 [ON/OFF]

HEAD LAMP SW 2 [ON/OFF]

LIGHT SW 1ST [ON/OFF]

AUTO LIGHT SW [ON/OFF]

PASSING SW [ON/OFF]

FR FOG SW [ON/OFF]

TURN SIGNAL R [ON/OFF]

TURN SIGNAL L [ON/OFF]

DOOR SW-DR [ON/OFF]

The switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

The switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

The switch status input from rear door switch RH

DOOR SW-RL [ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW [ON/OFF]

The switch status input from back door switch

CARGO LAMP SW [ON/OFF]

Cargo lamp status that BCM judges from the vehicle condition

OPTICAL SENSOR [ON/OFF]

The value of exterior brightness voltage input from the optical sensor
