Infiniti QX56 (JA60). Manual - part 96

BCS

INSPECTION AND ADJUSTMENT

BCS-3

< BASIC INSPECTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000005146380

When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before

replacement.

Configuration has three functions as follows

• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.

• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:

• When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-III.

• Complete the procedure of WRITE CONFIGURATION in order.

• If you set incorrect WRITE CONFIGURATION, incidents will occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000005146381

1.

 SAVING VEHICLE SPECIFICATION

Perform “READ CONFIGURATION” with CONSULT-III to save or print current vehicle specification.

>> GO TO 2

2.

 REPLACE BCM

Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

>> GO TO 3

3.

 WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” with

CONSULT-III to write vehicle specification. Refer to

BCS-4, "CONFIGURATION : Special Repair Require-

ment"

.

>> GO TO 4

4.

 INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS)

>> Work End.

CONFIGURATION
CONFIGURATION : Description

INFOID:0000000005146382

Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.

Configuration has three functions as follows

• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.

• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:

BCS-4

< BASIC INSPECTION >

[BCM]

INSPECTION AND ADJUSTMENT

• When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-III.

• Complete the procedure of WRITE CONFIGURATION in order.

• If you set incorrect WRITE CONFIGURATION, incidents will occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

CONFIGURATION : Special Repair Requirement

INFOID:0000000005146383

1.

 WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION” with CONSULT-III.

When writing saved data>>GO TO 2

When writing manually>>GO TO 3

2.

 PERFORM “WRITE CONFIGURATION - CONFIG FILE”

Perform “WRITE CONFIGURATION - Config file” with CONSULT-III.

>> WORK END

3.

 PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

For “WRITE CONFIGURATION - Manual selection”, using the following flow chart, identify the correct model

and configuration list.

Confirm and/or change setting value for each item according to the configuration list.

Depending on CONSULT-III software version being used, some or all of the write configuration items shown in

the following configuration lists may be displayed. If an item does not display on the CONSULT-III “WRITE

CONFIGURATION - Manual selection” screen, then it is an auto setting item and it cannot be manually set or

changed.

NOTE:

Confirm vehicle model. Refer to

GI-20, "Model Variation"

.

>> Work End.

MANUAL SETTING ITEM

Items

Setting value

KEYLESS ENTRY

WITH

⇔WITHOUT

I-KEY

WITH

⇔WITHOUT

DTRL

WITH

⇔WITHOUT

AUTO DOOR UNLOCK TIMING

WITH I-KEY

⇔W/O I-KEY

BCS

BODY CONTROL SYSTEM

BCS-5

< FUNCTION DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUNCTION DIAGNOSIS

BODY CONTROL SYSTEM

System Description

INFOID:0000000005146384

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-

ponents. It also has the signal transmission function as the passed point of signal and the power consump-

tion control function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT-III and various set-

tings.

BCM control function list

System

Refer to

Combination switch reading system

BCS-7, "System Diagram"

Signal buffer system

BCS-12, "System Diagram"

Power consumption control system

BCS-13, "System Diagram"

Auto light system

EXL-11, "System Diagram"

Turn signal and hazard warning lamp system

EXL-15, "System Diagram"

Headlamp system

EXL-14, "System Diagram"

Front fog lamp system

EXL-14, "System Diagram"

Daytime running light system (if equipped)

EXL-9, "System Diagram"

Interior room lamp control system

INL-6, "System Diagram"

Step lamp system

INL-6, "System Diagram"

Interior room lamp battery saver system

INL-6, "System Diagram"

Front wiper and washer system

WW-4, "System Diagram"

Rear wiper and washer system

WW-8, "System Diagram"

Warning chime system

WCS-4, "WARNING CHIME SYSTEM : System Diagram"

Door lock system

DLK-14, "DOOR LOCK AND UNLOCK SWITCH : System Diagram"

(NATS) Nissan anti-theft system

SEC-14, "System Diagram"

Vehicle security system

SEC-18, "System Diagram"

Rear window defogger system

DEF-4, "System Diagram"

Intelligent Key system

SEC-10, "System Diagram"

Power window system

PWC-5, "System Diagram"

RAP (retained accessory power) system

BCS-27, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED
PWR)"

TPMS (tire pressure monitoring system)

BCS-30, "AIR PRESSURE MONITOR : CONSULT-III Function"

BCS-6

< FUNCTION DIAGNOSIS >

[BCM]

BODY CONTROL SYSTEM

Component Parts Location

INFOID:0000000005146385

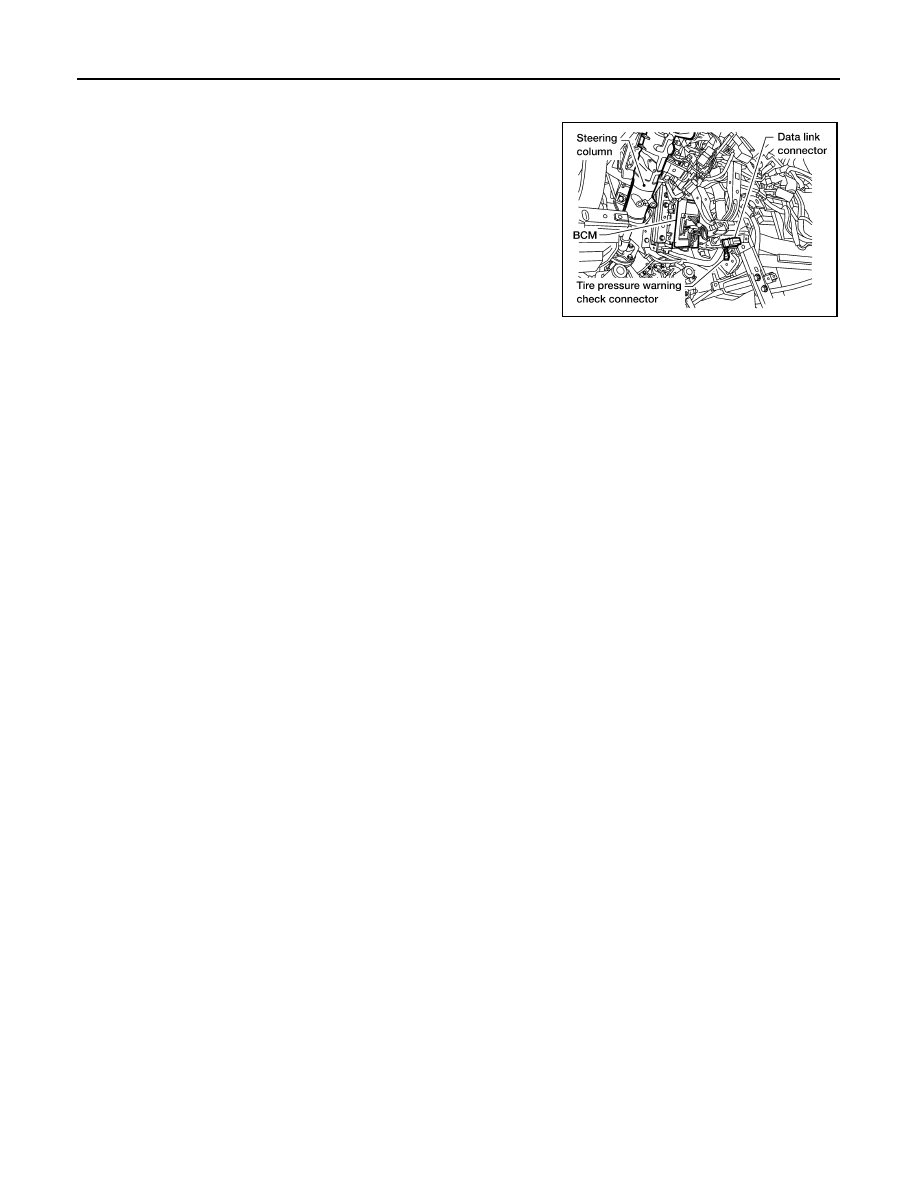

• BCM M18, M19, M20 (view with instrument panel removed)

LEIA0068E
