Infiniti QX56 (JA60). Manual - part 95

AV-188

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000005146374

REMOVAL

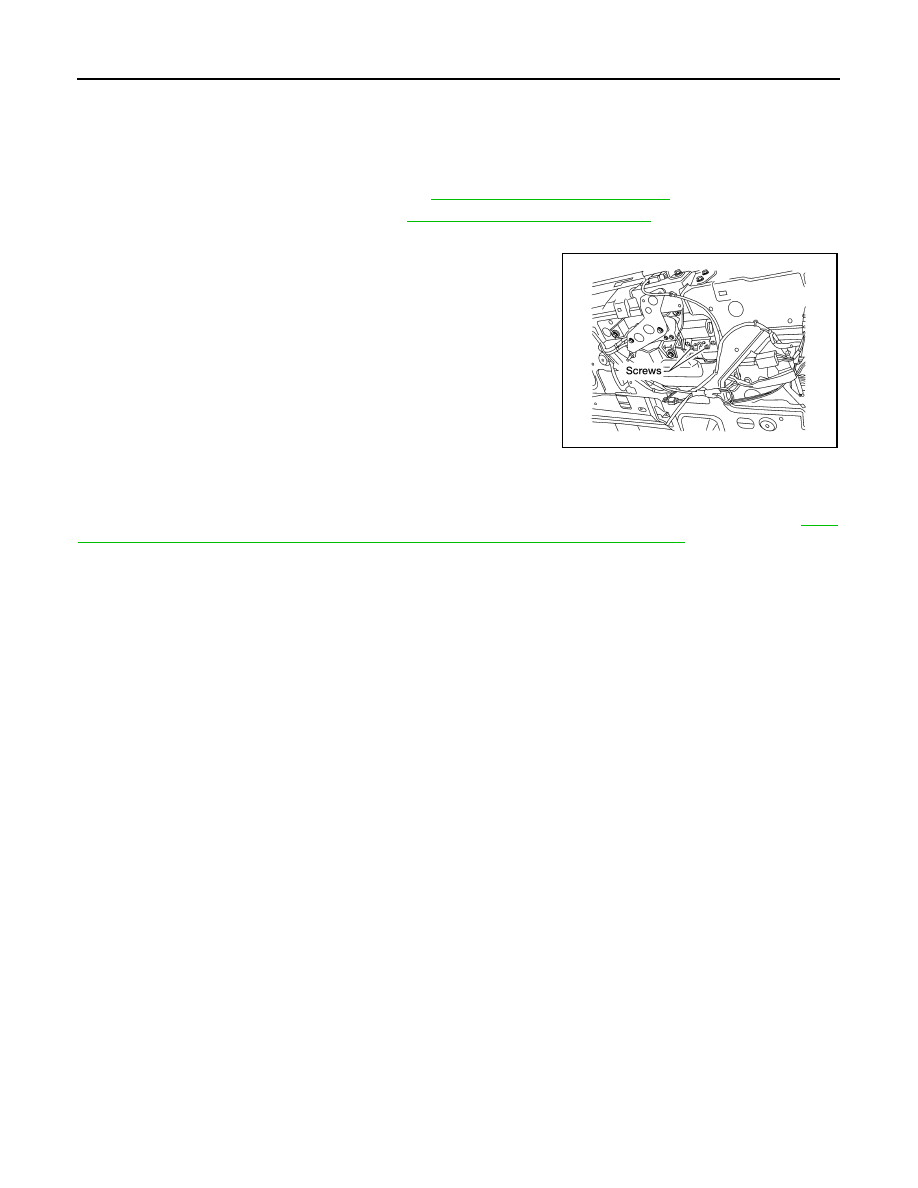

1. Remove the back door lower finisher. Refer to

INT-21, "Removal and Installation"

.

2. Remove the license lamp finisher. Refer to

EXT-24, "Removal and Installation"

.

3. Disconnect the rear view camera connector.
4. Remove the two screws and remove the rear view camera.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installing the rear view camera, perform side distance guideline correction procedure. Refer to

AV-7,

"REAR VIEW MONITOR GUIDING LINE ADJUSTMENT : Special Repair Requirement"

.

LKIA0479E

AV

REAR VIEW CAMERA CONTROL UNIT

AV-189

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000005146375

REMOVAL

1. Remove the luggage side finishers LH. Refer to

INT-19,

"Removal and Installation"

.

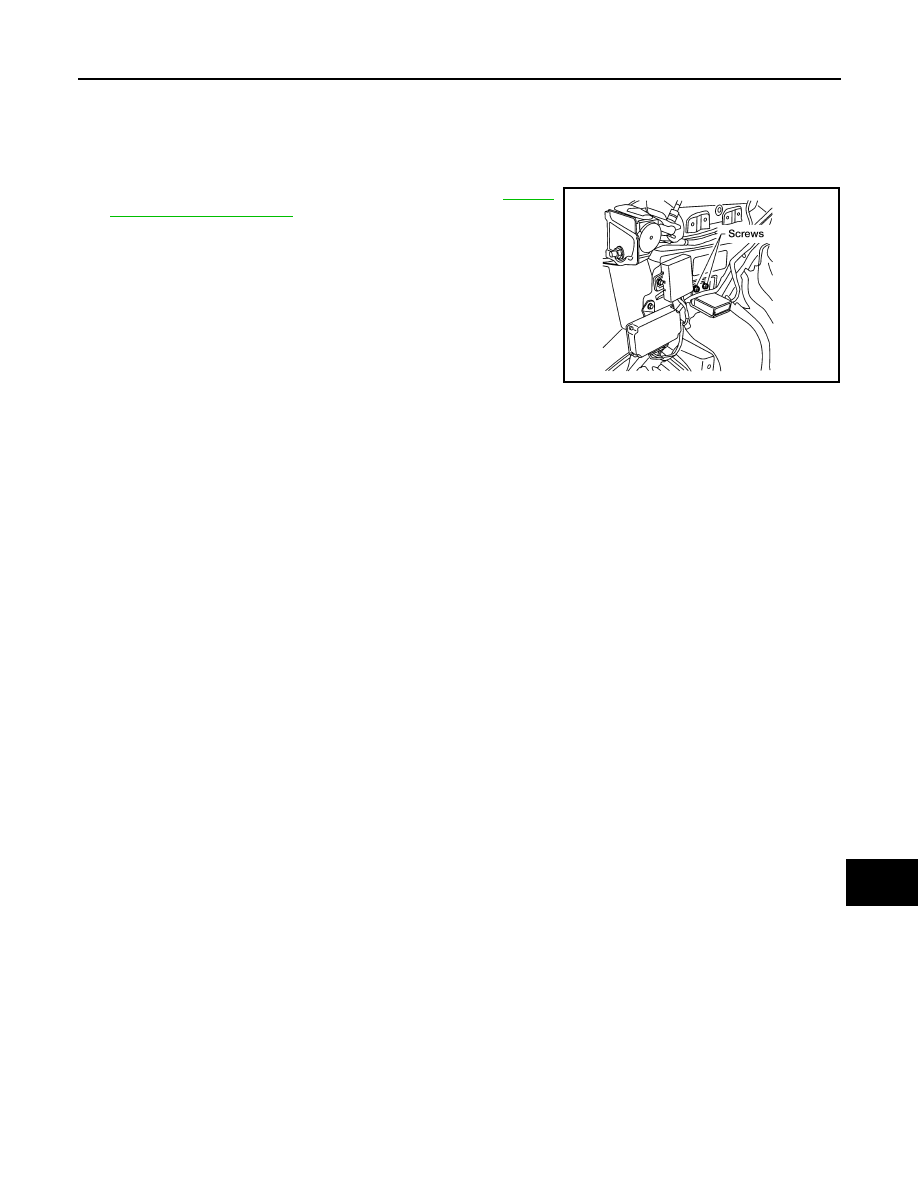

2. Disconnect the rear view camera control unit electrical connec-

tor.

3. Remove the two screws and remove the rear view camera con-

trol unit.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0478E

BCS

BCS-1
