Infiniti QX56 (JA60). Manual - part 94





AV-184

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

AUDIO ANTENNA

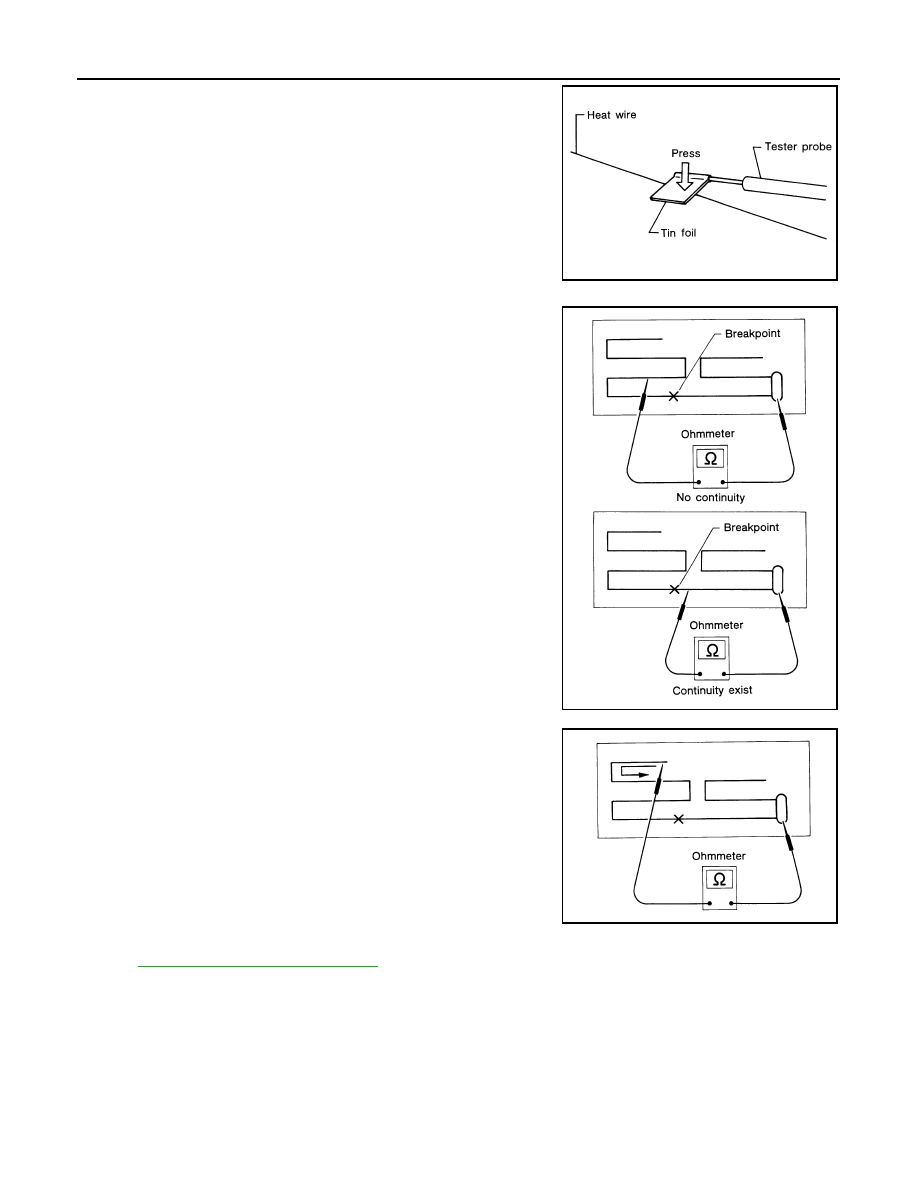

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

AV-183, "Window Antenna Repair"

.

SEL122R

SEL252I

SEL253I

AV

SATELLITE RADIO ANTENNA

AV-185

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000005146371

REMOVAL

1. Lower the front of the headliner. Refer to

INT-17, "Removal and Installation"

.

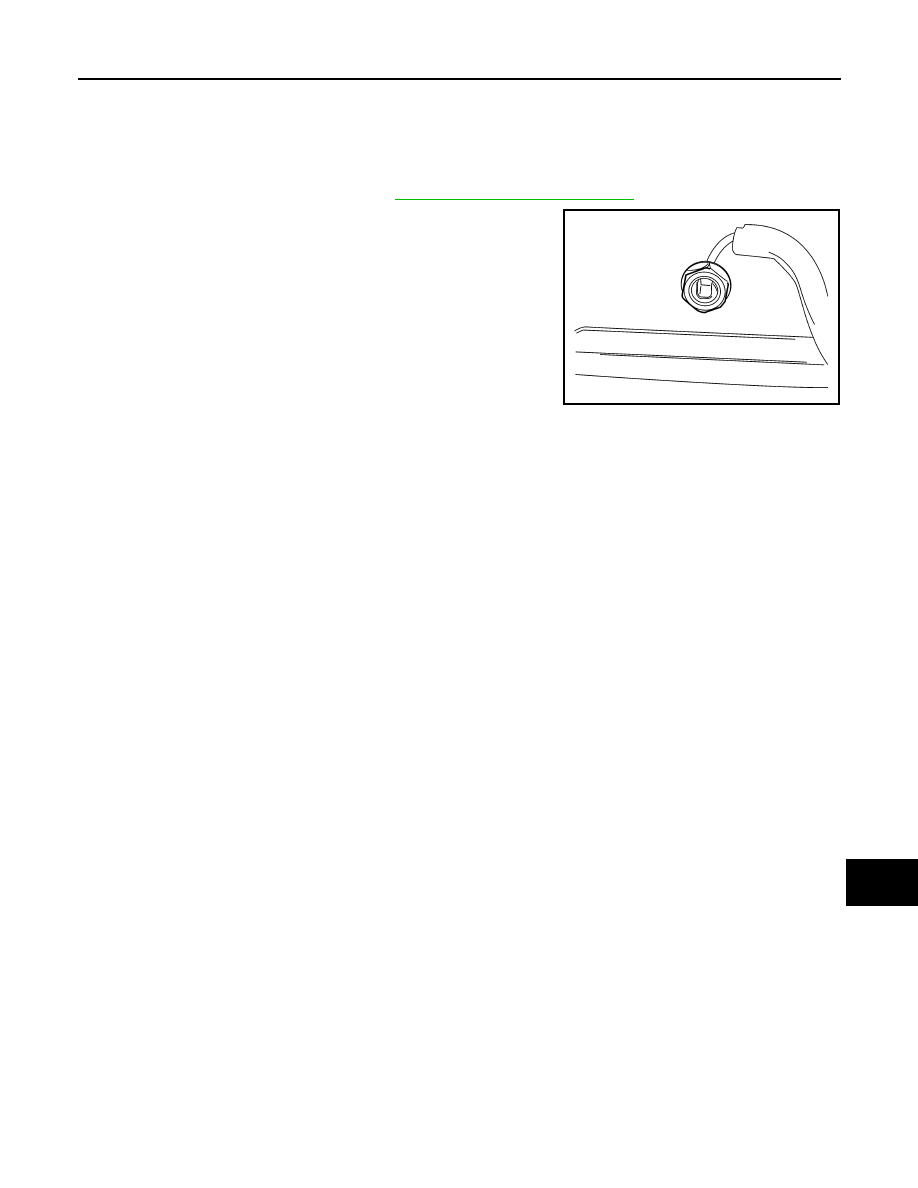

2. Disconnect the satellite radio antenna connector.
3. Remove the satellite radio antenna nut.
4. Remove the satellite radio antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

AV-186

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000005146372

REMOVAL

1. Remove the cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect the center speaker.
3. Remove the defroster grille. Refer to

IP-12, "Removal and Installation"

.

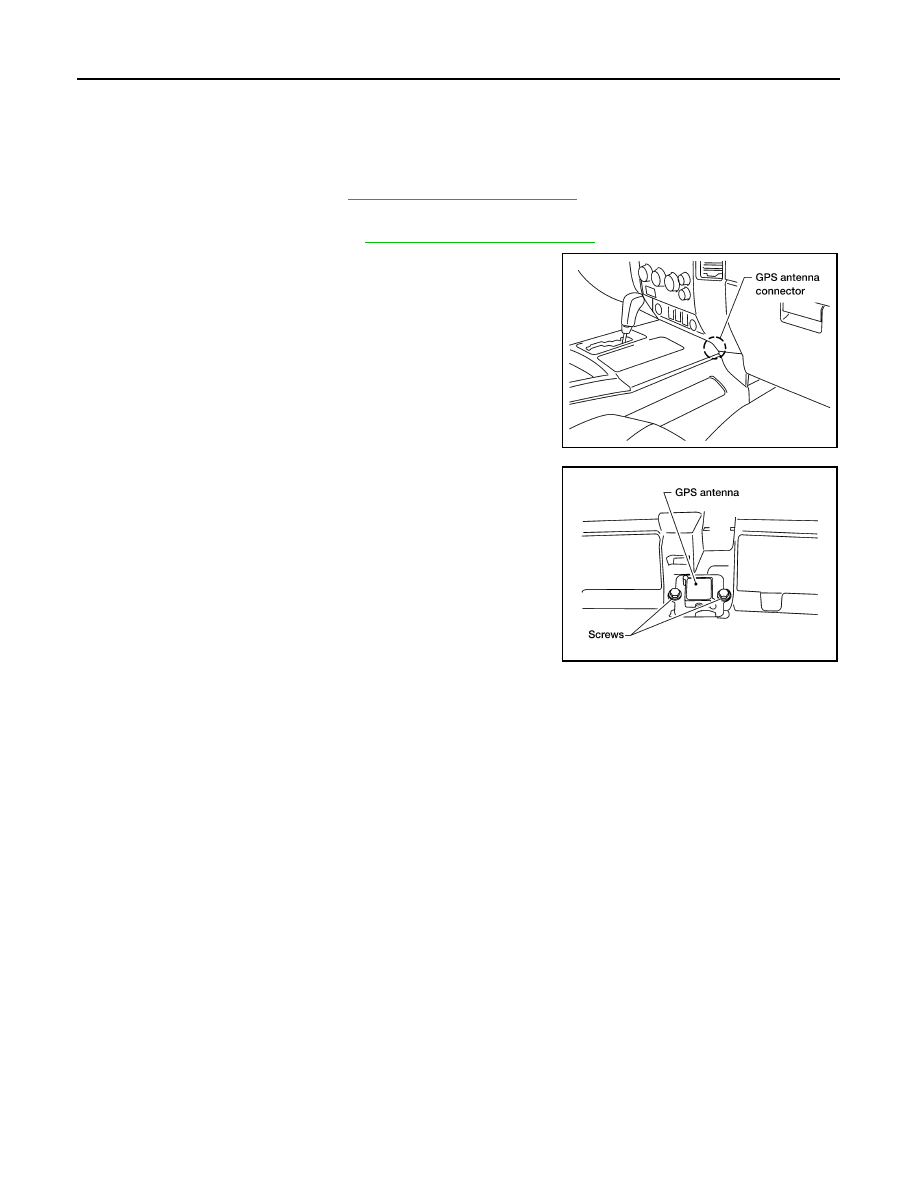

4. Disconnect the GPS antenna connector.

5. Remove the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

WKIA1509E

WKIA1508E

AV

MICROPHONE

AV-187

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000005146373

REMOVAL

1. Remove the front roof console finisher. Refer to

INT-17,

"Removal and Installation"

.

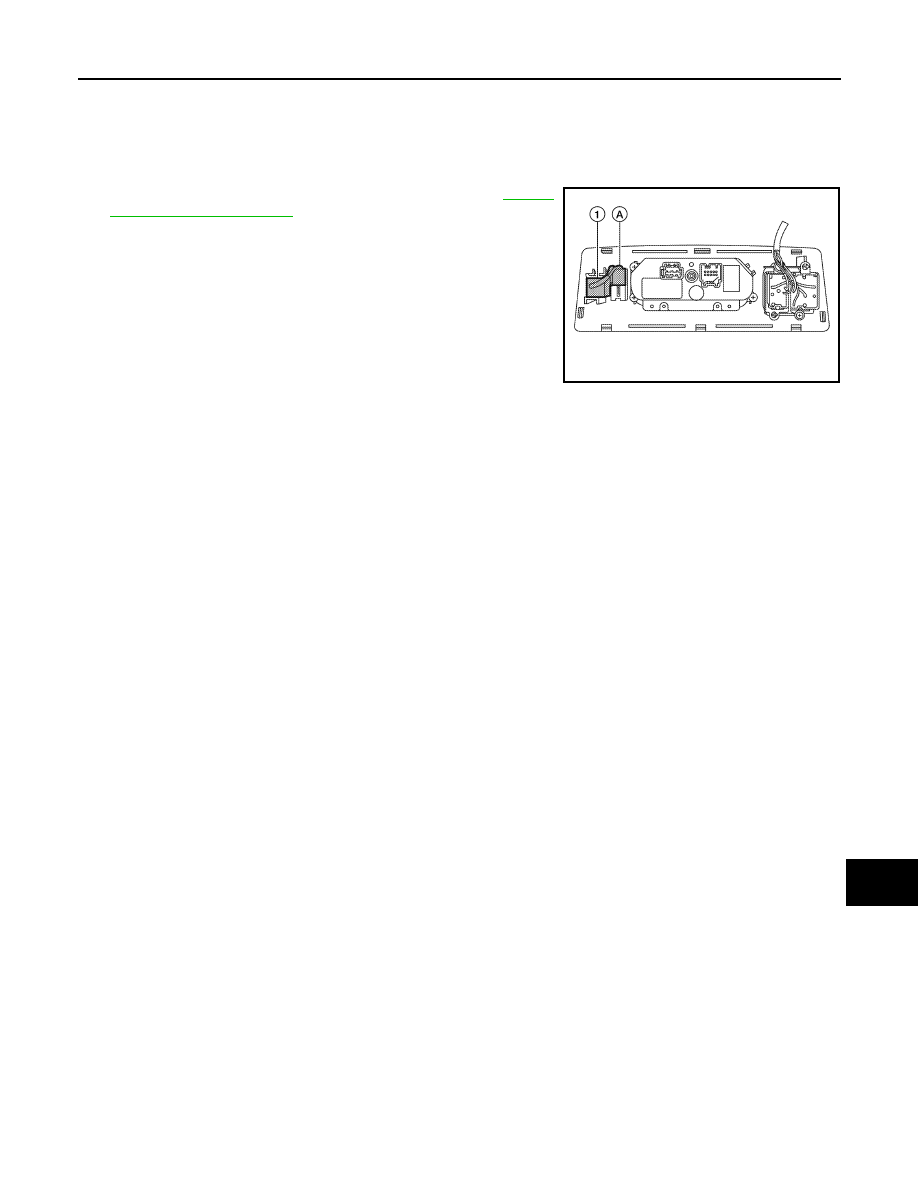

2. Disconnect the Bluetooth microphone connector (A).
3. Detach the Bluetooth microphone (1) from the front roof console

finisher and remove the Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0275ZZ

ALNIA0274ZZ
