Infiniti QX56 (JA60). Manual - part 93

AV-180

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

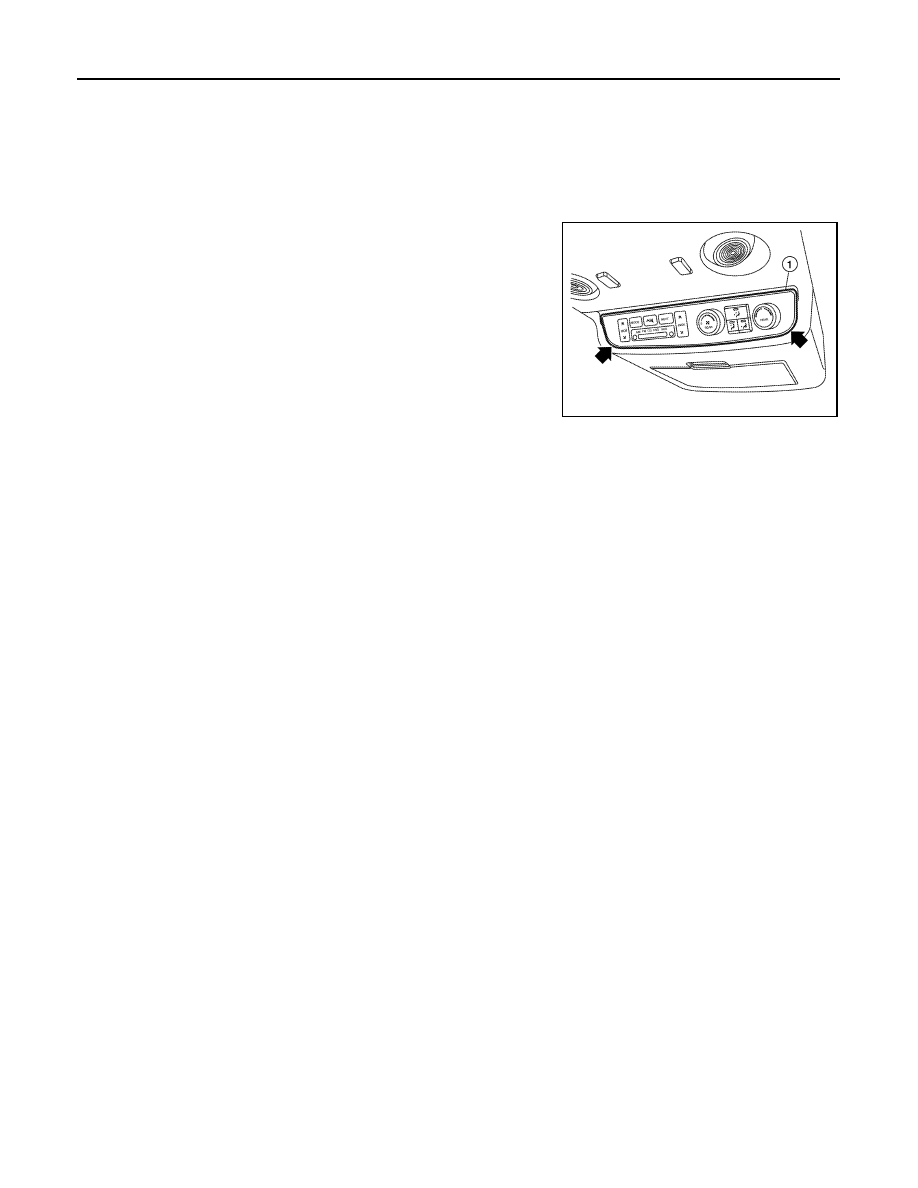

REAR AUDIO REMOTE CONTROL UNIT

REAR AUDIO REMOTE CONTROL UNIT

Removal and Installation

INFOID:0000000005146366

REMOVAL

CAUTION:

Wrap removal tool with clean shop cloth to prevent damage to the headliner.
1. Carefully remove the rear audio remote control unit from the rear

roof console assembly (1).

2. Disconnect connectors and remove the rear audio remote con-

trol unit.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0276ZZ

AV

DVD ENTERTAINMENT SYSTEM

AV-181

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

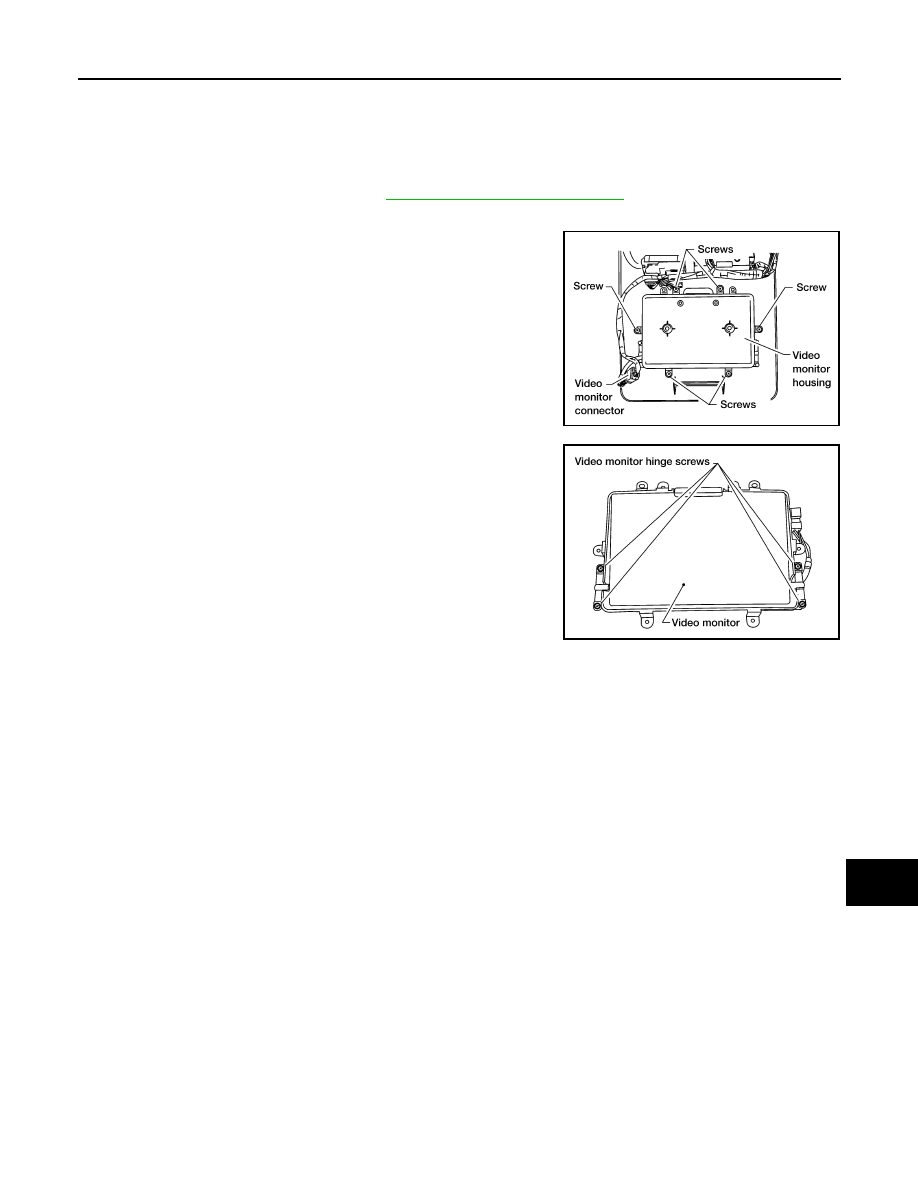

DVD ENTERTAINMENT SYSTEM

Removal and Installation

INFOID:0000000005146367

REMOVAL

1. Remove the rear roof console. Refer to

INT-17, "Removal and Installation"

.

2. Disconnect the video monitor connector.
3. Remove the video monitor housing.

4. Remove the video monitor hinge screws.
5. Remove the video monitor.

INSTALLATION

Installation is in reverse order of removal.

WKIA1502E

WKIA1219E

AV-182

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

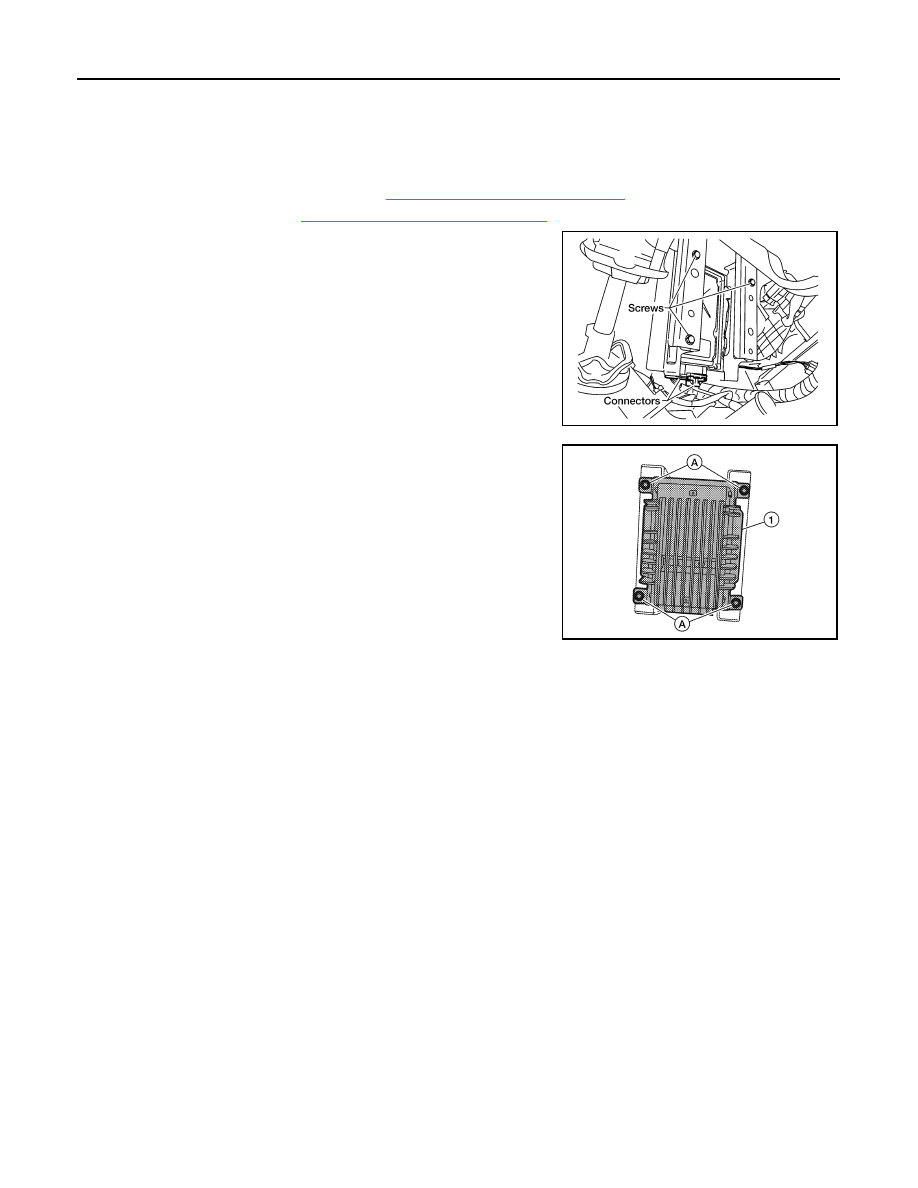

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000005146368

REMOVAL

1. Remove the accelerator pedal. Refer to

ACC-4, "Removal and Installation"

.

2. Remove the BCM. Refer to

BCS-59, "Removal and Installation"

.

3. Disconnect the BOSE speaker amp. connectors.
4. Remove the BOSE speaker amp. and bracket assembly screws

and slide the BOSE speaker amp. bracket assembly down.

5. Remove the BOSE speaker amp. screws (A). then remove the

BOSE speaker amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

WKIA1605E

ALNIA0268ZZ

AV

AUDIO ANTENNA

AV-183

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

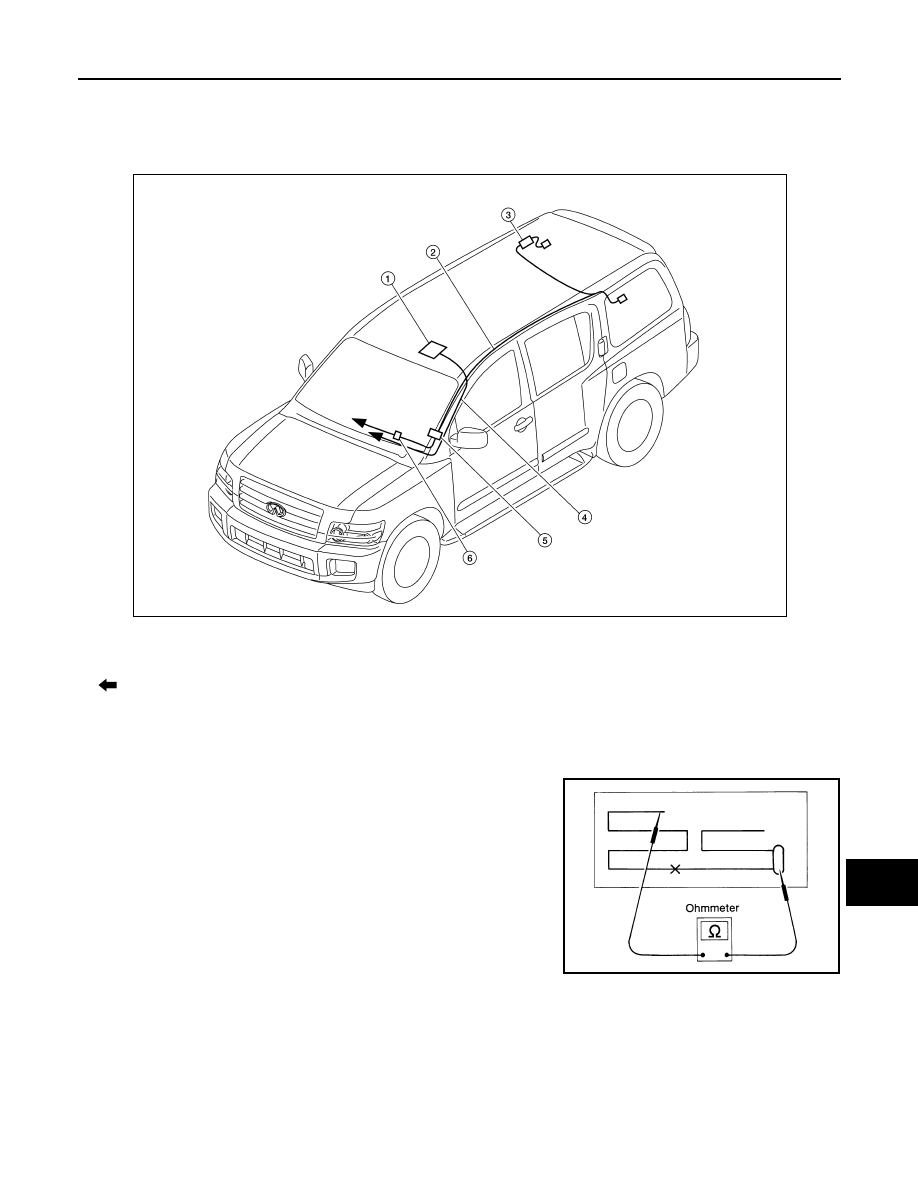

AUDIO ANTENNA

Location of Antennas

INFOID:0000000005146369

Window Antenna Repair

INFOID:0000000005146370

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Satellite antenna

2.

Antenna Feeder

3.

Antenna amp M602

4.

Satellite antenna feeder

5.

M551, M601

6.

M78, M550

To AV control unit

AWNIA1556ZZ

SEL250I
