[AUDIO SYSTEM]

BACK DOOR SPEAKER

BACK DOOR SPEAKER

Removal and Installation

INFOID:0000000005146362

REMOVAL

1. Remove the back door lower finisher. Refer to

INT-21, "Removal and Installation"

.

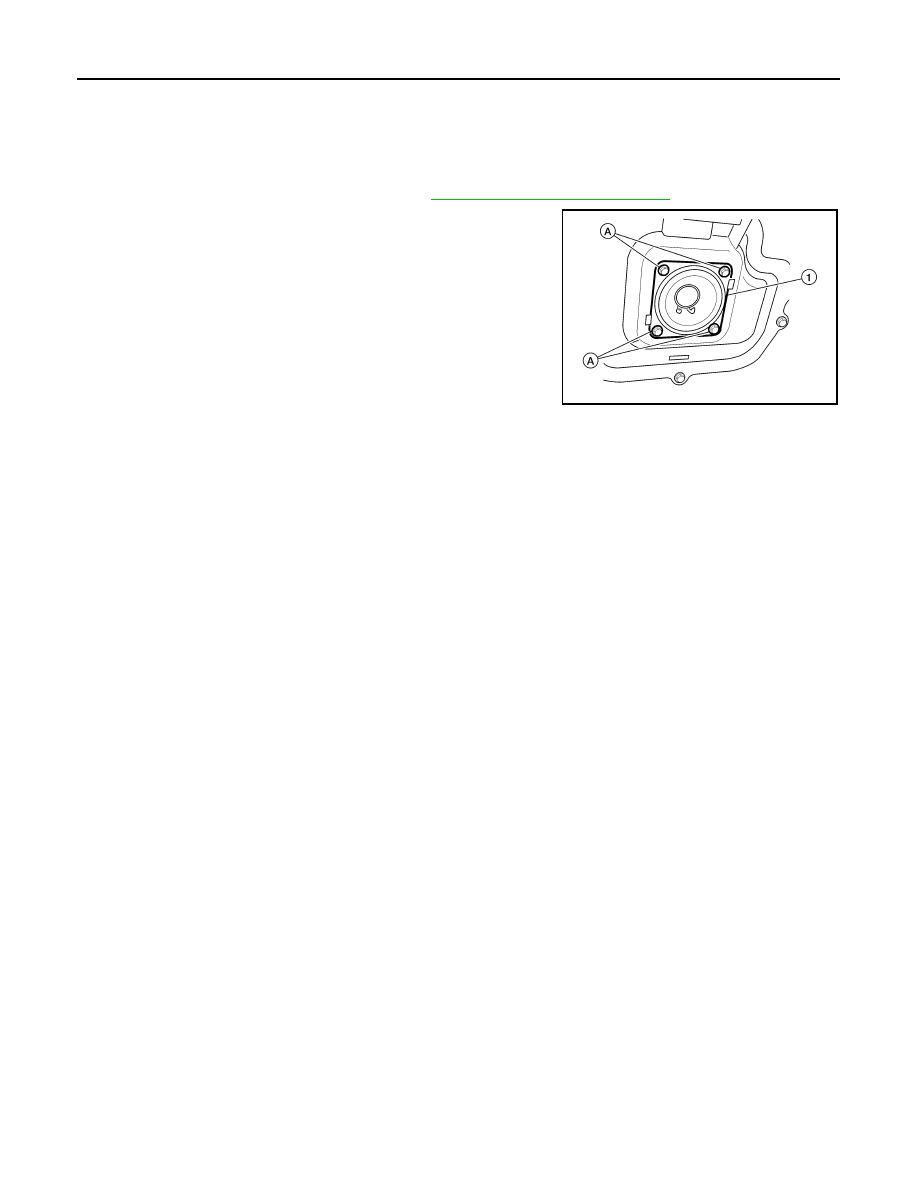

2. Remove the back door speaker screws (A).
3. Pull out the back door speaker (1), disconnect the back door

speaker connector and remove the back door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0421ZZ

AV

SUBWOOFER

AV-177

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000005146363

SUBWOOFER (BOSE SYSTEM)

Removal

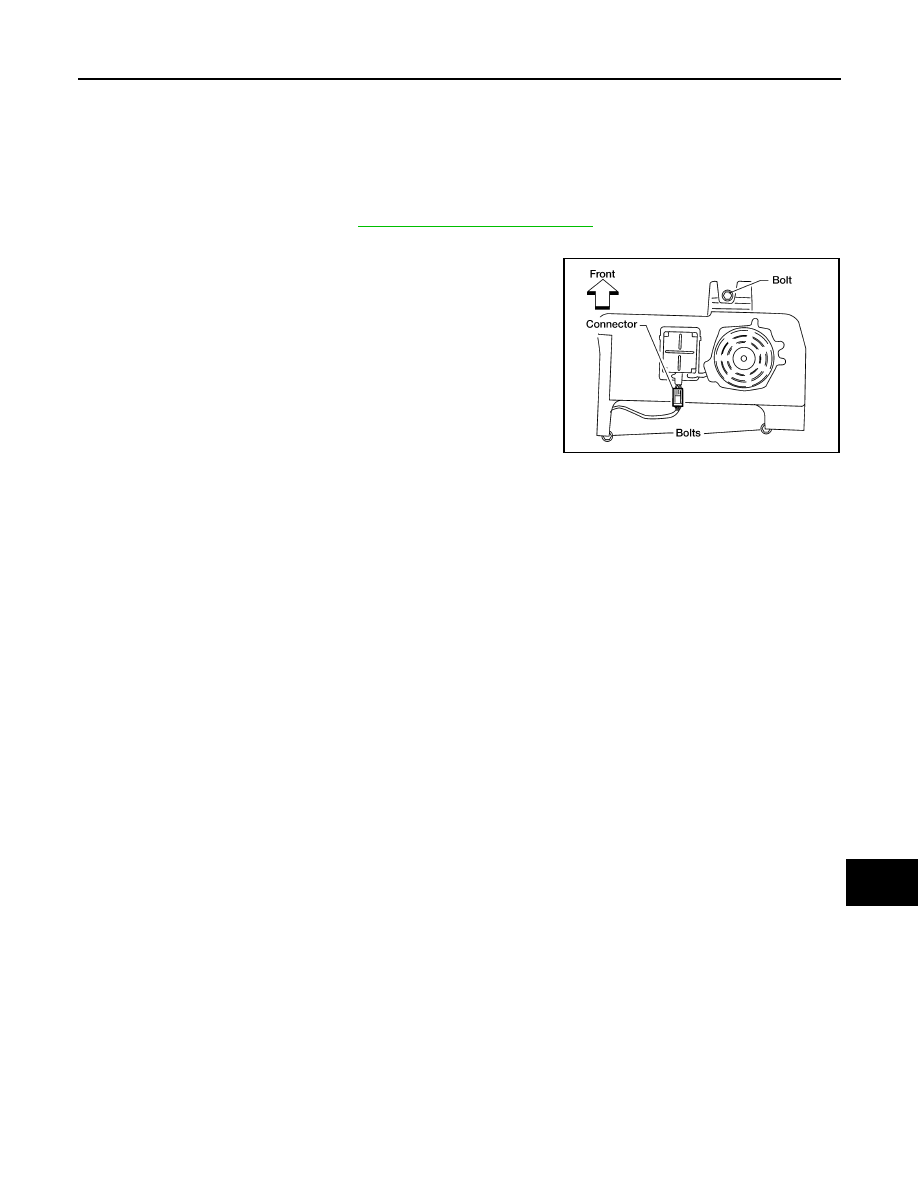

1. Remove the front seat LH. Refer to

SE-51, "Removal and Installation"

.

2. Disconnect the subwoofer connector.
3. Remove the subwoofer bolts.
4. Remove the subwoofer.

Installation

Installation is in the reverse order of removal.

WKIA1496E

AV-178

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

DVD PLAYER

DVD PLAYER

Removal and Installation

INFOID:0000000005146364

REMOVAL

1. Remove the center console bin. Refer to

IP-20, "Removal and Installation"

.

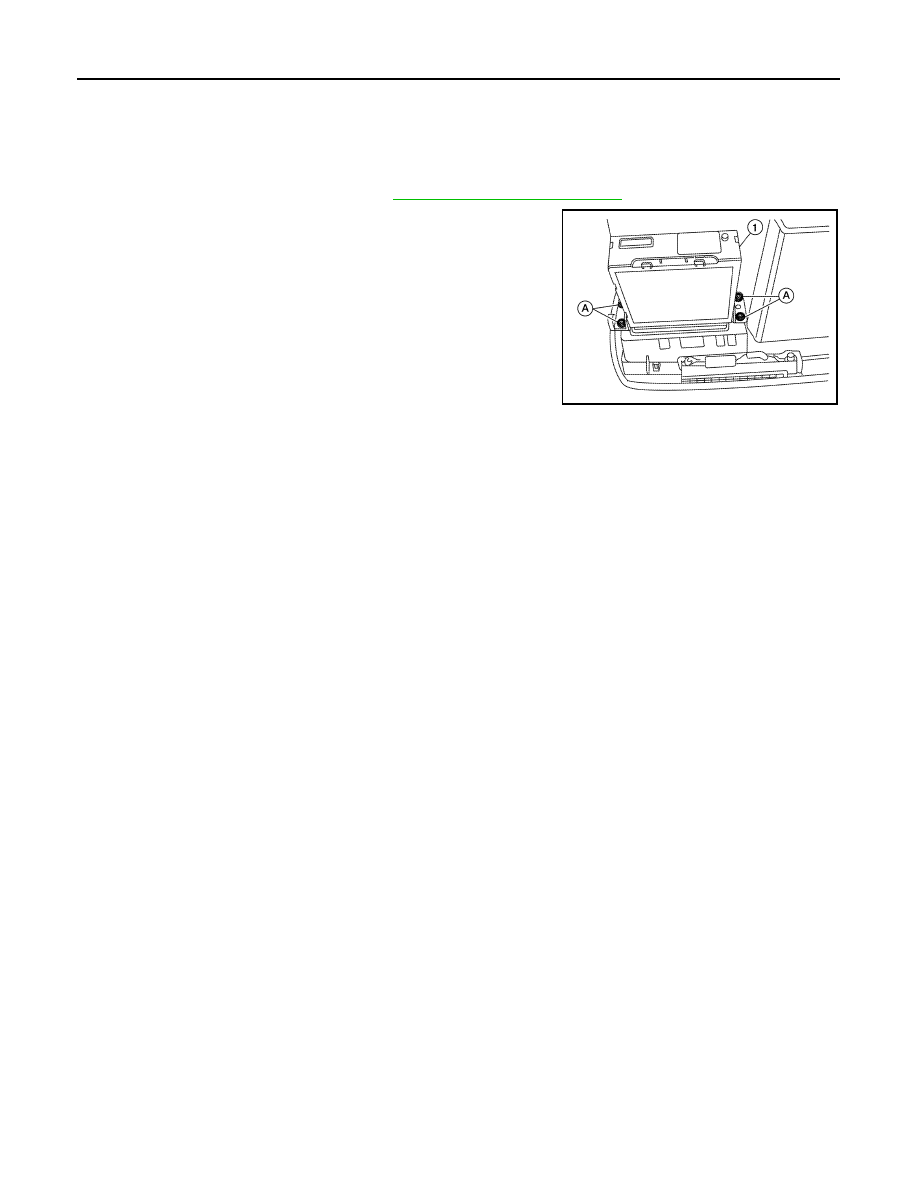

2. Remove the DVD player screws (A) and remove the DVD player

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0271ZZ

AV

STEERING SWITCH

AV-179

< ON-VEHICLE REPAIR >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000005146365

REMOVAL

1. Remove the steering wheel. Refer to

ST-18, "Removal and Installation"

.

2. Remove the steering wheel rear cover.
3. Pull the steering wheel audio control switch out of the steering wheel, disconnect the steering wheel audio

control switch connector.

4. Remove the steering wheel audio control switch finisher screws and remove the steering wheel audio

control switch finisher.

INSTALLATION

Installation is in the reverse order of removal.

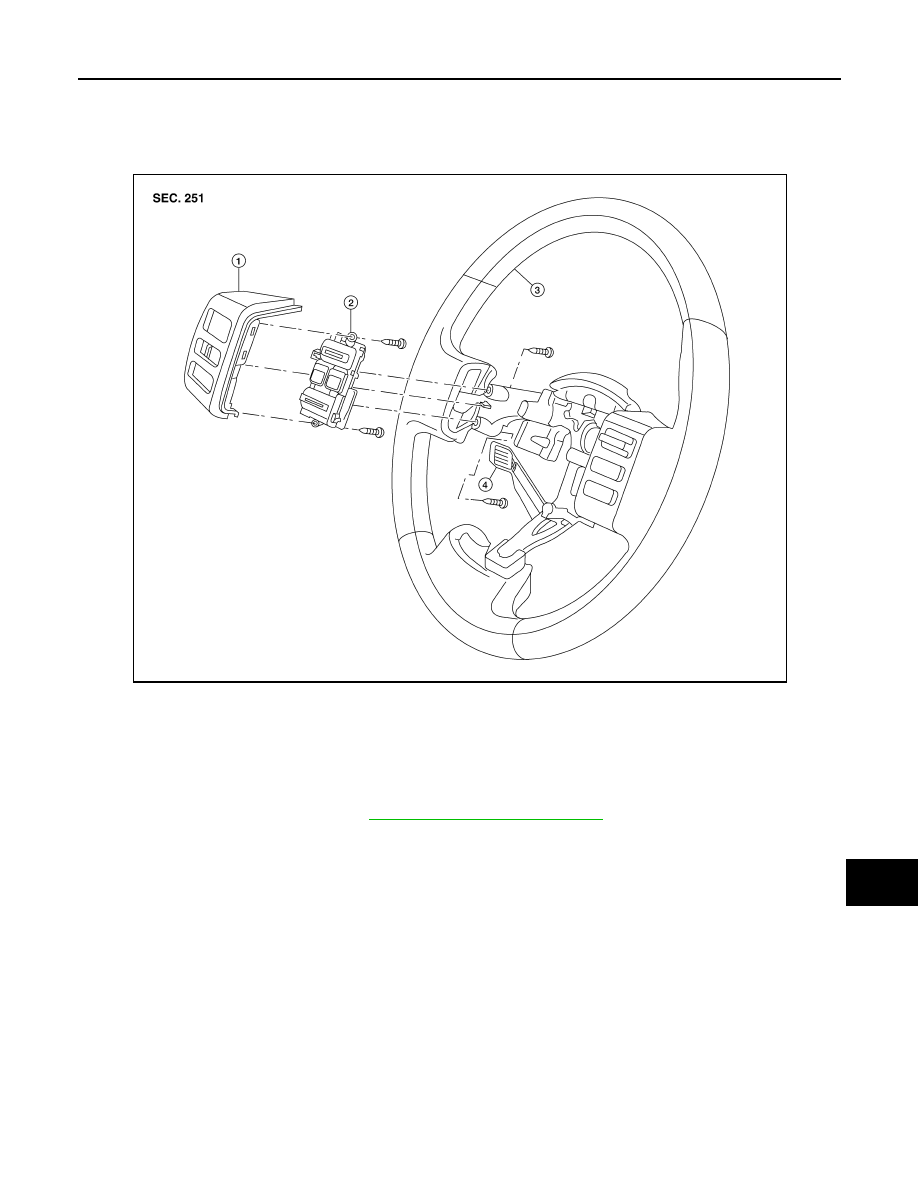

1.

Steering wheel audio control switch
finisher

2.

Steering wheel audio control switch

3.

Steering wheel

4.

Steering wheel audio control switch
connector

ALNIA0270ZZ
