REAR DOOR TWEETER

REAR DOOR TWEETER

Description

INFOID:0000000005146333

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the rear tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000005146334

Regarding Wiring Diagram information, refer to

AV-116, "Wiring Diagram"

.

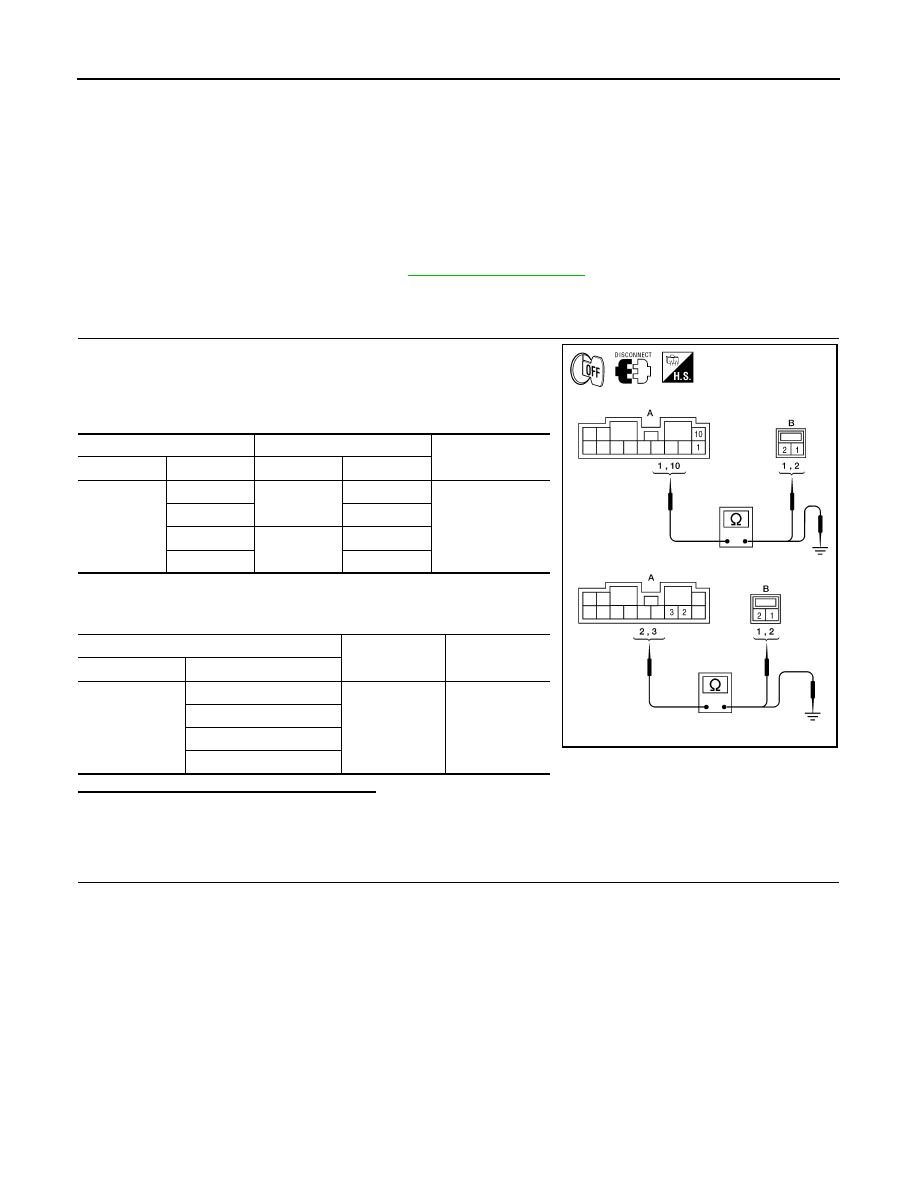

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors M112 and suspect

tweeter connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors M112 (A) and  suspect tweeter harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors M112 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

REAR TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

M112

1

D207

1

Yes

10

2

2

D307

1

3

2

A

—

Continuity

Connector

Terminal

M112

1

Ground

No

10

2

3

ALNIA0352GB

AV

REAR DOOR TWEETER

AV-97

< COMPONENT DIAGNOSIS >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

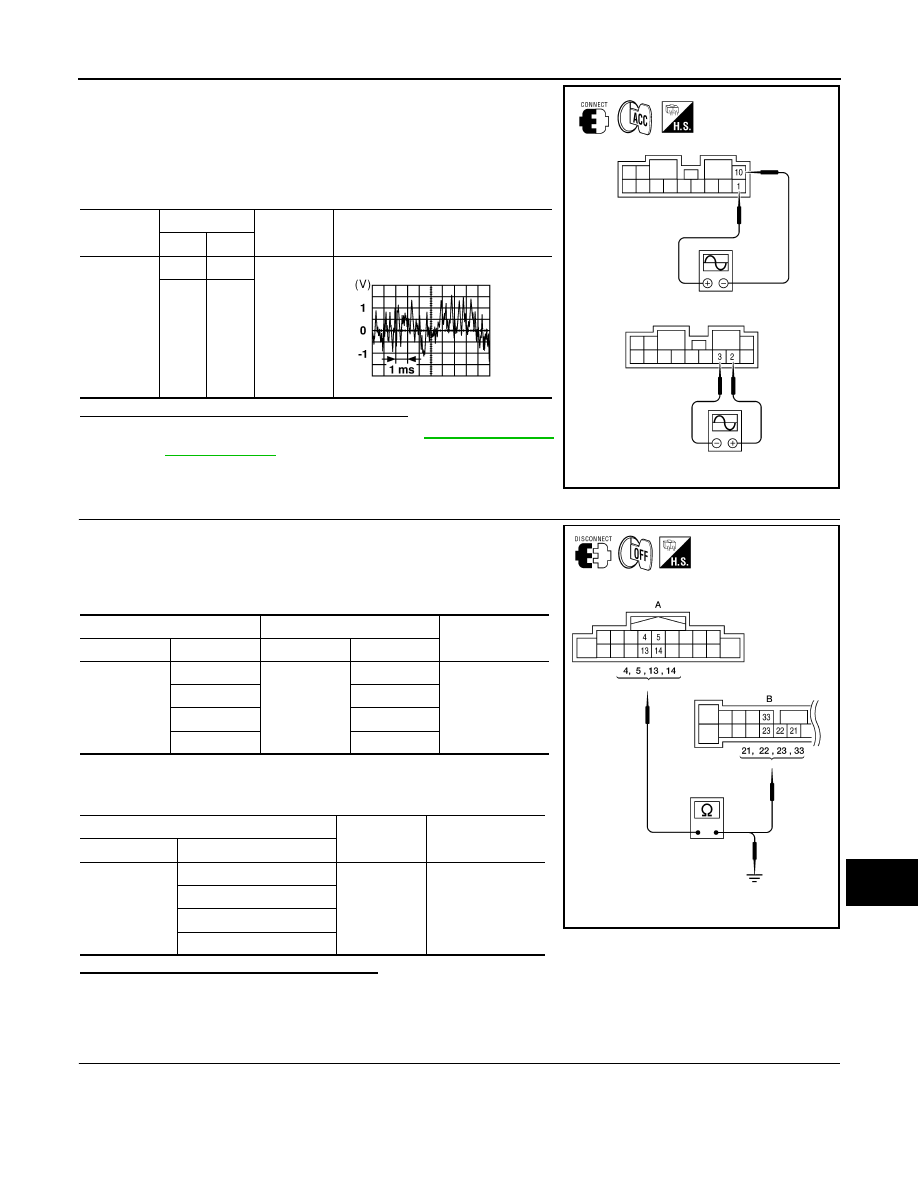

1. Connect BOSE speaker amp. connectors and suspect tweeter

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tors M112 terminals with CONSULT-III or oscilloscope.

Are audio signal voltage readings as specified?

YES

>> Replace suspect tweeter. Refer to

AV-172, "Removal

and Installation"

.

NO

>> GO TO 3.

3.

HARNESS CHECK

1. Disconnect AV control unit connector M42 and BOSE speaker

amp. connector M113.

2. Check continuity between AV control unit harness connector

M42 (A) and BOSE speaker amp. harness connector M113 (B).

3. Check continuity between AV control unit harness connector

M42 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 4.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

REAR DOOR SPEAKER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M112

1

10

Receive
audio sig-
nal

2

3

ALNIA0843GB

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M42

4

M113

21

Yes

5

22

13

23

14

33

A

—

Continuity

Connector

Terminal

M42

4

Ground

No

5

13

14

ALNIA0418GB

AV-98

< COMPONENT DIAGNOSIS >

[AUDIO SYSTEM]

REAR DOOR TWEETER

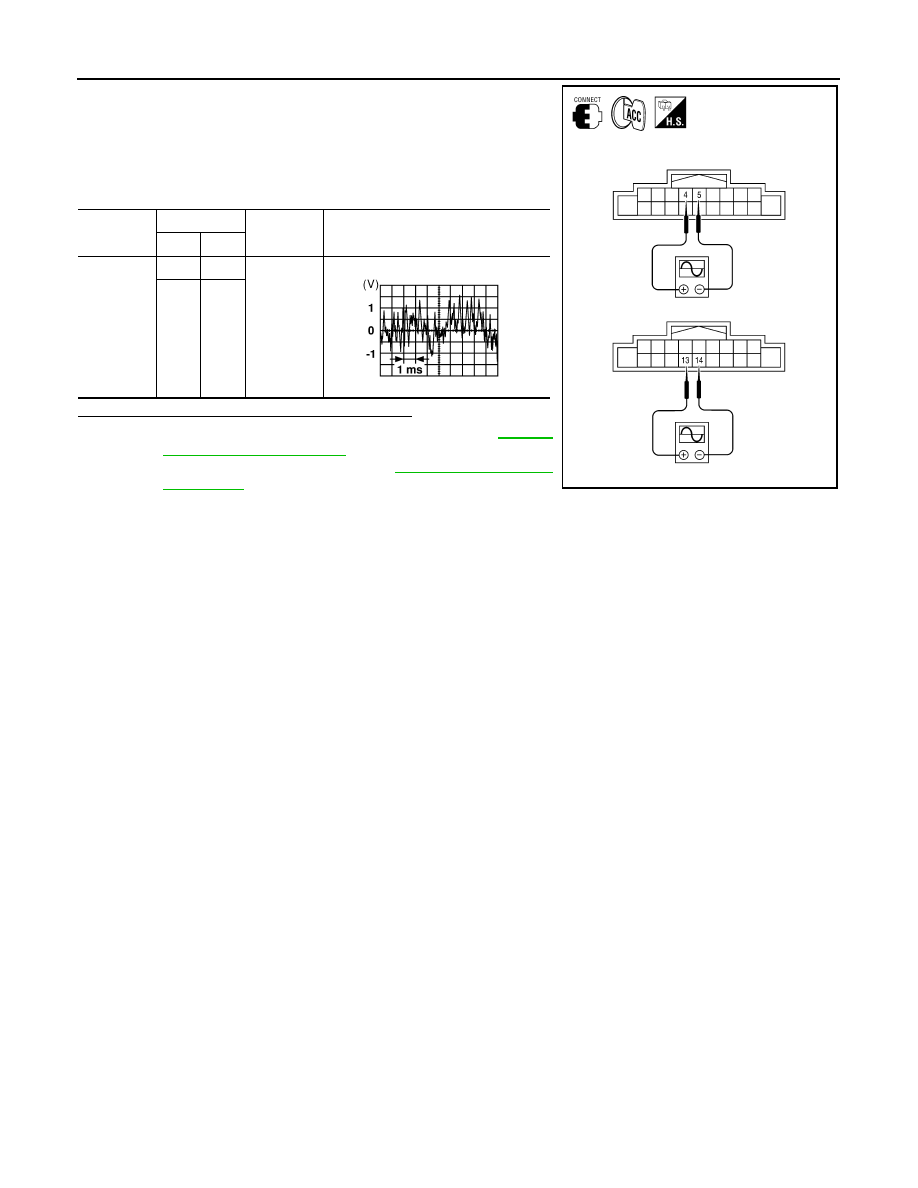

1. Connect AV control unit connector M42 and BOSE speaker

amp. connector M113.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector

M42 terminals with CONSULT-III or oscilloscope.

Is the audio signal voltage reading as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-182,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-169, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M42

4

5

Receive
audio sig-
nal

13

14

ALNIA0419GB

SKIA0177E

AV

BACK DOOR SPEAKER

AV-99

< COMPONENT DIAGNOSIS >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BACK DOOR SPEAKER

Description

INFOID:0000000005146335

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the back door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000005146336

Regarding Wiring Diagram information, refer to

AV-116, "Wiring Diagram"

.

1.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connectors and suspect

speaker connector.

2. Check continuity between BOSE speaker amp. harness connec-

tors M112 and M113 (A) and  suspect speaker harness connec-

tor (B).

3. Check continuity between BOSE speaker amp. harness connec-

tors M112 and M113 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

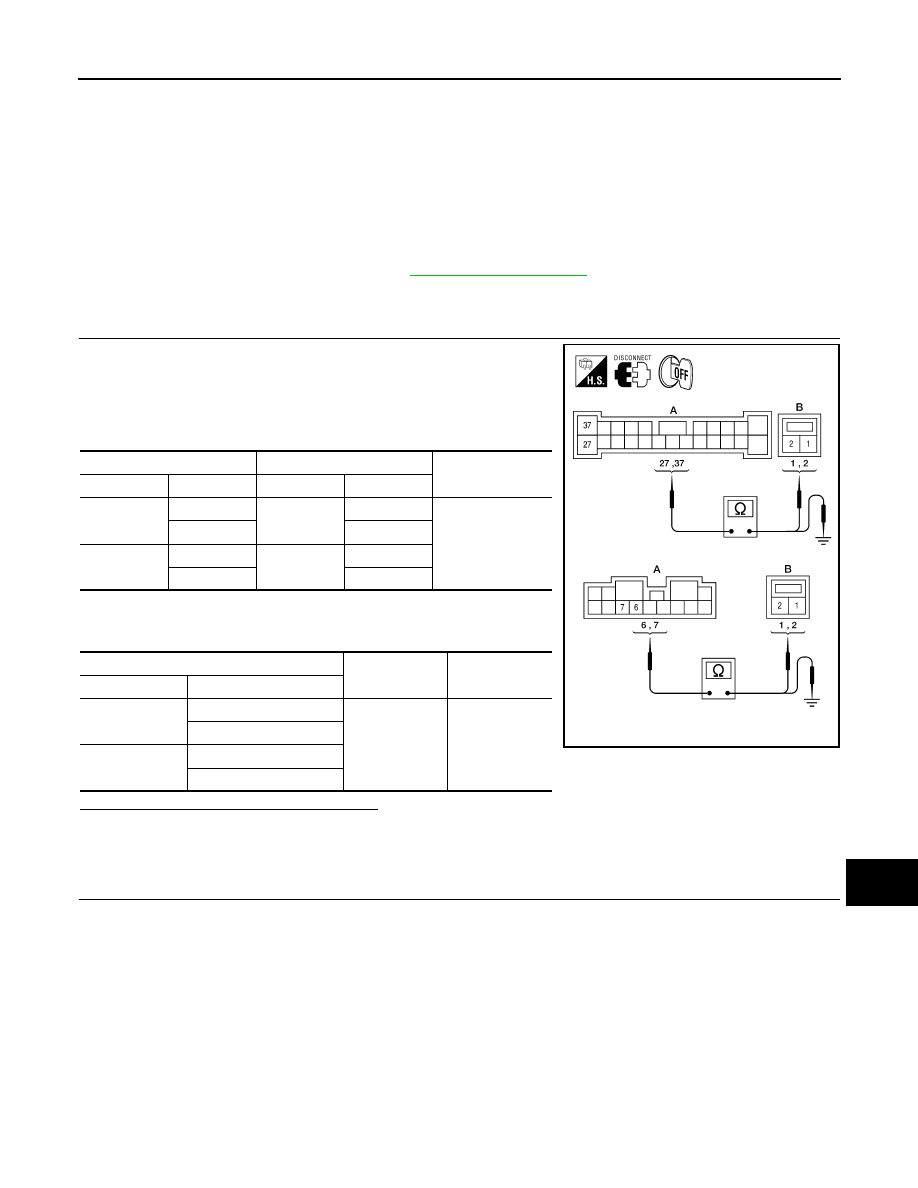

BACK DOOR SPEAKER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

M112

6

D518

1

Yes

7

2

M113

37

D716

1

27

2

A

—

Continuity

Connector

Terminal

M112

6

Ground

No

7

M113

27

37

ALNIA0663GB
