AV-8

< BASIC INSPECTION >

[AUDIO SYSTEM]

INSPECTION AND ADJUSTMENT

11. Touch “END” to finish correcting.

AV

AUDIO SYSTEM

AV-9

< FUNCTION DIAGNOSIS >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

AUDIO SYSTEM

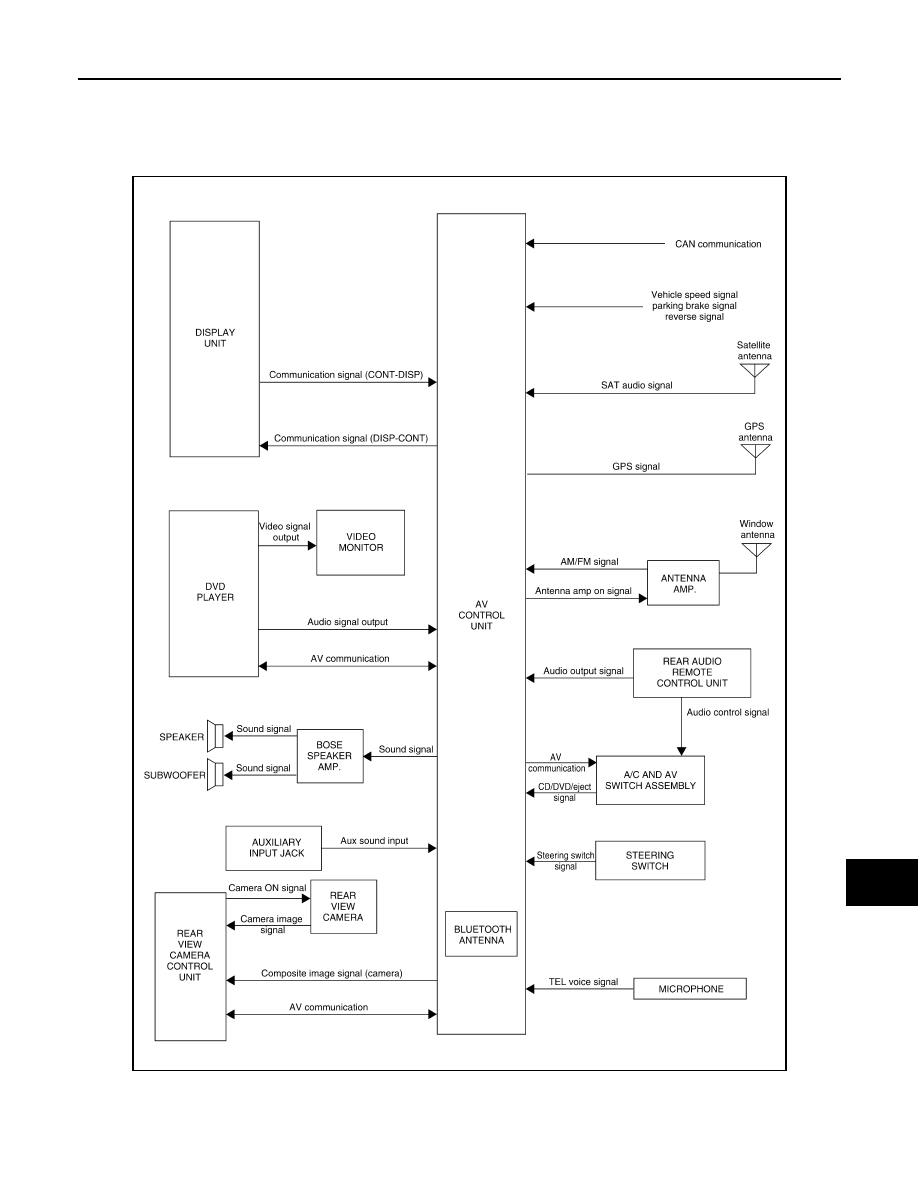

System Diagram

INFOID:0000000005146222

System Description

INFOID:0000000005146223

AUDIO SYSTEM

AWNIA1867GB

AV-10

< FUNCTION DIAGNOSIS >

[AUDIO SYSTEM]

AUDIO SYSTEM

The audio system consists of the following components

• AV control unit

• Display unit

• BOSE speaker amp.

• Window antenna

• Steering wheel audio control switches

• A/C and AV switch assembly

• Rear audio remote control unit

• Front door speakers

• Front tweeters

• Center speaker

• Rear door speakers

• Rear door tweeters

• Back door speakers

• Subwoofer

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before

sending them to the front door speakers, front tweeters, center speaker, rear door speakers, rear door tweet-

ers, back door speakers and the subwoofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• AV control unit

When the satellite radio system is on, radio signals are supplied to the AV control unit from the satellite

antenna. The AV control unit then sends audio signals to the BOSE speaker amp.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV

AUDIO SYSTEM

AV-11

< FUNCTION DIAGNOSIS >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

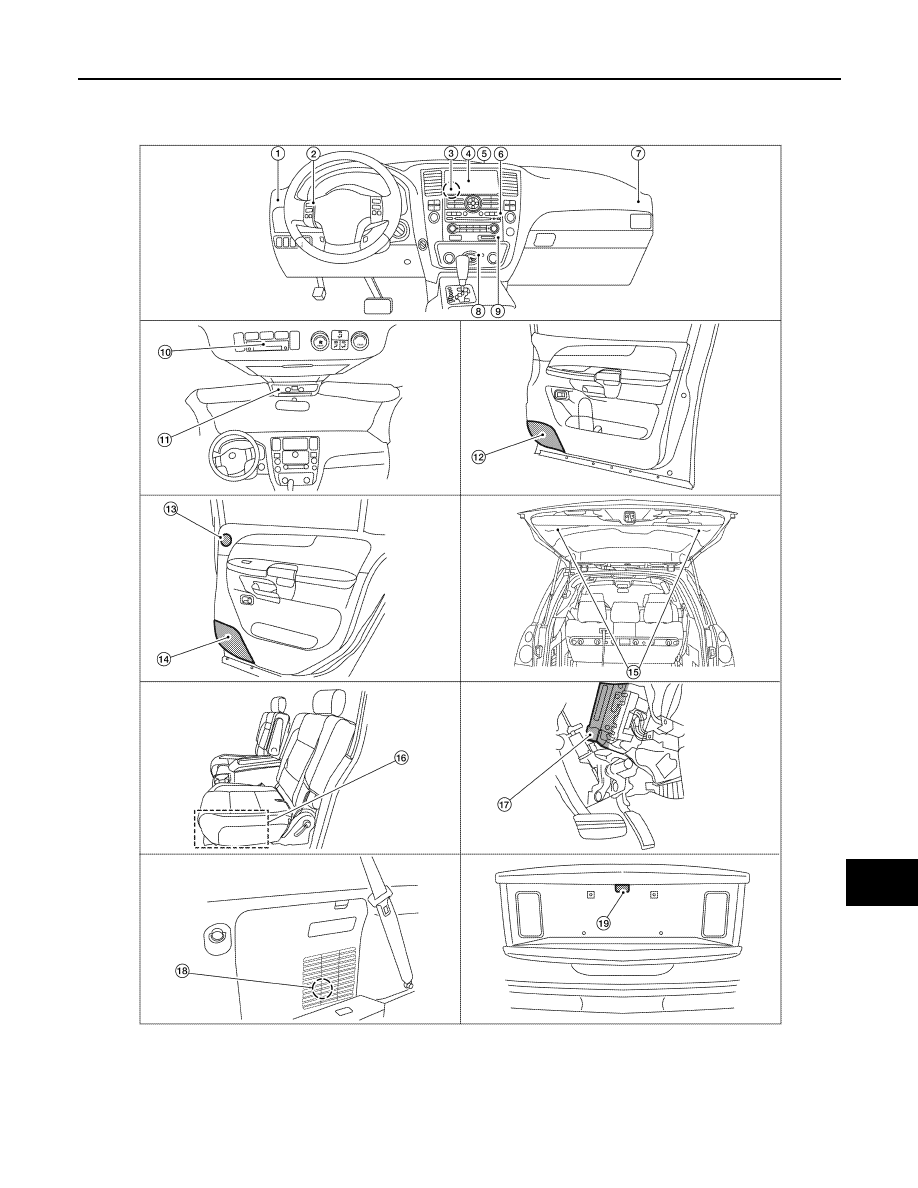

Component Parts Location

INFOID:0000000005146224

1.

Front tweeter LH M109

2.

Steering wheel audio control switch-
es

3.

AV control unit M42, M43, M44, M45,
M97, M124, M125

4.

Display unit M93

5.

Center speaker M110

6.

A/C and AV switch assembly M98

7.

Front tweeter RH M111

8.

Aux jack M104

9.

Compact Flash insert slot

ALNIA0845ZZ
