Infiniti QX56 (JA60). Manual - part 36





AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ADP-135

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Reference Value

INFOID:0000000005147580

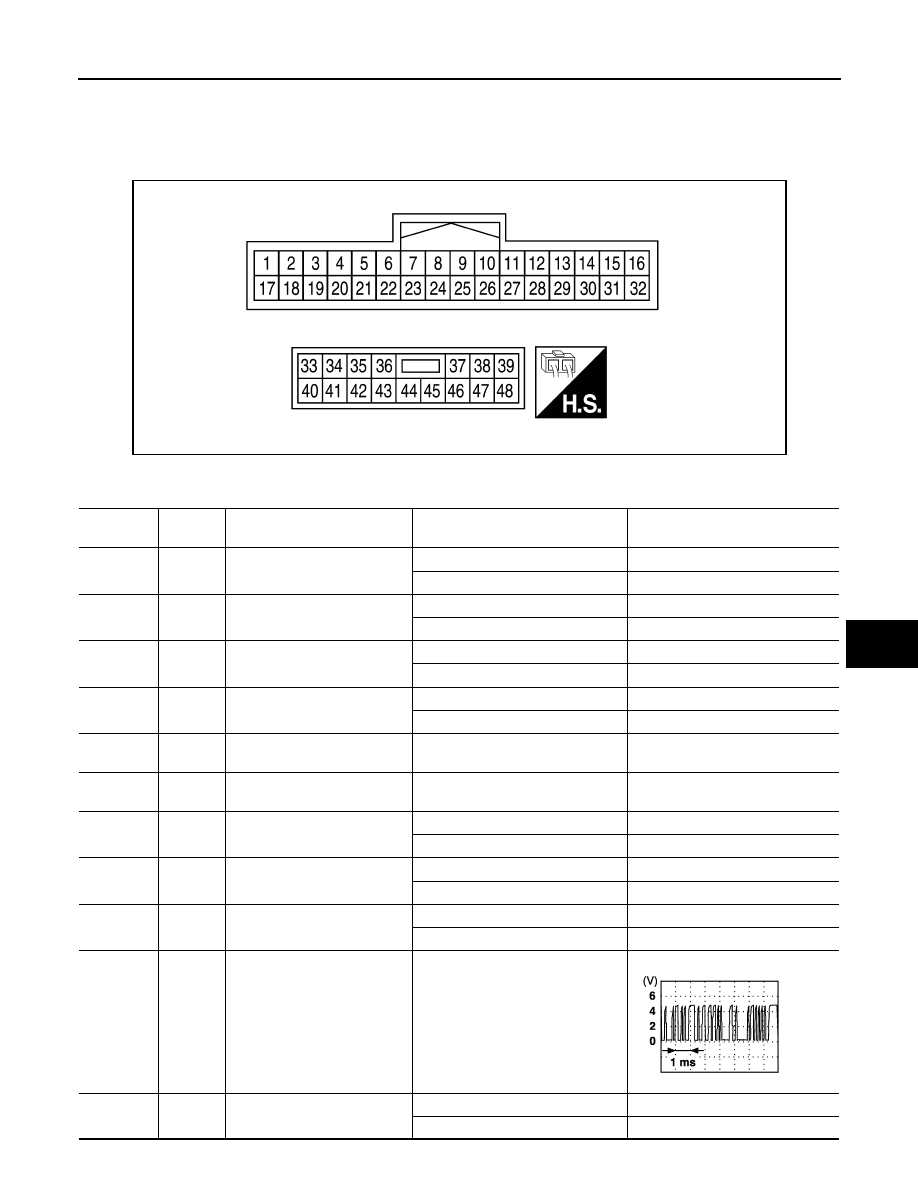

TERMINAL LAYOUT

PHYSICAL VALUES

LIIA2449E

Terminal

Wire Col-

or

Item

Condition

Voltage (V)

(Approx.)

1

W/G

ADP steering switch TILT UP

ADP steering switch in UP position

0

Other than above

5

2

LG

Changeover switch RH signal

Changeover switch in RH position

0

Other than above

5

3

Y/B

Mirror switch UP signal

Mirror switch in UP position

0

Other than above

5

4

V/W

Mirror switch LEFT signal

Mirror switch in LEFT position

0

Other than above

5

5

R/B

Mirror sensor (RH vertical) sig-
nal

Mirror motor RH is operated UP or
DOWN

Changes between 3.4 (close to
peak) 0.6 (close to valley)

6

L/Y

Mirror sensor (LH vertical) sig-
nal

Mirror motor LH is operated UP or
DOWN

Changes between 3.4 (close to
peak) 0.6 (close to valley)

7

Y/BR

Tilt sensor input

Tilt position TOP

2

Tilt position BOTTOM

4

8

BR/Y

Pedal sensor input signal

Pedal position front end

0.5

Pedal position rear end

4.5

9

LG/B

Seat memory switch 1 signal

Memory switch 1 ON

0

Memory switch 1 OFF

5

10

L

UART LINE (TX)

Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)

12

P

Seat memory switch indictor 1
signal

Memory switch 1 ON

0

Memory switch 1 OFF

Battery voltage

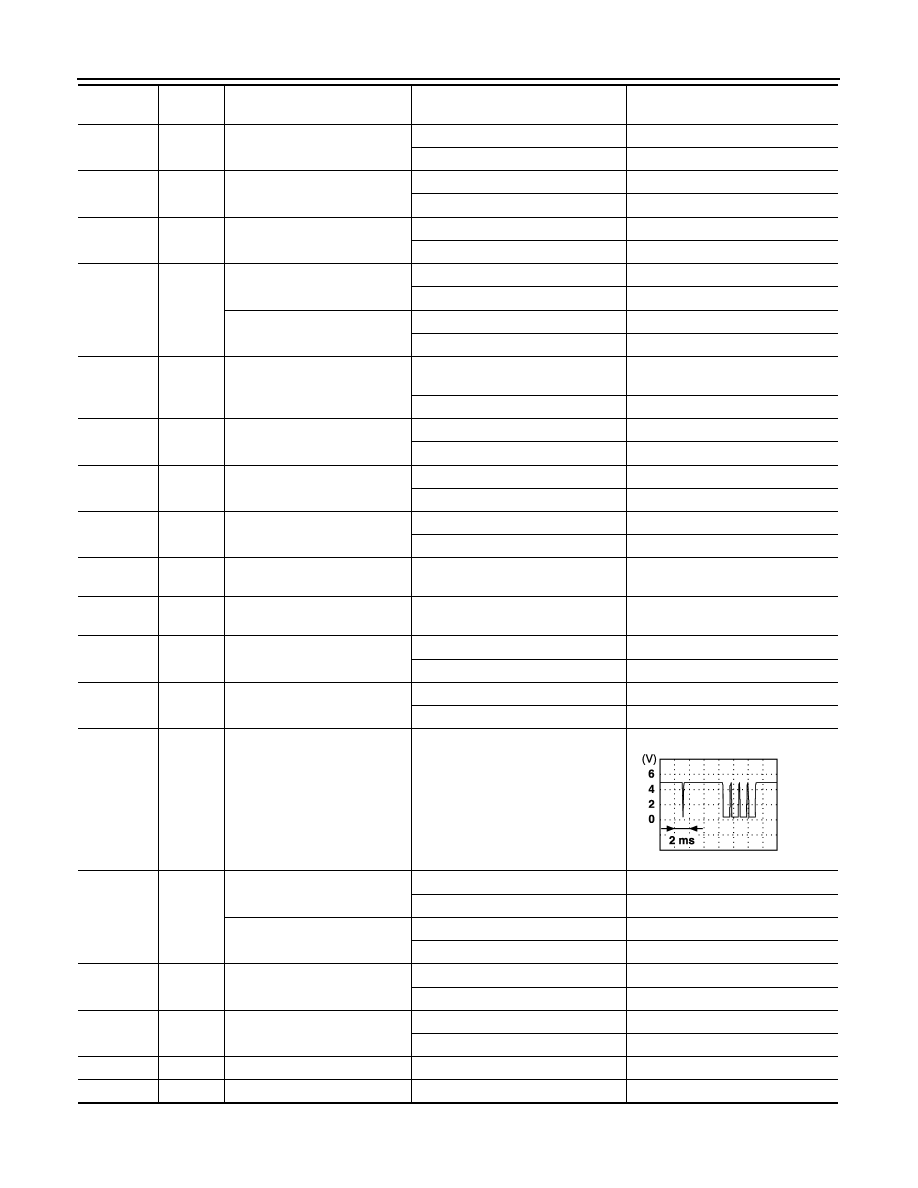

PIIA4813E

ADP-136

< ECU DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

13

Y/G

Seat memory switch indictor 2
signal

Memory switch 2 ON

0

Memory switch 2 OFF

Battery voltage

14

GR/R

Mirror motor RH UP signal

Mirror motor RH is operated UP

1.5 - Battery voltage

Other than above

0

15

V/R

Mirror motor RH LEFT signal

Mirror motor RH is operated LEFT

1.5 - Battery voltage

Other than above

0

16

O

Mirror motor LH DOWN signal

Mirror motor LH is operated DOWN

1.5 - Battery voltage

Other than above

0

Mirror motor LH RIGHT signal

Mirror motor LH is operated RIGHT

1.5 - Battery voltage

Other than above

0

17

G/B

ADP steering switch TILT
DOWN

ADP steering switch in DOWN posi-
tion

0

Other than above

5

18

BR/W

Changeover switch LH signal

Changeover switch in LH position

0

Other than above

5

19

SB

Mirror switch DOWN signal

Mirror switch in DOWN position

0

Other than above

5

20

GR

Mirror switch RIGHT signal

Mirror switch in RIGHT position

0

Other than above

5

21

L/W

Mirror sensor (RH horizontal)
signal

Mirror motor RH is operated LEFT or
RIGHT

Changes between 3.4 (close to left
edge) 0.6 (close to right edge)

22

G

Mirror sensor (LH horizontal)
signal

Mirror motor LH is operated LEFT or
RIGHT

Changes between 3.4 (close to left
edge) 0.6 (close to right edge)

24

G/O

Seat memory set switch signal

Set switch 1 ON

0

Set switch 1 OFF

5

25

P/L

Seat memory switch 2 signal

Memory switch 2 ON

0

Memory switch 2 OFF

5

26

W

UART LINE (RX)

Pedal adjusting switch ON (FOR-
WARD or BACKWARD operation)

30

Y

Mirror motor RH DOWN signal

Mirror motor RH is operated DOWN

1.5 - Battery voltage

Other than above

0

Mirror motor RH RIGHT signal

Mirror motor RH is operated RIGHT

1.5 - Battery voltage

Other than above

0

31

R

Mirror motor LH UP signal

Mirror motor LH is operated UP

1.5 - Battery voltage

Other than above

0

32

BR

Mirror motor LH LEFT signal

Mirror motor LH is operated LEFT

1.5 - Battery voltage

Other than above

0

33

W/L

Sensor power supply

34

Y/R

Battery power supply

Battery voltage

Terminal

Wire Col-

or

Item

Condition

Voltage (V)

(Approx.)

PIIA4814E

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ADP-137

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

35

R

Tilt motor UP signal

ADP steering switch in UP position

Battery voltage

Other than above

0

37

G

Pedal adjust motor FORWARD
signal

Pedal adjust motor FORWARD op-
eration (Motor operated)

Battery voltage

Other than above

0

39

L/B

Battery power supply

Battery voltage

40

B/W

Ground

0

41

W/G

Sensor ground

0

42

V

Tilt motor DOWN signal

ADP steering switch in DOWN posi-
tion

Battery voltage

Other than above

0

45

R

Pedal adjust motor BACK-
WARD signal

Pedal adjust motor BACKWARD op-
eration (Motor operated)

Battery voltage

Other than above

0

48

B

Ground

0

Terminal

Wire Col-

or

Item

Condition

Voltage (V)

(Approx.)

ADP-138

< ECU DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

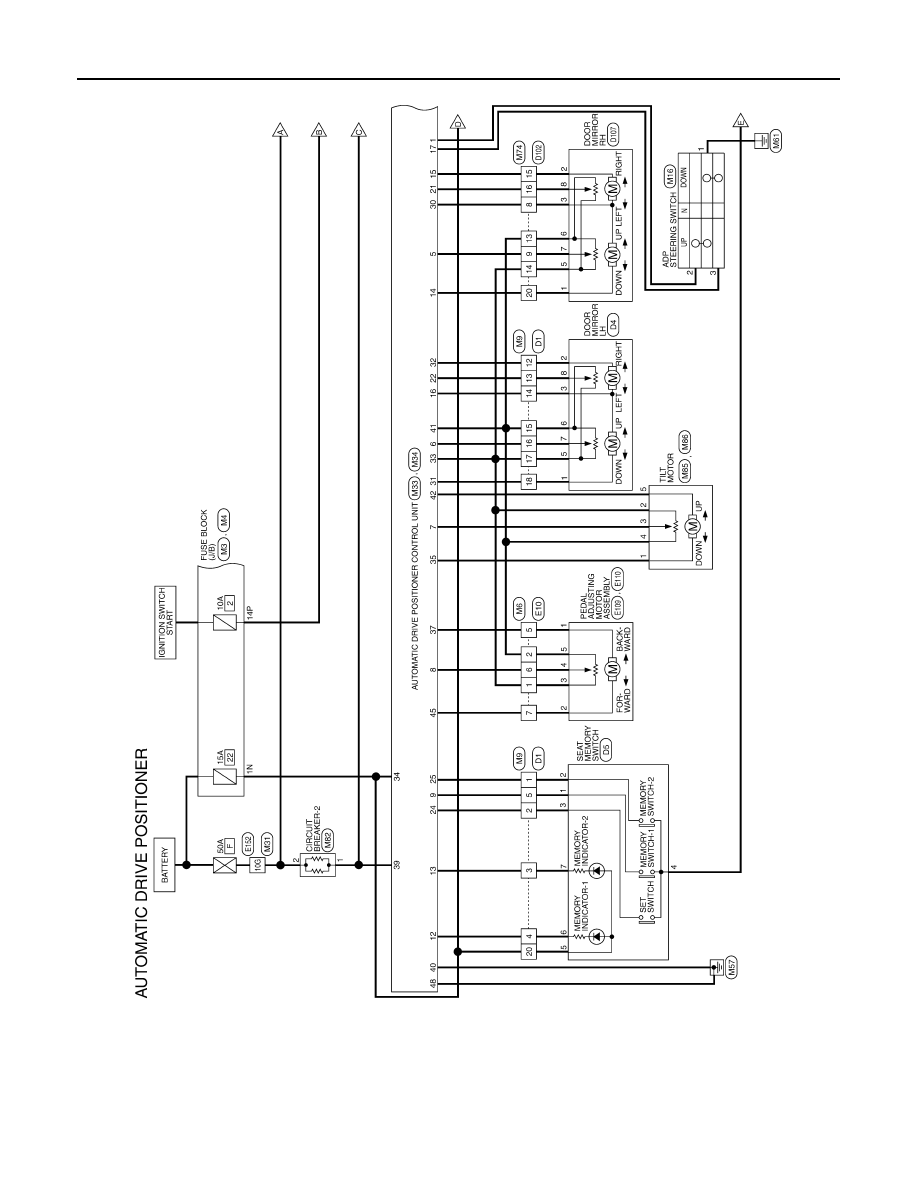

Wiring Diagram

INFOID:0000000005370308

ABJWA0085GB
