MWI-82

< SYMPTOM DIAGNOSIS >

THE DOOR OPEN WARNING CONTINUES DISPLAYING, OR DOES NOT DIS-

PLAY

THE DOOR OPEN WARNING CONTINUES DISPLAYING, OR DOES NOT
DISPLAY

Description

INFOID:0000000006221771

• The door open warning is displayed even though all of the doors are closed.
• The door open warning is not displayed even though a door is ajar.

Diagnosis Procedure

INFOID:0000000006221772

1.

CHECK BCM INPUT/OUTPUT SIGNAL

Connect CONSULT-III and check the BCM input signals. Refer to

DLK-117, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “DOOR W/L” monitor value.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-85, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-81, "Removal and Installation"

.

3.

CHECK DOOR SWITCH SIGNAL CIRCUIT

Check the door switch signal circuit. Refer to

DLK-117, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK DOOR SWITCH

Perform a unit check for the door switch. Refer to

DLK-119, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-85, "Removal and Installation"

.

NO

>> Replace applicable door switch. Refer to

DLK-254, "Removal and Installation"

.

“DOOR W/L”

Door open

: On

Door closed

: Off

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000006221773

• The displayed ambient air temperature is higher than the actual temperature.
• The displayed ambient air temperature is lower than the actual temperature.

Diagnosis Procedure

INFOID:0000000006221774

NOTE:
Check that the symptom is not applicable to the normal operating condition before starting diagnosis. Refer to

MWI-84, "INFORMATION DISPLAY : Description"

.

1.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

HAC-77, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

Check the A/C auto amp. connection recognition signal circuit. Refer to

MWI-74, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK AMBIENT SENSOR

Perform the part check for the ambient sensor. Refer to

HAC-78, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-85, "Removal and Installation"

.

NO

>> Replace ambient sensor. Refer to

HAC-147, "Removal and Installation"

.

MWI-84

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000006221775

AMBIENT AIR TEMPERATURE

The displayed ambient air temperature on the information display may differ from the actual temperature
because it is a corrected value calculated from the ambient sensor signal by the combination meter. Refer to

MWI-20, "INFORMATION DISPLAY : System Description"

 for details on the correction process.

DISTANCE TO EMPTY

The calculated distance to empty may differ from the actual distance to empty if the refueling amount is
approximately 15   (4 US gal, 3-1/4 Imp gal) or less. This is because the refuel control (moves the fuel gauge
needle quicker than normal judging that the driver is refueling the vehicle) is not performing.

MWI

COMBINATION METER

MWI-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

Exploded View

INFOID:0000000006221776

REMOVAL

Refer to

IP-13, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000006221777

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Remove screws and connector, and then remove combination meter.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000006221778

DISASSEMBLY

1.

Remove screws.

2.

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Front cover

2.

Unified meter control unit

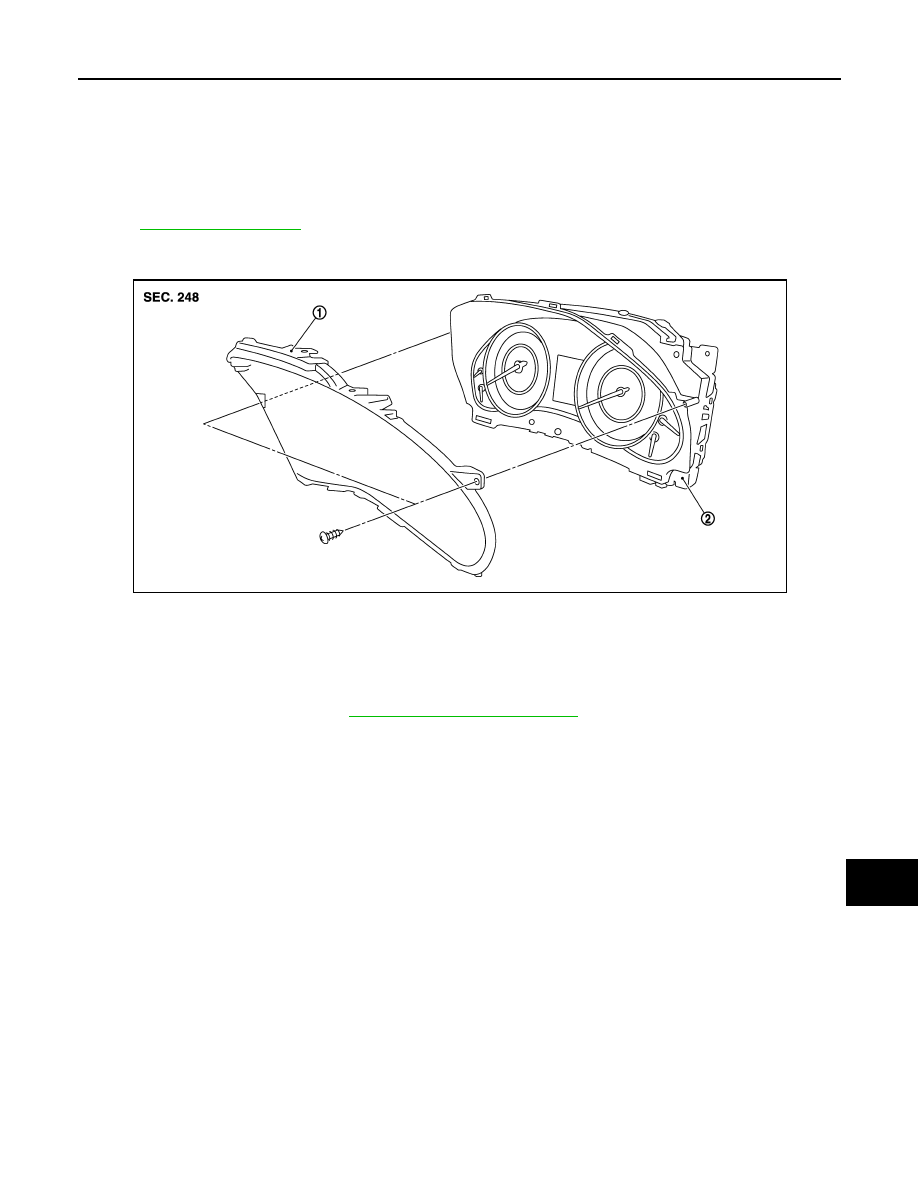

JSNIA3014ZZ
