Infiniti QX56 (Z62). Manual - part 950





MWI-54

< WIRING DIAGRAM >

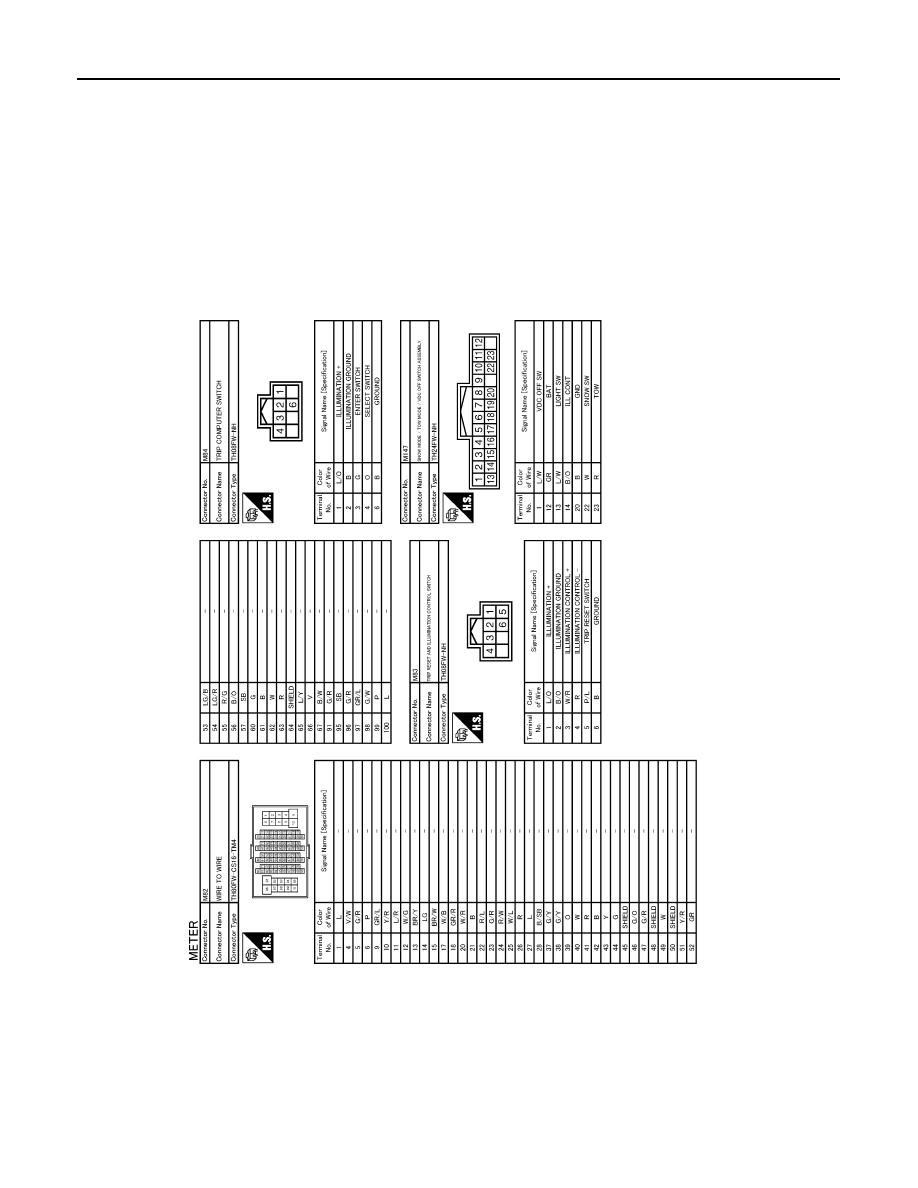

METER SYSTEM

JCNWM4804GB

MWI

CLOCK

MWI-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

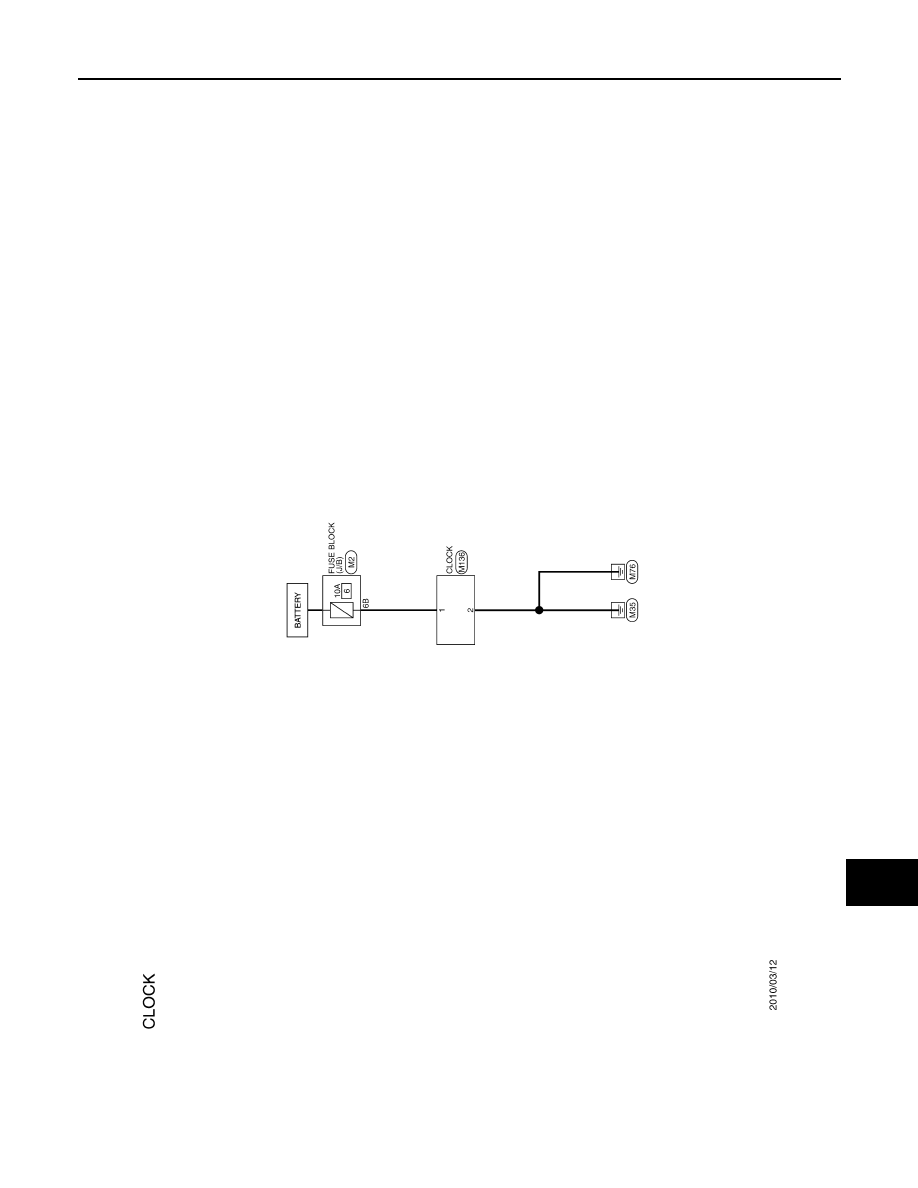

CLOCK

Wiring Diagram

INFOID:0000000006221726

JCNWM4735GB

MWI-56

< WIRING DIAGRAM >

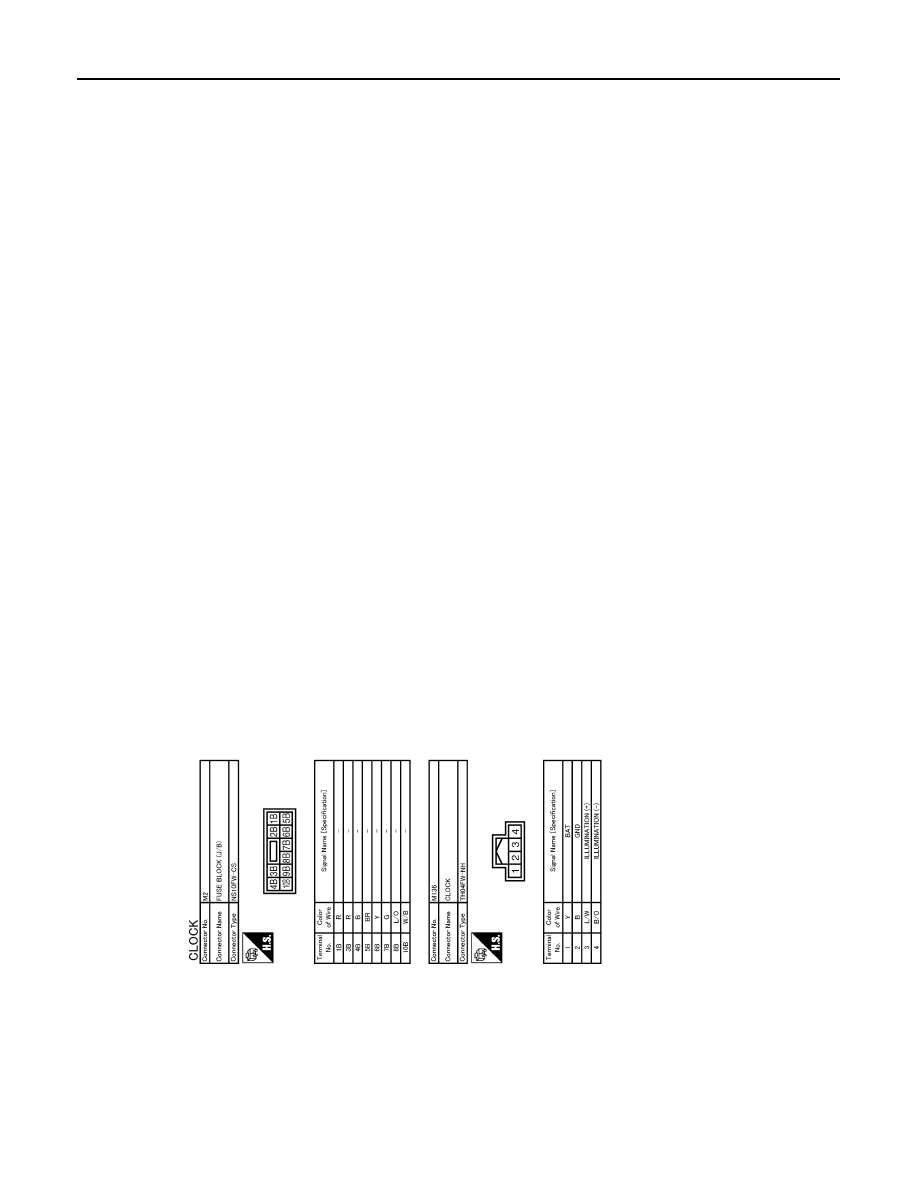

CLOCK

JCNWM4805GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

MWI-57

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

Work flow

INFOID:0000000006221727

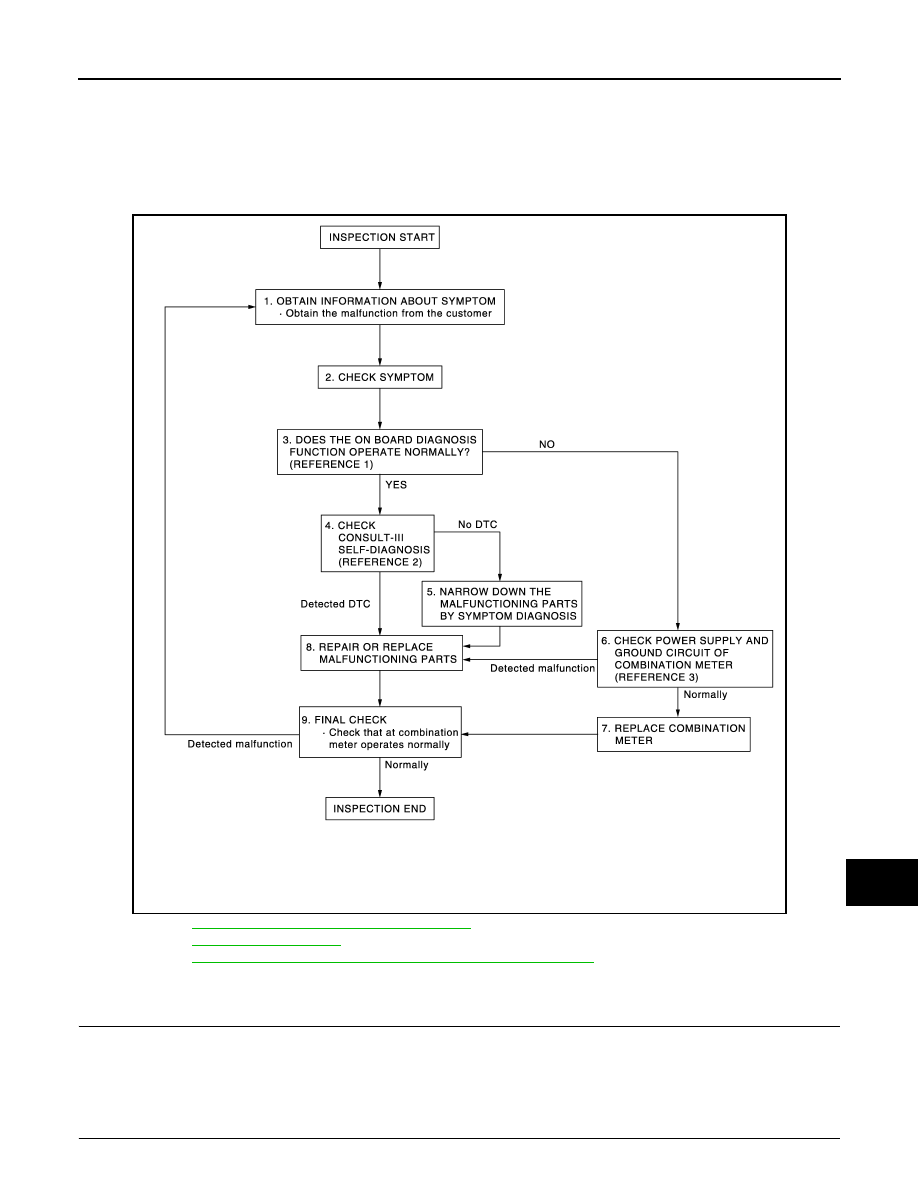

OVERALL SEQUENCE

• Reference 1···

MWI-29, "On Board Diagnosis Function"

.

• Reference 2···

MWI-43, "DTC Index"

.

• Reference 3···

MWI-64, "COMBINATION METER : Diagnosis Procedure"

.

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA0542GB
