Infiniti QX56 (Z62). Manual - part 943





MWI-26

< SYSTEM DESCRIPTION >

SYSTEM

• The combination meter judges showing/hiding of “other warning”, according to the signals below:

Meter Illumination Level Indication

When receiving the following signals, the combination meter causes an interrupt on the information display to
indicate an illumination level.

WARNING CHECK INDICATION

• The combination meter can cause an interrupt on the information display to indicate a warning, based on

signals received from each unit and switch.

• The indicated warning can be checked with “WARNING” during the satisfaction of an interrupt indication

condition for each warning.

SETTING

Warning indication timing and time can be set.

Alert

Setting values for travel time, and low ambient temperature can be adjusted to meet the user's needs.

Maintenance

Setting values for engine oil, oil filter, tire, and other maintenance items can be adjusted to meet the user's
needs.

Options

Setting values for unit and effect items can be adjusted to meet the user's needs.

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Ignition signal

Illumination control switch signal (+)

Trip reset and illumination control switch

 Combination meter

Illumination control switch signal (

)

Setting item

Setting range

Setting unit

Alert

Timer

No setting, 0.5 h - 6 h

0.5 h

ICY

ON/OFF

Setting item

Setting range

Maintenance

Tire

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Filter

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Oil

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Other

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

MWI

SYSTEM

MWI-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

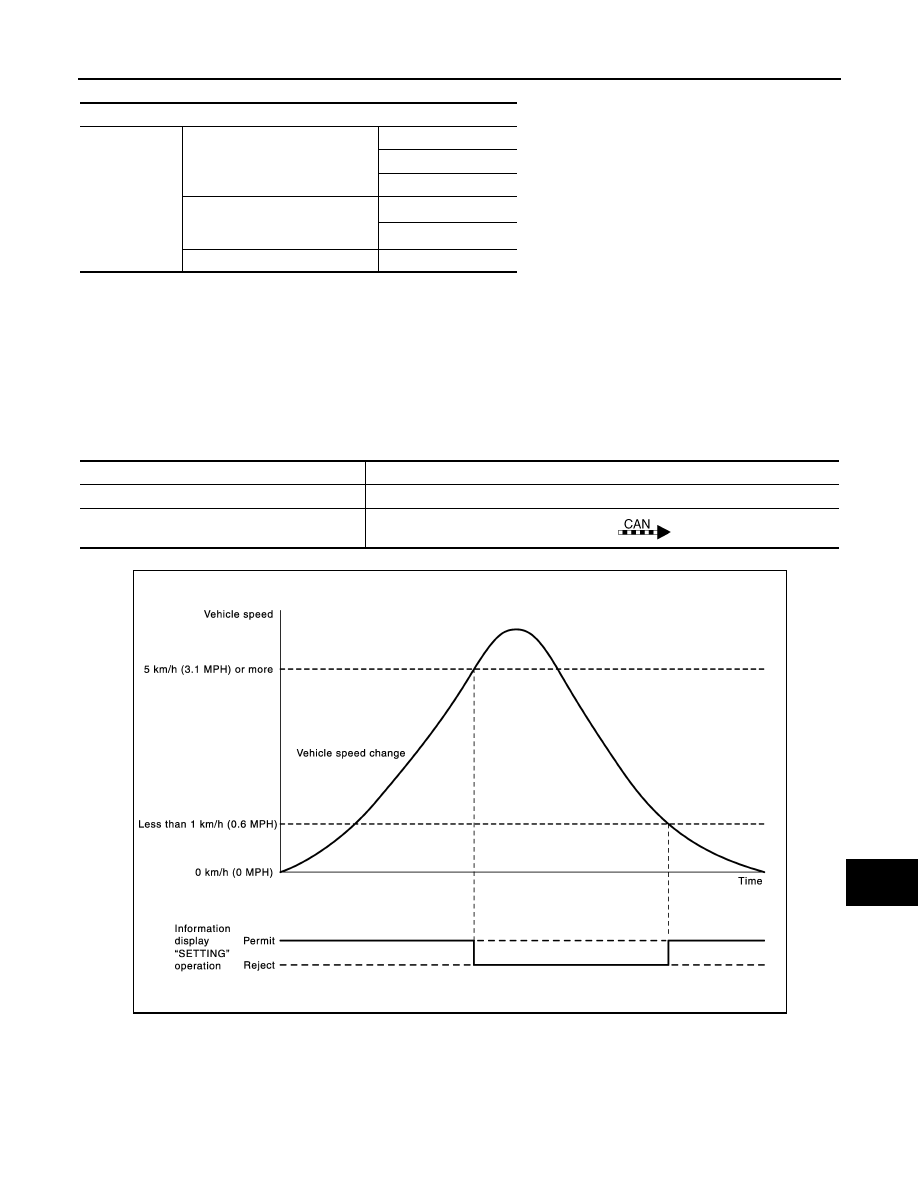

Settings-reject Indication

• Regarding settings-reject indications, “SETTING CAN BE OPERATED WHEN STOPPED” is shown on the

information display when indication conditions are satisfied.

• When reaching 5 km/h (3.1 MPH) after accelerating from a stopping condition, a settings-reject indication is

displayed.

• When reaching less than 1 km/h (0.6 MPH) after decelerating from 5 km/h (3.1 MPH), a settings-reject indi-

cation is cancelled to allow settings.

• The combination meter judges a vehicle condition based on the following signals and displays a settings-

reject indication on the information display.

Setting item

Options

Language

English

Francais

Espanol

Unit

Miles,MPG,

°

F

km, l/100 km,

°

C

Effects

ON/OFF

Signal name

Signal path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

JSNIA2408GB

MWI-28

< SYSTEM DESCRIPTION >

OPERATION

OPERATION

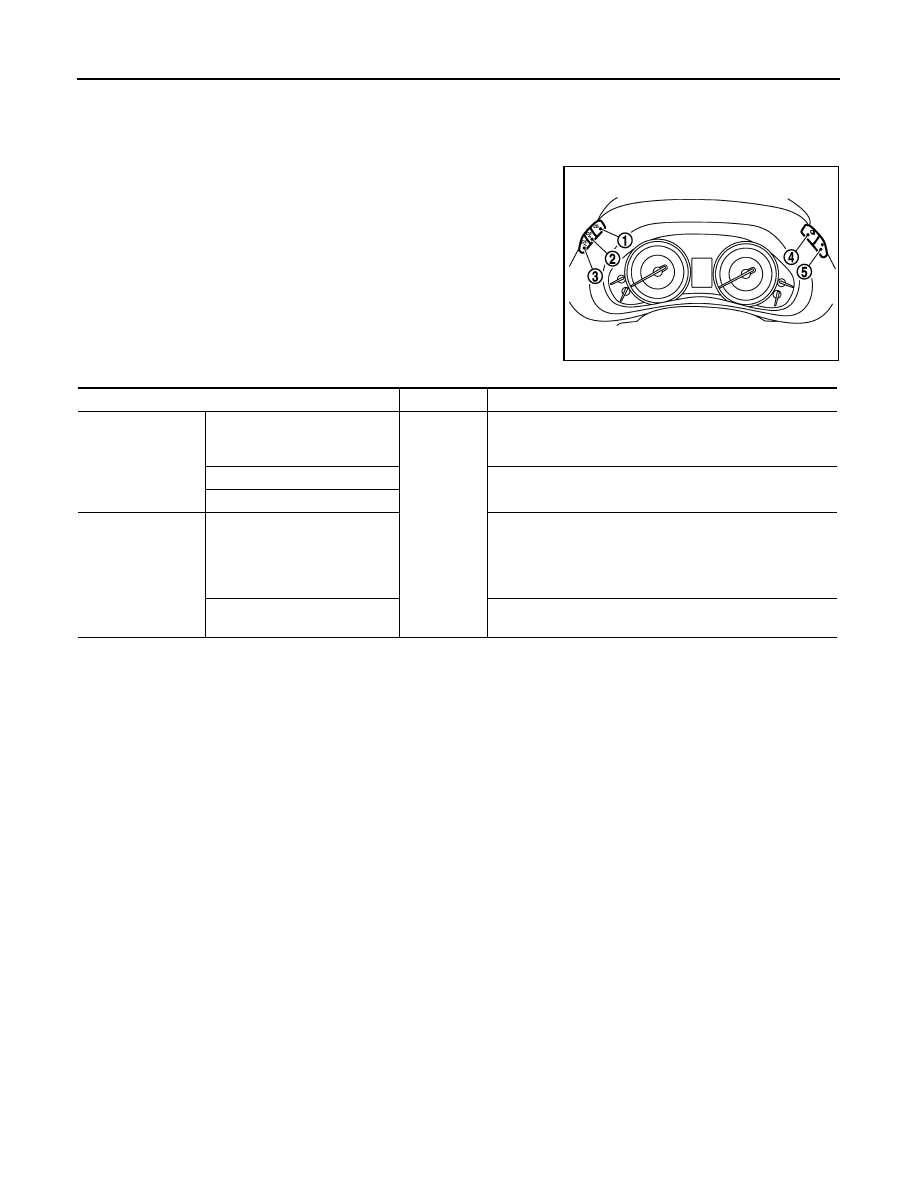

Switch Name and Function

INFOID:0000000006221718

JSNIA2978ZZ

Switch name

Operation

Description

Trip reset and illumi-
nation control switch

Trip reset switch (1)

Press

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the

trip reset switch.

Illumination control switch (+) (2)

An illuminance level of the back light of the combination
meter can be adjusted.

Illumination control switch (

) (3)

Trip computer
switch

Enter switch (4)

• The information display screen can be switched.
• The item indicated on the information display can be con-

firmed.

• An indicated value of the trip computer can be reset by

pressing and holding the enter switch.

Select switch (5)

When plural items are shown on the information display, a
selected item can be changed to the other item.

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (COMBINATION METER)

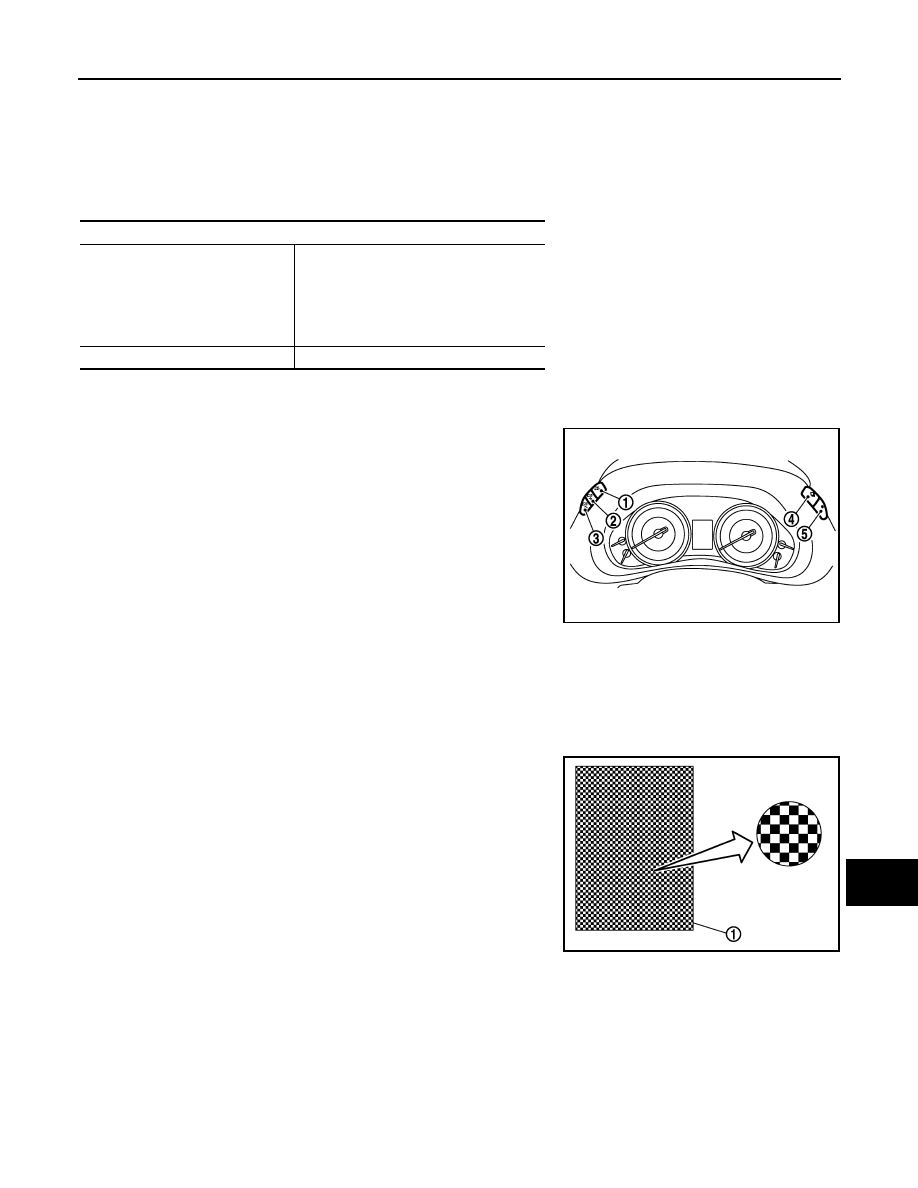

On Board Diagnosis Function

INFOID:0000000006221719

ON BOARD DIAGNOSIS ITEM

The combination meter allows the following diagnosis items with the on-board diagnosis function.

METHOD OF STARTING

1.

Turn ignition switch OFF.

2.

While pressing the trip reset switch (1), turn ignition switch ON.

3.

If the diagnosis function is activated with “trip A” displayed, the
mileage on “trip A” is reset to “0000.0”. (The same way for “trip
B”.)

4.

Make sure that the trip meter displays “0000.0”.

5.

Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

6.

The combination meter is turned to self-diagnosis mode.
• Speedometer, tachometer, engine coolant temperature gauge, fuel gauge, engine oil pressure gauge,

and voltmeter return to zero, simultaneously.

• The dot matrix dots on the information display (1) blink alter-

nately.

NOTE:
• Check combination meter power supply and ground circuit when the self-diagnosis mode of the combi-

nation meter does not start. Replace combination meter if power supply and ground circuit are normal.

• If any of the dots are not displayed, replace combination meter.

Diagnosis item

Drive circuit check

• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
• Engine oil pressure gauge
• Voltmeter

LCD (liquid crystal display) check

Information display

JSNIA2978ZZ

JSNIA0020GB
