The combination meter measures and displays travel time (ignition switch ON time).

Travel Distance

The combination meter calculates mileage, based on the following signals and displays the mileage on the
information display.

Ambient Temperature

• The combination meter corrects an indicated temperature, based on various signals.
• The combination meter calculates ambient air temperature based on the following signals, and the calcu-

lated value is displayed on the information display.

Correction Process (Temperature indicated soon after the ignition switch ON)

• A temperature indicated soon after the ignition switch is turned ON depends on the time from the ignition

switch OFF to ON and a temperature detected by the ambient sensor.

When any condition described below is met, an ambient sensor-detected temperature is indicated.

- Time from the ignition switch OFF to ON

≥

 Predetermined time

- Sensor-detected temperature < Temperature at the last ignition switch OFF

Correction Process (Temperature at the Ignition switch ON)

• A temperature indicated when the ignition switch is ON depends on a vehicle speed, an ambient sensor-

detected temperature, and traveling time.

The temperature on the information display is corrected to an ambient sensor-detected temperature when the following condition
is met.

- Ambient sensor-detected temperature < Temperature on the information display

A temperature on the information display is not updated when the following condition is met.

- Ambient sensor-detected temperature

≥

 Temperature on the information display

- Vehicle speed

≤

 20 km/h (12 MPH)

A temperature on the information display slowly rises to an ambient sensor-detected temperature when the following condition is
met.

- Ambient sensor-detected temperature

≥

 Temperature on the information display

- Vehicle speed

≥

 20 km/h (12 MPH)

A temperature on the information display rapidly rises to an ambient sensor-detected temperature when the following condition
is met.

- Ambient sensor-detected temperature

≥

 Temperature on the information display

- Vehicle speed

≥

 20 km/h (12 MPH)

- When driving more than set time

A/C auto amp. connection recognition

• The combination meter judges the A/C auto amp. connection/disconnection, based on an A/C auto amp.

connection recognition signal to judge the presence/absence of the ambient sensor power output.

NOTE:
• After an ignition switch is turned ON, “–––” is displayed until after a 2.5 seconds.

Signal name

Signal path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Ignition signal

—

Ambient sensor signal

Ambient sensor

 Combination meter

A/C auto amp. connection recognition signal

A/C auto amp.

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI

SYSTEM

MWI-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The ambient sensor input value that is displayed on “Data Monitor” of CONSULT-III is the value before the

correction. It may not match the indicated temperature on the information display.

• After removal and installation of the battery and combination meter, an ambient sensor-detected tempera-

ture is indicated on the information display.

• Depending on engine heat or heat on the road surfaces, an ambient temperature may be indicated higher

than actual one.

INTERRUPT INDICATION

• The combination meter displays an interrupt regarding a warning, alert, and maintenance on the information

display, based on signals received from each unit and switch.

• When conditions are satisfied, the normal screen switches to a warning screen to display an interrupt.

Door Open Warning

• When all the following operating conditions are satisfied, the combination meter displays a door open warn-

ing on the information display by an interrupt.

• The combination meter judges showing/hiding of “door open warning”, according to the signals below:

Parking Brake Release Warning

• When all the following operating conditions are satisfied, the combination meter displays a parking brake

release warning on the information display by an interrupt.

• The combination meter judges showing/hiding of “parking brake release warning”, according to the signals

below:

Low Fuel Warning

• When all the following operating conditions are satisfied, the combination meter displays a low fuel warning

on the information display by an interrupt.

*: With the vehicle in a horizontal position

• The combination meter judges showing/hiding of “low fuel warning”, according to the signals below:

Operating condition

Ignition switch

ON

Door

Any door is open

Signal name

Signal path

Ignition signal

—

Door switch signal

Door switch

 BCM

 Combination meter

Operating condition

Ignition switch

ON

Parking brake

Applied

Vehicle speed

7 km/h (4.3 MPH) or more

Signal name

Signal path

Ignition signal

—

Parking brake switch signal

Parking brake switch

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Operating condition

Ignition switch

ON

Fuel remaining quantity

*

Approximately 15.4

 (4 US gal, 3-3/8 Imp gal) or less (including fuel remained)

MWI-24

< SYSTEM DESCRIPTION >

SYSTEM

Low Washer Fluid Warning

• When all the following operating conditions are satisfied, the combination meter displays a low washer fluid

warning on the information display by an interrupt.

• The combination meter judges showing/hiding of “low washer fluid warning”, according to the signals below:

Travel Time (Alert)

• When all the following operating conditions are satisfied, the combination meter displays a travel time on the

information display by an interrupt.

• The combination meter judges showing/hiding of “travel time”, according to the signals below:

Low Ambient Temperature (Alert)

• When all the following operating conditions are satisfied, the combination meter displays a low ambient tem-

perature on the information display by an interrupt.

• The combination meter judges showing/hiding of “low ambient temperature”, according to the signals below:

Signal name

Signal path

Ignition signal

—

Fuel level sensor signal

Fuel level sensor

 Combination meter

Operating condition

Ignition switch

ON

Washer level switch

Decrease in fluid level (washer level switch ON for 180 seconds or more)

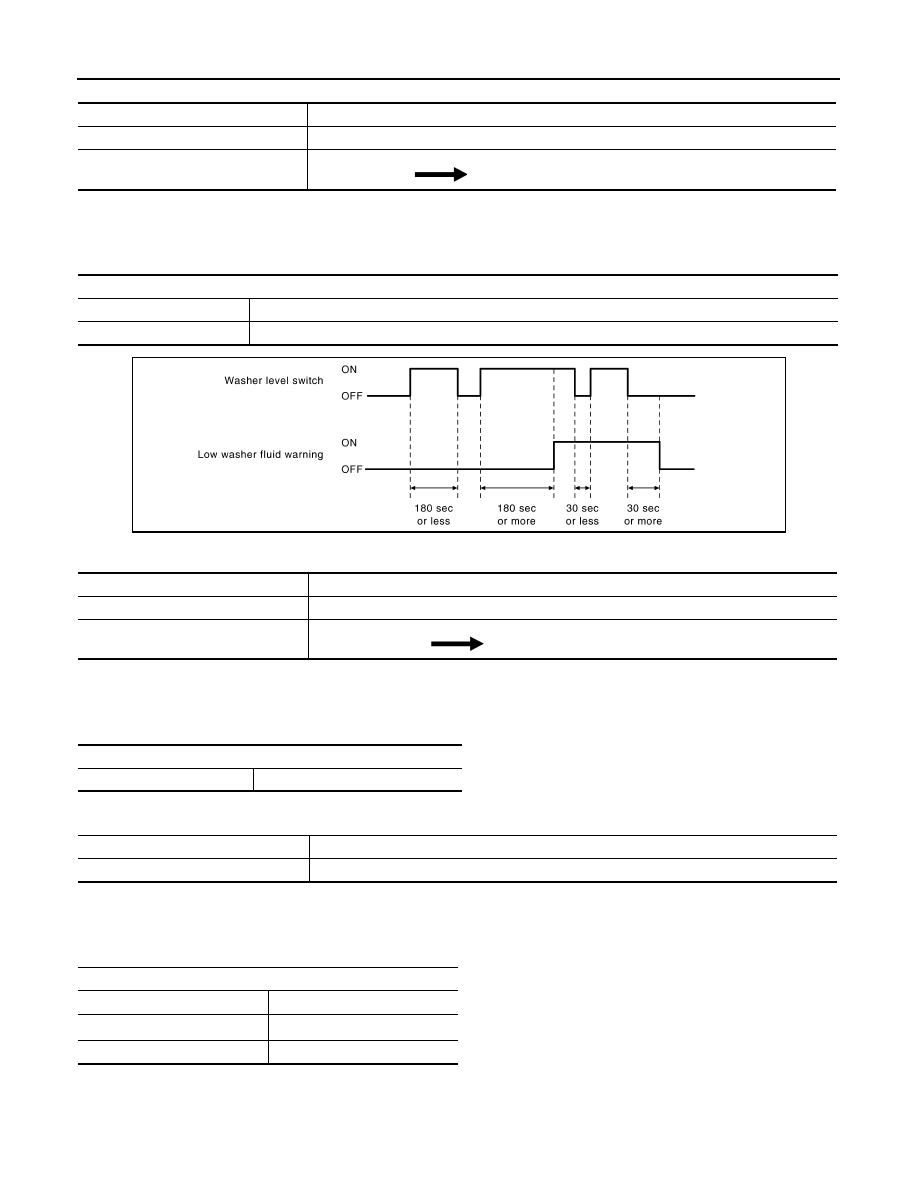

JSNIA0033GB

Signal name

Signal path

Ignition signal

—

Washer level switch signal

Washer level switch

 Combination meter

Operating condition

Ignition switch

Switch-ON time

Signal name

Signal path

Ignition signal

—

Operating condition

Ignition switch

ON

ambient temperature

3

°

C (37

°

F) or less

information display

“ON” is selected in “SETTING”

MWI

SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Tire (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a tire warning on

the information display by an interrupt.

• The combination meter judges showing/hiding of “tire warning”, according to the signals below:

Oil Filter (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays an oil filter warning

on the information display by an interrupt.

• The combination meter judges showing/hiding of “oil filter warning”, according to the signals below:

Engine Oil (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays an engine oil warn-

ing on the information display by an interrupt.

• The combination meter judges showing/hiding of “engine oil warning”, according to the signals below:

Other (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays an other warning

on the information display by an interrupt.

Signal name

Signal path

Ignition signal

—

Ambient sensor signal

Ambient sensor

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter
