Infiniti QX56 (Z62). Manual - part 934

MIR-28

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

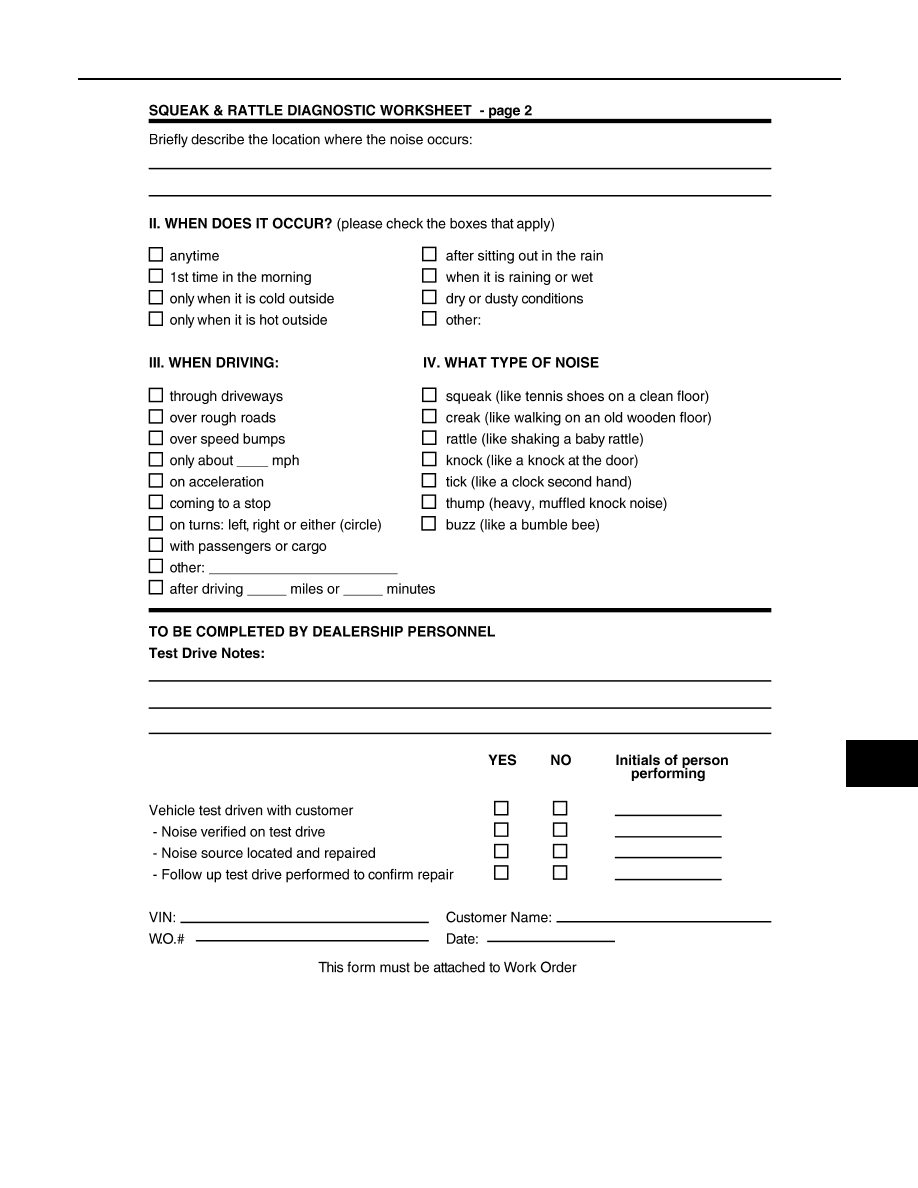

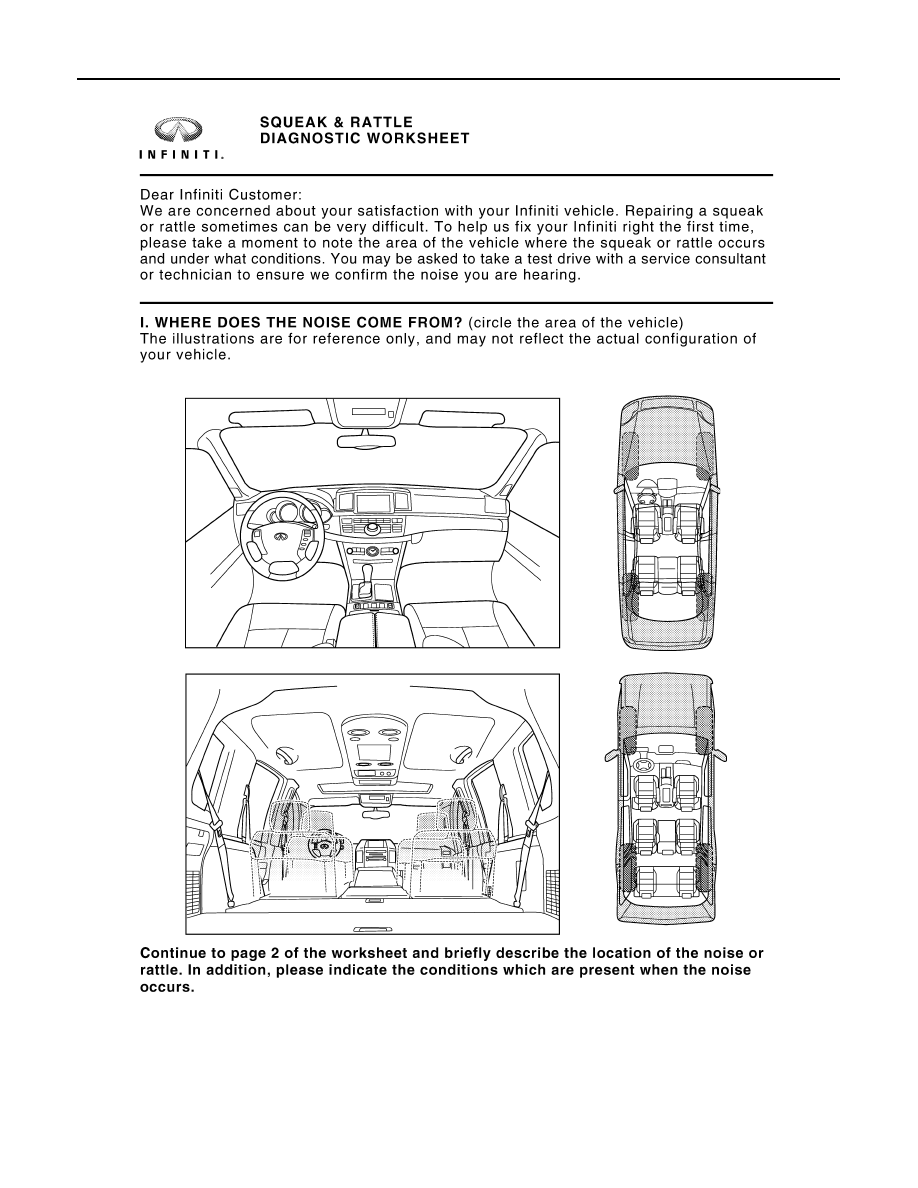

Diagnostic Worksheet

INFOID:0000000006257249

PIIB8741E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

MIR-29

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PIIB8742E

MIR-30

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

REMOVAL AND INSTALLATION

INSIDE MIRROR

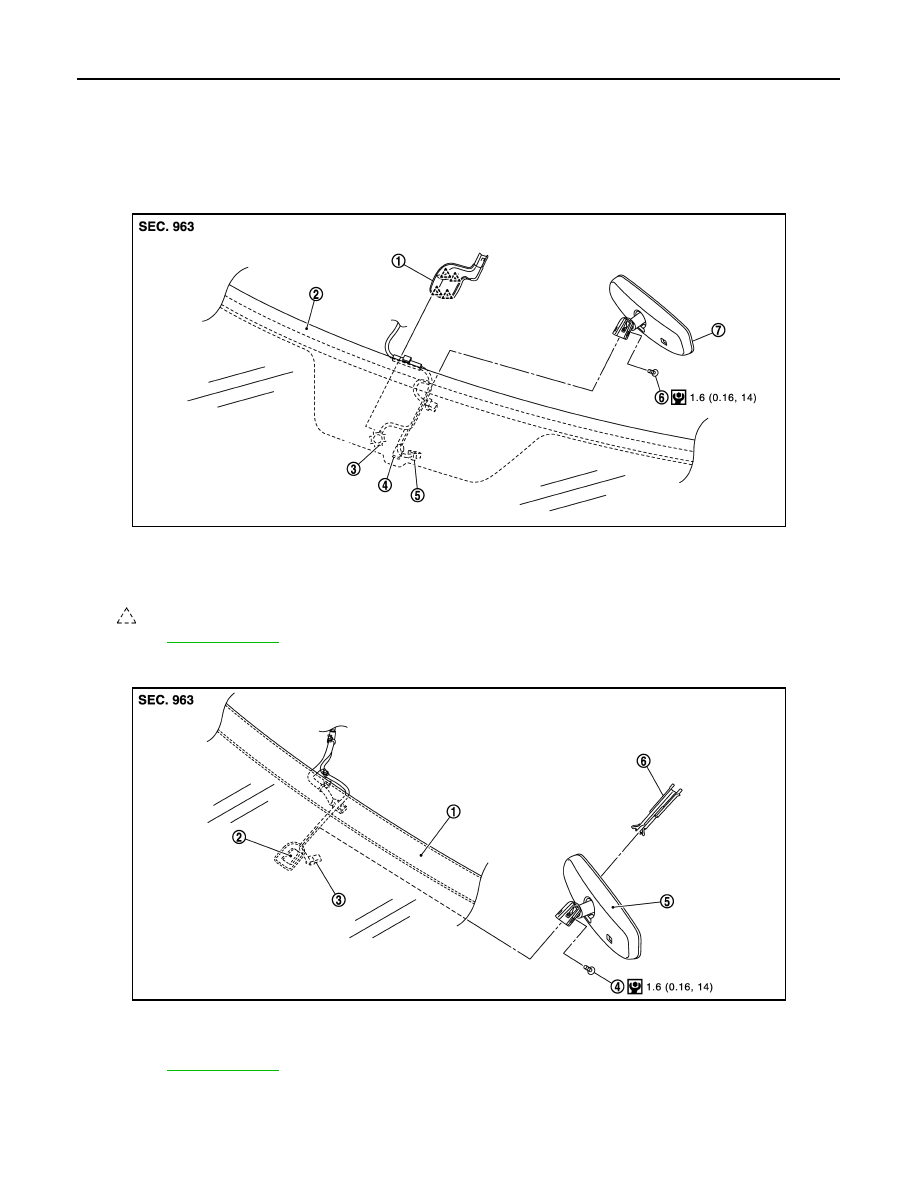

Exploded View

INFOID:0000000006257234

With rain sensor models

Without rain sensor models

Removal and Installation

INFOID:0000000006257235

WITH RAIN SENSOR MODELS

JMLIA0907GB

1.

Rain sensor cover

2.

Windshield glass

3.

Rain sensor

4.

Mirror base

5.

Harness connector

6.

TORX bolt

7.

Inside mirror

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0906GB

1.

Windshield glass

2.

Mirror base

3.

Harness connector

4.

TORX bolt

5.

Inside mirror

6.

Inside mirror cover

Refer to

GI-4, "Components"

 for symbols in the figure.

INSIDE MIRROR

MIR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Removal

1.

Disengage rain sensor cover fixing pawls with a remover tool to remove.

2.

Disconnect harness connector from inside mirror.

3.

Loosen TORX bolt and slide inside mirror upward to remove.

Installation

Install in the reverse order of removal.

WITHOUT RAIN SENSOR MODELS

Removal

1.

Remove inside mirror cover.

2.

Disconnect harness connector from inside mirror.

3.

Loosen TORX bolt and slide inside mirror upward to remove.

Installation

Install in the reverse order of removal.
