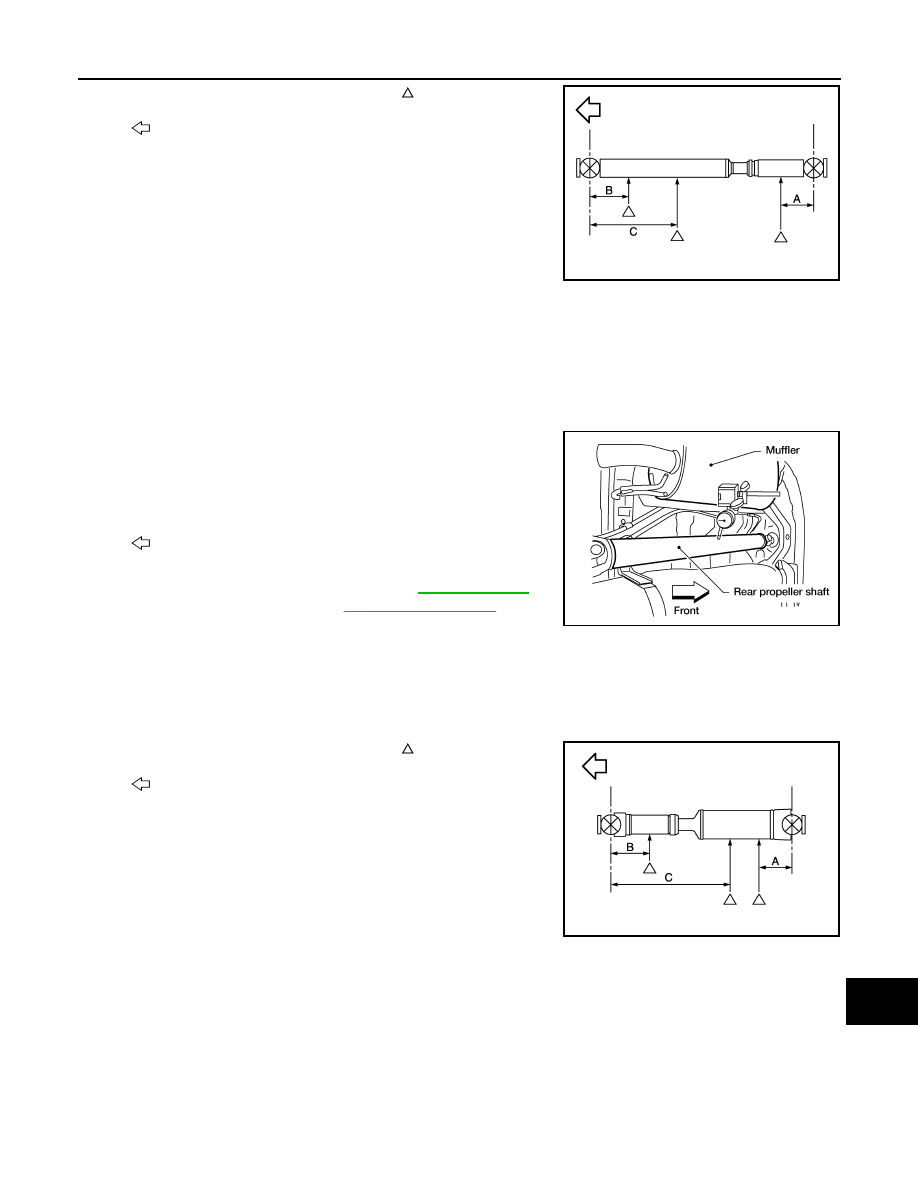

Propeller shaft runout measuring point (Point “ ”).

REAR PROPELLER SHAFT: 2F P26

REAR PROPELLER SHAFT: 2F P26 : Inspection

INFOID:0000000006220931

NOISE

Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

VIBRATION

If vibration is present at high speed, inspect propeller shaft runout
first.
1.

With a dial indicator, measure propeller shaft runout at runout
measuring points by rotating final drive companion flange with
hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90, 180, 270 degrees and install propeller
shaft.

3.

Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

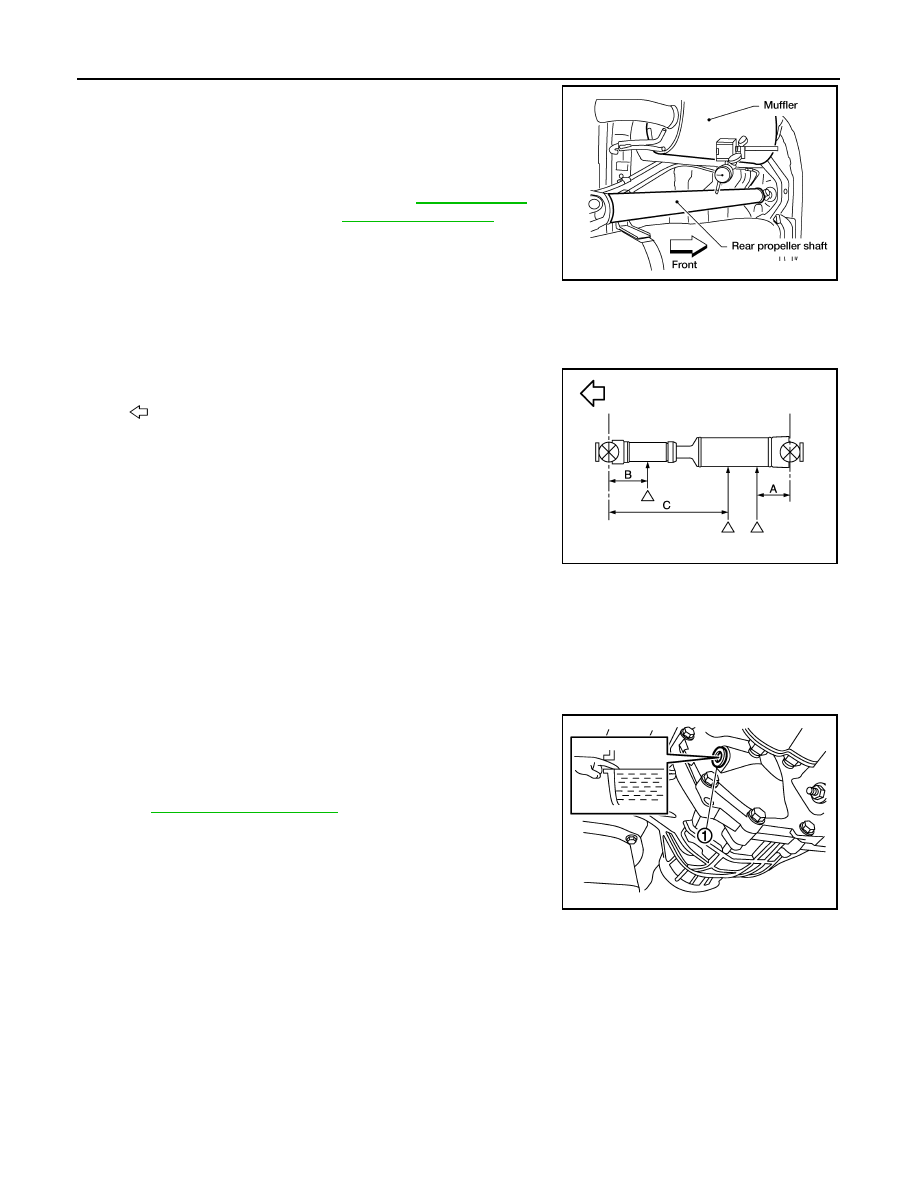

RUNOUT MEASURING POINT

Propeller shaft runout measuring point (Point “ ”).

REAR PROPELLER SHAFT: 2S1410

REAR PROPELLER SHAFT: 2S1410 : Inspection

INFOID:0000000006223430

NOISE

Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

VIBRATION

: Vehicle front

Dimension

A

: 80 – 100 mm (3.15 – 3.94 in)

B

: 100 – 120 mm (3.94 – 4.72 in)

C

: 254.5 mm (10.02 in)

JPDID0321ZZ

: Vehicle front

Propeller shaft runout

: Refer to

DLN-140, "Pro-

peller Shaft Runout"

.

LDIA0161E

: Vehicle front

Dimension

A

: 120 – 150 mm (4.72 – 5.91 in)

B

: 150 – 180 mm (5.91 – 7.09 in)

C

: 703.5 mm (27.70 in)

JPDID0320ZZ

MA-24

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

If vibration is present at high speed, inspect propeller shaft runout
first.
1.

With a dial indicator, measure propeller shaft runout at runout
measuring points by rotating final drive companion flange with
hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications,
replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

Propeller shaft runout measuring range.

FRONT DIFFERENTIAL GEAR OIL: R180A

FRONT DIFFERENTIAL GEAR OIL: R180A : Inspection

INFOID:0000000006220932

OIL LEAKAGE

Check that oil is not leaking from the front final drive assembly or around it.

OIL LEVEL

• Remove filler plug (1) and check oil level from filler plug mounting

hole as shown in the figure.

CAUTION:

Never start engine while checking oil level.

• Set a gasket on filler plug (1) and install it on final drive assembly.

Refer to

DLN-164, "Exploded View"

.

CAUTION:

Never reuse gasket.

FRONT DIFFERENTIAL GEAR OIL: R180A : Draining

INFOID:0000000006220933

1.

Stop engine.

Propeller shaft runout

: Refer to

DLN-147, "Pro-

peller Shaft Runout"

.

LDIA0161E

: Vehicle front

JPDID0320ZZ

JPDID0312ZZ

CHASSIS MAINTENANCE

MA-25

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

2.

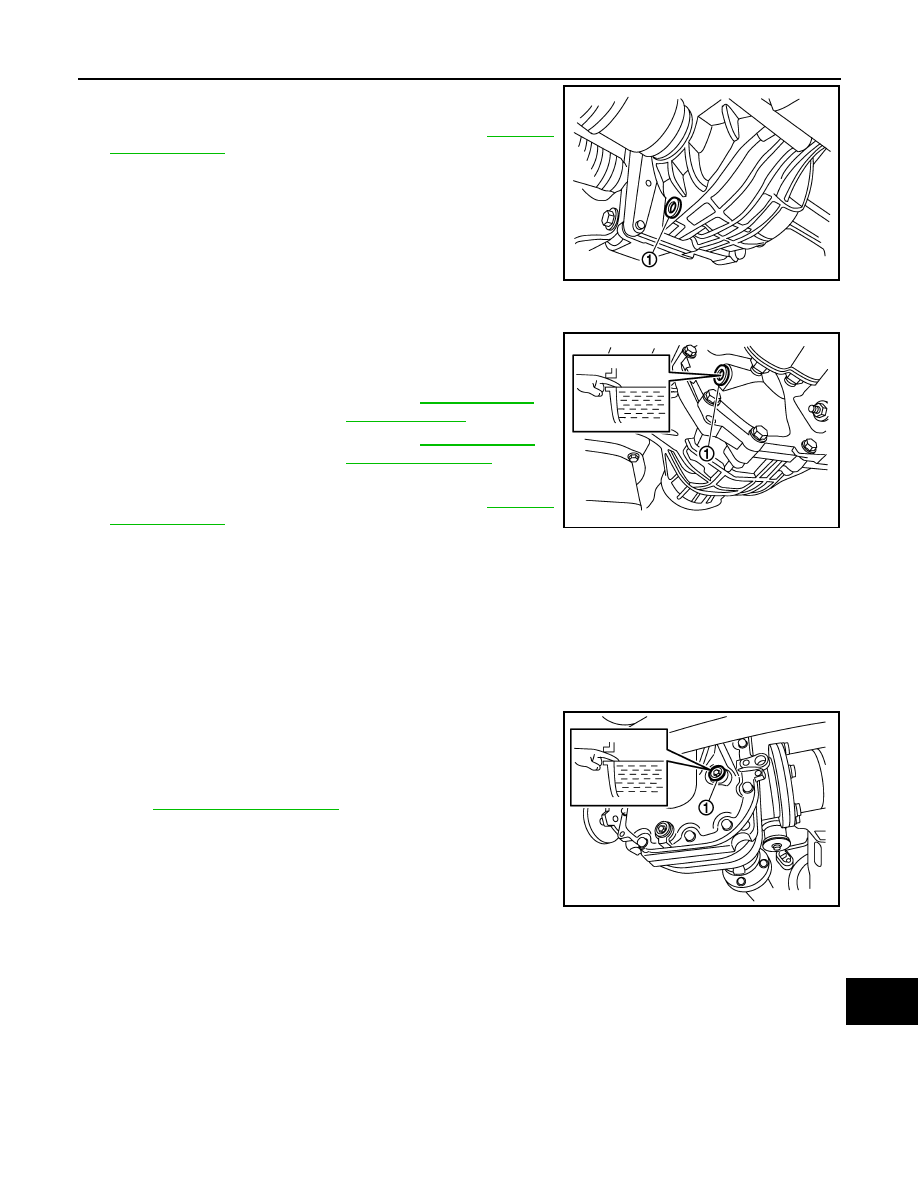

Remove drain plug (1) and drain gear oil.

3.

Set a gasket on drain plug (1) and install it to final drive assem-
bly and tighten to the specified torque. Refer to

DLN-164,

"Exploded View"

.

CAUTION:

Never reuse gasket.

FRONT DIFFERENTIAL GEAR OIL: R180A : Refilling

INFOID:0000000006220934

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.

2.

After refilling oil, check oil level. Set a gasket to filler plug (1),
then install it to final drive assembly. Refer to

DLN-164,

"Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL: R230

REAR DIFFERENTIAL GEAR OIL: R230 : Inspection

INFOID:0000000006220935

OIL LEAKAGE

Check that differential gear oil is not leaking from the rear final drive assembly or around it.

OIL LEVEL

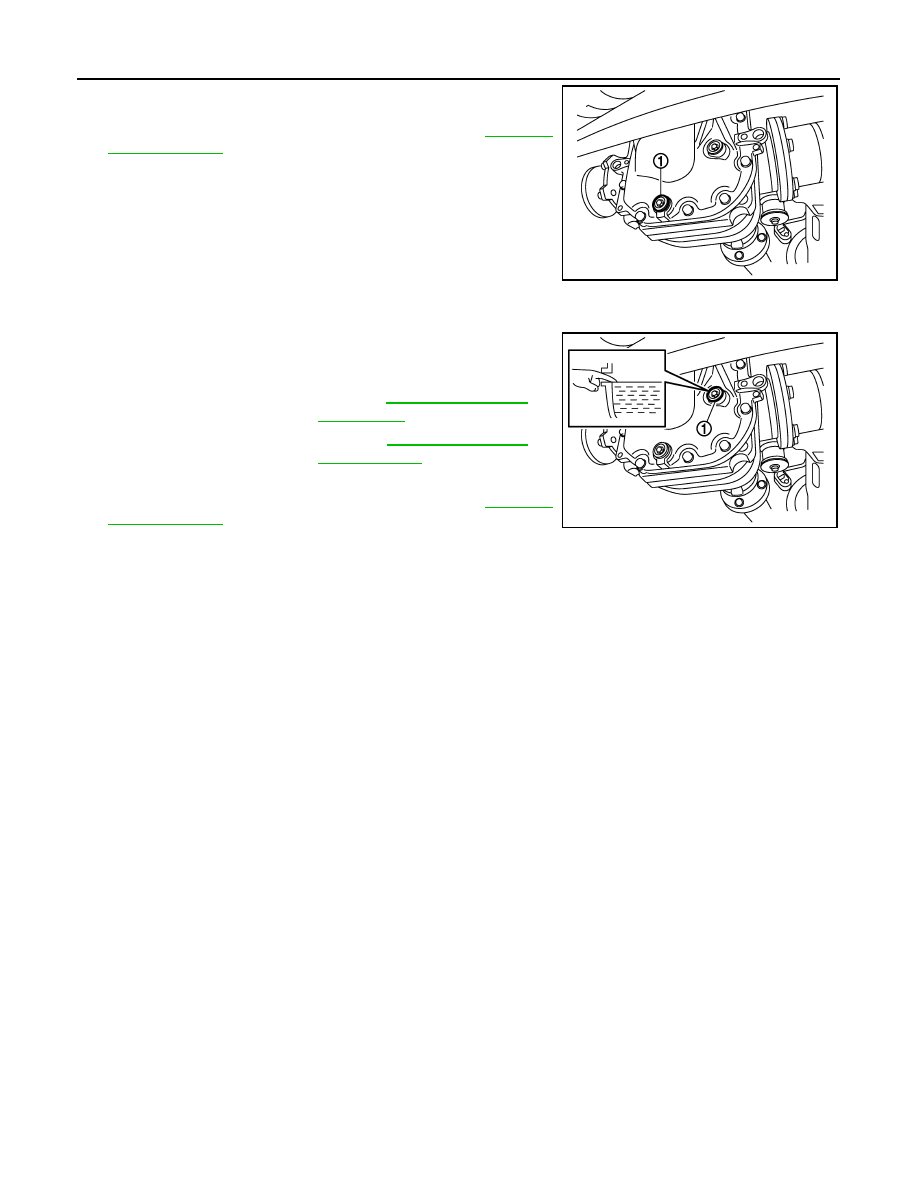

• Remove filler plug (1) and check oil level from filler plug mounting

hole as shown in the figure.

CAUTION:

Never start engine while checking oil level.

• Set a gasket on filler plug (1) and install it on final drive assembly.

Refer to

DLN-203, "Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL: R230 : Draining

INFOID:0000000006220936

1.

Stop the engine.

JPDID0313ZZ

Oil grade and Viscosity

: Refer to

MA-10, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-185, "Gen-

eral Specifications"

.

JPDID0312ZZ

JPDID0415ZZ

MA-26

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

2.

Remove drain plug (1) and drain gear oil.

3.

Set a gasket on drain plug (1) and install it to final drive assem-
bly and tighten to the specified torque. Refer to

DLN-203,

"Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL: R230 : Refilling

INFOID:0000000006220937

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.

2.

After refilling oil, check oil level. Set a gasket to filler plug (1),
then install it to final drive assembly. Refer to

DLN-203,

"Exploded View"

.

CAUTION:

Never reuse gasket.

WHEELS (BONDING WEIGHT TYPE)

WHEELS (BONDING WEIGHT TYPE) : Adjustment

INFOID:0000000006394852

BALANCING WHEELS (BONDING WEIGHT TYPE)

Preparation Before Adjustment

Using releasing agent, remove double-faced adhesive tape from the road wheel.

CAUTION:

• Be careful not to scratch the road wheel during removal.
• After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road

wheel.

Wheel Balance Adjustment

If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting, select
and adjust a drive-in weight mode suitable for road wheels.

1.

Set road wheel on tire balance machine using the center hole as a guide. Start the tire balance machine.

2.

When inner and outer unbalance values are shown on the tire balance machine indicator, multiply outer
unbalance value by 5/3 to determine balance weight that should be used. Select the outer balance weight
with a value closest to the calculated value above and install to the designated outer position of, or at the
designated angle in relation to the road wheel.

CAUTION:

• Never install the inner balance weight before installing the outer balance weight.
• Before installing the balance weight, always to clean the mating surface of the road wheel.

JPDID0392ZZ

Oil grade and viscosity

: Refer to

MA-10, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

DLN-222, "General

Specification"

.

JPDID0415ZZ
