Infiniti QX56 (Z62). Manual - part 914





LAN

ITS COMMUNICATION CIRCUIT

LAN-233

< DTC/CIRCUIT DIAGNOSIS >

[CAN SYSTEM (TYPE 4)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

5.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the ADAS control unit harness connector and the ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Check the harness and repair the root cause.

6.

CHECK TERMINATION CIRCUIT

1.

Remove the ADAS control unit and the ICC sensor.

2.

Check the resistance between the ADAS control unit terminals.

3.

Check the resistance between the ICC sensor terminals.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace the ADAS control unit and/or the ICC sensor.

7.

CHECK SYMPTOM

Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with
customer)” are reproduced.
Inspection result

Reproduced>>GO TO 8.
Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is

detected.

8.

CHECK UNIT REPRODUCTION

Perform the reproduction test as per the following procedure for each unit.
1.

Turn the ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect one of the unit connectors of ITS communication circuit.
NOTE:
ADAS control unit and ICC sensor have a termination circuit. Check other units first.

4.

Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom
(Results from interview with customer)” are reproduced.
NOTE:
Although unit-related error symptoms occur, do not confuse them with other symptoms.

Inspection result

Reproduced>>Connect the connector. Check other units as per the above procedure.
Non-reproduced>>Replace the unit whose connector was disconnected.

ADAS control unit harness connector

Ground

Continuity

Connector No.

Terminal No.

B61

7

Not existed

8

Not existed

ADAS control unit

Resistance (

)

Terminal No.

7

8

Approx. 108 – 132

ICC sensor

Resistance (

)

Terminal No.

3

6

Approx. 108 – 132

LU-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

LU

A

LU

N

O

P

CONTENTS

ENGINE LUBRICATION SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Liquid Gasket ...........................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYSTEM DESCRIPTION  ..............................

5

LUBRICATION SYSTEM  ....................................

5

Engine Lubrication System  .......................................

5

Engine Lubrication System Schematic ......................

6

PERIODIC MAINTENANCE ..........................

7

ENGINE OIL  ........................................................

7

Inspection ..................................................................

7

Draining .....................................................................

8

Refilling .....................................................................

8

OIL FILTER  .........................................................

9

Removal and Installation ...........................................

9

Inspection .................................................................

9

REMOVAL AND INSTALLATION  ...............

11

OIL COOLER  ....................................................

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

Inspection ................................................................

12

OIL PUMP  .........................................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Disassembly and Assembly .....................................

14

Inspection ................................................................

14

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

17

Periodical Maintenance Specification ......................

17

Engine Oil Pressure ...............................................

17

Oil Pump .................................................................

17

Regulator Valve ......................................................

17

LU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Liquid Gasket

INFOID:0000000006289611

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt

holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Apply liquid gasket to the liquid gasket application surface.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Prod-

ucts and Sealants"

.

• Within five minutes of liquid gasket application, install the mating component.
• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

PREPARATION

LU-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

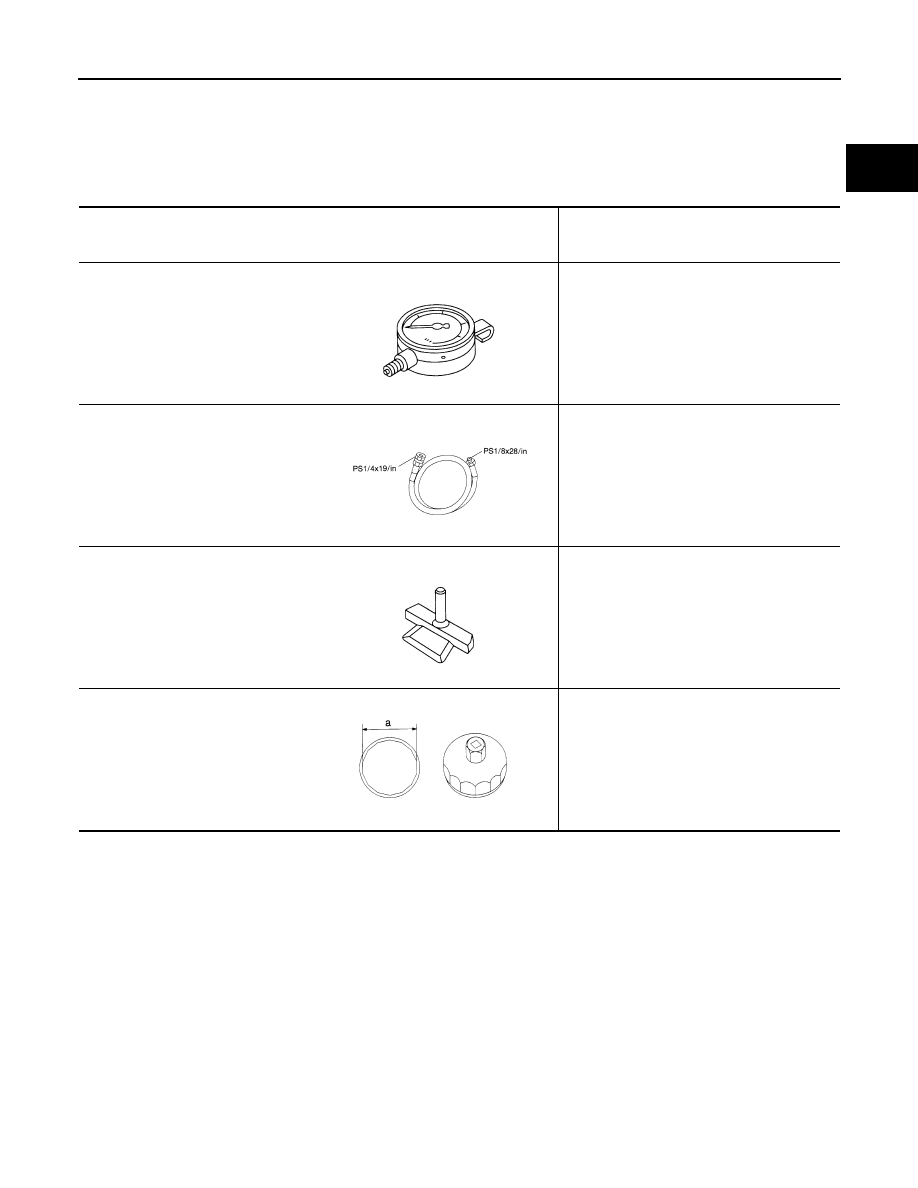

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006289612

Commercial Service Tool

INFOID:0000000006289613

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range:

2,452 kPa (25 kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

S-NT050

S-NT559

NT046

S-NT375
