CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000006113099

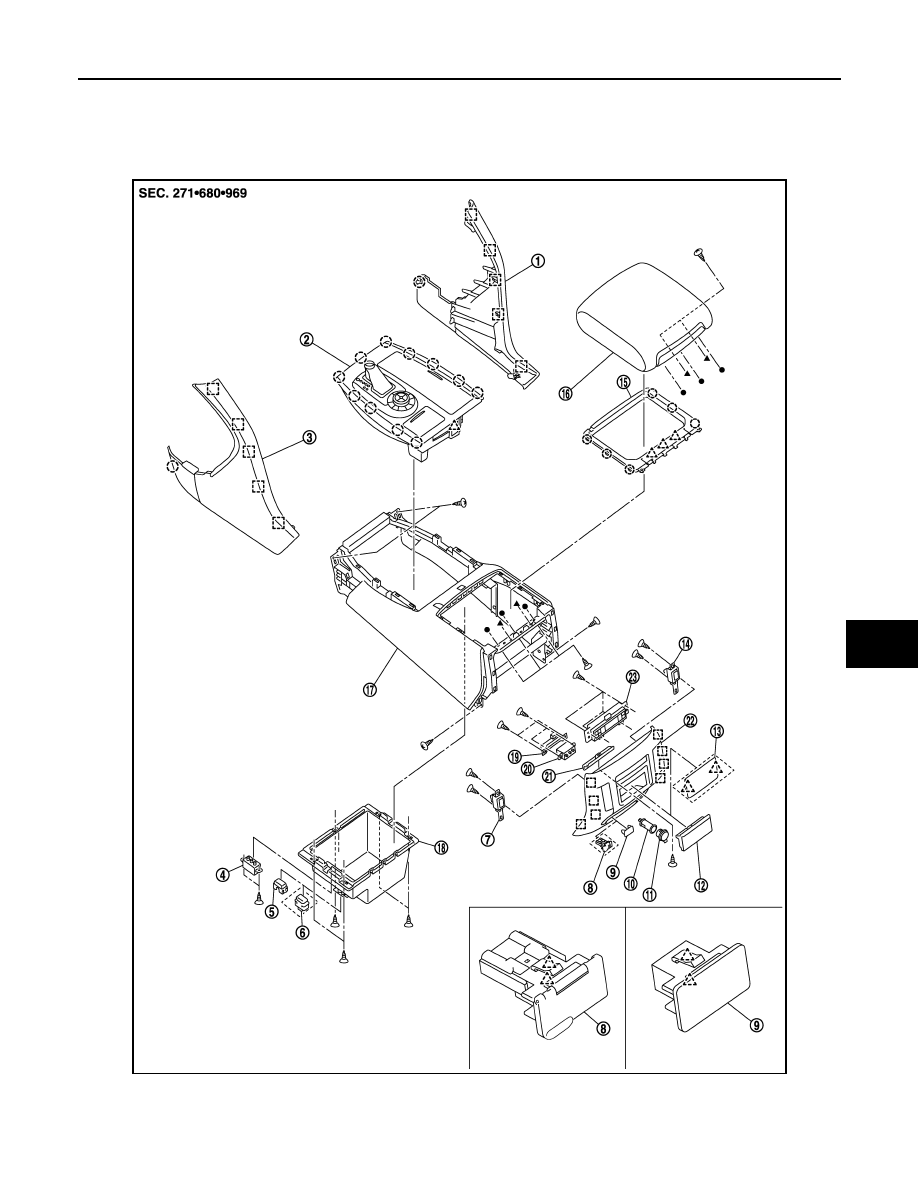

CENTER CONSOLE ASSEMBLY

JMJIA4229ZZ

1.

Instrument center finisher RH

2.

Console finisher assembly

3.

Instrument center finisher LH

4.

Front auxiliary input jacks

5.

Switch hole mask

6.

Main switch

IP-24

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CONSOLE FINISHER ASSEMBLY

7.

Second heated seat switch LH

8.

120W unit

9.

Mask

10. Inner socket

11.

Socket knob

12. Console ashtray

13. Mask (without ashtray)

14. Second heated seat switch RH

15. Console hinge cover

16. Console lid assembly

17. Console body assembly

18. Console box

19. Inside key antenna

20. Rear auxiliary input jacks

21. Console ashtray bracket

22. Console rear finisher

23. Rear A/C control

: Clip

: Pawl

: Metal clip

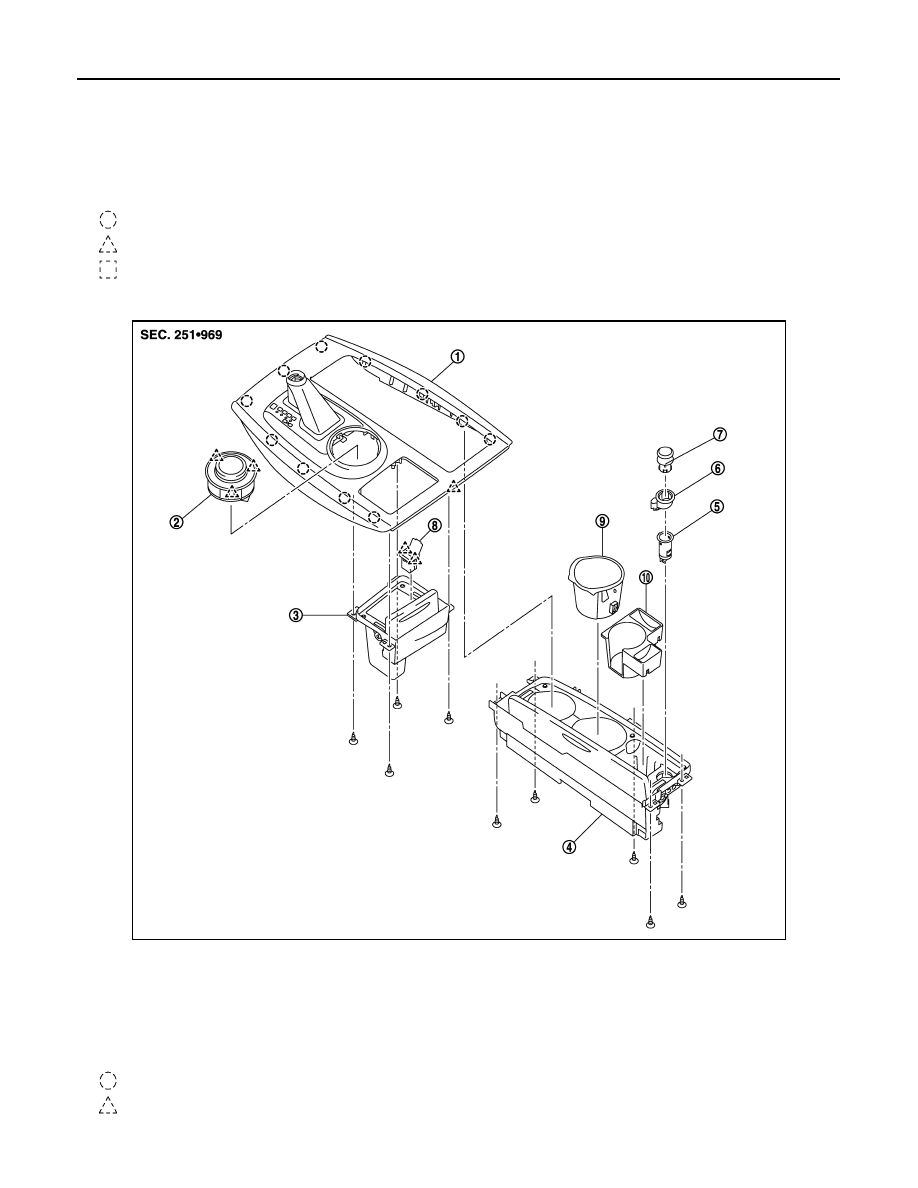

JMJIA4230ZZ

1.

AT control indicator assembly

2.

4WD: 4WD switch assembly
2WD: SNOW MODE/TOW MODE/
VDC OFF switch assembly

3.

Console pocket assembly

4.

Cup holder assembly

5.

Inner socket

6.

Socket ring

7.

Socket knob

8.

USB connector

9.

Inner case

10. Coin pocket

: Clip

: Pawl

CENTER CONSOLE ASSEMBLY

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000006113100

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

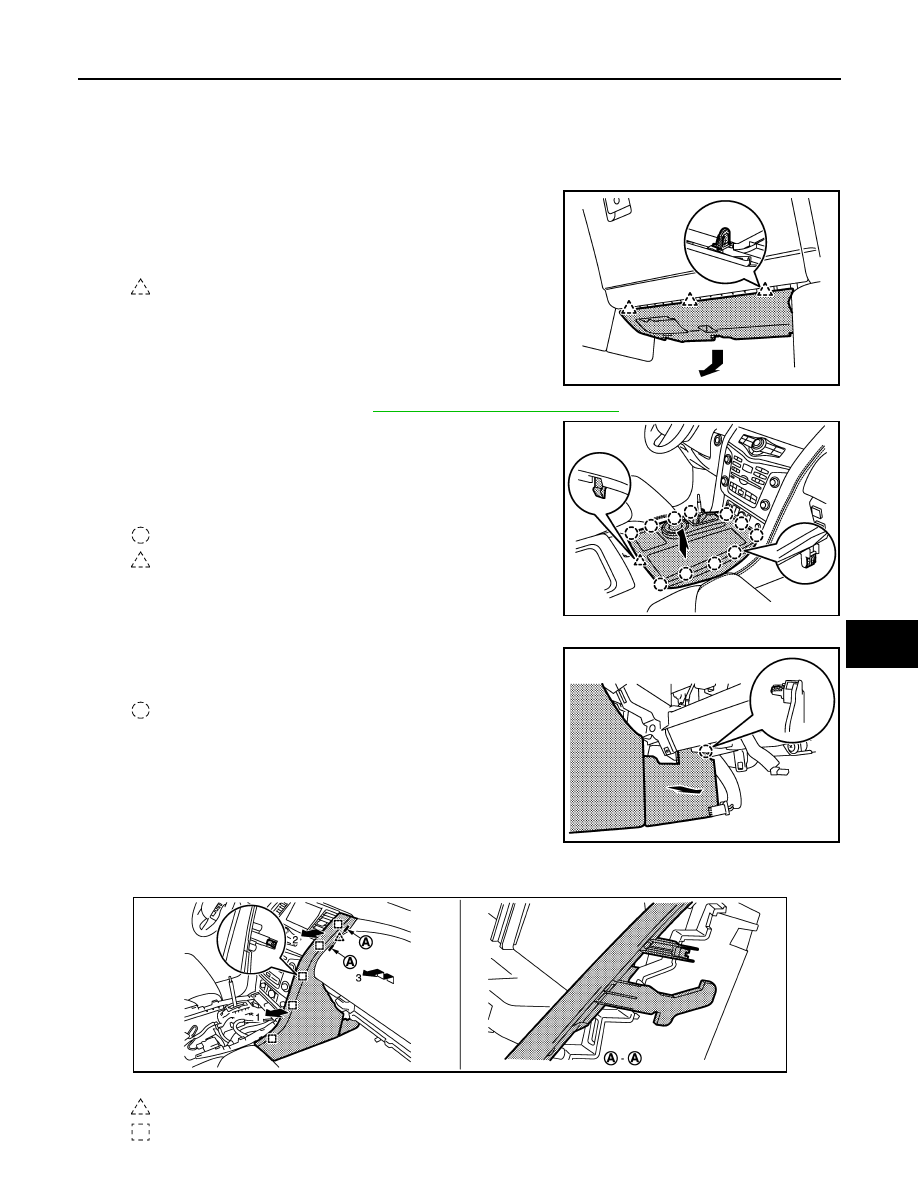

1.

Remove instrument lower cover.
1.

Pull disengaged pawls downward.

2.

Pull back instrument lower cover.

3.

Disconnect harness connectors.

2.

Remove selector lever knob. Refer to

TM-176, "Removal and Installation"

.

3.

Remove console finisher assembly.
1.

Put front seat to rearmost position.

2.

Pull console finisher assembly, upward to disengage from
center console assembly.

3.

Disconnect harness connectors.

4.

Remove instrument center finisher RH.
1.

Pull the instrument center finisher RH lower side, and then
disengage the fixing clip.

2.

Pull back instrument center finisher RH, and then disengage metal clips.

3.

Disengage instrument center finisher RH fixing pawl from instrument panel assembly.

: Pawl

JMJIA3828ZZ

: Clip

: Pawl

JMJIA3832ZZ

Clip

JMJIA4494ZZ

: Pawl

: Metal Clip

JMJIA4495ZZ

IP-26

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

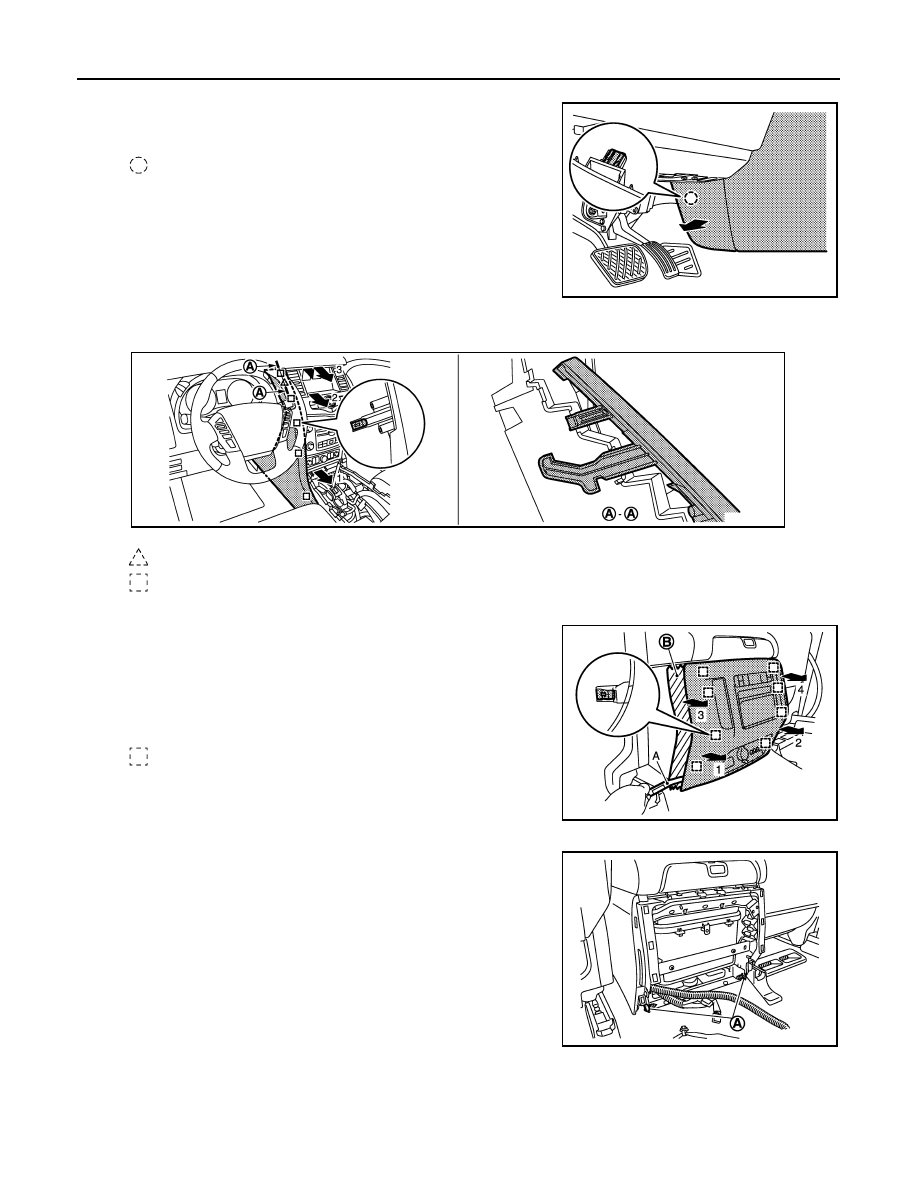

5.

Remove instrument center finisher LH.
1.

Pull the instrument center finisher LH lower side, and then
disengage the fixing clip.

2.

Pull back instrument center finisher LH, and then disengage metal clips.

3.

Disengage instrument center finisher LH fixing pawl from instrument panel assembly.

6.

Remove console rear finisher.
1.

Put front seat to frontmost position.

2.

Pull back console rear finisher with remover tool (A).

3.

Disconnect harness connectors and harness clips.

CAUTION:

 Apply protective tape (B) on the part to protect it from dam-
age.

7.

Remove center console assembly.
1.

Remove center console assembly rear side fixing screws
(A).

2.

Put front seat to rearmost position.

Clip

JMJIA4496ZZ

: Pawl

: Metal Clip

JMJIA4499ZZ

: Metal Clip

JMJIA3848ZZ

JMJIA3897ZZ
