Infiniti QX56 (Z62). Manual - part 852

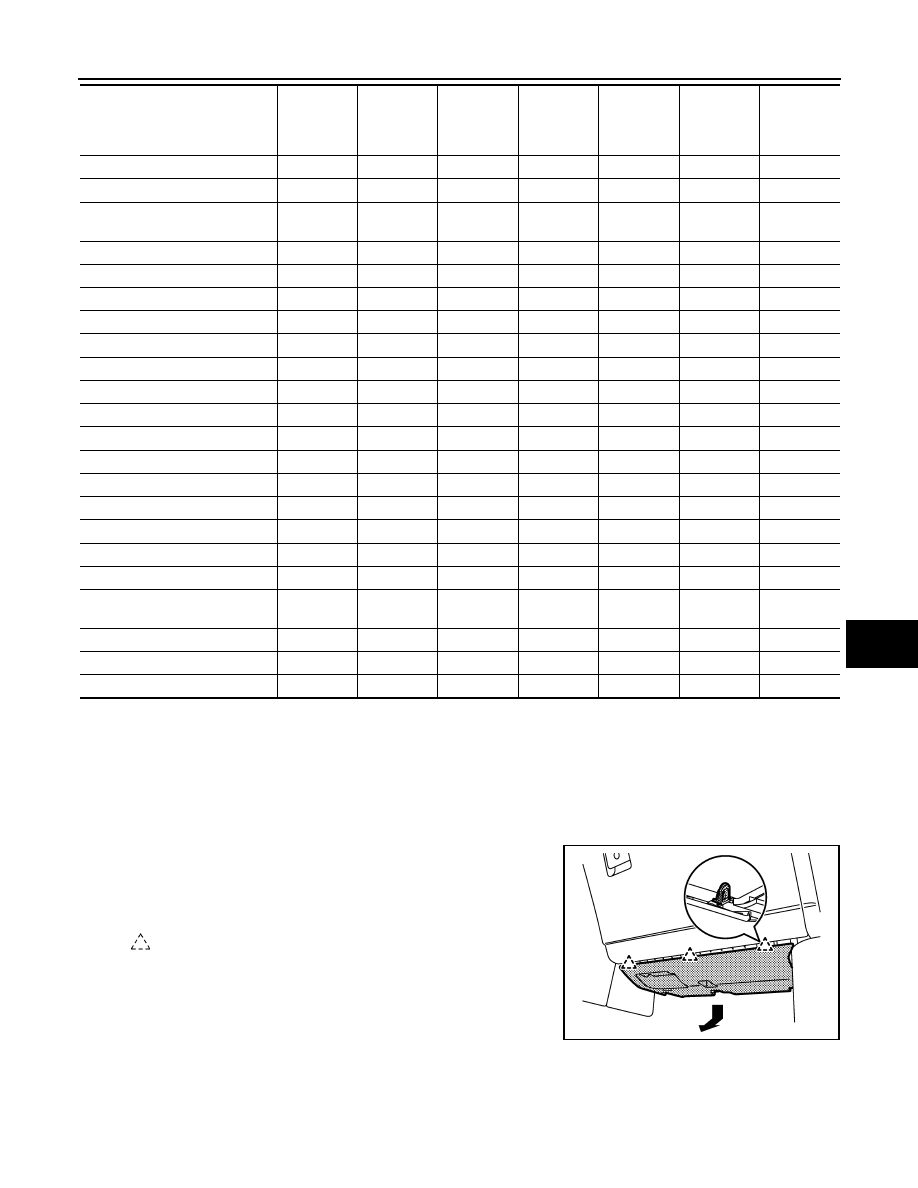

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

[ ]:Number indicates step in removal procedures.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait 3 minutes or
more.

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Remove instrument lower cover.
1.

Pull disengaged pawls downward.

2.

Pull back instrument lower cover.

3.

Disconnect harness connectors.

Squawker LH

[20]

[20]

Instrument lower panel LH

[21]

[2]

[2]

[21]

Disconnect meter control switch
harness connector

[22]

[3]

[3]

[22]

Driver air bag module

[23]

[23]

Steering wheel

[24]

[24]

Steering column cover

[25]

[25]

Combination switch

[26]

[26]

Spiral cable

[27]

[27]

Cluster lid A

[28]

[4]

[4]

[28]

Combination meter

[29]

[5]

[29]

Instrument finisher A

[5]

Upper ventilator grille

[30]

[30]

Center speaker

[31]

[31]

Cluster lid C

[32]

[6]

[6]

[32]

Cluster lid C lower

[33]

[7]

[33]

AV control unit

[34]

[8]

[34]

Cluster lid D

[35]

[7]

[35]

Front display unit

[36]

[8]

[36]

instrument panel assembly
mounting screws and bolts

[37]

[37]

Squawker LH harness clip

[38]

[38]

Instrument panel assembly

[39]

[39]

Instrument finisher B

[40]

PARTS

INSTRU-

MENT

PANEL

ASSEMBLY

COMBINA-

TION

METER

FRONT

DISPLAY

UNIT

AV control

unit

INSTRU-

MENT

FINISHER

A

INSTRU-

MENT

FINISHER

B

CENTER

CONSOLE

ASSEMBLY

: Pawl

JMJIA3828ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

2.

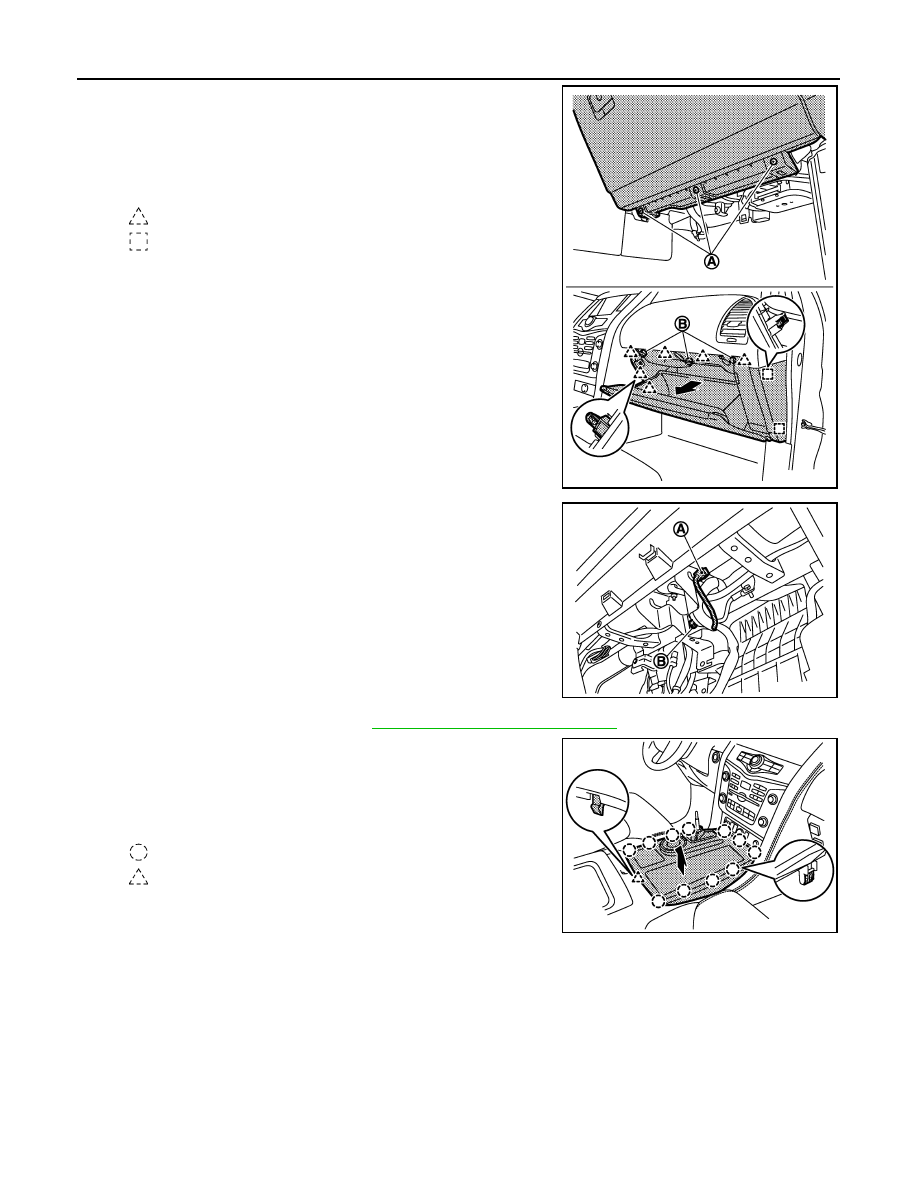

Remove glove box assembly.
1.

Remove glove box assembly fixing screws (A).

2.

Open glove box lid.

3.

Remove glove box assembly fixing screws (B).

4.

Pull back glove box assembly.

5.

Disconnect harness connector.

3.

Disconnect harness connector (A) of front passenger air bag
module.

4.

Remove front passenger air bag module mounting bolt (B).

5.

Remove selector lever knob. Refer to

TM-176, "Removal and Installation"

.

6.

Remove console finisher assembly.
1.

Put front seat to rearmost position.

2.

Pull console finisher assembly upward to disengage from
center console assembly.

3.

Disconnect harness connectors.

7.

Remove instrument center finisher RH.

: Pawl

: Metal Clip

JMJIA4493ZZ

JMJIA3831ZZ

: Clip

: Pawl

JMJIA3832ZZ

INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

1.

Pull the instrument center finisher RH lower side, and then
disengage the fixing clip.

2.

Pull back instrument center finisher RH, and then disengage metal clips.

3.

Disengage instrument center finisher RH fixing pawl from instrument panel assembly.

8.

Remove front body side welt RH. Refer to

INT-20, "BODY SIDE WELT : Removal and Installation"

.

9.

Remove front pillar garnish RH. Refer to

INT-19, "FRONT PILLAR GARNISH : Removal and Installation"

.

10. Remove speaker grille RH.

1.

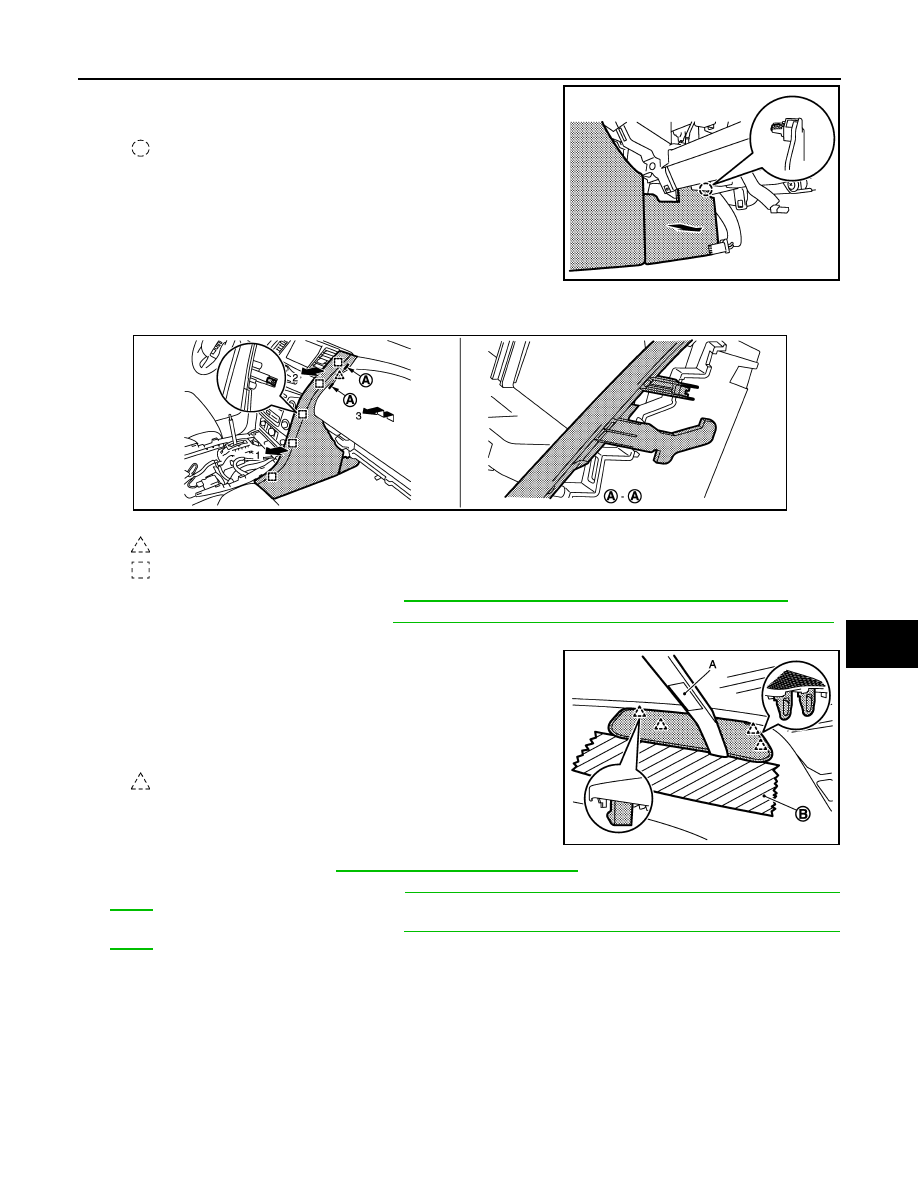

Disengage speaker grille RH fixing pawls with remover tool
(A).

2.

Pull up speaker grille RH.

CAUTION:

 Apply protective tape (B) on the part to protect it from dam-
age.

11. Remove squawker RH. Refer to

AV-218, "Removal and Installation"

.

12. Remove front defroster grille RH. Refer to

VTL-10, "FRONT DEFROSTER GRILLE : Removal and Instal-

lation"

.

13. Remove front defroster grille LH. Refer to

VTL-10, "FRONT DEFROSTER GRILLE : Removal and Instal-

lation"

.

14. Remove instrument center finisher LH.

Clip

JMJIA4494ZZ

: Pawl

: Metal Clip

: Pawl

JMJIA4495ZZ

JMJIA3835ZZ

IP-18

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

1.

Pull the instrument center finisher LH lower side, and then
disengage the fixing clip.

2.

Pull back instrument center finisher LH, and then disengage metal clips.

3.

Disengage instrument center finisher LH fixing pawl from instrument panel assembly.

15. Remove console rear finisher.

1.

Put front seat to frontmost position.

2.

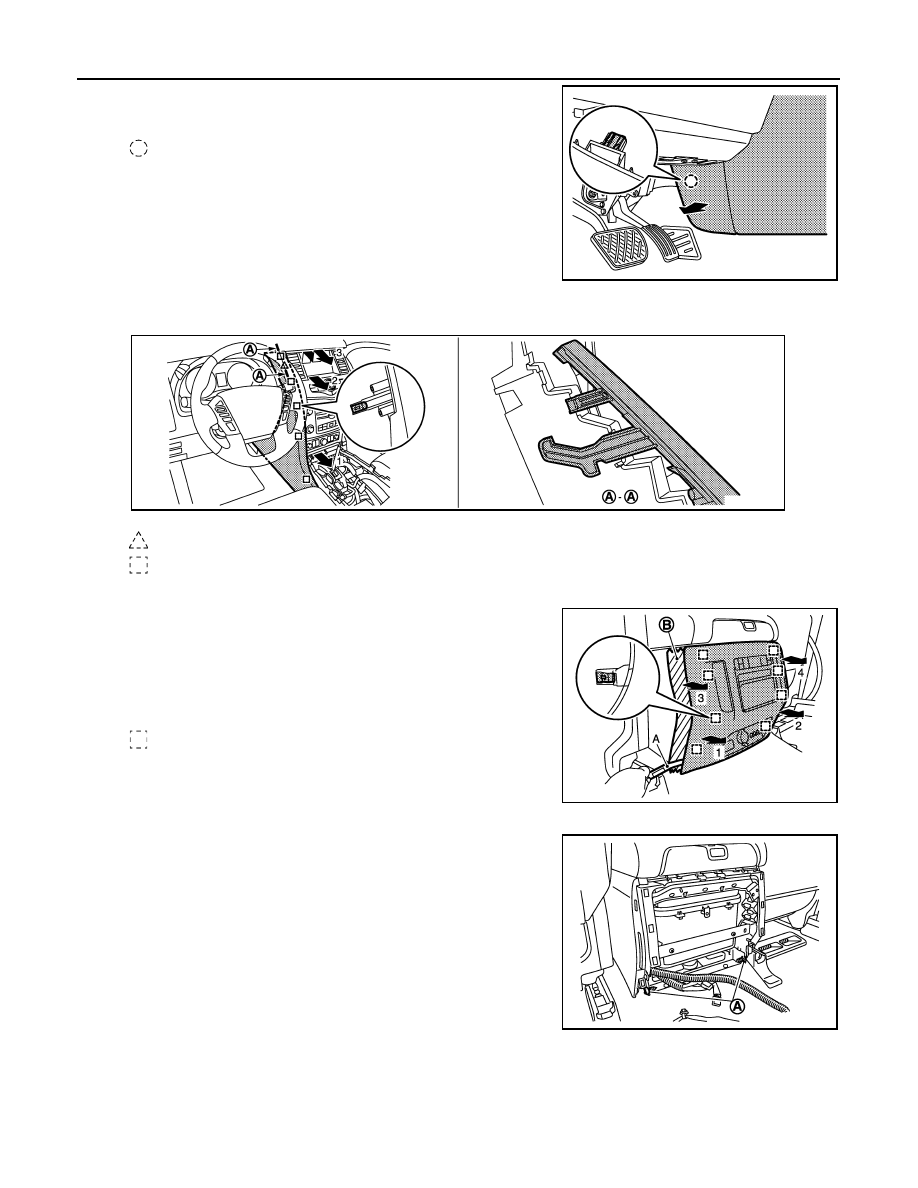

Pull back console rear finisher with remover tool (A).

3.

Disconnect harness connectors and harness clips.

CAUTION:

 Apply protective tape (B) on the part to protect it from dam-
age.

16. Remove center console assembly.

1.

Remove centre console assembly rear side fixing screws
(A).

2.

Put front seat to rearmost position.

Clip

JMJIA4496ZZ

: Pawl

: Metal Clip

JMJIA4499ZZ

: Metal Clip

JMJIA3848ZZ

JMJIA3897ZZ
