Infiniti QX56 (Z62). Manual - part 837

INL-78

< REMOVAL AND INSTALLATION >

PERSONAL LAMP

2.

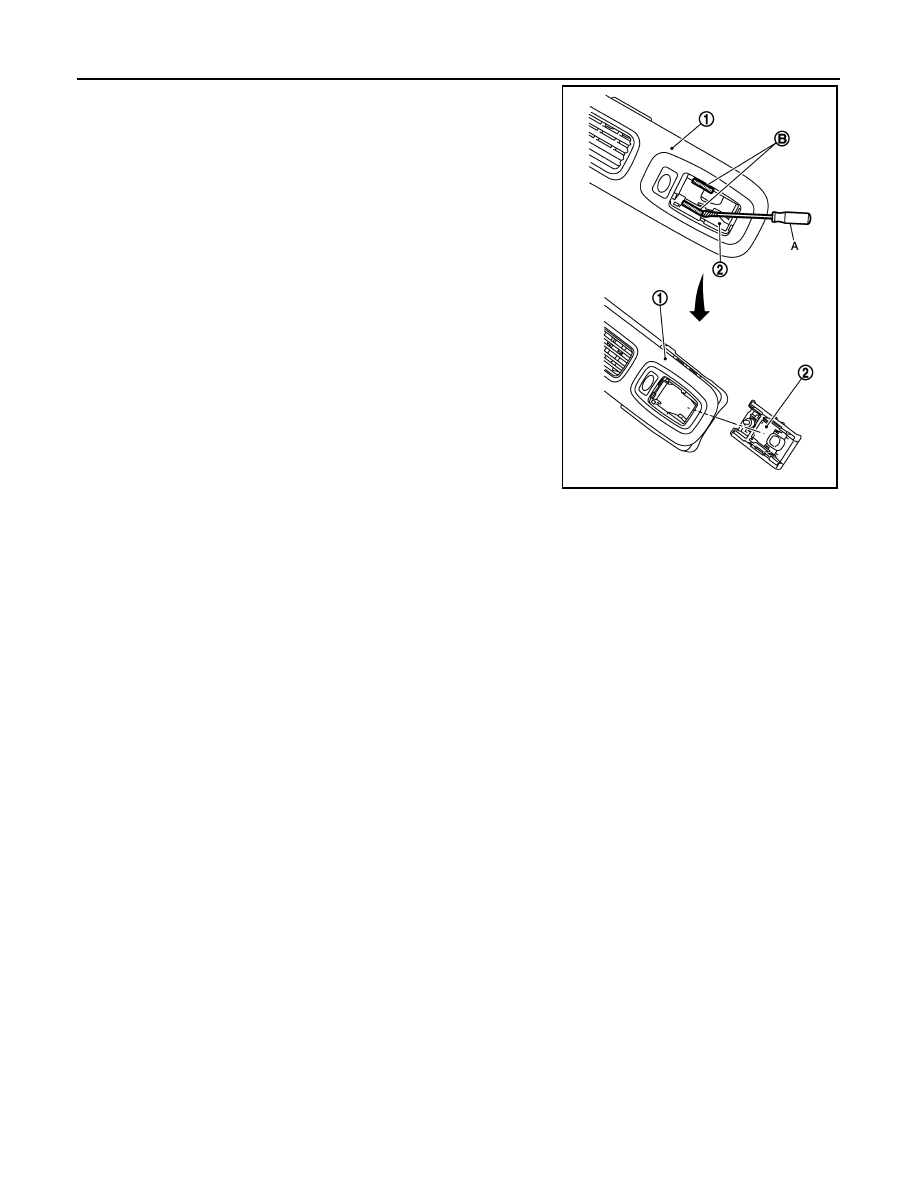

Press the pawls (B) on both sides as shown in the figure using a
small flat-bladed screwdriver (A), and then pull out personal
lamp case (2) from personal lamp finisher (1).

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000006288664

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

PERSONAL LAMP BULB

1.

Insert any appropriate tool into the gap between the lens, and then remove the lens.

2.

Remove the bulb.

JMLIA1058ZZ

PUDDLE LAMP

INL-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PUDDLE LAMP

Exploded View

INFOID:0000000006288665

Removal and Installation

INFOID:0000000006288666

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch puddle lamp directly by hand. Keep grease and other oily substaces away from it.
• Never touch puddle lamp by hand while it is lit or right after it is off.
• It is prohibited to disassemble puddle lamp.
• Always replace puddle lamp as an assembly, when replacing.

REMOVAL

1.

Remove door mirror assembly. Refer to

MIR-32, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

2.

Disconnect puddle lamp harness connector terminal from door mirror harness connector.

3.

Disengage base cover fixing pawls using a small flat-bladed
screwdriver (A), and then remove base cover.

CAUTION:

• Apply protective tape (B) around the base to protect the

surface from damage.

• Apply protective tape to small flat-bladed screwdriver.

1.

Door mirror assembly

2.

Puddle lamp

3.

Base cover

: Pawl

JMLIA1148ZZ

: Pawl

JMLIA0922ZZ

INL-80

< REMOVAL AND INSTALLATION >

PUDDLE LAMP

4.

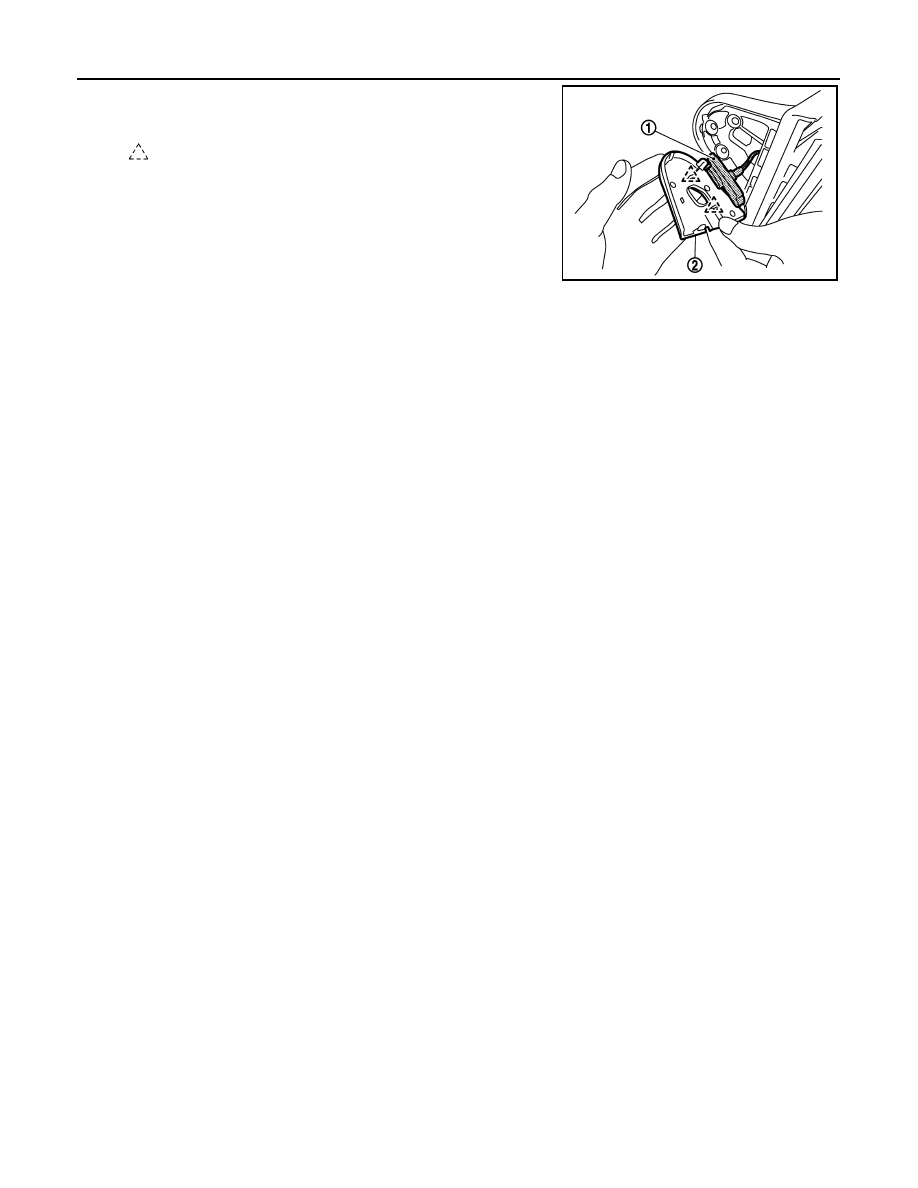

Disengage puddle lamp fixing pawls, and then remove puddle
lamp (1) from base cover (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA1283ZZ

LUGGAGE ROOM LAMP

INL-81

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

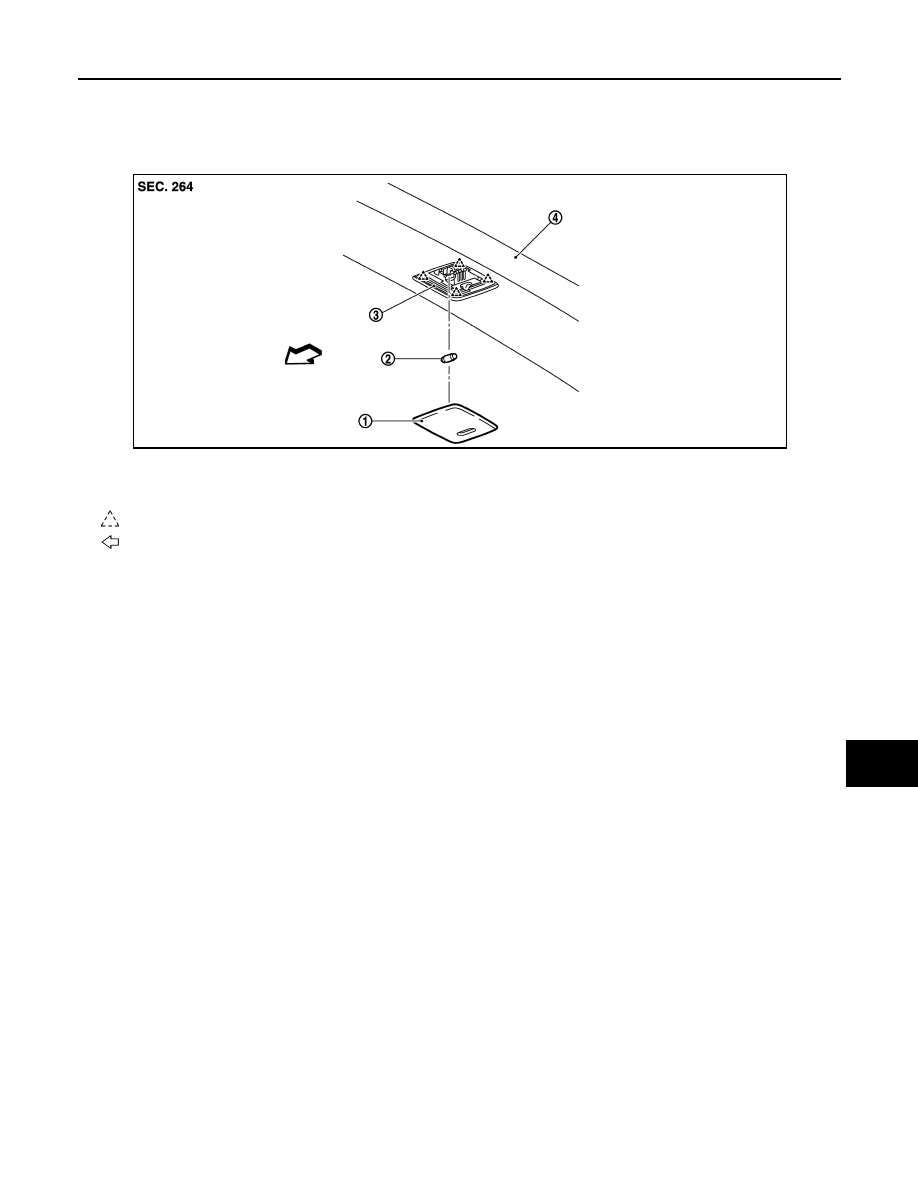

LUGGAGE ROOM LAMP

Exploded View

INFOID:0000000006288667

Removal and Installation

INFOID:0000000006288668

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

REMOVAL

1.

Insert any appropriate tool into the gap between lens and roof garnish, and then remove lens.

2.

Disengage luggage room lamp housing fixing metal clips, and then disconnect luggage room lamp har-
ness connector.

3.

Remove luggage room lamp housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000006288669

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

LUGGAGE ROOM LAMP BULB

1.

Insert any appropriate tool into the gap between lens and roof garnish, and then remove the lens.

2.

Remove bulb.

1.

Lens

2.

Bulb

3.

Luggage room lamp housing

4.

Roof garnish

: Pawl

: Vehicle front

JMLIA1056ZZ
