Infiniti QX56 (Z62). Manual - part 836

INL-74

< REMOVAL AND INSTALLATION >

STEP LAMP

STEP LAMP

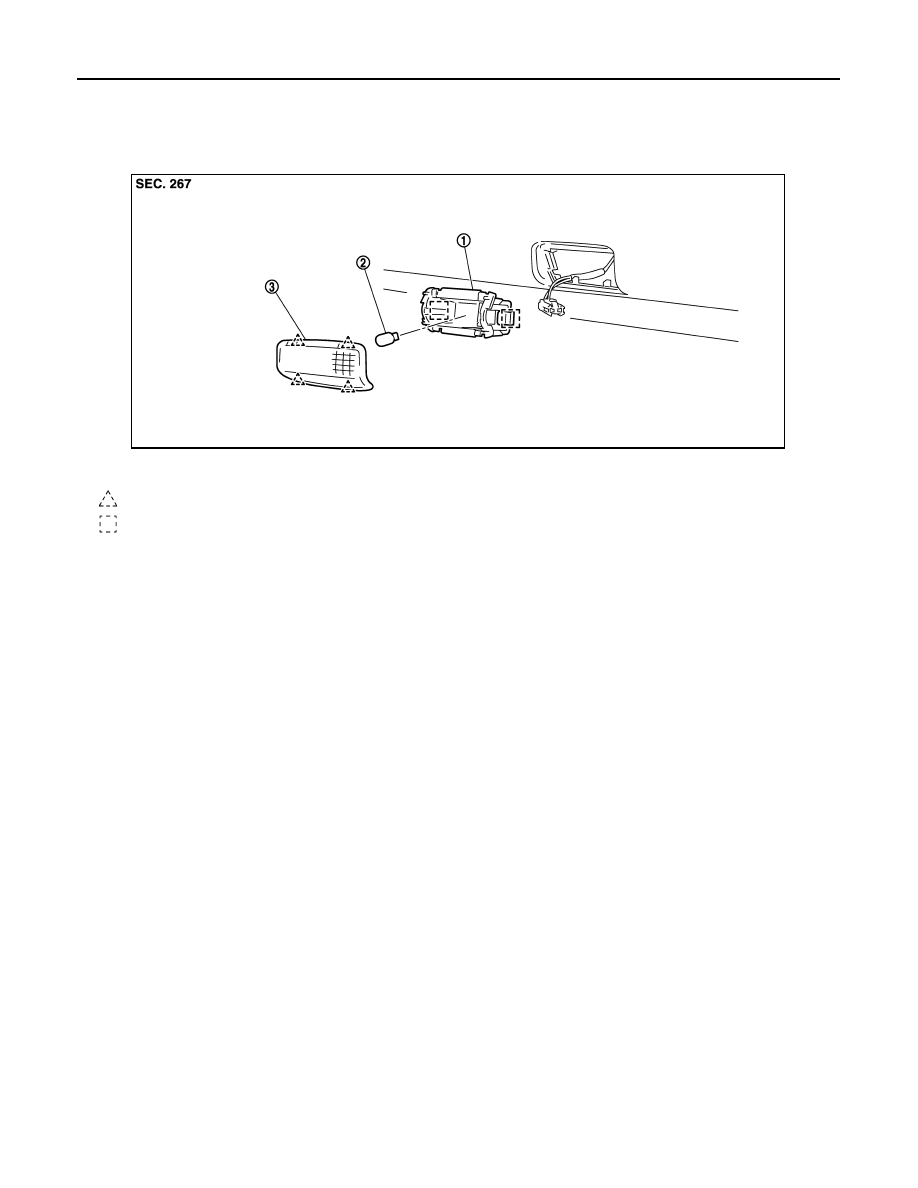

Exploded View

INFOID:0000000006288655

Removal and Installation

INFOID:0000000006288656

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

REMOVAL

1.

Insert any appropriate tool into the gap between the step lamp and door finisher.

2.

Disconnect the step lamp harness connector, and then remove the step lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000006288657

STEP LAMP BULB

1.

Remove the step lamp.

2.

Remove the lens.

3.

Remove the bulb.

1.

Step lamp housing

2.

Bulb

3.

Lens

: Pawl

: Metal clip

JMLIA0541ZZ

MOOD LAMP

INL-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

MOOD LAMP

FRONT DOOR ARMREST

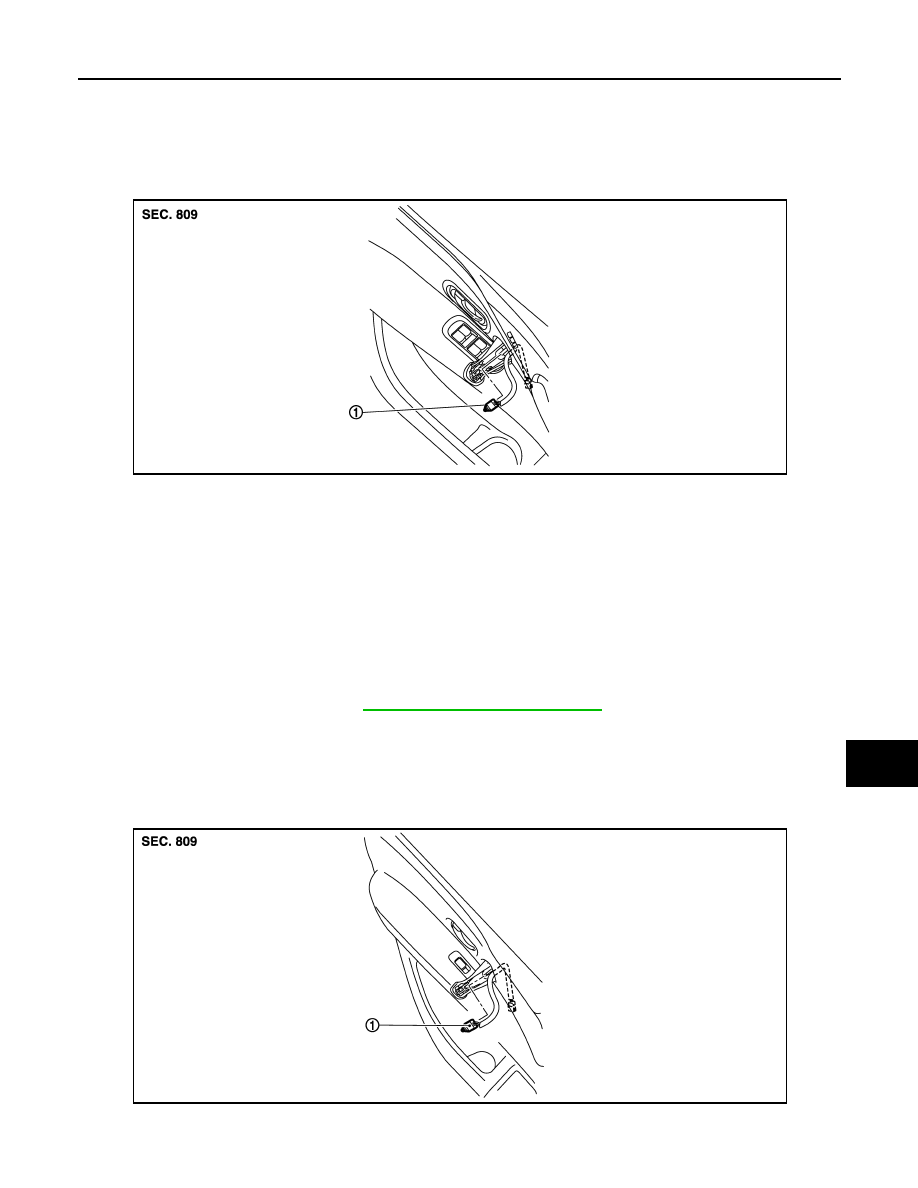

FRONT DOOR ARMREST : Exploded View

INFOID:0000000006288658

FRONT DOOR ARMREST : Replacement

INFOID:0000000006288659

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

MOOD LAMP

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the mood lamp from front door finisher.

REAR DOOR ARMREST

REAR DOOR ARMREST : Exploded View

INFOID:0000000006288660

1.

Mood lamp

JMLIA1054ZZ

1.

Mood lamp

JMLIA1055ZZ

INL-76

< REMOVAL AND INSTALLATION >

MOOD LAMP

REAR DOOR ARMREST : Replacement

INFOID:0000000006288661

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

MOOD LAMP

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the mood lamp from rear door finisher.

PERSONAL LAMP

INL-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PERSONAL LAMP

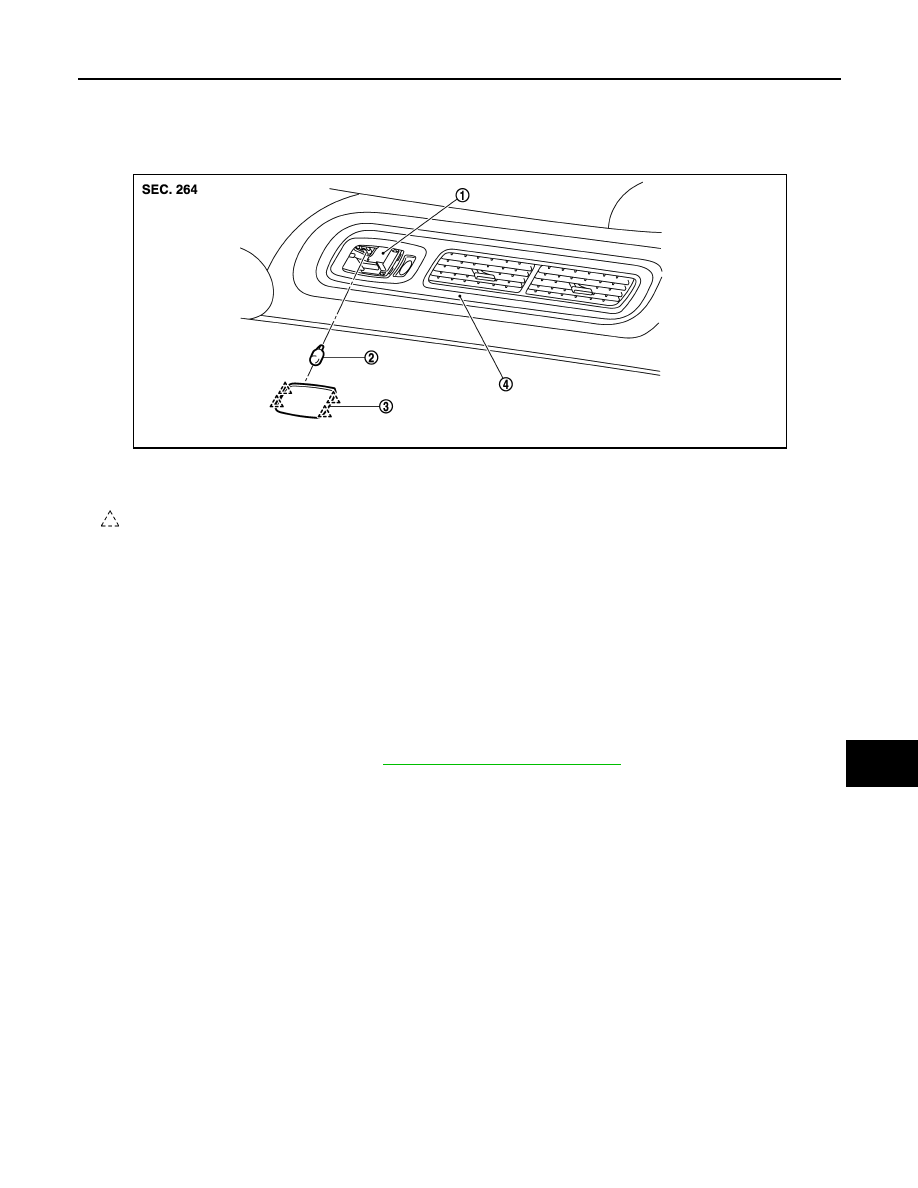

Exploded View

INFOID:0000000006288662

Removal and Installation

INFOID:0000000006288663

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

• Replace the personal lamp case as a set (LH and RH). After removing the headlining assembly,

remove the personal lamp case.

REMOVAL

1.

Remove headlining assembly. Refer to

INT-29, "Removal and Installation"

.

1.

Personal lamp case

2.

Bulb

3.

Lens

4.

Personal lamp finisher

: Pawl

JMLIA1053ZZ
