INL-70

< REMOVAL AND INSTALLATION >

GLOVE BOX LAMP

GLOVE BOX LAMP

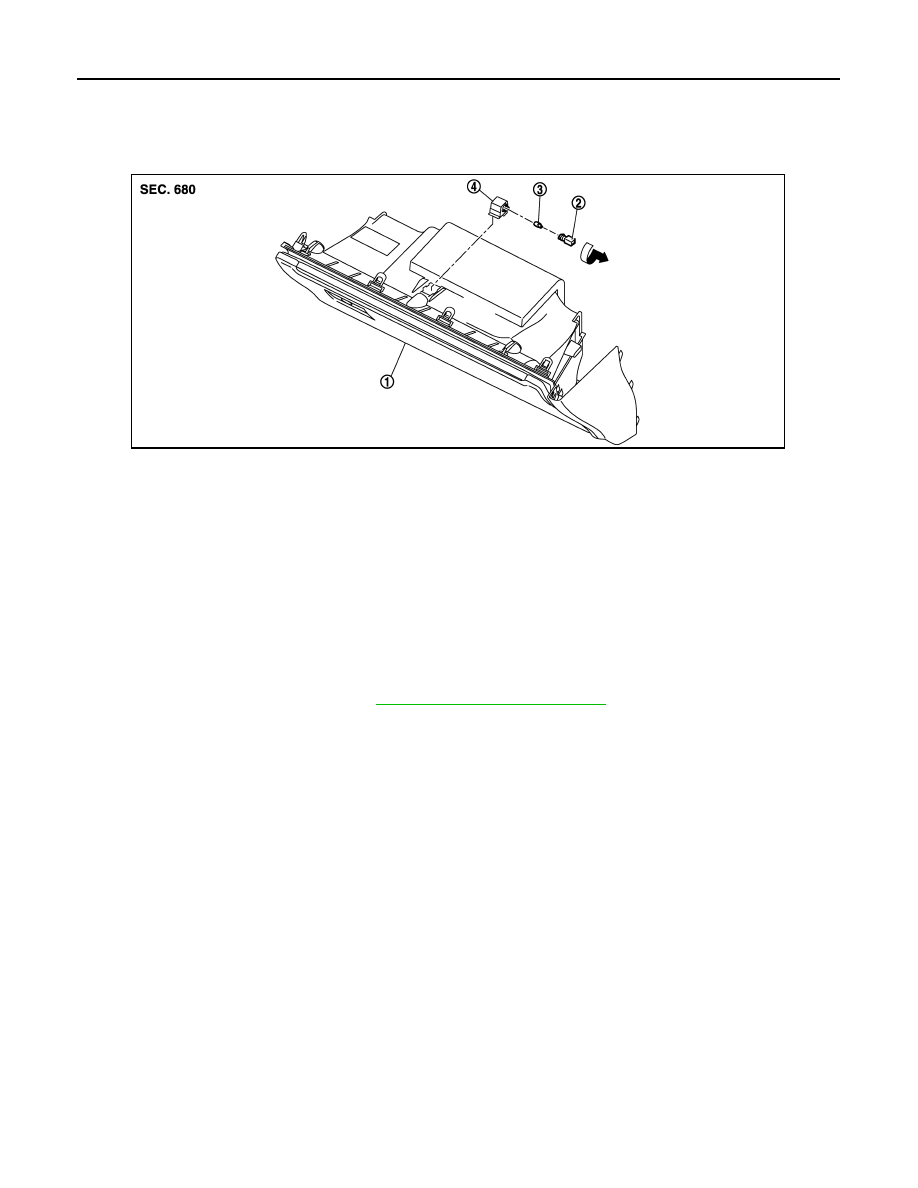

Exploded View

INFOID:0000000006288647

Replacement

INFOID:0000000006288648

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

GLOVE BOX LAMP BULB

1.

Remove glove box assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Glove box assembly

2.

Bulb socket

3.

Bulb

4.

Lamp housing

JMLIA1050ZZ

FOOT LAMP

INL-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

FOOT LAMP

DRIVER SIDE

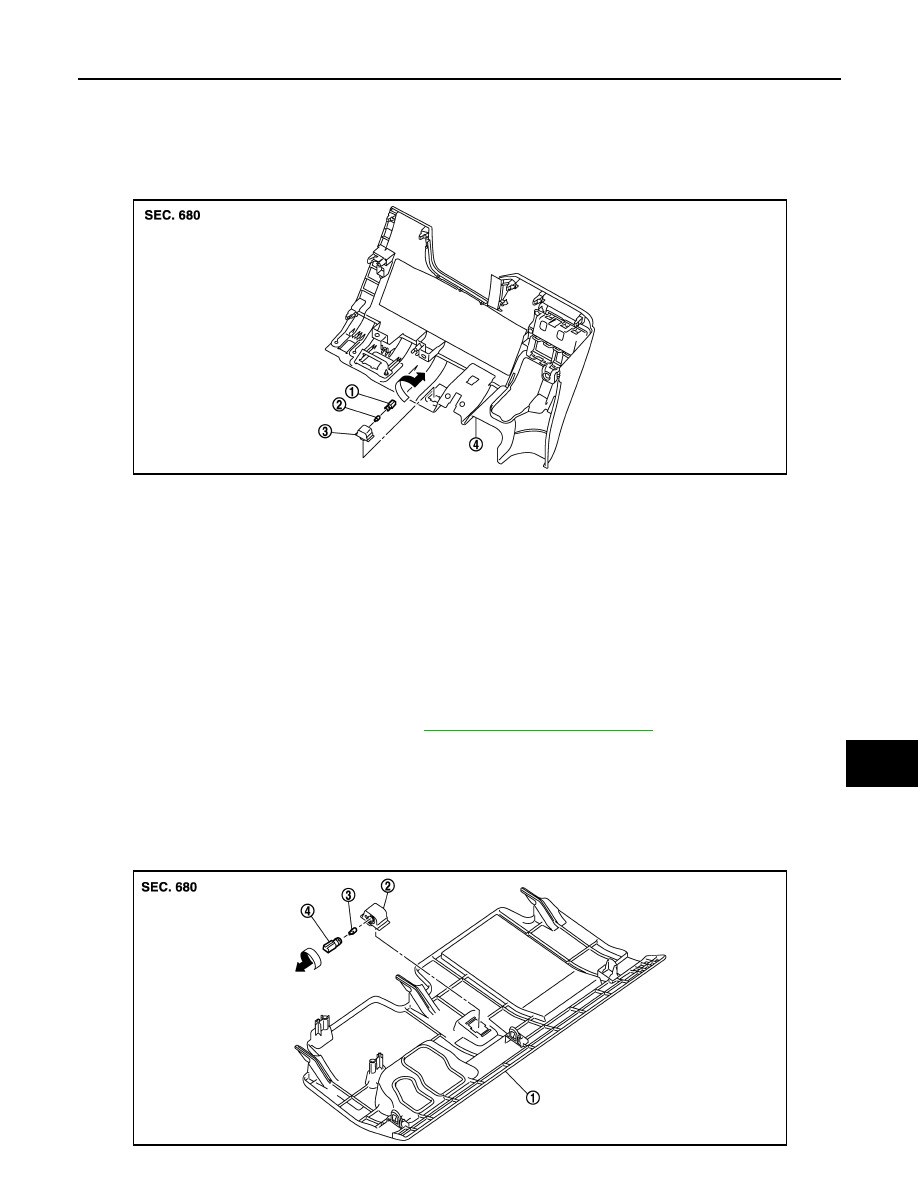

DRIVER SIDE : Exploded View

INFOID:0000000006288649

DRIVER SIDE : Replacement

INFOID:0000000006288650

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

FOOT LAMP BULB (DRIVER SIDE)

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000006288651

1.

Bulb socket

2.

Bulb

3.

Lamp housing

4.

Instrument lower panel LH

JMLIA1051ZZ

JMLIA1052ZZ

INL-72

< REMOVAL AND INSTALLATION >

FOOT LAMP

PASSENGER SIDE : Replacement

INFOID:0000000006288652

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily substaces away from it.

Never touch bulb by hand while it is lit or right after it is off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with a new one.

FOOT LAMP BULB (PASSENGER SIDE)

1.

Remove instrument lower cover. Refer to

IP-14, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

REAR FOOT LAMP

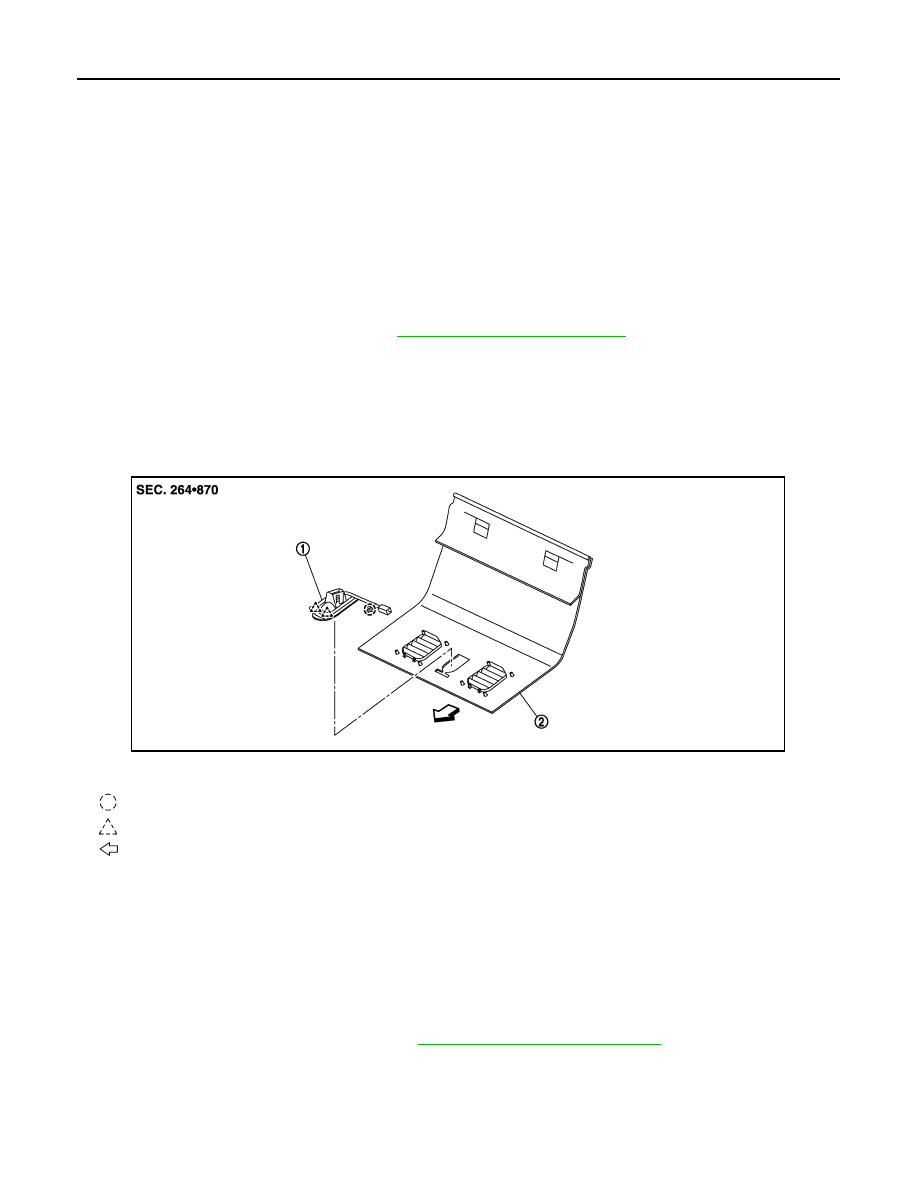

REAR FOOT LAMP : Exploded View

INFOID:0000000006288653

REAR FOOT LAMP : Removal and Installation

INFOID:0000000006288654

CAUTION:

• Disconnect the battery cable from negative terminal or remove the fuse.
• Never touch rear foot lamp assembly directly by hand. Keep grease and other oily substaces away

from it.

• Never touch rear foot lamp assembly by hand while it is lit or right after it is off.

REMOVAL

1.

Remove seat cushion front finisher. Refer to

SE-112, "Removal and Installation"

.

2.

Release seatback lower carpet band from the back of seat cushion frame.

3.

Pull seatback lower carpet toward vehicle rear from underside.

1.

Instrument lower cover

2.

Lamp housing

3.

Bulb

4.

Bulb socket

1.

Rear foot lamp assembly

2.

Seatback lower carpet

: Clip

: Pawl

Vehicle front

JMLIA1149ZZ

FOOT LAMP

INL-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

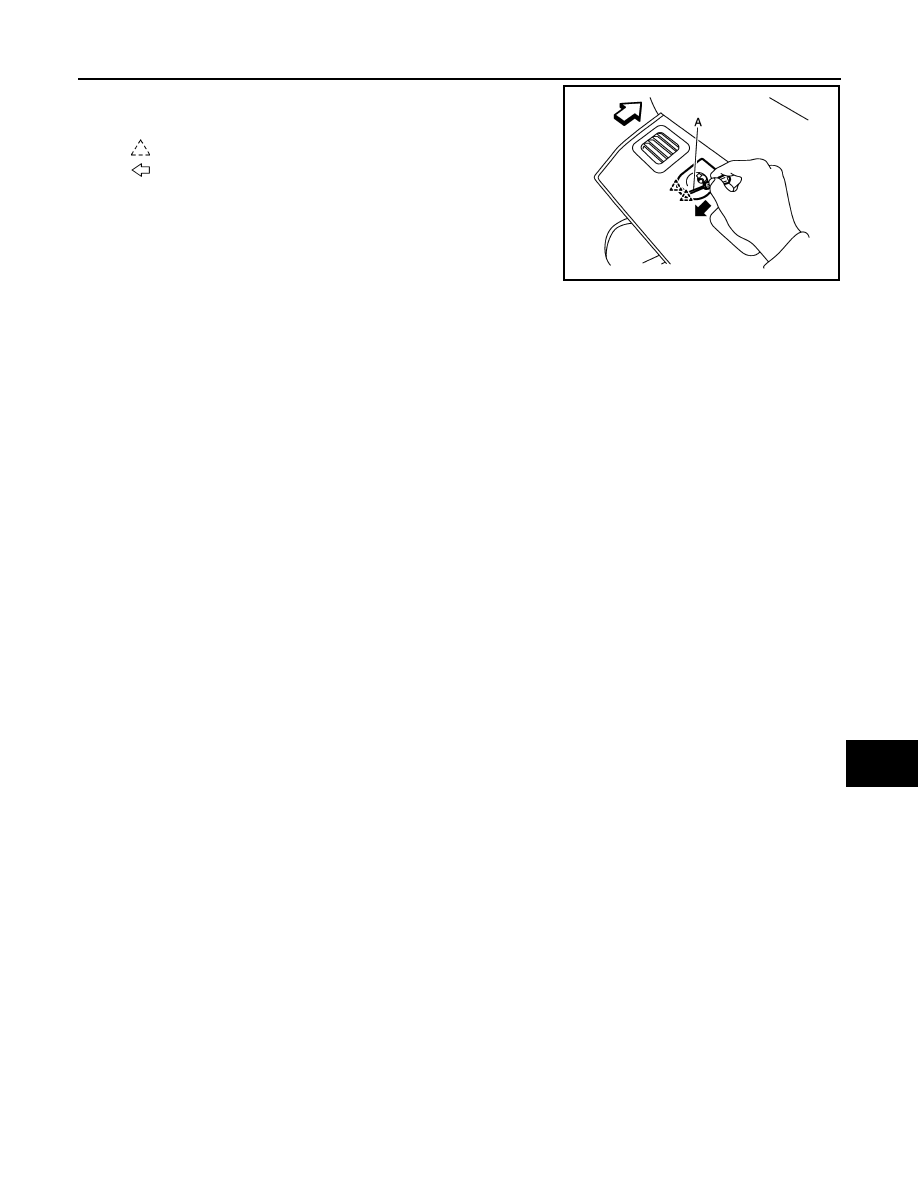

4.

Disengage rear foot lamp assembly fixing pawls using a small
flat-bladed screwdriver (A) as shown by the arrow in the figure.

5.

Remove rear foot lamp assembly from seatback lower carpet.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Rear foot lamp cannot be disassembled.
• Always replace rear foot lamp as an assembly, when replacing.

 :Pawl

 :Vehicle front

JMLIA1150ZZ
