< WIRING DIAGRAM >

ILLUMINATION

ILLUMINATION

Wiring Diagram

INFOID:0000000006216063

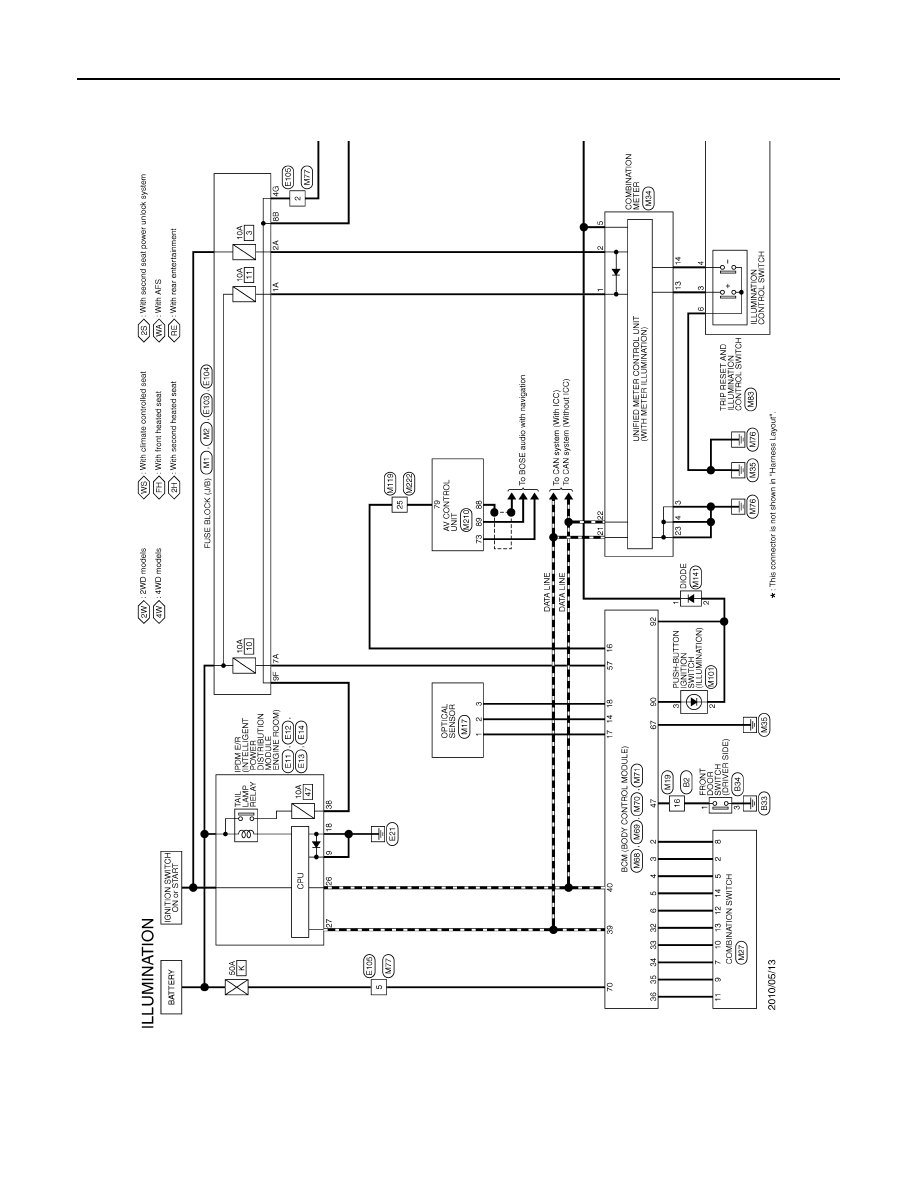

JCLWM5471GB

ILLUMINATION

INL-35

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

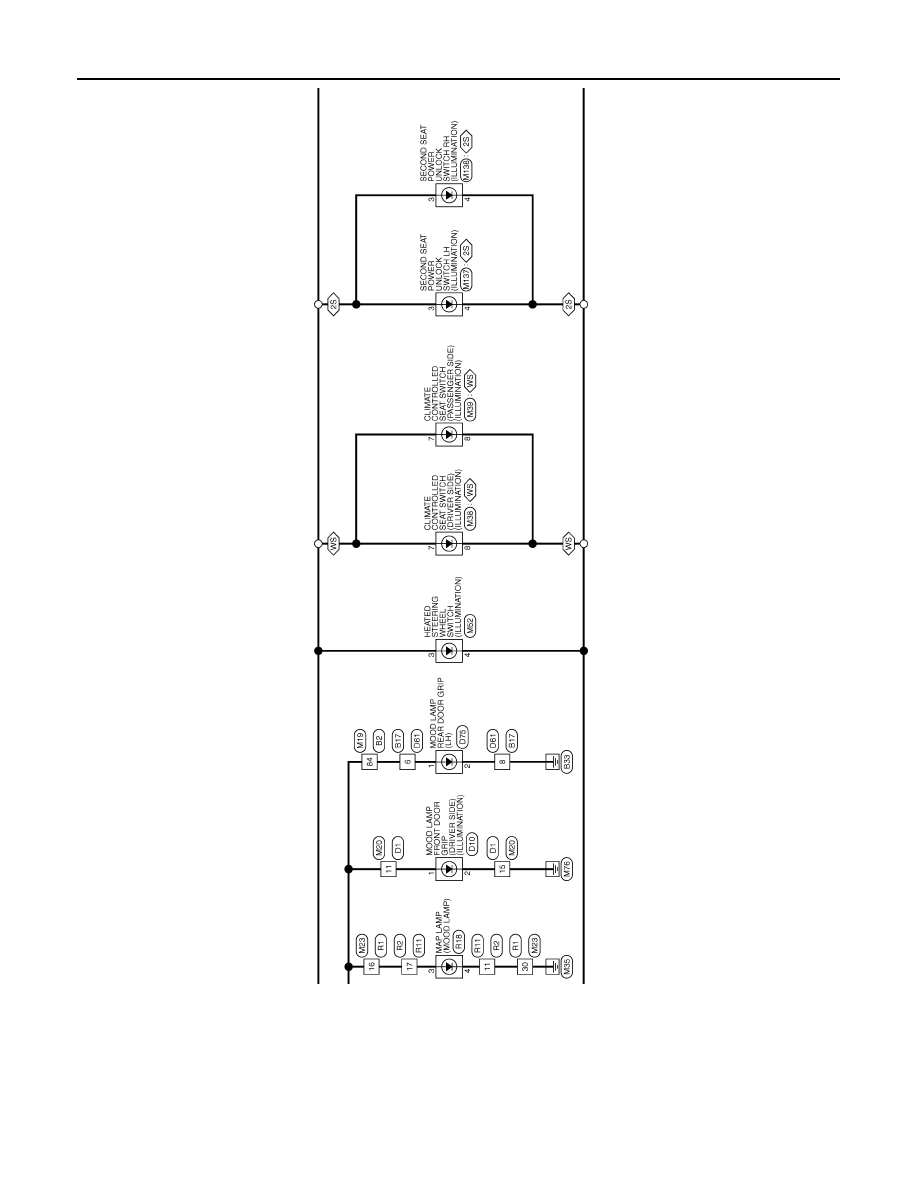

JCLWM5472GB

INL-36

< WIRING DIAGRAM >

ILLUMINATION

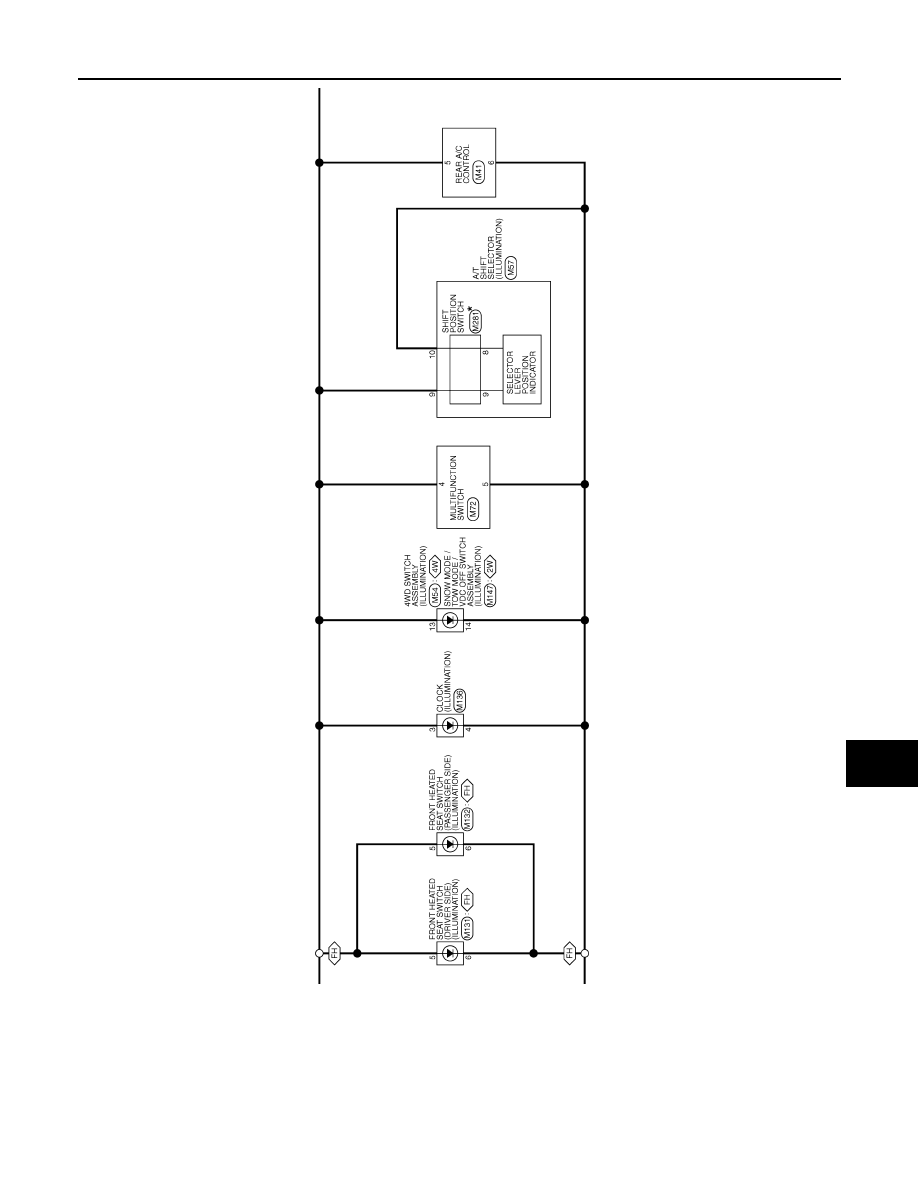

JCLWM5473GB

ILLUMINATION

INL-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

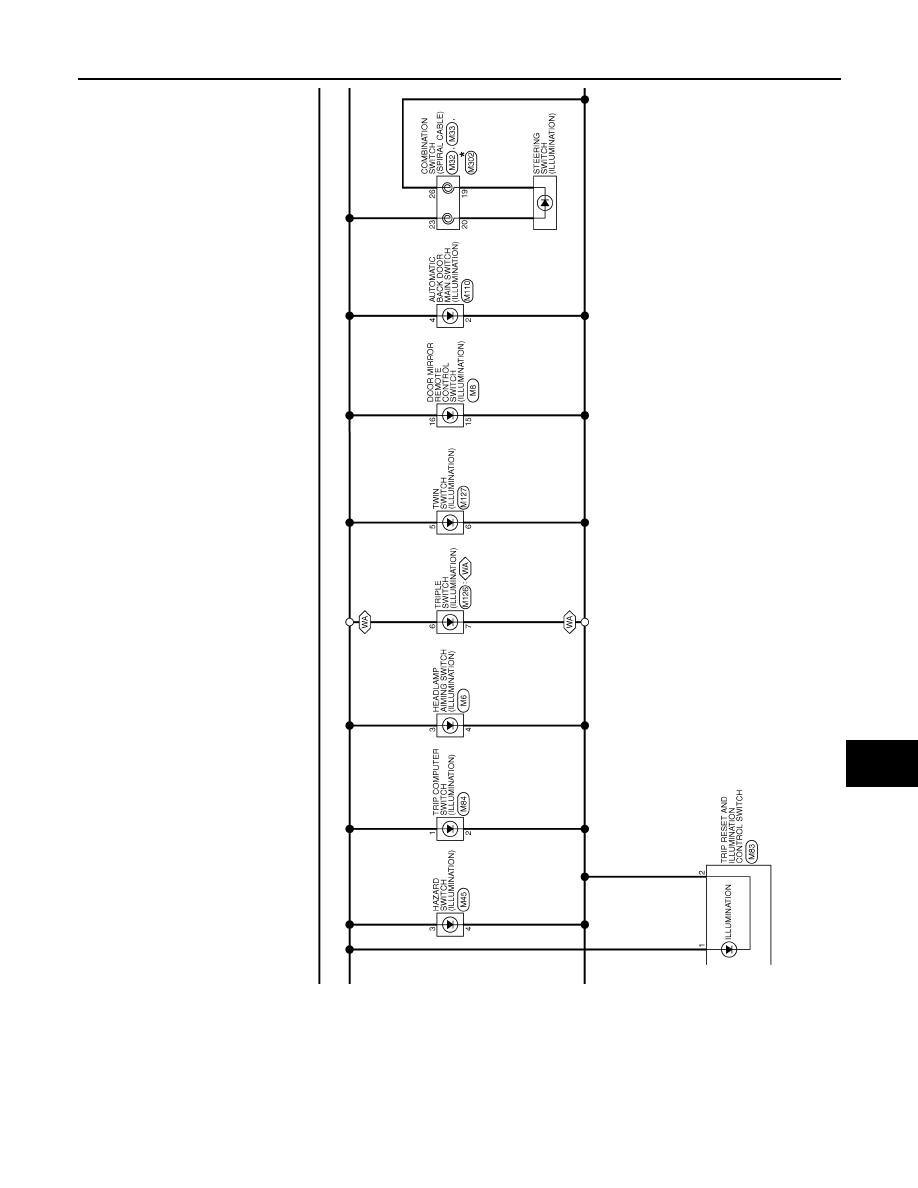

JCLWM5474GB
