GW-20

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

13. Remove front door lower sash mounting bolt and pull it out of front door panel.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000006220824

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done. Refer to

PWC-31, "Description"

.

Initialization

Follow the steps below after installing each component to the vehicle. Refer to

PWC-31, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

FRONT REGULATOR

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT REGULATOR

Exploded View

INFOID:0000000006220825

Removal and Installation

INFOID:0000000006220826

REMOVAL

1.

Remove front door glass. Refer to

GW-19, "Removal and Installation"

.

2.

Disconnect front power window motor harness connector.

3.

Remove front door regulator mounting bolts.

4.

Remove front door power window motor mounting bolts.

5.

Remove front door regulator and front door power window motor from front door panel.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000006220827

DISASSEMBLY

1.

Remove front door regulator from front door panel.

2.

Remove front door power window motor from front door regulator.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.    Front door panel

2.

Front door glass run

3.

Front door glass

4.

Front door regulator

5.

Front door power window motor

6.

Front door pull handle bracket

7.

Front door sealing screen

8.

Front door lower sash

9.

Grommet

10. Front door inside seal

11.

Power window controller

JMKIA5208ZZ

GW-22

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

Inspection and Adjustment

INFOID:0000000006220828

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done. Refer to

PWC-31, "Description"

.

Initialization

Follow the steps below after installing each component to the vehicle. Refer to

PWC-31, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

REAR DOOR GLASS

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

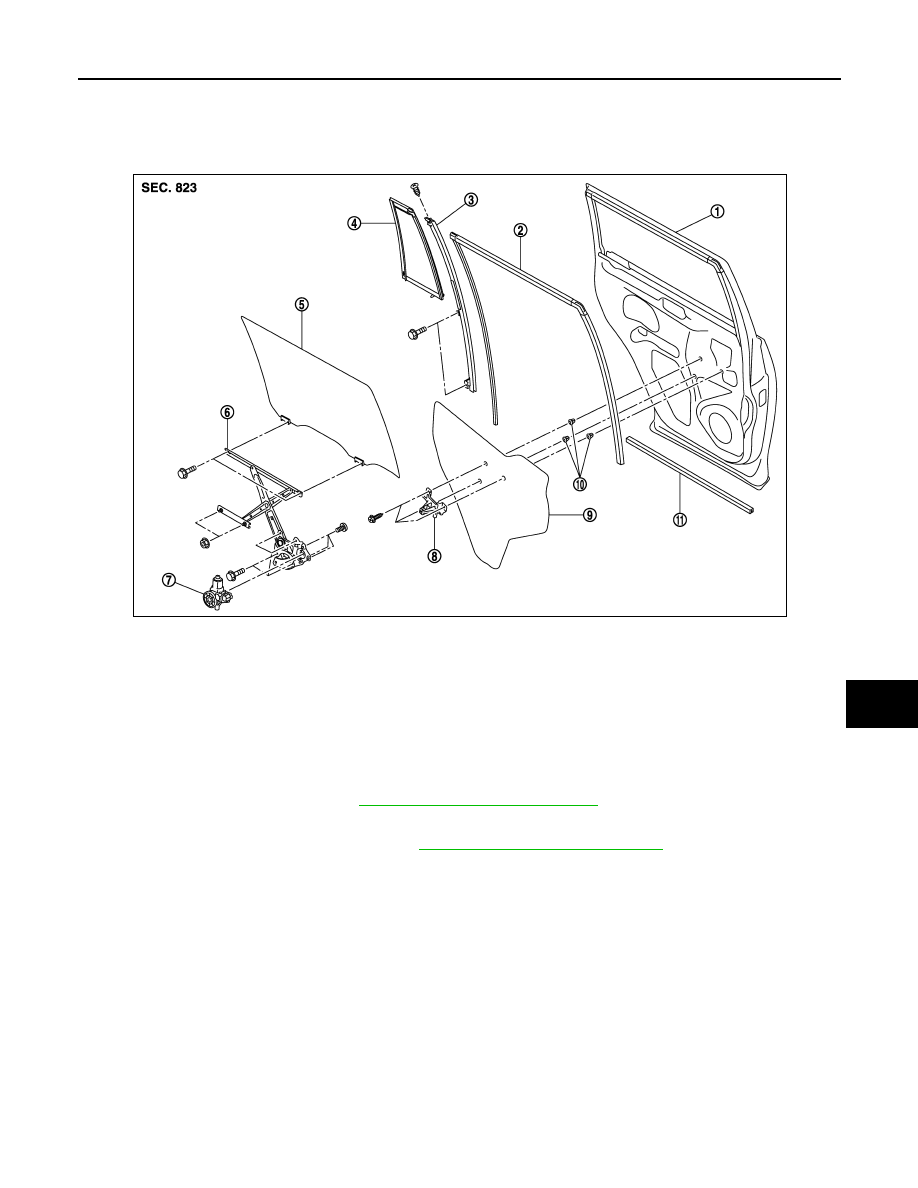

REAR DOOR GLASS

Exploded View

INFOID:0000000006220829

Removal and Installation

INFOID:0000000006220830

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

2.

Remove rear door inside seal.

3.

Remove rear door outside molding. Refer to

EXT-32, "Removal and Installation"

.

4.

Remove rear door pull handle bracket mounting bolts and remove it.

5.

Disconnect rear door speaker harness connector.

6.

Remove the rear door sealing screen with a cutter tool.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the rear door sealing screen, if the
sealing screen is reused.

7.

Reconnect the rear door power window switch.

1.

Rear door panel

2.

Rear door glass run

3.

Partition sash

4.

Partition glass

5.

Rear door glass

6.

Rear door regulator

7.

Rear power window motor

8.

Rear door pull handle bracket

9.

Rear door sealing screen

10. Grommet

11.

Rear door inside seal

JMKIA5209ZZ
