Infiniti QX56 (Z62). Manual - part 740

FSU-20

< REMOVAL AND INSTALLATION >

FRONT STABILIZER

FRONT STABILIZER

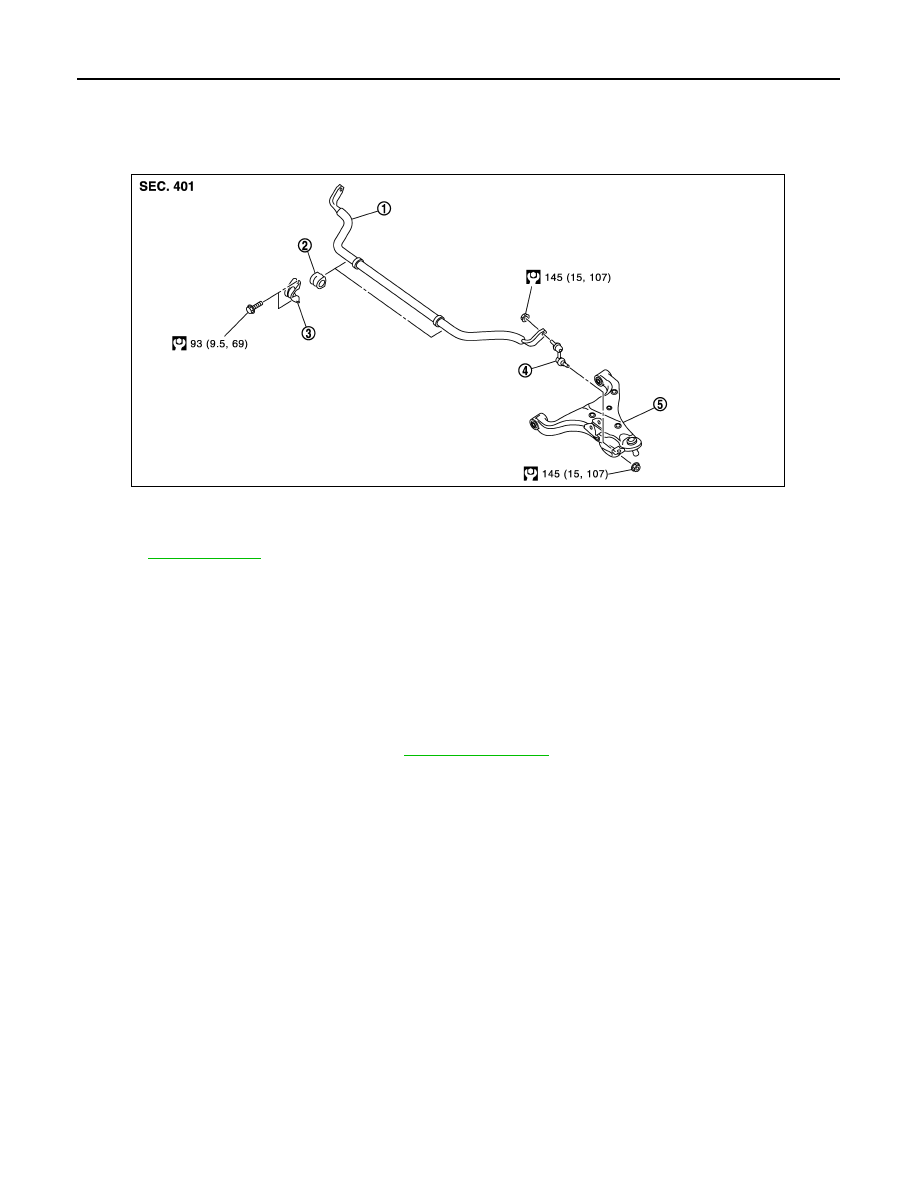

Exploded View

INFOID:0000000006273961

Removal and Installation

INFOID:0000000006273962

REMOVAL

1.

Remove stabilizer connecting rod.

CAUTION:

Apply a matching mark to identify the installation position.

2.

Remove stabilizer clamps and stabilizer bushing.

3.

Remove stabilizer bar.

4.

Perform inspection after removal. Refer to

FSU-20, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check the matching mark when installing.
• Install stabilizer bushing that slit becomes vehicle rear side.
• Tighten the mounting nut to the specified torque while holding a hexagonal part of stabilizer connecting rod

side.

Inspection

INFOID:0000000006273963

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if necessary.

1.

Stabilizer bar

2.

Stabilizer bushing

3.

Stabilizer clamp

4.

Stabilizer connecting rod

5.

Lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIA0254GB

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000006225652

*1: The minimum value and maximum value is the same as the nominal value.

Measure value under unladen

*2

 conditions.

*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Ball Joint

INFOID:0000000006225653

Wheel Height

INFOID:0000000006225654

Item

Standard

Measurement wheel

Left side

Right side

Camber
Degree minute (Decimal degree)

Minimum

−

0

°

45

′

 (

−

0.75

°

)

−

0

°

55

′

 (

−

0.91

°

)

Nominal

0

°

 00

′

 (0.00

°

)

−

0

°

10

′

 (

−

0.17

°

)

Maximum

0

°

 45

′

 (0.75

°

)

0

°

 35

′

 (0.58

°

)

Left and right difference

0

°

 33

′

 (0.55

°

) or less

Caster
Degree minute (Decimal degree)

Minimum

2

°

 20

′

 (2.34

°

)

2

°

 40

′

 (2.67

°

)

Nominal

3

°

 05

′

 (3.08

°

)

3

°

 25

′

 (3.42

°

)

Maximum

3

°

 50

′

 (3.83

°

)

4

°

 10

′

 (4.16

°

)

Left and right difference

0

°

 45

′

 (0.75

°

) or less

Kingpin inclination
Degree minute (Decimal degree)

Minimum

—

—

Nominal

13

°

 20

′

 (13.33

°

)

*1

13

°

 25

′

 (13.42

°

)

*1

Maximum

—

—

Toe-in

Total toe-in
Distance

Minimum

In 1.4 mm (0.055 in)

Nominal

In 2.4 mm (0.094 in)

Maximum

In 3.4 mm (0.134 in)

Toe angle (left wheel or right
wheel)
Degree minute (Decimal degree)

Minimum

In 0

°

 03

′

 (0.05

°

)

Nominal

In 0

°

 05

′

 (0.08

°

)

Maximum

In 0

°

 07

′

 (0.11

°

)

Item

Standard

Swing torque

Lower link

0.5 – 6.4 N·m (0.06 – 0.65 kg-m, 5 – 56 in-lb)

Upper link

0.5 – 4.9 N·m (0.06 – 0.49 kg-m, 5 – 43 in-lb)

Measurement on spring balance (groove position)

Lower link

11.4 – 145.4 N (1.17 – 14.83 kg, 2.57 – 32.68 lb)

Measurement on spring balance (cotter pin hole position)

Upper link

8.1 – 79.0 N (0.83 – 8.05 kg, 1.83 – 17.75 lb)

Rotating torque

Lower link

0.5 – 6.4 N·m (0.06 – 0.65 kg-m, 5 – 56 in-lb)

Upper link

0.5 – 4.9 N·m (0.06 – 0.49 kg-m, 5 – 43 in-lb)

Axial end play

0 mm (0 in)

Item

Standard

Front (Hf)

903 mm (35.55 in)

FSU-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

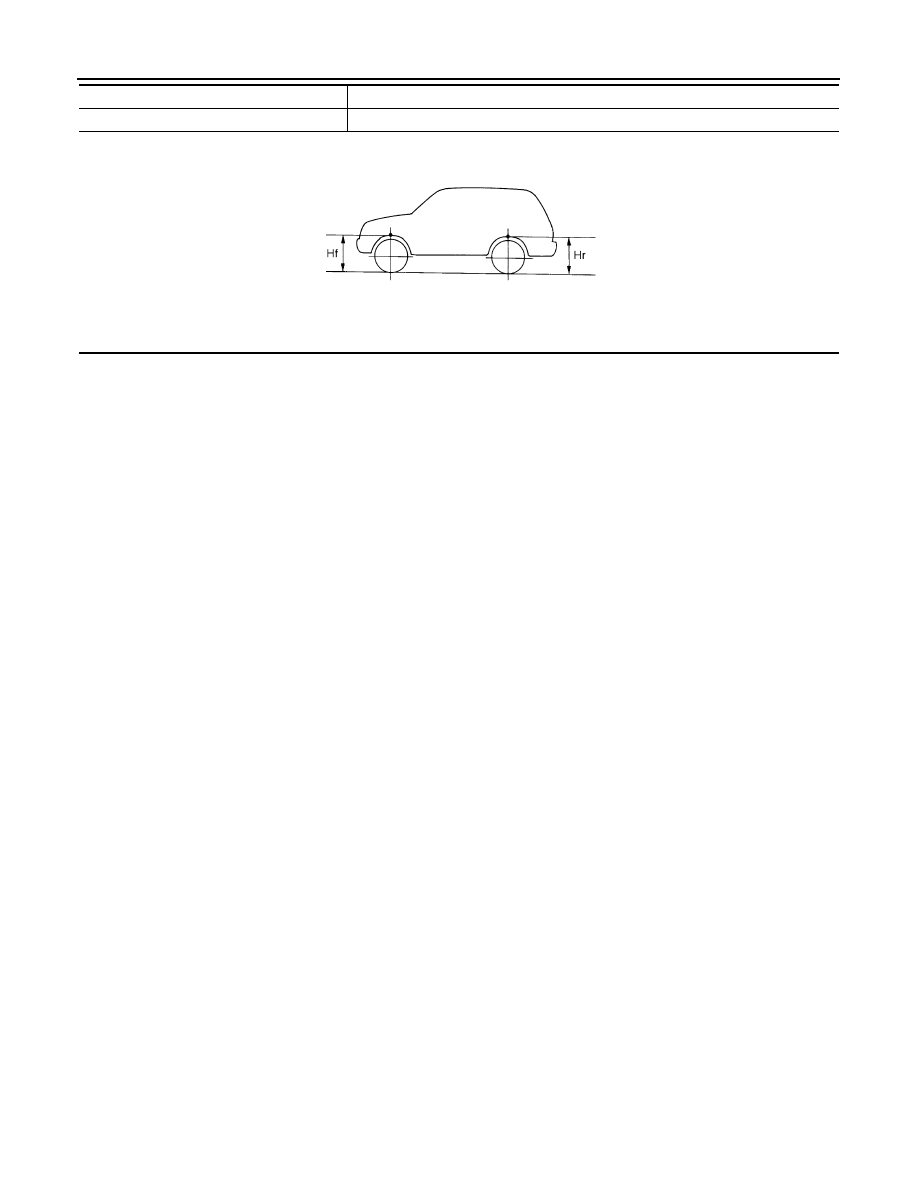

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Rear (Hr)

890 mm (35.04 in)

Item

Standard

SFA746B

A
B

D

E

F

G

H

I

J

K

L

M

N

P

O

C
