FAX-22

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

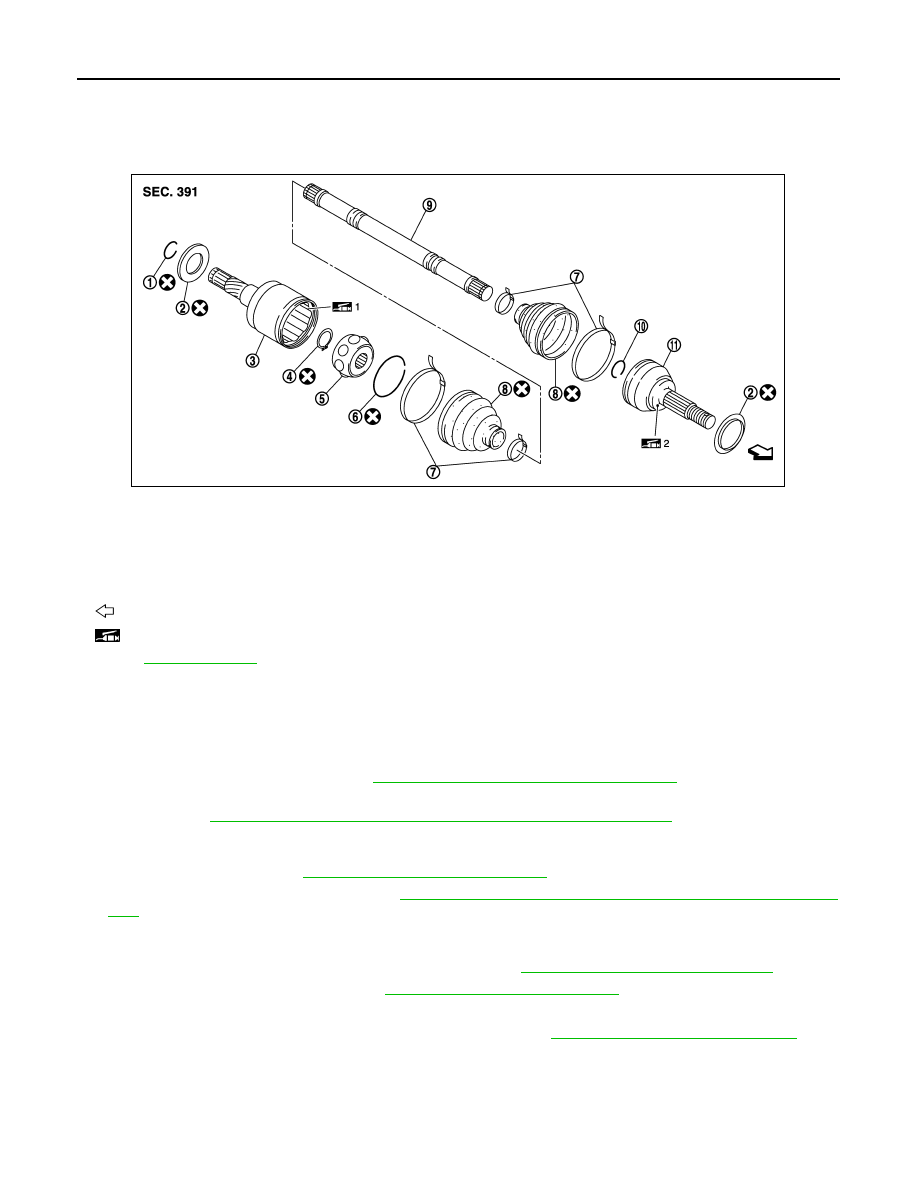

Exploded View

INFOID:0000000006225402

Removal and Installation

INFOID:0000000006225403

REMOVAL

1.

Remove tires.

2.

Remove brake hose bracket. Refer to

BR-23, "FRONT : Removal and Installation"

.

3.

Remove caliper assembly mounting bolts. Hang caliper assembly in a place where it will not interfere with
work. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4.

Remove disc rotor. Refer to

FAX-18, "Removal and Installation"

.

5.

Remove wheel sensor harness. Refer to

BRC-134, "FRONT WHEEL SENSOR : Removal and Installa-

tion"

.

CAUTION:

Never pull on wheel sensor harness.

6.

Remove height sensor from upper link (right side). Refer to

EXL-136, "Removal and Installation"

.

7.

Remove steering outer socket. Refer to

ST-42, "Removal and Installation"

.

8.

Set suitable jack under lower link.

9.

Remove shock absorber mounting bolt from lower link. Refer to

FSU-10, "Removal and Installation"

.

10. Separate upper link from steering knuckle, using the ball joint remover (commercial service tool), and

remove upper link.

CAUTION:

• Temporarily tighten the nut to prevent damage to threads and to prevent the ball joint remover

from suddenly coming off.

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Ball cage/steel ball/inner race assem-
bly

6.

Stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10. Circular clip

11.

Joint sub-assembly

: Wheel side

: NISSAN genuine grease or an equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIF0279ZZ

FRONT DRIVE SHAFT

FAX-23

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

• Never damage ball joint boot.

11. Remove cotter pin, and then loosen wheel hub lock nut.
12. Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub and bearing

assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.
• Never allow drive shaft to hang down without support for or joint sub-assembly, shaft and the

other parts.

NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive shaft cannot be separated even after
performing the above procedure.

13. Remove wheel hub lock nut.
14. Remove fender protector. Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installation"

.

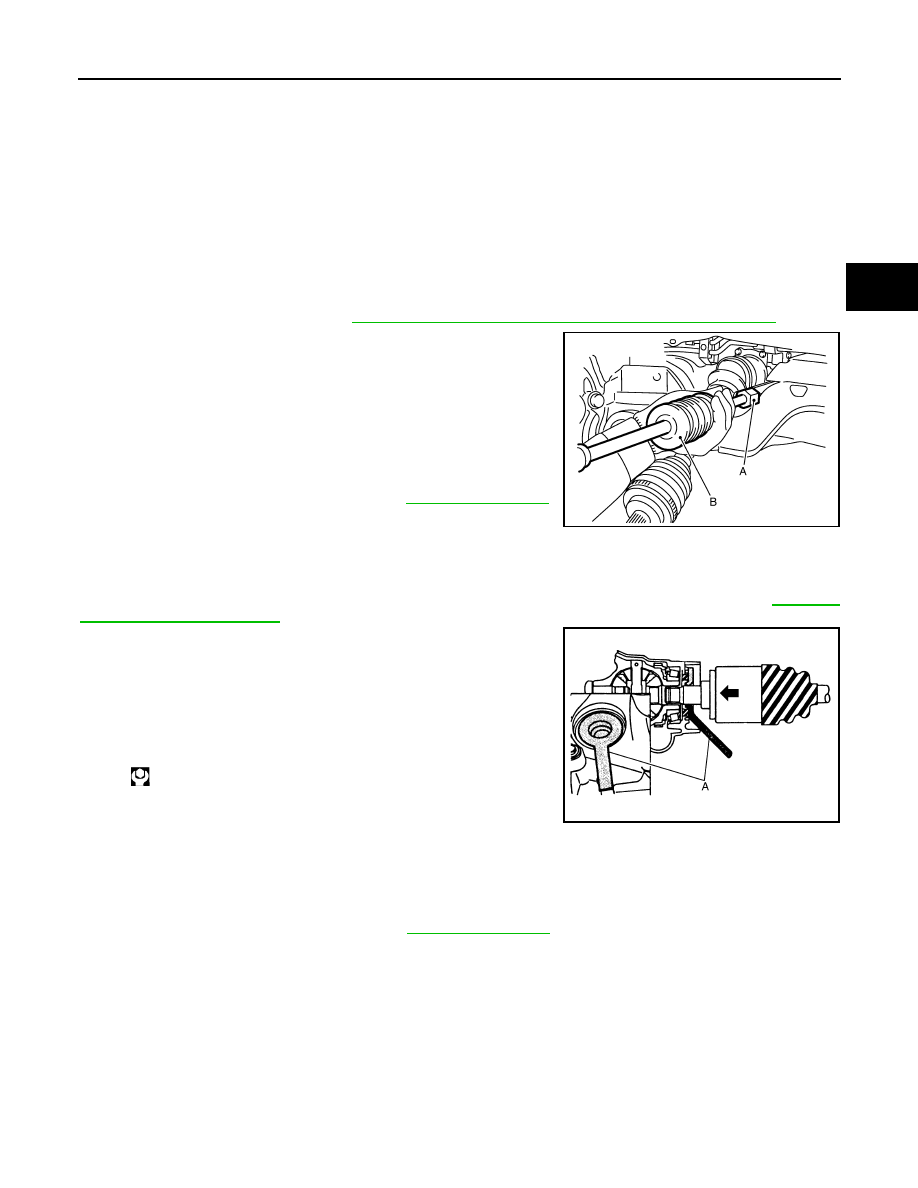

15. Remove drive shaft from front final drive using the drive shaft

attachment [SST: KV40107500 (

−

)] (A) and a sliding ham-

mer (commercial service tool) (B) while inserting tip of the drive
shaft attachment between housing and front final drive.

CAUTION:

• Never place drive shaft joint at an extreme angle when

removing drive shaft. Also be careful not to overextend
slide joint.

• Confirm that the circular clip is attached to the drive shaft.

16. Perform inspection after removal. Refer to

FAX-28, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Always replace final drive side oil seal with new one when installing drive shaft. Refer to

DLN-160,

"Removal and Installation"

• Place the protector [SST: KV38106300 (

−

)] (A) onto final drive

to prevent damage to the oil seal while inserting drive shaft. Slide
drive shaft sliding joint and tap with a hammer to install securely.

CAUTION:

Check that circular clip is completely engaged.

• Use the following torque range for tightening the wheel hub lock

nut.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the

tightening torque range for the wheel hub lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.

• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and bearing assembly and steering knuckle.

• Never reuse cotter pin.
• Perform inspection after installation. Refer to

FAX-28, "Inspection"

.

WHEEL SIDE

WHEEL SIDE : Disassembly and Assembly

INFOID:0000000006225404

DISASSEMBLY

1.

Fix shaft with a vise.

CAUTION:

Protect shaft when fixing with a vise using aluminum or copper plates.

2.

Remove dust shield from joint sub-assembly.

3.

Remove boot bands and then remove boot from joint sub-assembly.

JPDIF0004ZZ

: 118 – 123 N·m (12.1 – 12.5 kg-m, 87 – 90 ft-lb)

JPDIF0023ZZ

FAX-24

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT

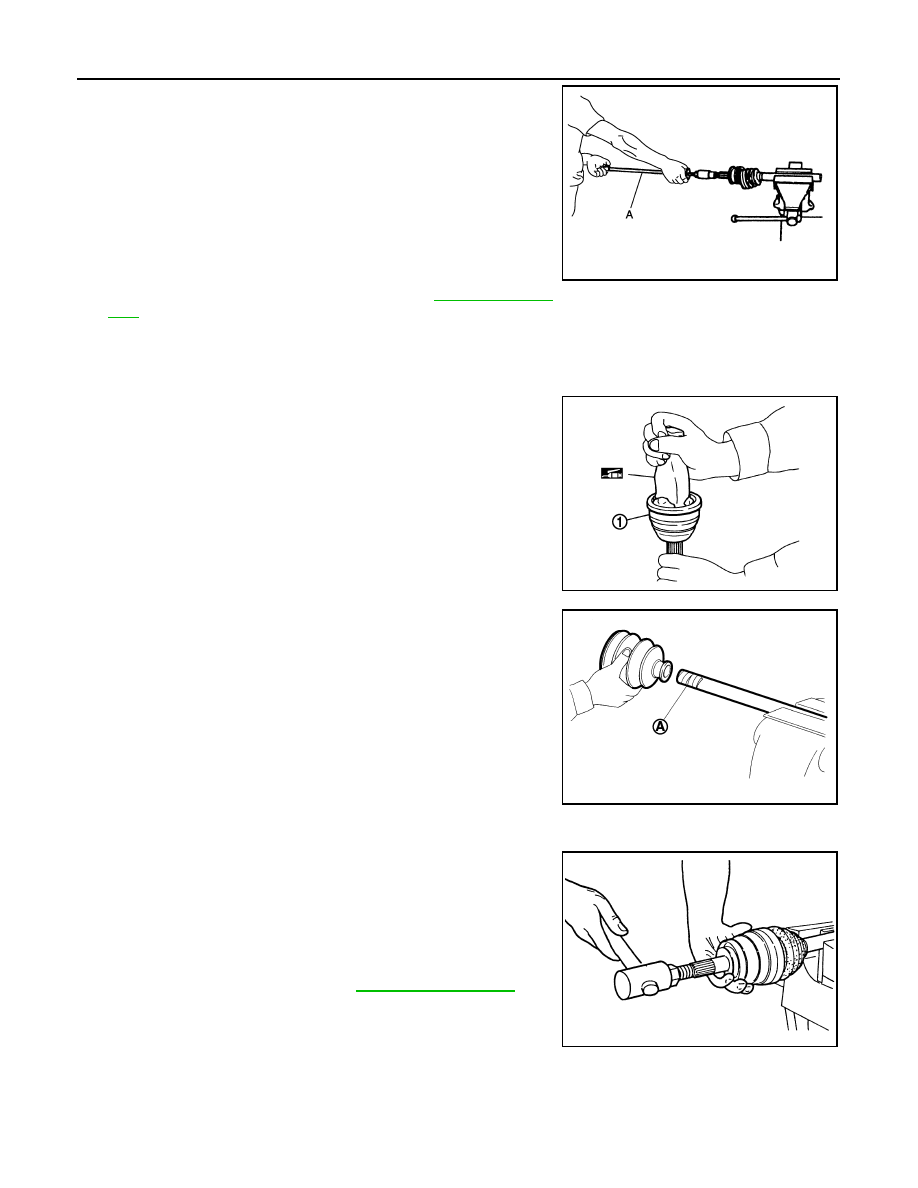

4.

Screw the drive shaft puller (commercial service tool) (A) 30 mm
(1.18 in) or more into the thread of joint sub-assembly, and pull
joint sub-assembly from shaft.

CAUTION:

• If joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace shaft and joint sub
assembly as a set.

• Align drive shaft puller and drive shaft and remove them

by pulling directory.

5.

Remove circular clip from shaft.

6.

Remove boot from shaft.

7.

Perform inspection after disassembly. Refer to

FAX-28, "Inspec-

tion"

.

ASSEMBLY

1.

While rotating ball cage, clean old grease on joint sub-assembly with paper waste.

2.

Fill serration slot joint sub-assembly (1) with NISSAN genuine
grease or equivalent until the serration slot and ball groove
become full to the brim.

CAUTION:

After applying grease, use a shop cloth to wipe off old
grease that has oozed out.

3.

Install boot and boot bands to shaft.

CAUTION:

• Wrap serration on shaft with tape (A) to protect the boot

from damage.

• Never reuse boot and boot band.

4.

Remove the tape wrapped around the serration on shaft.

5.

Position circular clip on groove at the shaft edge.

CAUTION:

Never reuse circular clip.
NOTE:
Drive joint inserter is recommended when installing circular clip.

6.

Align both center axles of the shaft edge and joint sub-assembly.
Then assemble shaft with joint sub-assembly holding circular clip.

7.

Install joint sub-assembly to shaft using plastic hammer.

CAUTION:

Confirm that joint sub-assembly is correctly engaged while
rotating drive shaft.

8.

Apply the specified amount of grease into the boot inside from
large diameter side of boot.

JPDIG0151ZZ

JPDIF0008ZZ

Grease amount

: Refer to

FAX-29, "Drive Shaft"

.

JPDIF0009ZZ

RAC0049D

FRONT DRIVE SHAFT

FAX-25

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

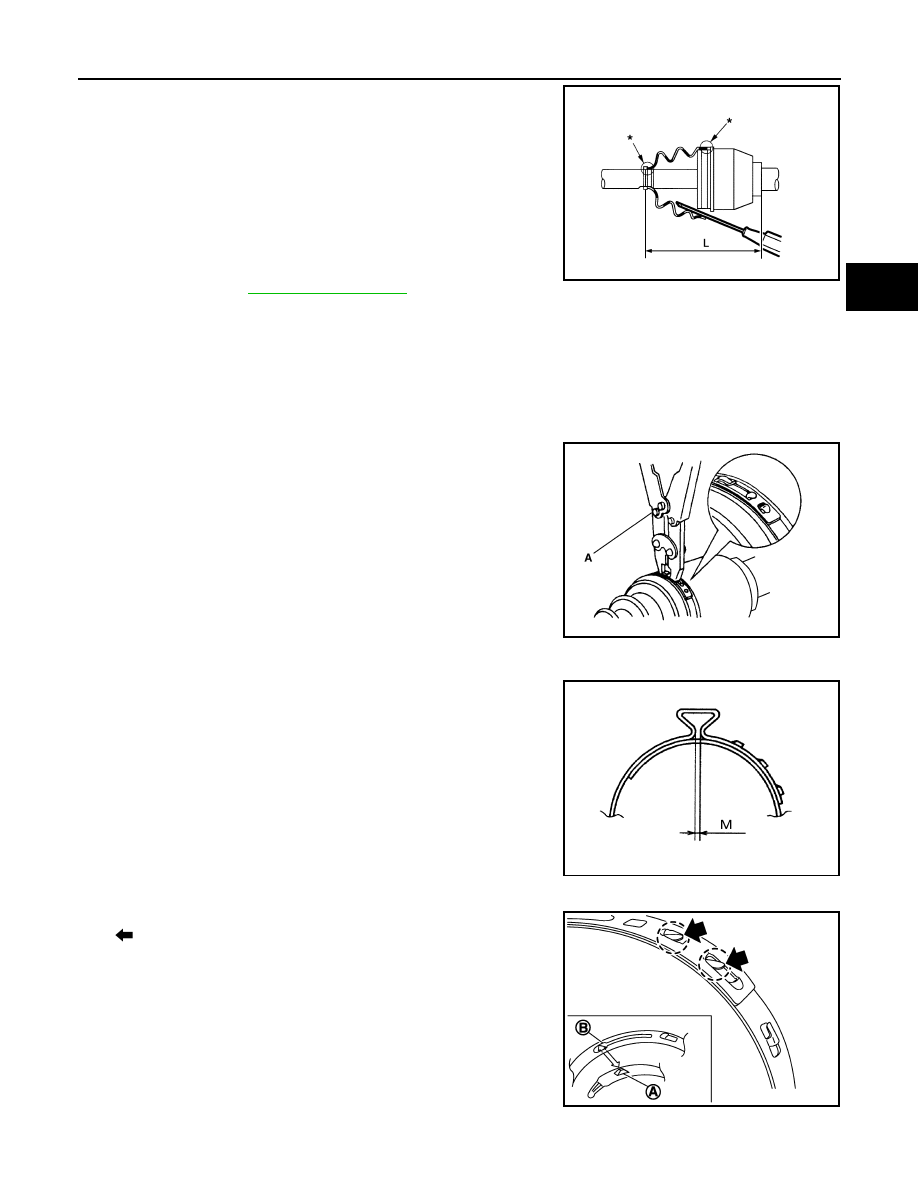

9.

Install the boot securely into grooves (indicated by “*” marks)
shown in the figure.

CAUTION:

If grease adheres to the boot mounting surface (indicated
by “*” mark) on the shaft or housing, boot may come off.
Remove all grease from the surfaces.

10. To prevent the deformation of the boot, adjust the boot installa-

tion length (L) to the specified value shown below by inserting
the suitable tool into inside of the boot from the large diameter
side of boot and discharging the inside air.

CAUTION:

• If the boot installation length is outside the standard, it may cause breakage of boot.
• Be careful not to touch the inside of the boot with the tip of tool.

11. Install new boot bands securely.

CAUTION:

Never reuse boot band.

a.

Small boot band

i.

Secure the ends of the boot with boot bands using the boot band
crimping tool [SST: KV40107300 (

−

)] (A).

CAUTION:

Secure boot band so that dimension (M) meets the specifi-
cation as shown in the figure.

b.

Large boot band

i.

Put boot band in the groove on drive shaft boot. Then fit pawls
(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.

L

: Refer to

FAX-29, "Drive Shaft"

.

JPDIG0136ZZ

PDIA1187J

M

: 1.0 – 4.0 mm (0.039 – 0.157 in)

DSF0047D
