Infiniti QX56 (Z62). Manual - part 724





DRIP MOLDING

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DRIP MOLDING

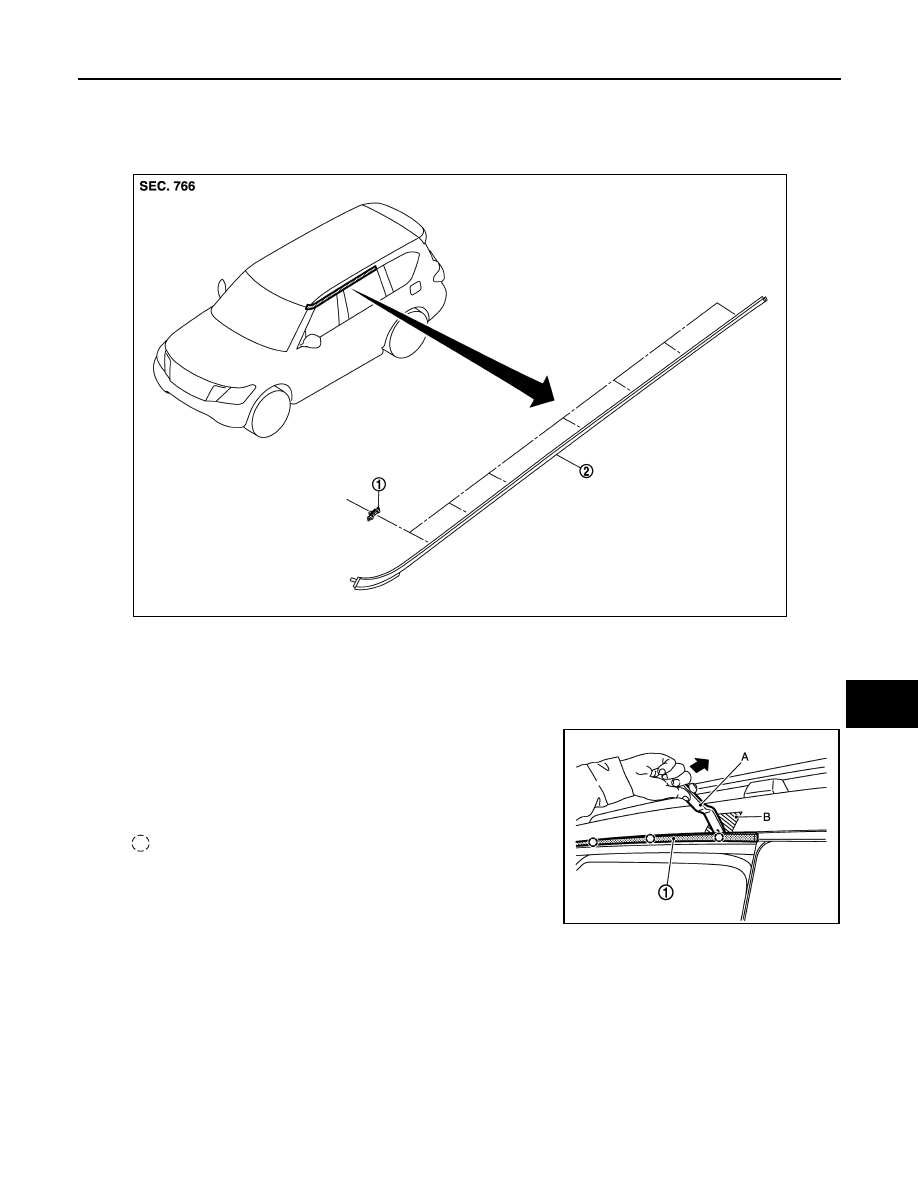

Exploded View

INFOID:0000000006367629

Removal and Installation

INFOID:0000000006367630

REMOVAL

Remove drip molding fixing clips from rear end to front end using
remover tool (A).

CAUTION:

Apply protective tape (B) on body panel to protect the painted
damage from damage.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

When installing, check visually the drip molding and clips, then replace them with new parts if they are
damaged.

1.

Drip molding clip

2.

Drip molding

JMKIA5314ZZ

: Clip

JMKIA5474ZZ

EXT-44

< REMOVAL AND INSTALLATION >

BACK DOOR FINISHER

BACK DOOR FINISHER

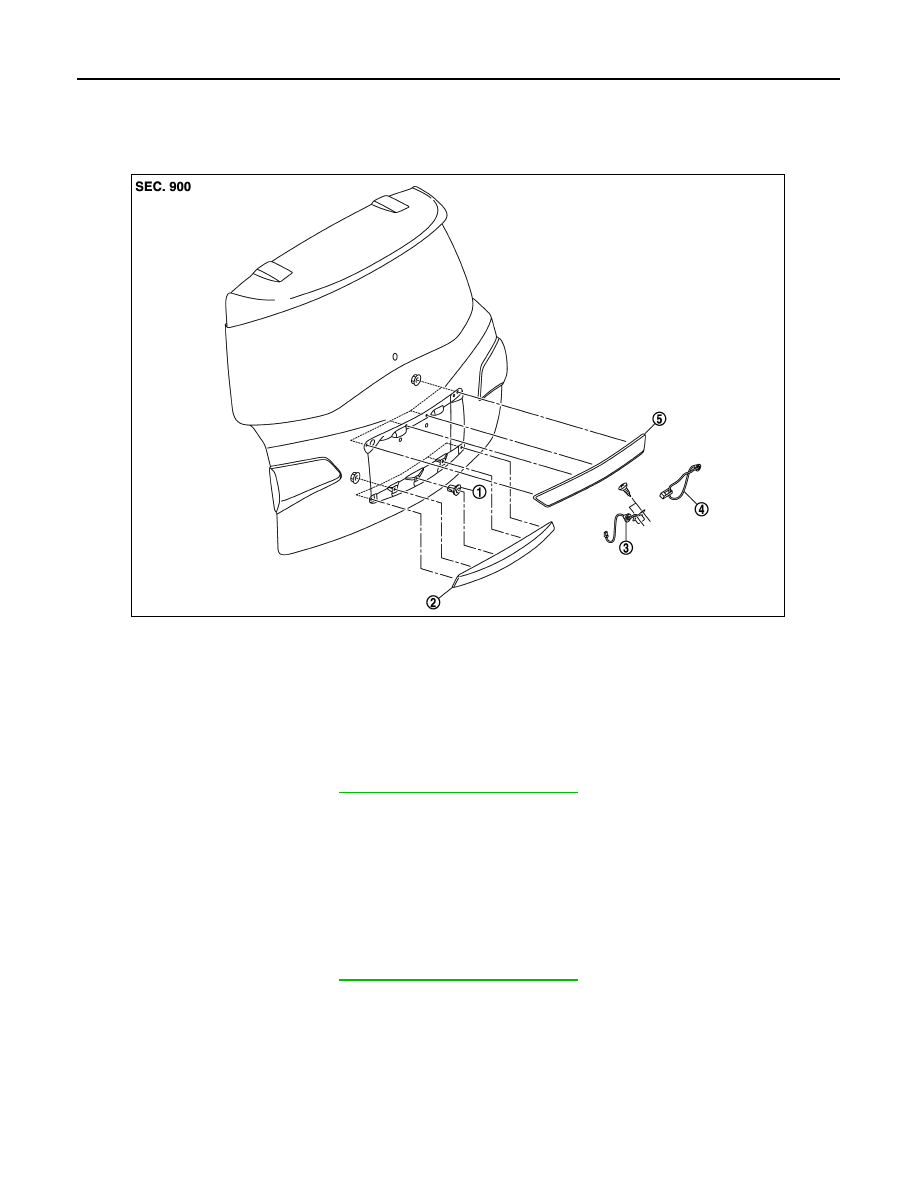

Exploded View

INFOID:0000000006367631

Removal and Installation

INFOID:0000000006367632

REMOVAL

Back Door Finisher Center Upper

1.

Remove back door trim. Refer to

INT-39, "Removal and Installation"

.

2.

Disconnect rear view camera and back door opener switch harness connectors.

3.

Remove back door finisher center upper mounting nuts.

4.

Disengage fixing clips, and then remove back door finisher center upper.

5.

Remove following parts after removing back door finisher center upper mounting nuts.
• Rear view camera
• Back door opener switch
• License lamp

Back Door Finisher Center Lower

1.

Remove back door trim. Refer to

INT-39, "Removal and Installation"

.

2.

Remove back door finisher center lower mounting nuts.

3.

Disengage fixing clips, and then remove back door finisher center lower.

INSTALLATION

Install in the reverse order of removal.

1.

Grommet

2.

Back door finisher center lower

3.

Rear view camera

4.

Back door opener request switch

5.

Back door finisher center upper

JMKIA5466ZZ

SIDE STEP

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SIDE STEP

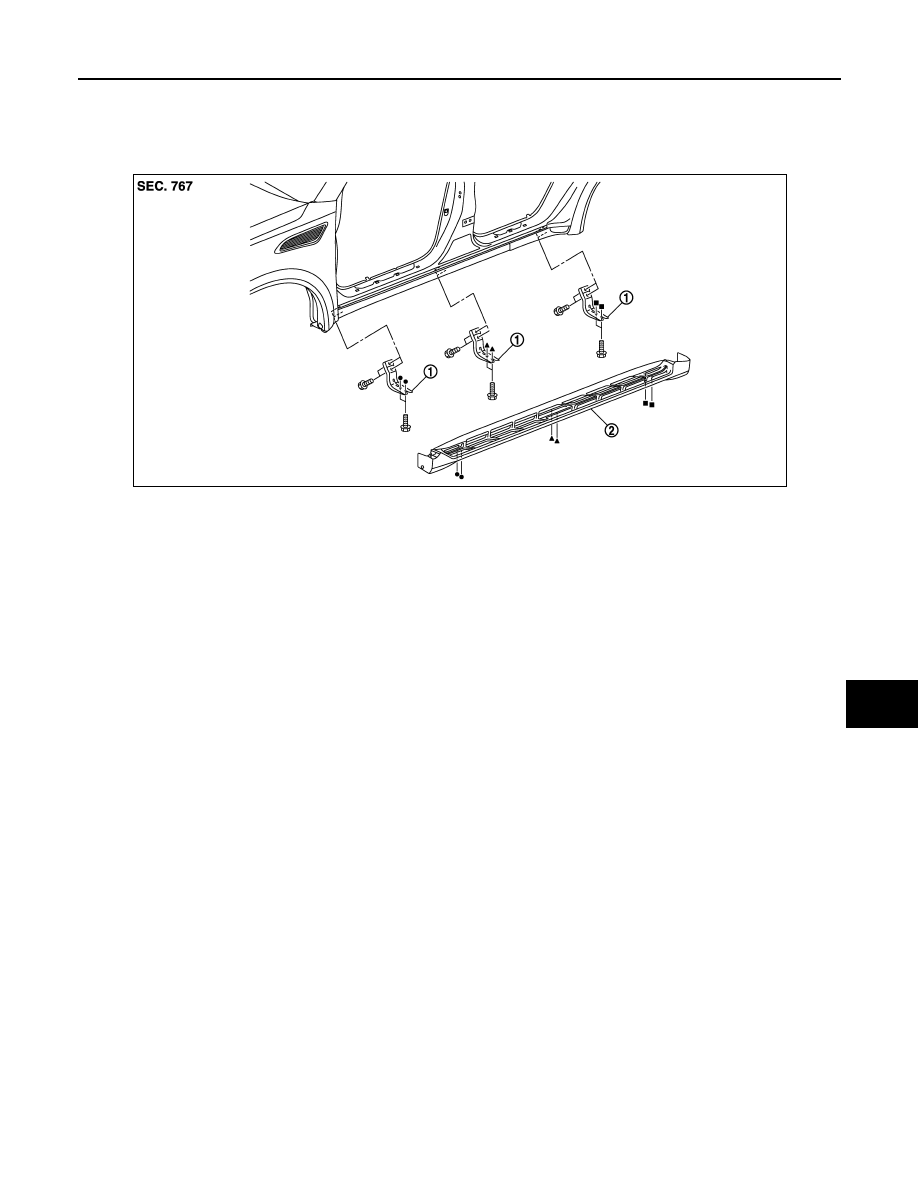

Exploded View

INFOID:0000000006367633

Removal and Installation

INFOID:0000000006367634

REMOVAL

1.

Remove side step mounting bolts, and then remove side step.

2.

Remove side step bracket mounting bolts, and then remove side step brackets.

INSTALLATION

Install in the reverse order of removal.

1.

Side step bracket

2.

Side step

JMKIA5467ZZ

FAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

2WD

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Commercial Service Tools  ........................................

5

SYMPTOM DIAGNOSIS  ...............................

6

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

6

NVH Troubleshooting Chart  ......................................

6

PERIODIC MAINTENANCE ..........................

7

FRONT WHEEL HUB AND KNUCKLE  ..............

7

Inspection ..................................................................

7

REMOVAL AND INSTALLATION ................

8

FRONT WHEEL HUB AND KNUCKLE  ..............

8

Exploded View  ..........................................................

8

Removal and Installation ...........................................

8

Inspection ..................................................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

10

Wheel Hub and Bearing Assembly  .........................

10

4WD

PRECAUTION ..............................................

11

PRECAUTIONS .................................................

11

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

11

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................

11

Precautions for Drive Shaft ......................................

12

PREPARATION ...........................................

13

PREPARATION .................................................

13

Special Service Tools  ..............................................

13

Commercial Service Tools .......................................

13

SYMPTOM DIAGNOSIS  ..............................

15

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

15

NVH Troubleshooting Chart  ....................................

15

PERIODIC MAINTENANCE  ........................

16

FRONT WHEEL HUB AND KNUCKLE  ............

16

Inspection ................................................................

16

FRONT DRIVE SHAFT  .....................................

17

Inspection ................................................................

17

REMOVAL AND INSTALLATION  ...............

18

FRONT WHEEL HUB AND KNUCKLE  ............

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection ................................................................

20

FRONT DRIVE SHAFT BOOT  ..........................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Inspection ................................................................

21

FRONT DRIVE SHAFT  .....................................

22
