Infiniti QX56 (Z62). Manual - part 721

ROOF SIDE MOLDING

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

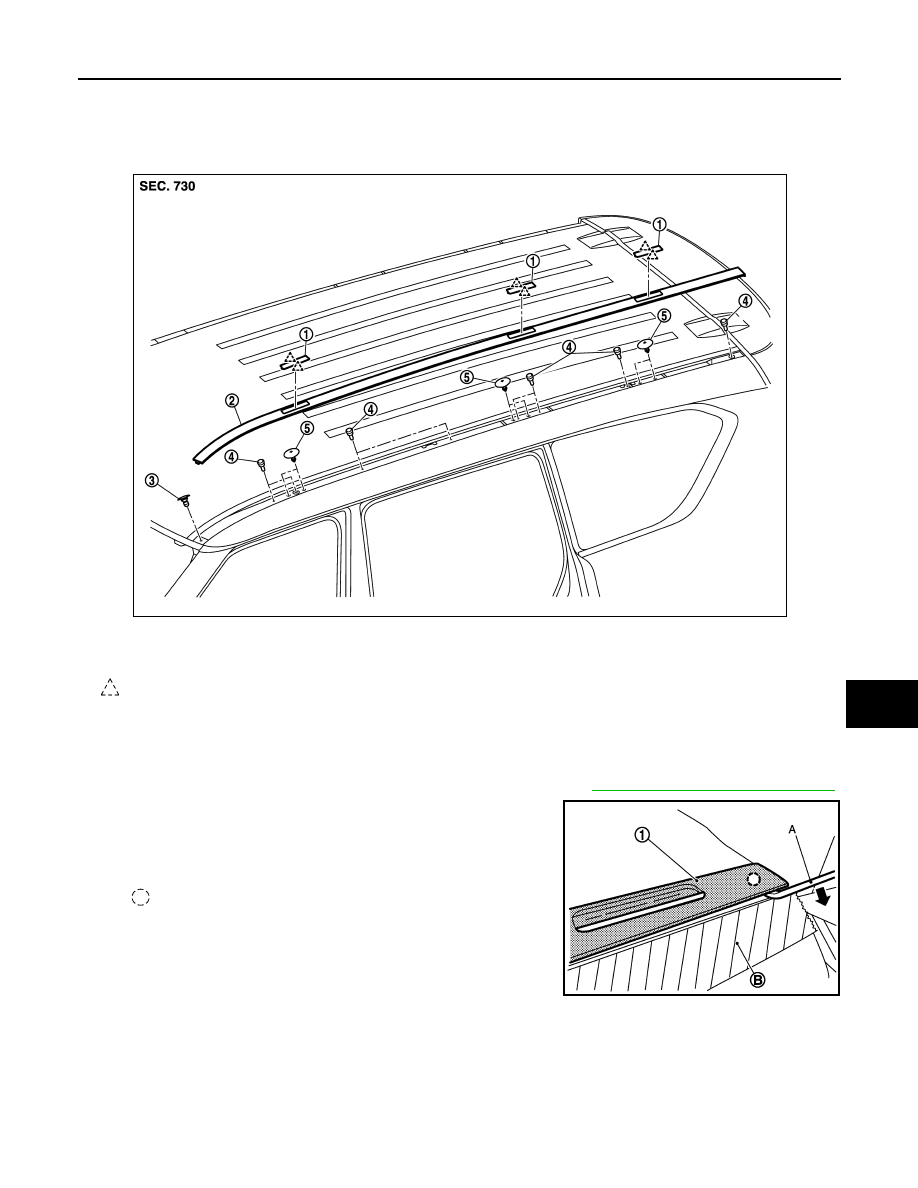

ROOF SIDE MOLDING

Exploded View

INFOID:0000000006367615

Removal and Installation

INFOID:0000000006367616

REMOVAL

1.

Remove roof rail assembly and roof rail center leg assembly. Refer to

EXT-29, "Removal and Installation"

.

2.

Disengage roof side molding (1) fixing clips with remover tool
(A), and then remove roof side molding.

CAUTION:

Apply protective tape (B) around the roof side molding.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.

1.

Roof side molding cap

2.

Roof side molding

3.

Grommet

4.

Roof side molding clip

5.

Grommet

: Pawl

JMKIA5313ZZ

: Clip

JMKIA2019ZZ

EXT-32

< REMOVAL AND INSTALLATION >

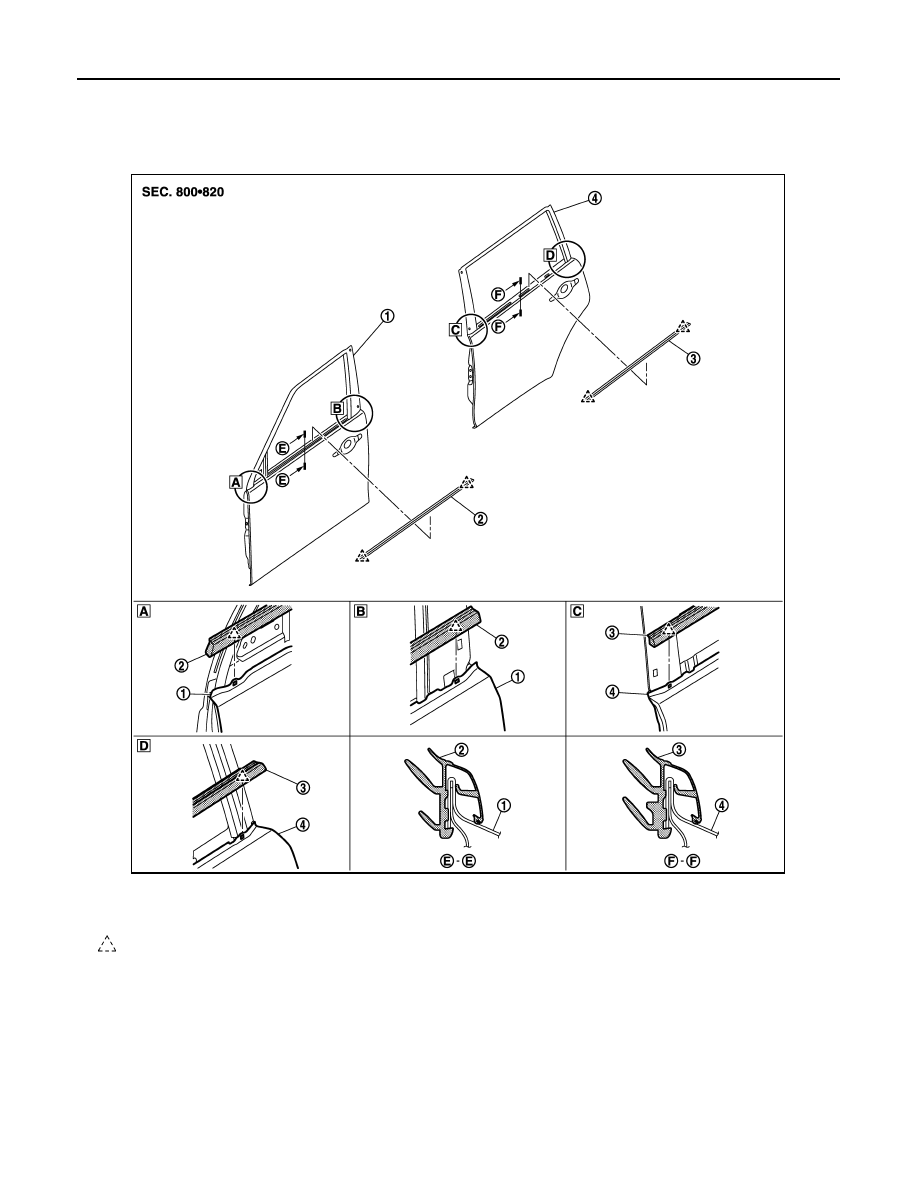

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000006367617

Removal and Installation

INFOID:0000000006367618

FRONT DOOR OUTSIDE MOLDING

Removal

1.

Fully open door window.

1.

Front door panel

2.

Front door outside molding

3.

Rear door outside molding

4.

Rear door panel

: Pawl

JMKIA5372ZZ

DOOR OUTSIDE MOLDING

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

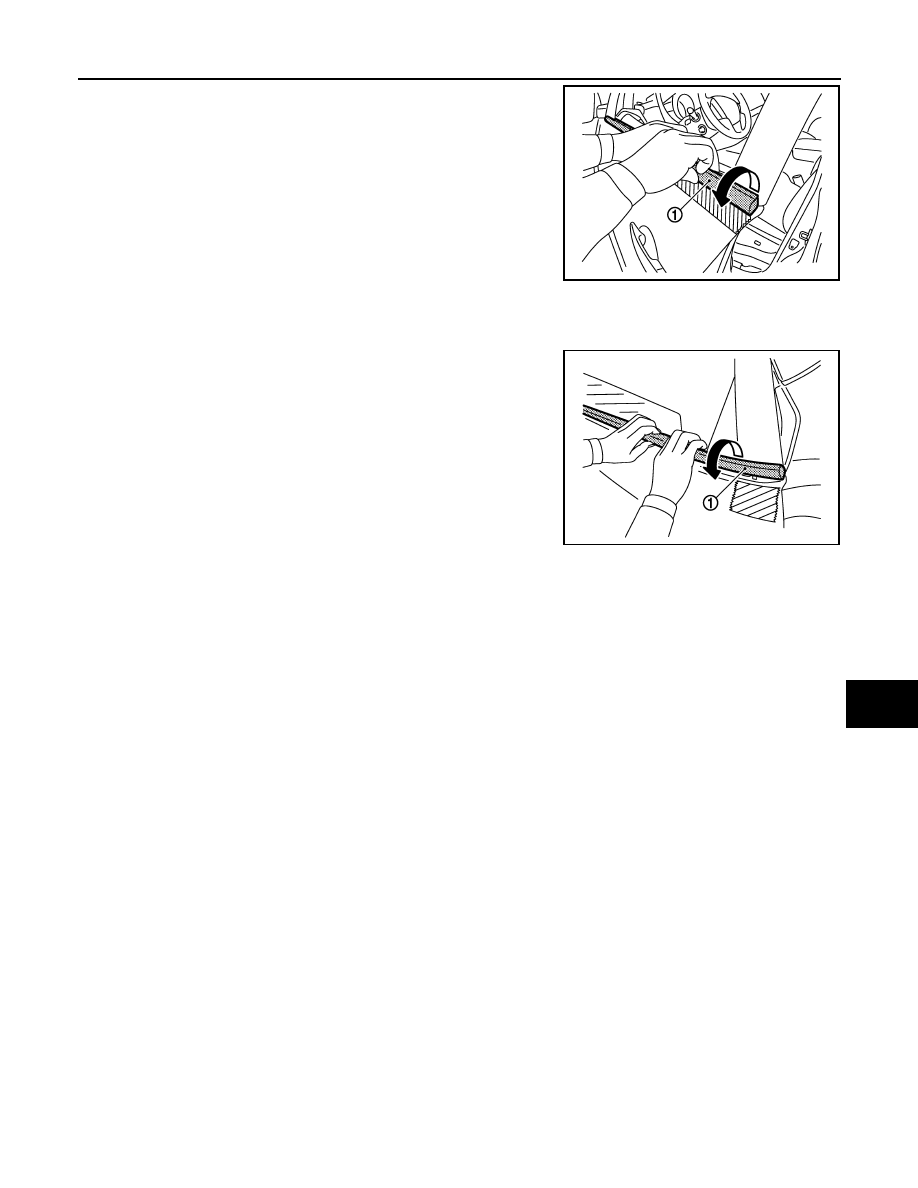

2.

Twist and pull up to upper side, and then remove front door out-
side molding (1).

CAUTION:

• Apply protective tape around front door panel.
• Never twist and pull up to door outside molding strongly.

REAR DOOR OUTSIDE MOLDING

1.

Fully open door window.

2.

Twist and pull up to upper side, and then remove rear door out-
side molding (1).

CAUTION:

• Apply protective tape around rear door panel.
• Never twist and pull up to door outside molding strongly.

Installation

Install in the reverse order of removal.

JMKIA2024ZZ

JMKIA2026ZZ

EXT-34

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

DOOR PARTING SEAL

Exploded View

INFOID:0000000006367619

Removal and Installation

INFOID:0000000006367620

REMOVAL

1.

Fully open door.

2.

Disengage the door parting seal fixing clips with a remover tool, and then remove door parting seal.

CAUTION:

• Disengage the clips slowly and carefully.
• Never pull the door parting seal strongly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

1.

Front door parting seal

2.

Rear door parting seal

3.

Double sided tape
[0.8 mm (0.031) in]

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5379ZZ
