Infiniti QX56 (Z62). Manual - part 719





FENDER PROTECTOR

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

FENDER PROTECTOR

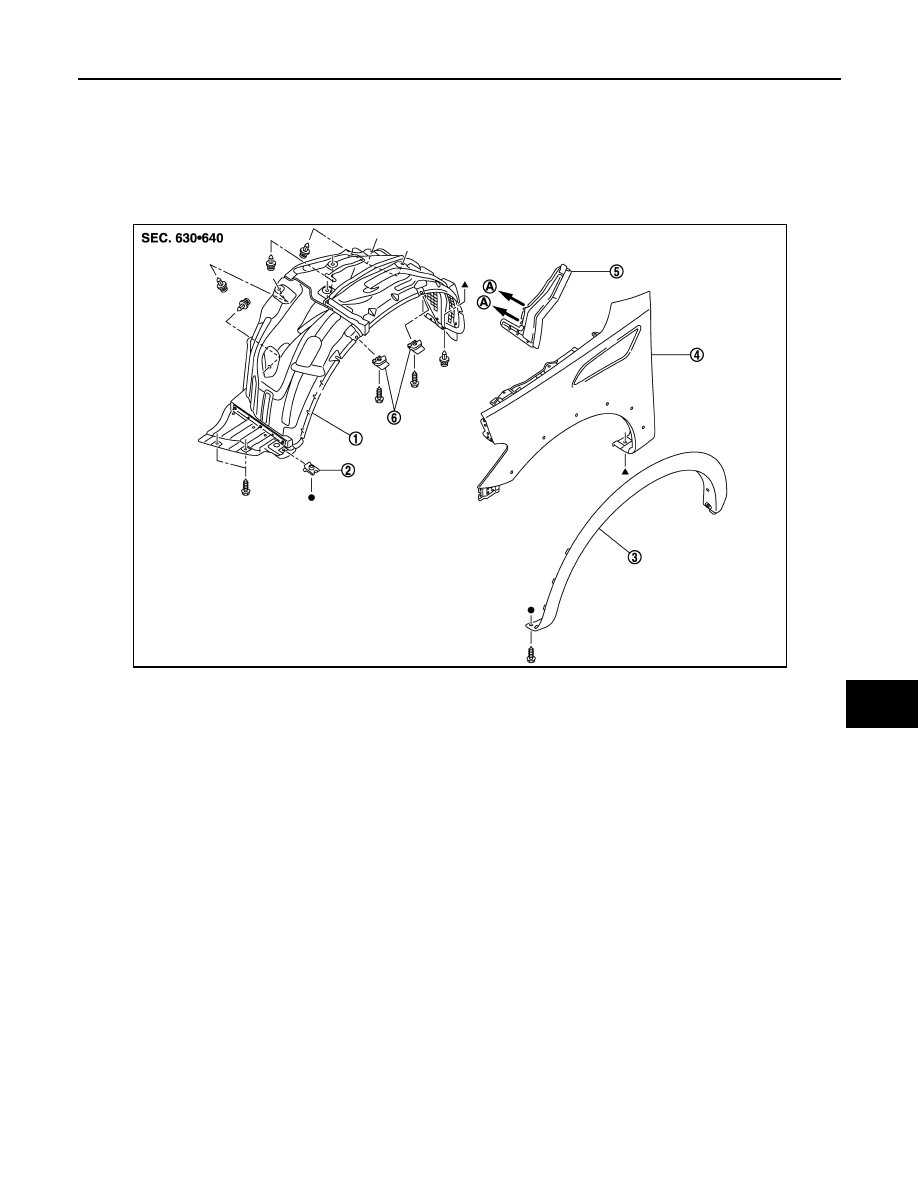

FENDER PROTECTOR : Exploded View

INFOID:0000000006367605

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation

INFOID:0000000006367606

REMOVAL

1.

Remove mounting bolts, from front lower.

2.

Release front fender protector fixing clips, and then remove front fender protector.

3.

Disengage hoodledge insulator fixing pawls, and then remove hoodledge insulator.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

1.

Fender protector

2.

U nut

3.

Over fender

4.

Fender

5.

Hoodledge insurator

6.

Fender clip

A:

To hoodledge panel

JMKIA5463ZZ

EXT-24

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

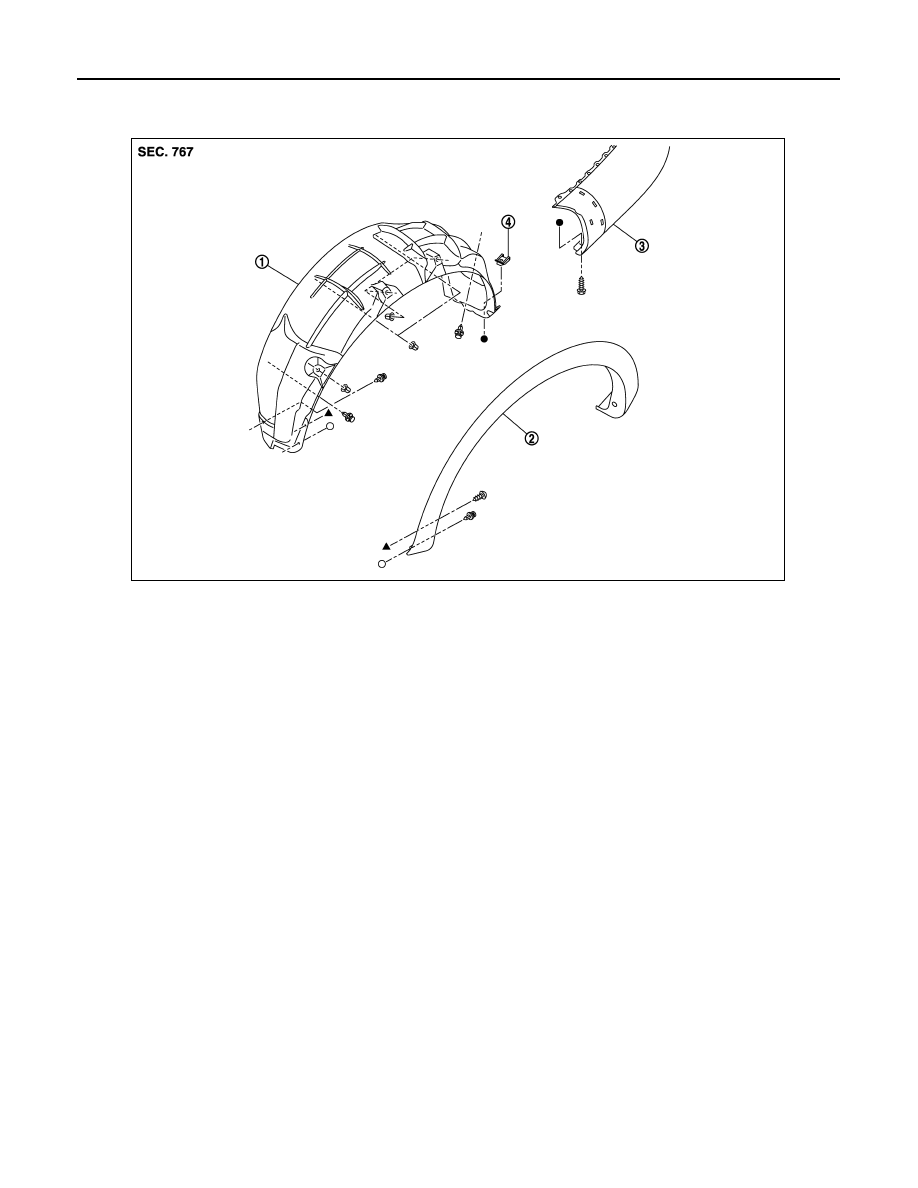

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000006367607

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000006367608

REMOVAL

1.

Remove rear wheel house protector fixing screws.

2.

Remove rear wheel house protector fixing clips and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wheel house protector

2.

Over fender

3.

Rear bumper fascia

4.

Wheel house protector clip

JMKIA5464ZZ

FLOOR SIDE FAIRING

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

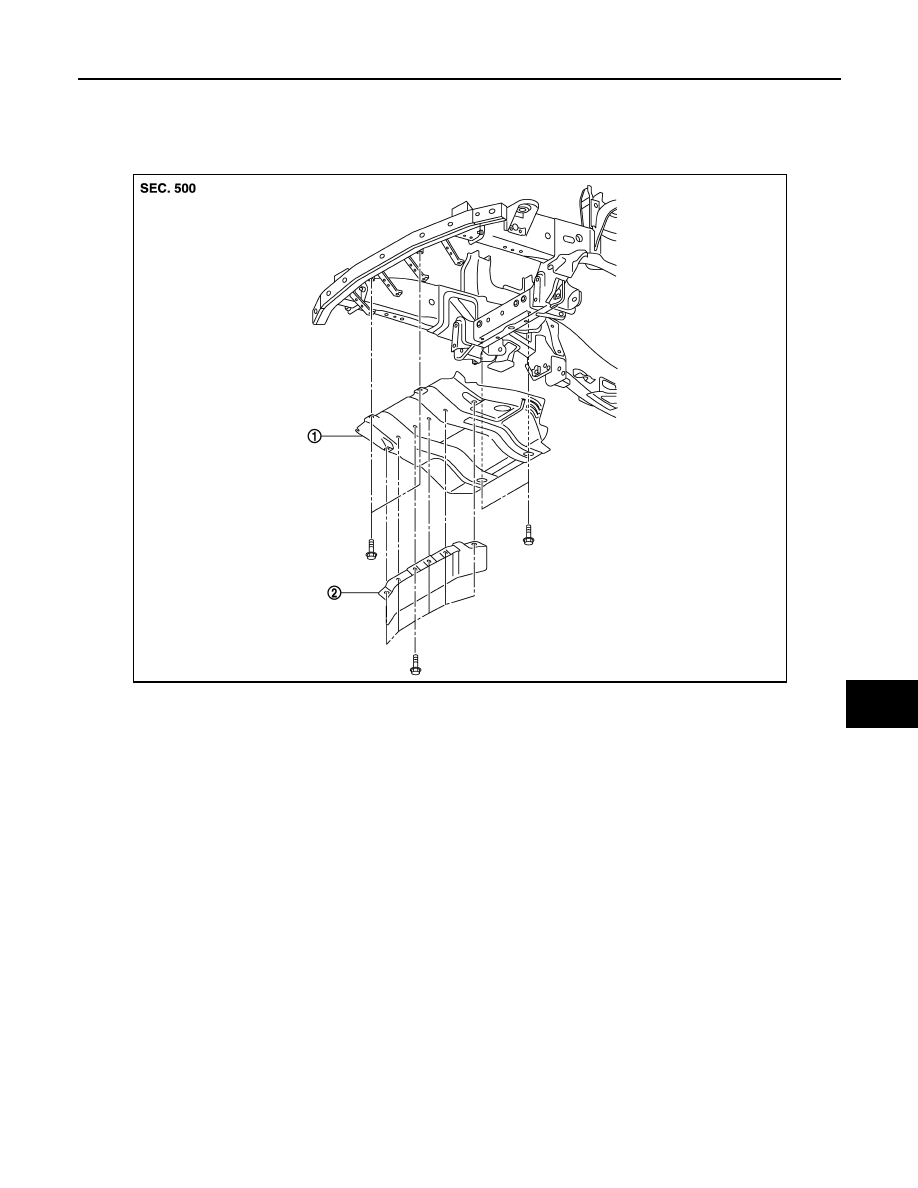

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000006367609

Removal and Installation

INFOID:0000000006367610

REMOVAL

Front Under Cover

1.

Remove front under deflector mounting bolts, and then remove front under deflector.

2.

Remove front under cover mounting bolts, and then remove front under cover.

INSTALLATION

Install in the reverse order of removal.

1.

Front under cover

2.

 Front under deflector

JMKIA5465ZZ

EXT-26

< REMOVAL AND INSTALLATION >

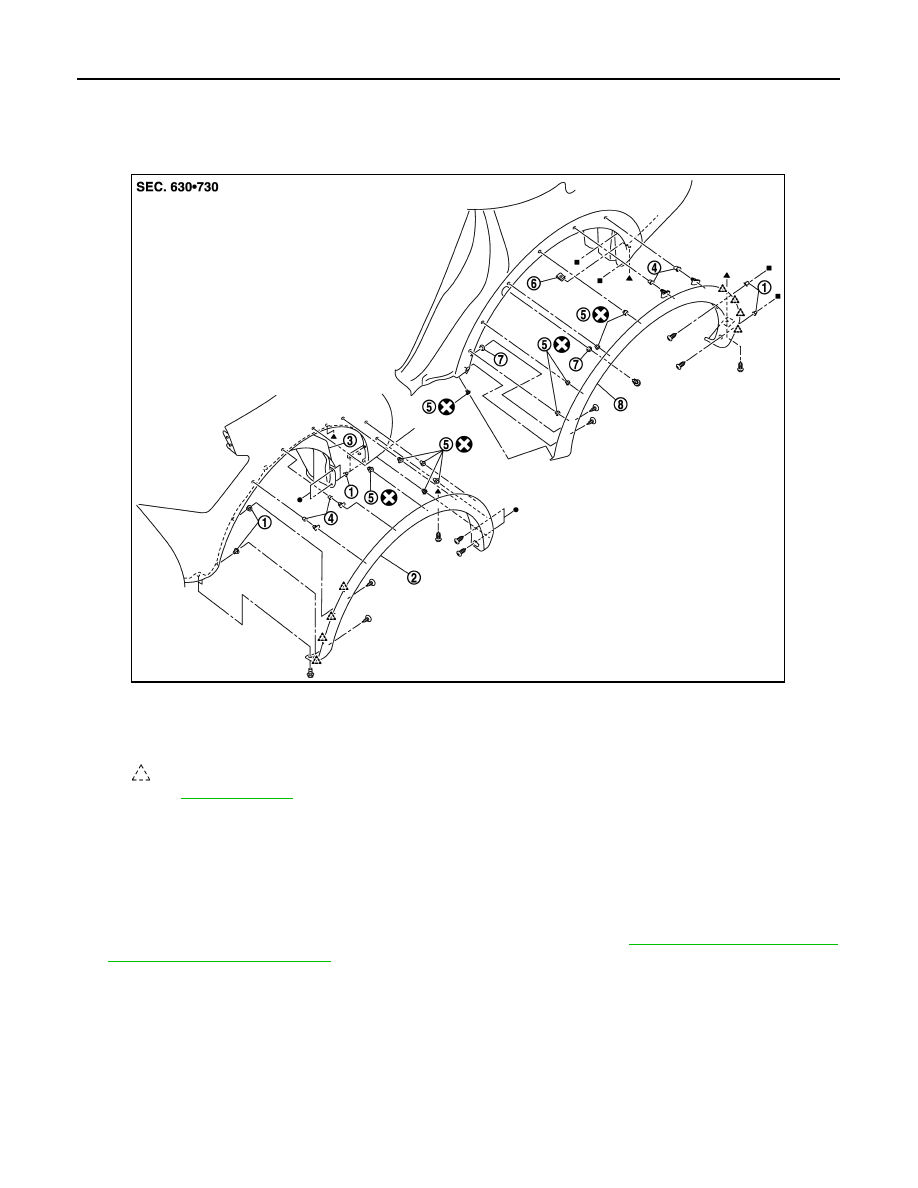

OVER FENDER

OVER FENDER

Exploded View

INFOID:0000000006367611

Removal and Installation

INFOID:0000000006367612

REMOVAL

Front over fender

1.

Remove front over fender front side fixing screws and bolts.

2.

Remove front fender protector front side. Keep the service area. Refer to

EXT-23, "FENDER PROTEC-

TOR : Removal and Installation"

.

1.

Grommet

2.

Front over fender

3.

Front fender proctor

4.

Grommet

5.

Clip

6.

U nut

7.

Grommet

8.

Rear over fender

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5438ZZ
