Infiniti QX56 (Z62). Manual - part 718





FRONT GRILLE

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

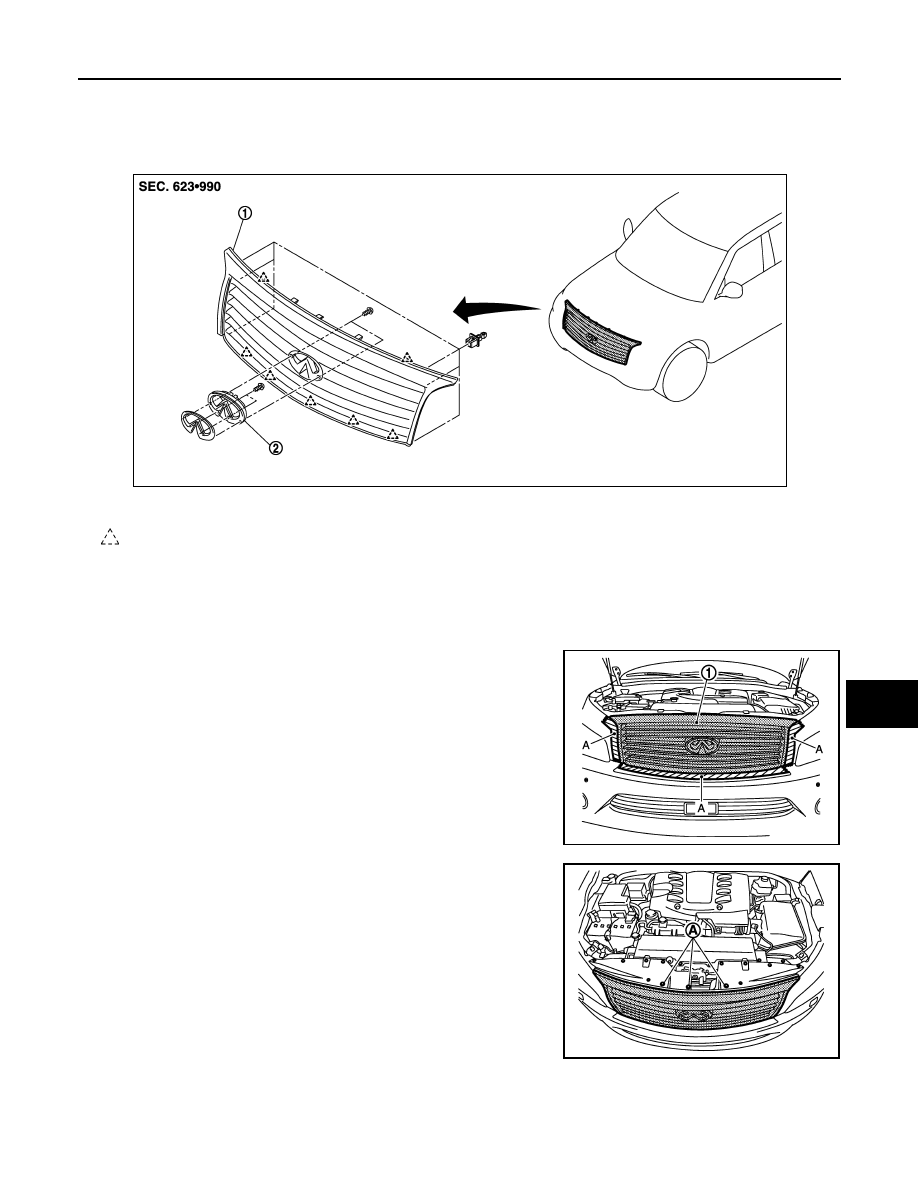

FRONT GRILLE

Exploded View

INFOID:0000000006367601

Removal and Installation

INFOID:0000000006367602

REMOVAL

1.

Fully open hood assembly.

2.

Apply protective tape (A) on surrounding area of front grille (1).

3.

Remove front grille upper fixing clips.

1.

Front grille

2.

Front emblem

: Pawl

JMKIA5462ZZ

JMKIA5424ZZ

JMKIA5423ZZ

EXT-20

< REMOVAL AND INSTALLATION >

FRONT GRILLE

4.

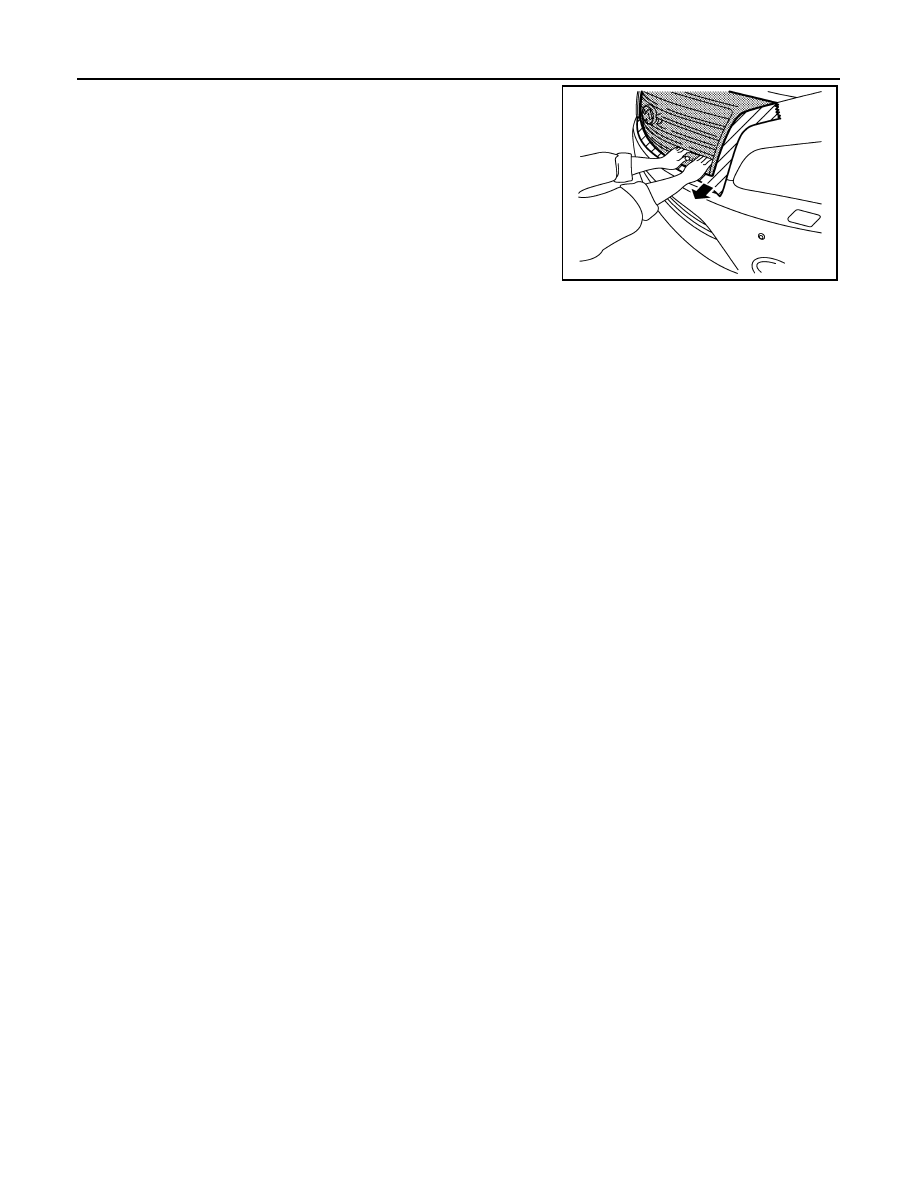

Pull front grille toward the direction shown in the figure, and then
disengage front grille fixing clips.

5.

Disconnect front camera harness connector, and then remove front grille.

6.

Remove emblem after removing front grille.

INSTALLATION

Install in the reverse order of removal.

JMKIA5425ZZ

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

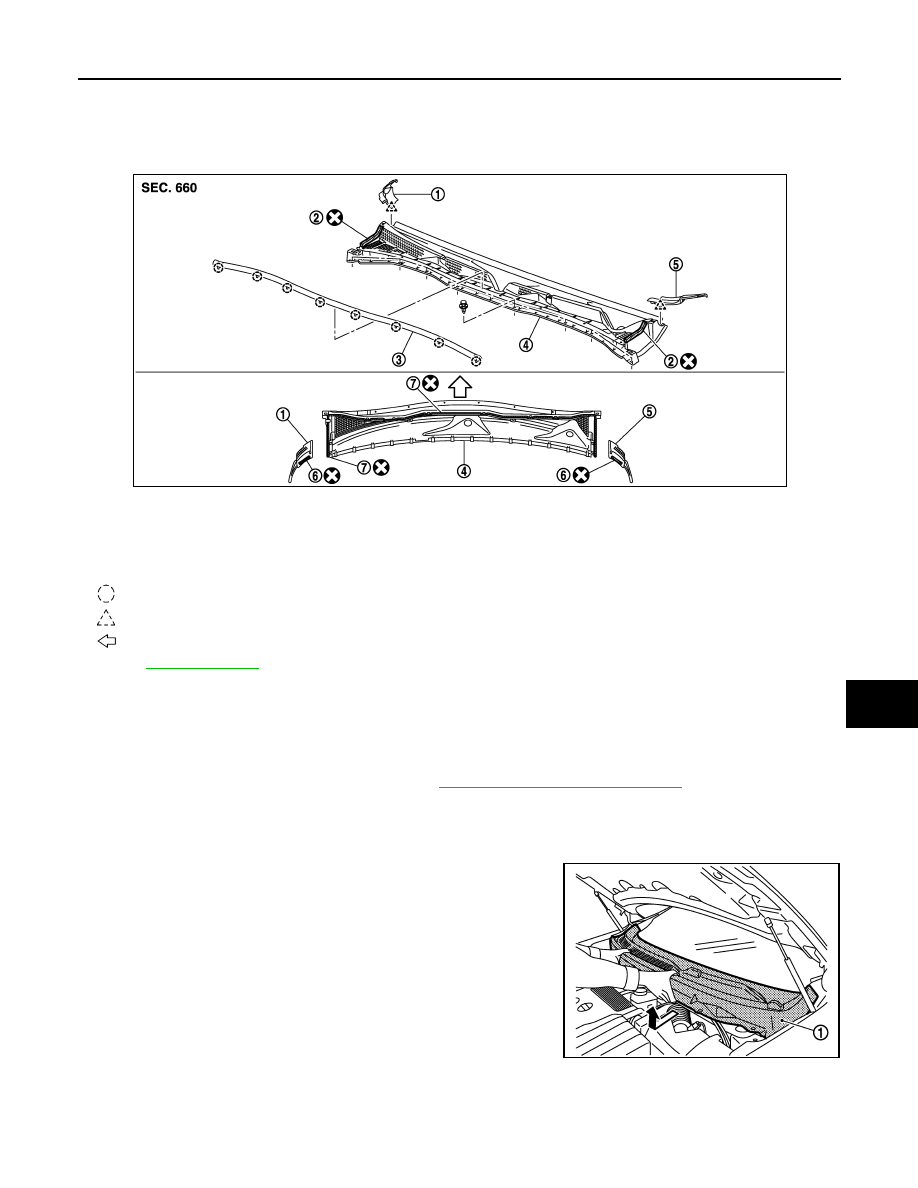

COWL TOP

Exploded View

INFOID:0000000006367603

Removal and Installation

INFOID:0000000006367604

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm (LH and RH). Refer to

WW-66, "Removal and Installation"

.

3.

Remove front fender cover (LH and RH).

4.

Disconnect front washer tube connector.

5.

Remove cowl top cover fixing clips.

6.

Pull forward to release cowl top cover (1) from windshield glass.

CAUTION:

When performing the procedure after removing cowl top
cover, cover the lower end of windshield glass with ure-
thane etc.

7.

Remove the following parts after removing cowl top cover.
• Cowl top seal
• Washer nozzle (LH and RH)
• Washer tube

1.

Front fender cover RH

2.

EPT seal [t: 15.0 mm (0.591 in)]

3.

Cowl top cover seal

4.

Cowl top cover

5.

Front fender cover LH

6.

Double-sided tape
[t: 1.2 mm (0.047 in)]

7.

EPT seal [t: 3.0 mm (0.118 in)]

: Clip

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5222ZZ

JMKIA1984ZZ

EXT-22

< REMOVAL AND INSTALLATION >

COWL TOP

• EPT sealer

INSTALLATION

Note the following items and then, install in the reverse order of removal.

CAUTION:

• When installing cowl top cover, check that blind clips are securely fitted in panel holes on body, and

then press them in.

• Always replace cowl top cover EPT sealer with a new one when installing old cowl top cover.
• After installing, perform adjustment of wiper arms. Refer to

WW-66, "Adjustment"

.
