SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PIIB8742E

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

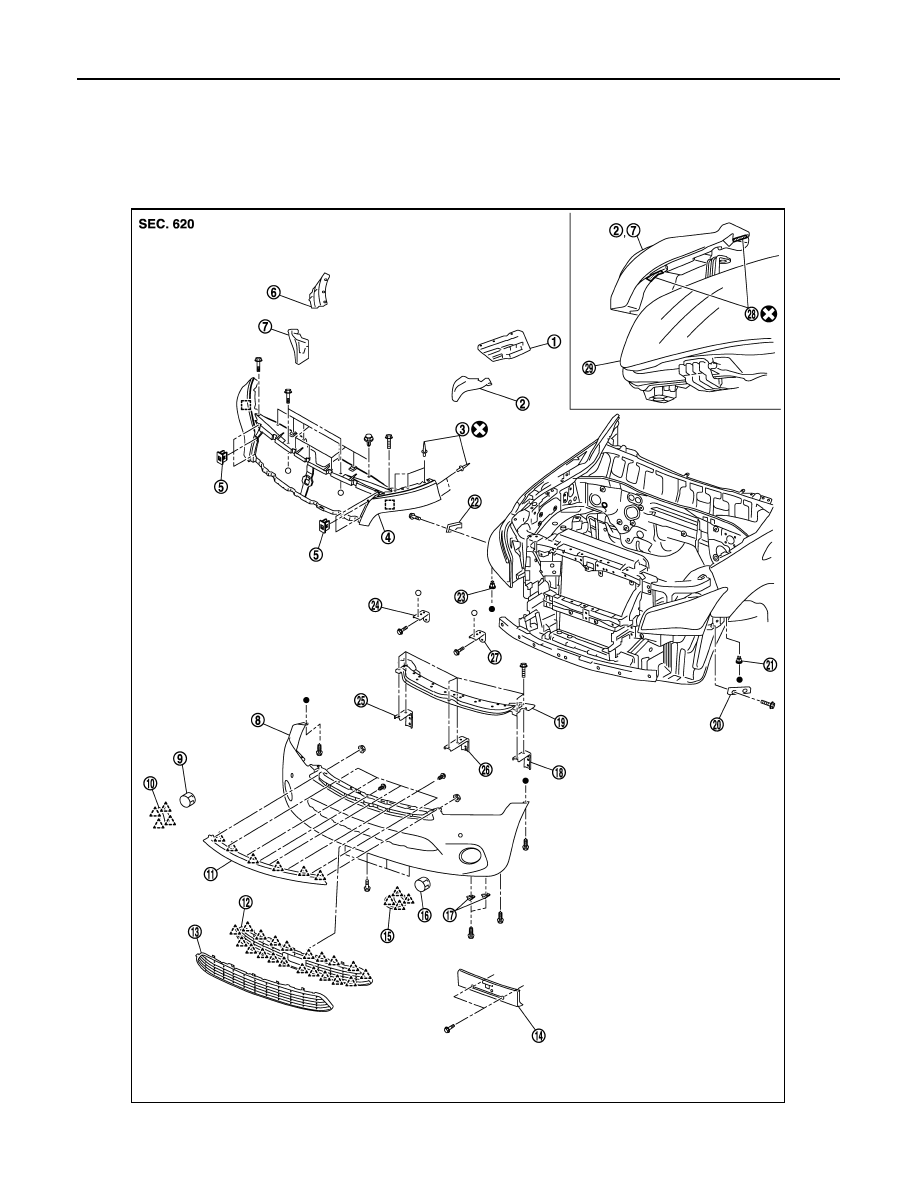

Exploded View

INFOID:0000000006367597

JMKIA5429GB

FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

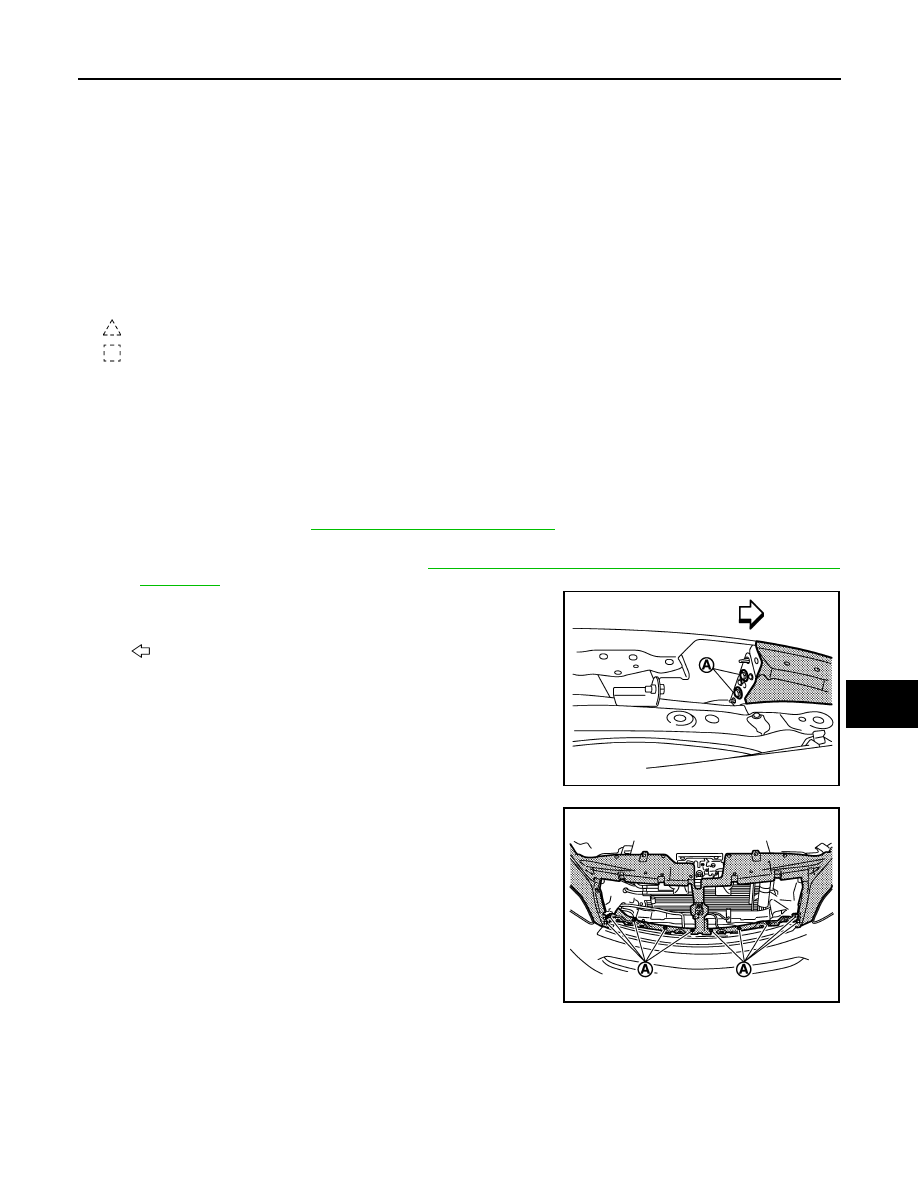

Removal and Installation

INFOID:0000000006367598

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open hood assembly.

2.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

3.

Remove bumper molding.
1.

Remove front fender drip cover. Refer to

DLK-223, "FRONT FENDER DRIP COVER : Removal and

Installation"

.

2.

Remove bumper molding upper fixing screws (A) (LH and
RH).

3.

Remove bumper molding fixing clips (A).

1.

Bumper molding bracket LH

2.

Energy absorber LH

3.

Rivet

4.

Bumper molding

5.

Grommet

6.

Bumper molding bracket RH

7.

Energy absorber RH

8.

Bumper fascia assembly

9.

Front fog lamp RH

10. Front fog lamp finisher RH

11.

Front grille lower molding

12. Front bumper grille (with ICC)

13. Front bumper grille (without ICC)

14.

License plate bracket

15. Front fog lamp finisher LH

16. Front fog lamp LH

17.

U nut

18. Bumper retainer bracket LH

19. Bumper retainer

20.

Bumper side bracket LH

21. Grommet

22. Bumper side bracket RH

23.

Grommet

24. Bumper molding stay RH

25. Bumper retainer bracket RH

26.

Bumper retainer bracket CTR

27. Bumper molding stay LH

28. double-sided tape

[t: 0.13 mm (0.005 in)]

: Pawl

: Metal clip

: Vehicle front

JMKIA5426ZZ

JMKIA5427ZZ

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

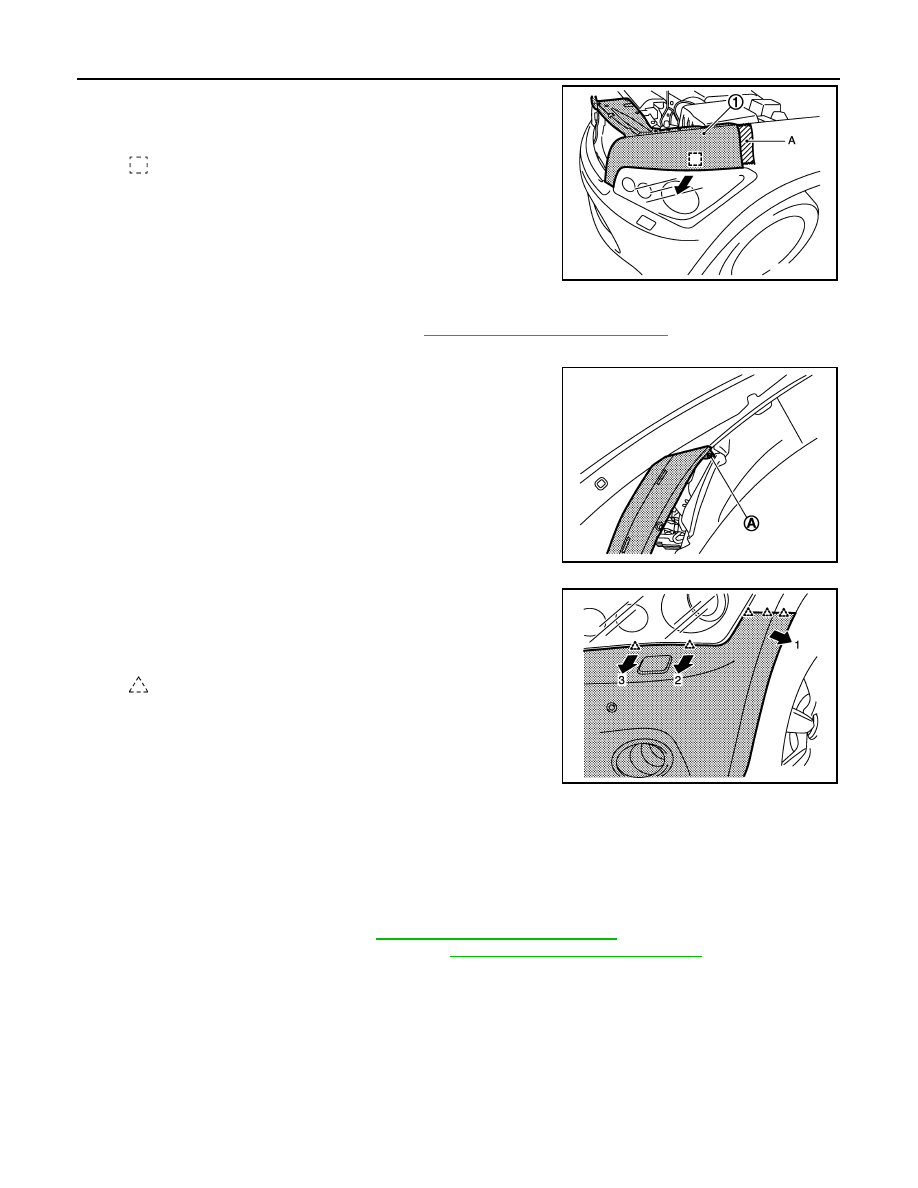

4.

Pull bumper molding (1) toward the direction shown in the
figure, and then disengage bumper molding fixing metal
clips (LH and RH).

5.

Remove bumper molding.

4.

Remove front over fender front side. Refer to

EXT-26, "Removal and Installation"

.

5.

Remove clips of bumper upper side.

6.

Remove bumper fascia assembly fixing screws (A) (LH and
RH).

7.

Pull bumper fascia assembly toward the vehicle outside as
shown by the arrow in the figure, and then disengage the
bumper fascia assembly from bumper side brackets (LH and
RH).

8.

Disconnect corner sensor harness connector and fog lamp harness connector.

9.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia assembly, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia assembly.

• Front grille lower molding.
• Front bumper grille.
• Sonar sensor (LH and RH). Refer to

AV-239, "Removal and Installation"

.

• Front fog lamp assembly (LH and RH). Refer to

EXL-128, "Removal and Installation"

 .

• Front fog lamp finishers (LH and RH)
• Bumper side bracket (LH and RH)
• License plate bracket

11. Remove bumper upper retainer.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

: Metal clip

JMKIA5428ZZ

JMKIA5430ZZ

: Pawl

JMKIA5431ZZ
