LICENSE PLATE LAMP

3.

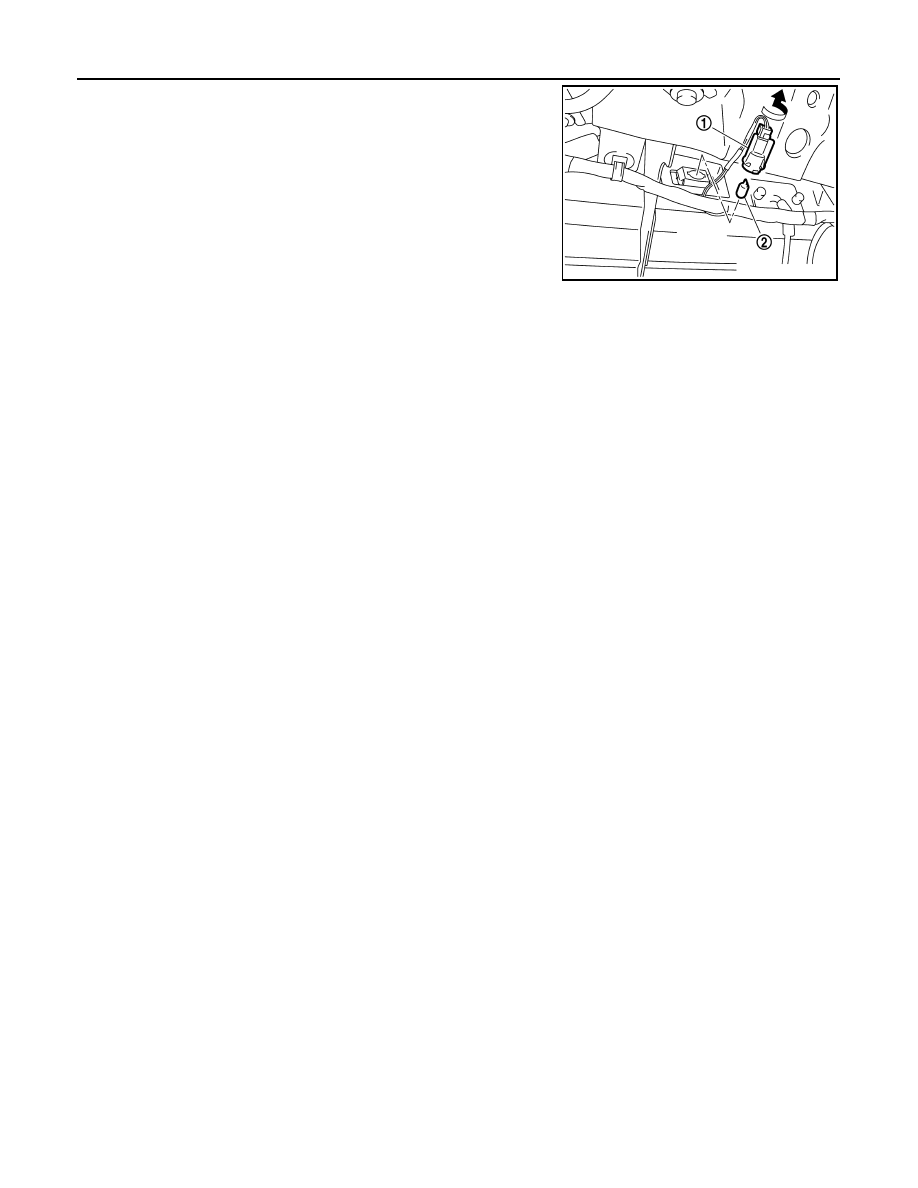

Turn bulb socket (1) counterclockwise and unlock it.

4.

Remove bulb (2) from socket.

JPLIA0930ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-145

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000006369512

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI/LO)

D2S (Xenon)

35

Front turn signal lamp

WY21W (Amber)

21

Parking lamp

W5W

5

Front fog lamp

H8

35

Side turn signal lamp

Replace as an assembly because it cannot be disassembled.

Rear combination lamp

Stop lamp/Tail lamp

LED

—

Rear turn signal lamp

WY21W

21

Back-up lamp

W16W

16

Tail lamp

W5W

5

License plate lamp

W5W

5

High-mounted stop lamp

LED

—
