Infiniti QX56 (Z62). Manual - part 712

EXL-140

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

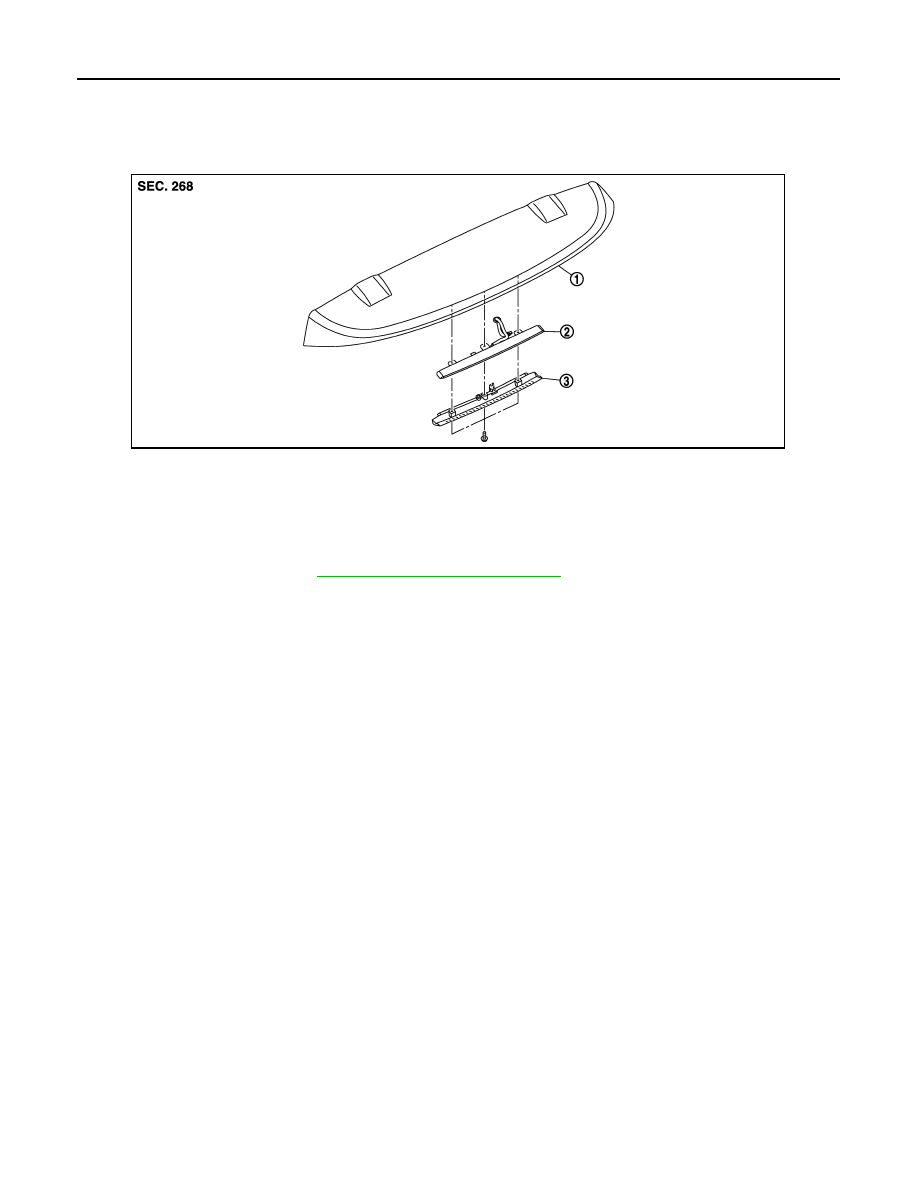

Exploded View

INFOID:0000000006369484

Removal and Installation

INFOID:0000000006369485

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-41, "Removal and Installation"

.

2.

Remove high-mounted stop lamp mounting screws.

3.

Remove high-mounted stop lamp cover, and then remove high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

1.

Rear spoiler

2.

High-mounted stop lamp

3.

High-mounted stop lamp cover

JMLIA0985ZZ

BACK-UP LAMP

EXL-141

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BACK-UP LAMP

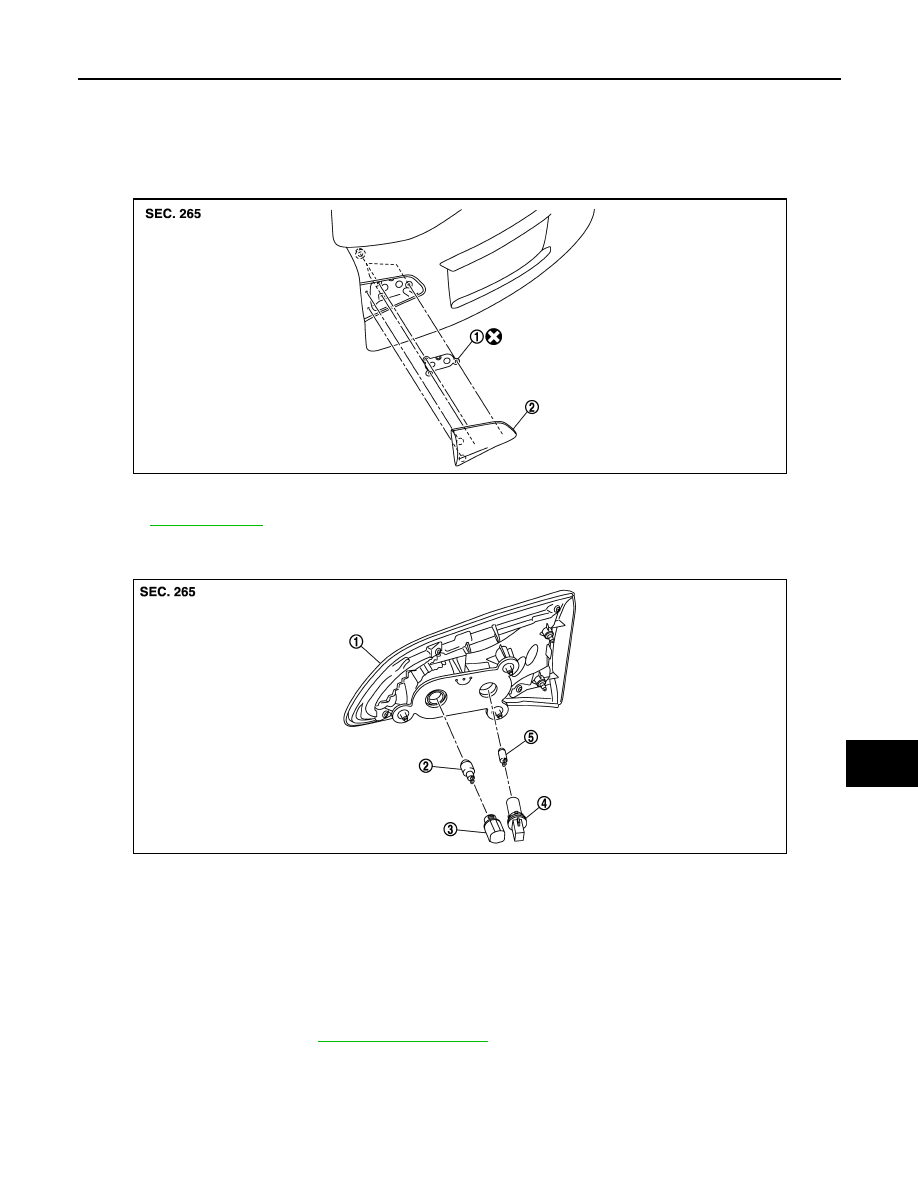

Exploded View

INFOID:0000000006369486

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000006369487

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove lamp mask. Refer to

INT-39, "Exploded View"

.

2.

Disconnect back-up lamp connector.

3.

Remove back-up lamp mounting nuts, and then remove back-up lamp.

INSTALLATION

Install in the reverse order of removal.

1.

Seal packing

2.

Back-up lamp

Refer to

GI-4, "Components"

 for symbols not described above.

JMLIA1321ZZ

1.

Back-up lamp

2.

Back-up lamp bulb

3.

Back-up lamp bulb socket

4.

Tail lamp bulb socket

5.

Tail lamp bulb

JMLIA1322ZZ

EXL-142

< REMOVAL AND INSTALLATION >

[XENON TYPE]

BACK-UP LAMP

Replacement

INFOID:0000000006369488

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

1.

Remove lamp mask. Refer to

INT-39, "Exploded View"

.

2.

Disconnect tail lamp connector.

3.

Tail bulb socket counterclockwise and unlock it.

4.

Remove bulb from bulb socket.

BACK-UP LAMP BULB

1.

Remove lamp mask. Refer to

INT-39, "Exploded View"

.

2.

Disconnect back-up lamp connector.

3.

Turn bulb socket counterclockwise and unlock it.

4.

Remove bulb from bulb socket.

LICENSE PLATE LAMP

EXL-143

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

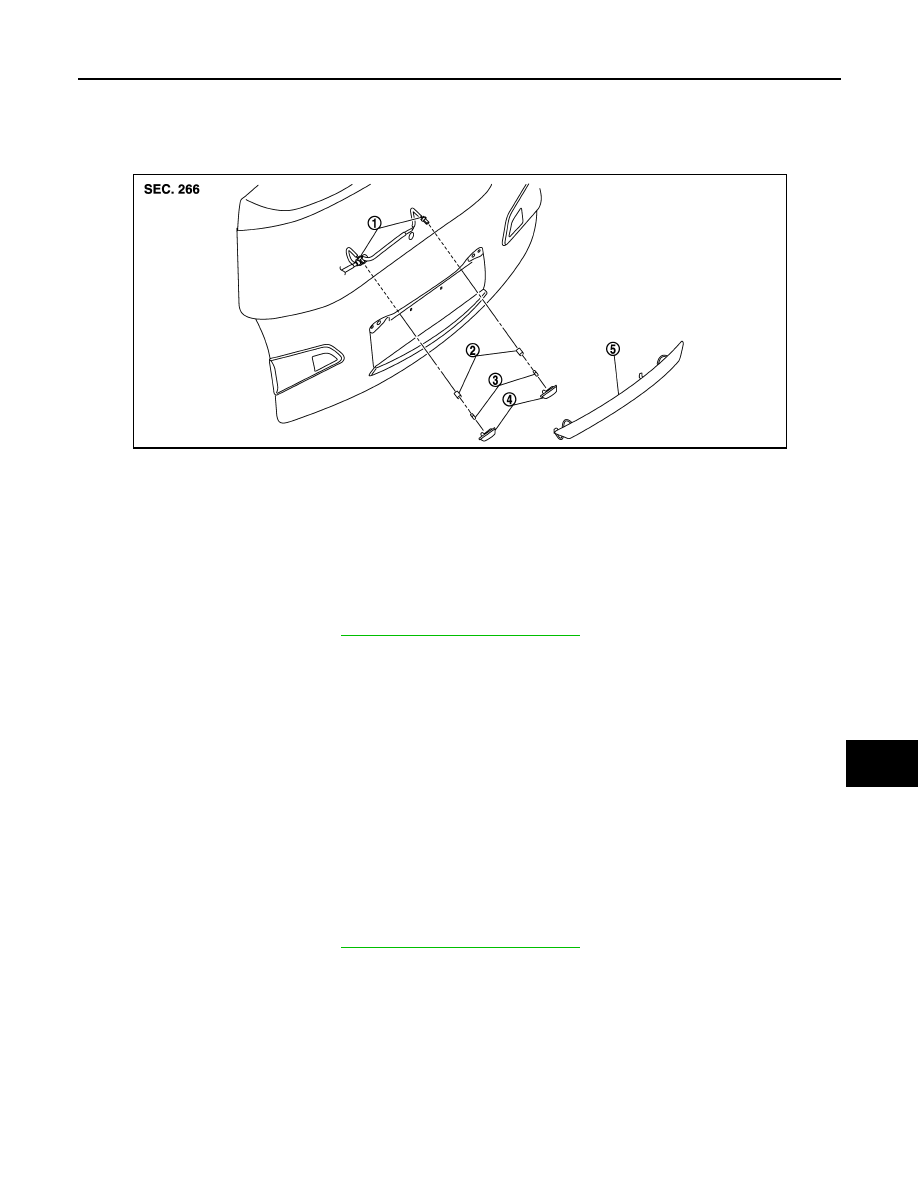

Exploded View

INFOID:0000000006369489

Removal and Installation

INFOID:0000000006369490

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove back door trim. Refer to

INT-39, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

3.

Remove back door finisher center upper.

4.

Remove license plate lamp while pushing a resin clip, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000006369491

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door trim. Refer to

INT-39, "Removal and Installation"

.

2.

Disconnect license plate lamp connector.

1.

License plate lamp harness

2.

License plate lamp bulb socket

3.

License plate lamp bulb

4.

License plate lamp

5.

Back door finisher center upper

JMLIA1122ZZ
