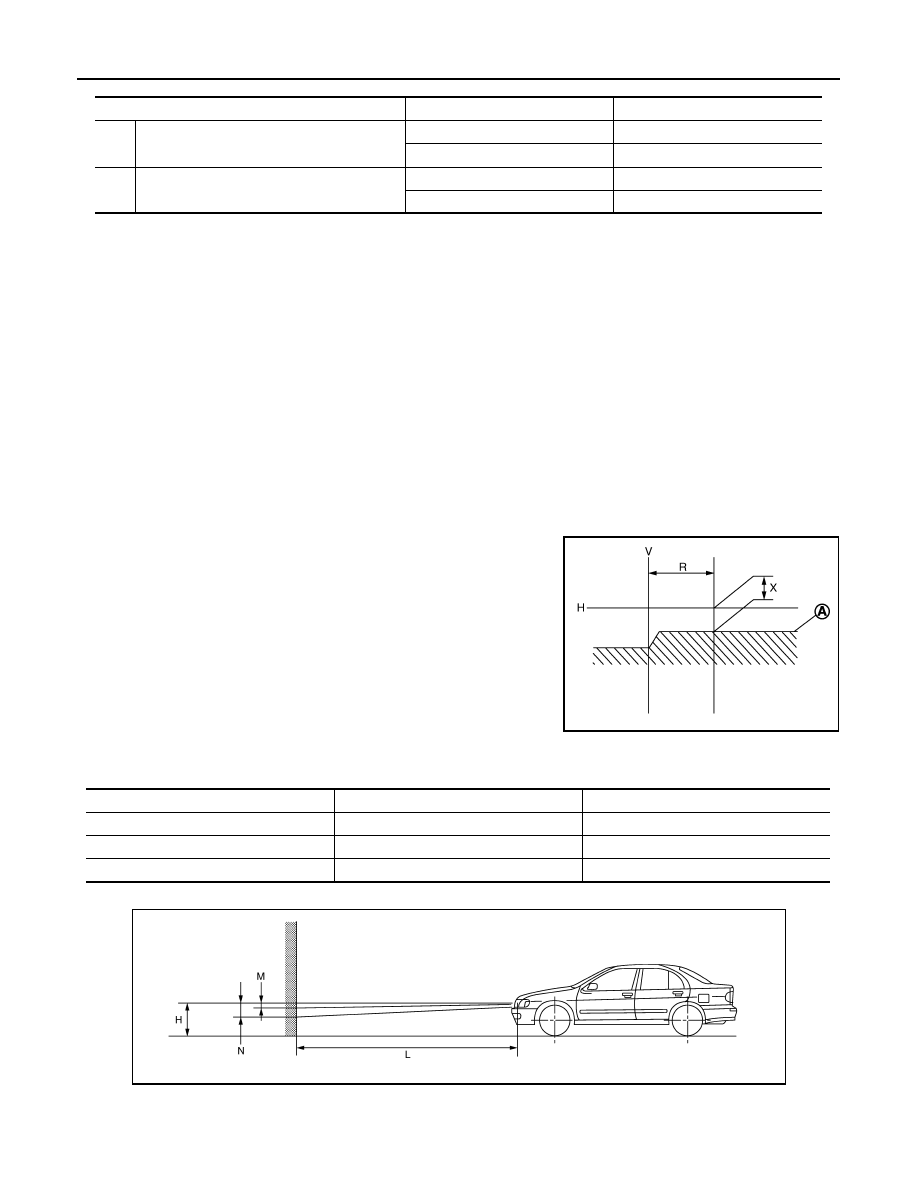

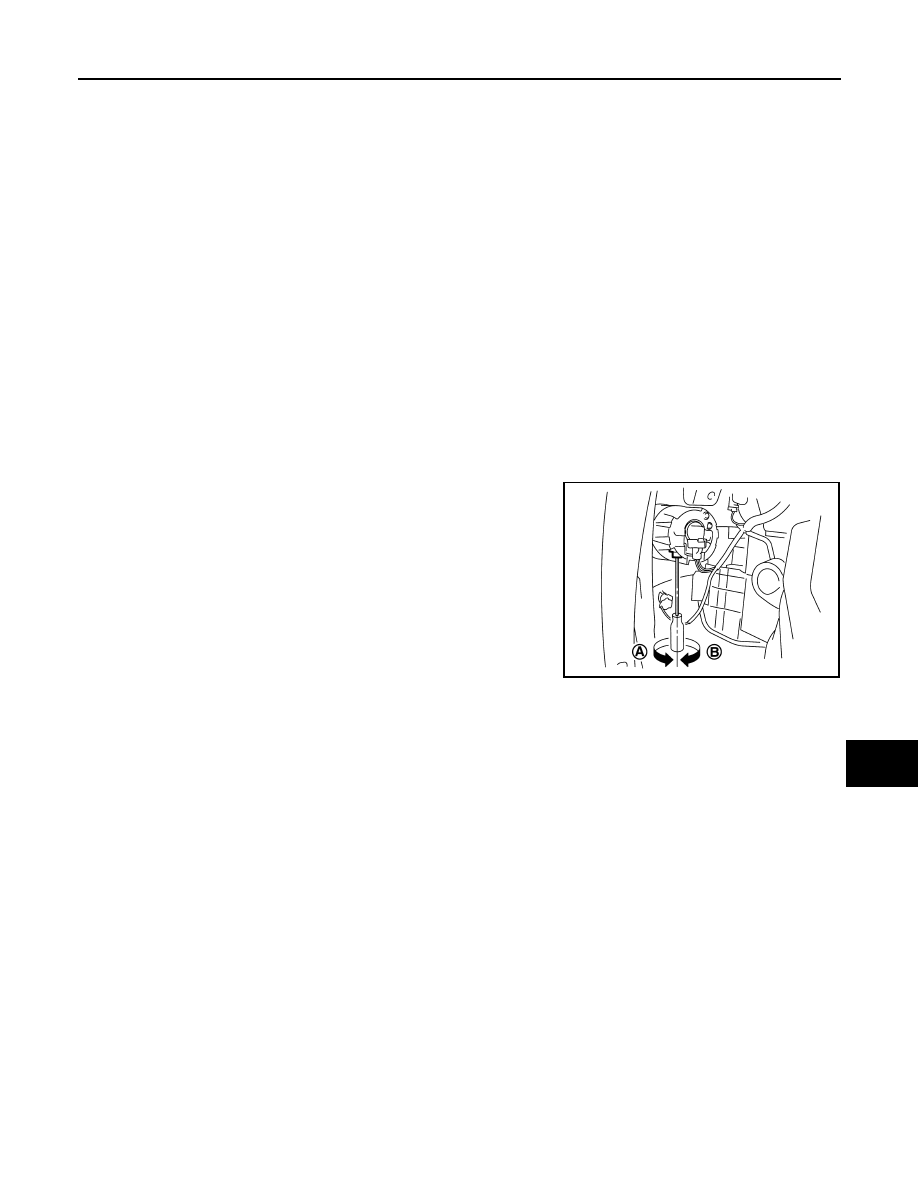

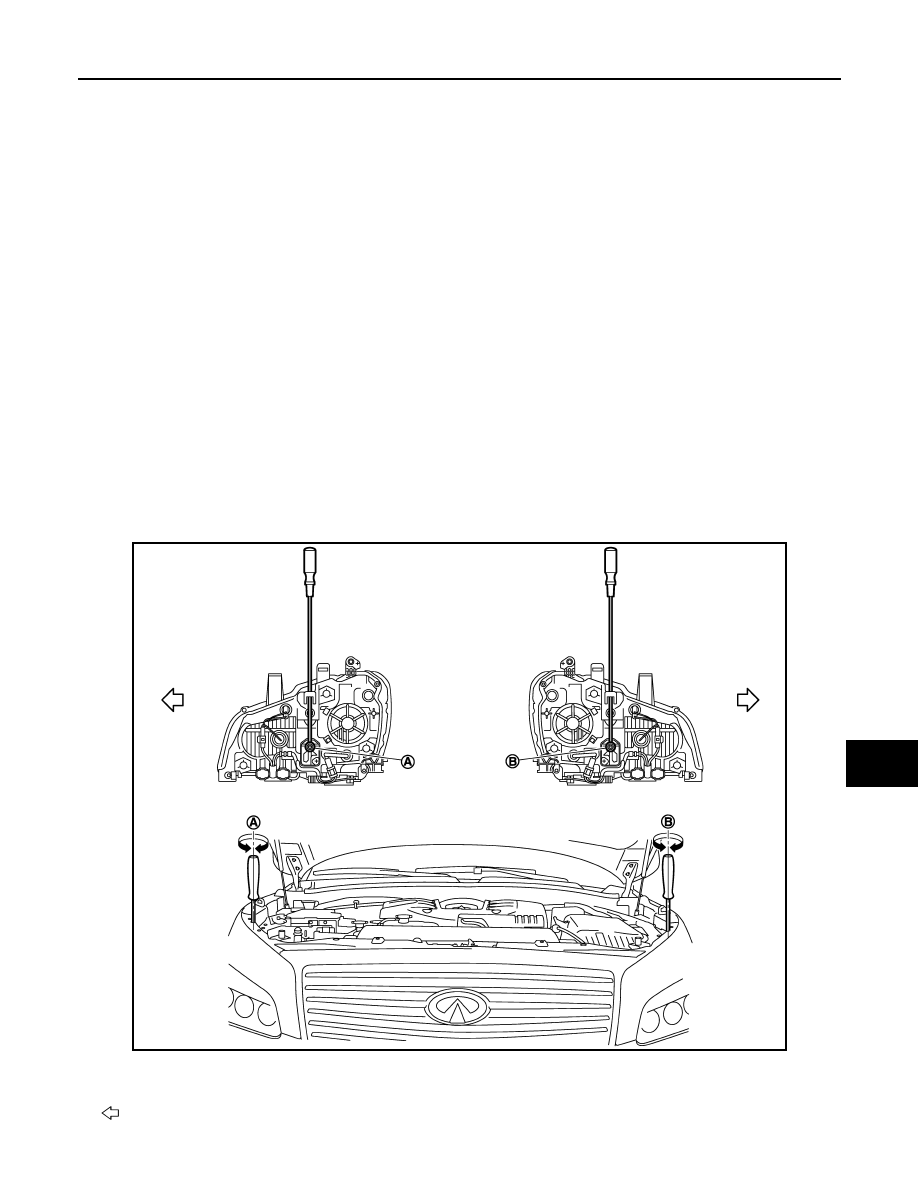

EXL-120 < SYMPTOM DIAGNOSIS > [XENON TYPE] BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON Description INFOID:0000000006213988 The front fog lamps are not turned ON in any condition. Diagnosis Procedure INFOID:0000000006213989 1. CHECK FUSE Check that the following fuse is fusing. Is the inspection result normal? YES >> GO TO 2. NO >> Repair the applicable circuit. And then replace the fuse. 2. COMBINATION SWITCH INSPECTION Check combination switch. Refer to Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace the malfunctioning part. 3. CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT CONSULT-III DATA MONITOR 1. Select “FR FOG REQ” of IPDM E/R data monitor item. 2. With operating the front fog lamp switch, check the monitor status. Is the item status normal? YES >> GO TO 4. NO >> Replace BCM. Refer to BCS-81, "Removal and Installation" 4. FRONT FOG LAMP CIRCUIT INSPECTION Check the front fog lamp circuit. Refer to EXL-94, "Component Function Check" . Is the inspection result normal? YES >> Replace IPDM E/R. NO >> Repair or replace the malfunctioning part. Unit Location Fuse No. Capacity Front fog lamp IPDM E/R #50 15 A Monitor item Condition Monitor status FR FOG REQ Front fog lamp switch ON On OFF Off |
