Infiniti QX56 (Z62). Manual - part 688

EXL-44

< WIRING DIAGRAM >

[XENON TYPE]

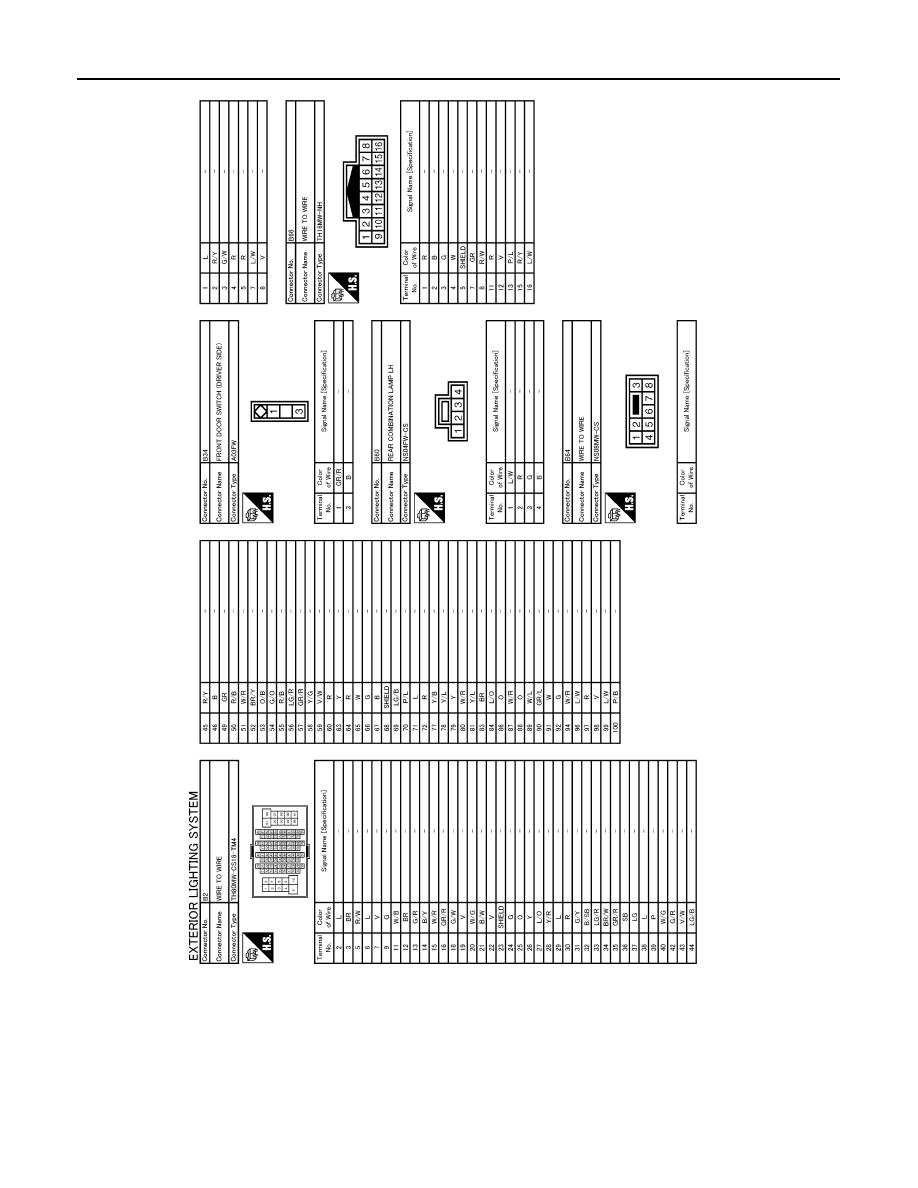

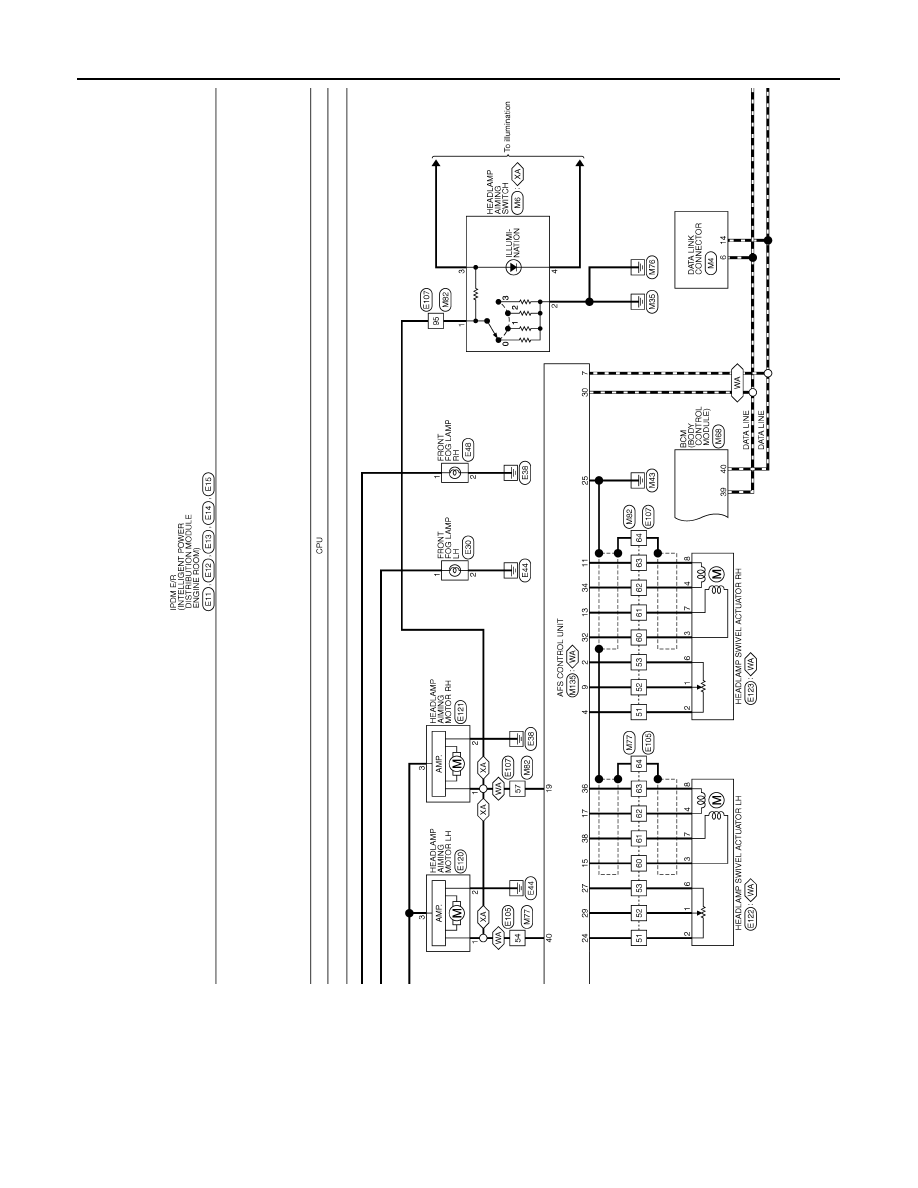

EXTERIOR LIGHTING SYSTEM

JCLWM5440GB

EXTERIOR LIGHTING SYSTEM

EXL-45

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM5441GB

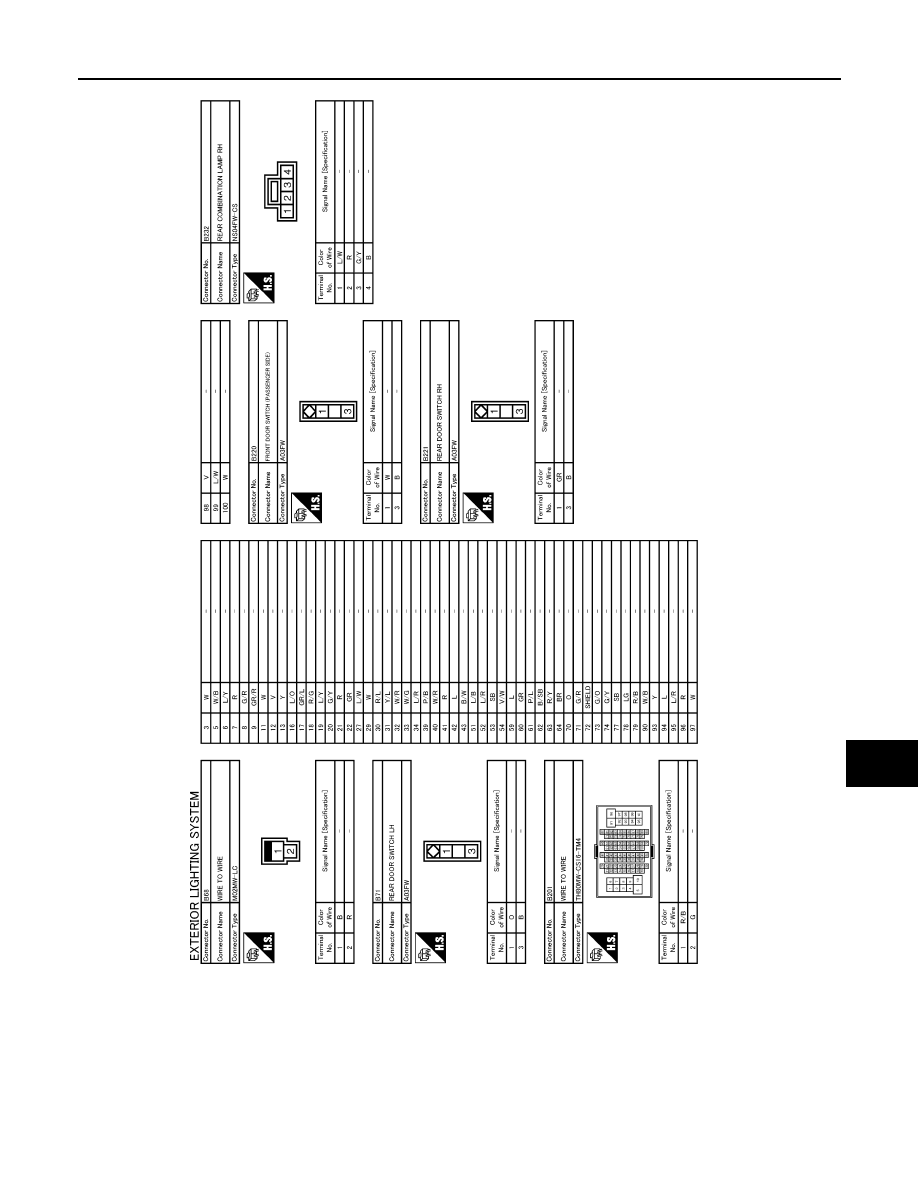

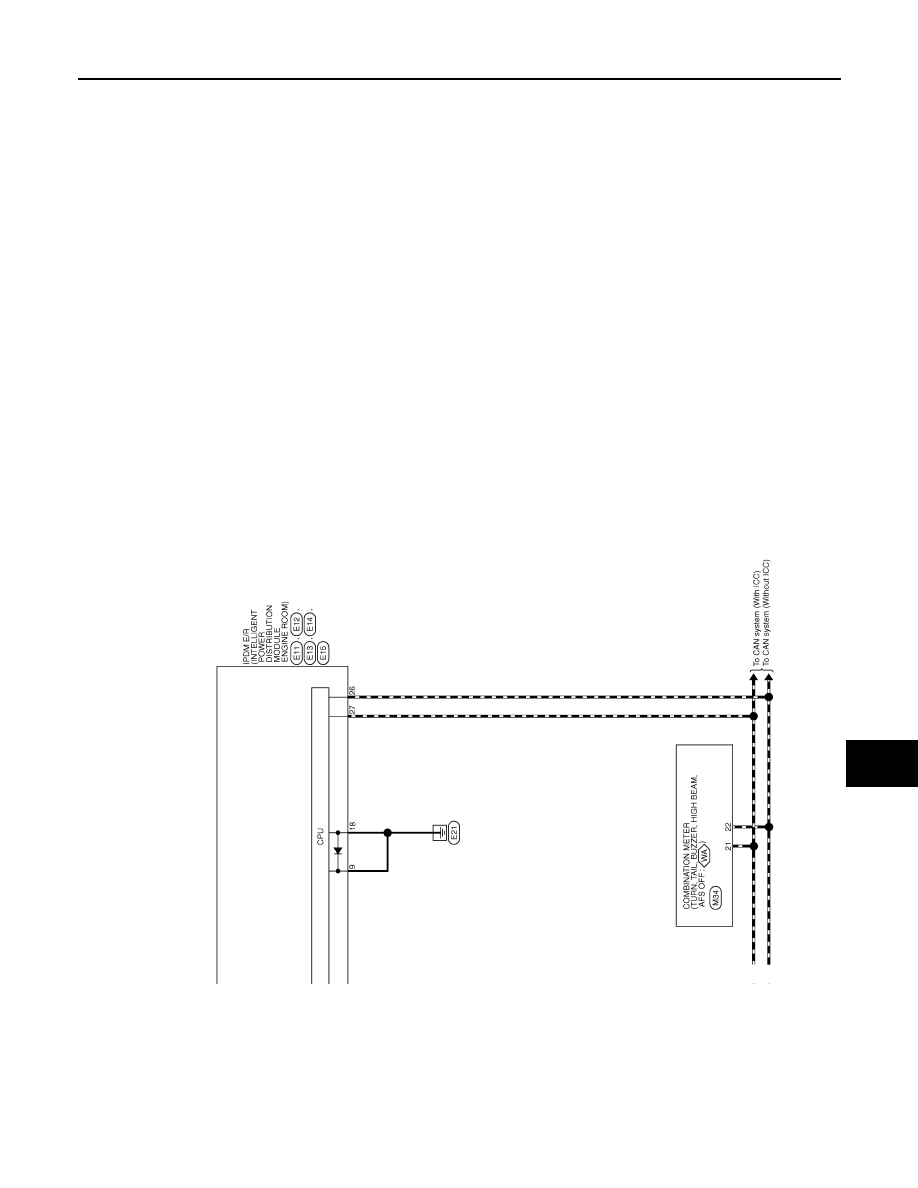

EXL-46

< WIRING DIAGRAM >

[XENON TYPE]

EXTERIOR LIGHTING SYSTEM

JCLWM5442GB

EXTERIOR LIGHTING SYSTEM

EXL-47

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM5443GB
