EM-92

< REMOVAL AND INSTALLATION >

CYLINDER HEAD

a.

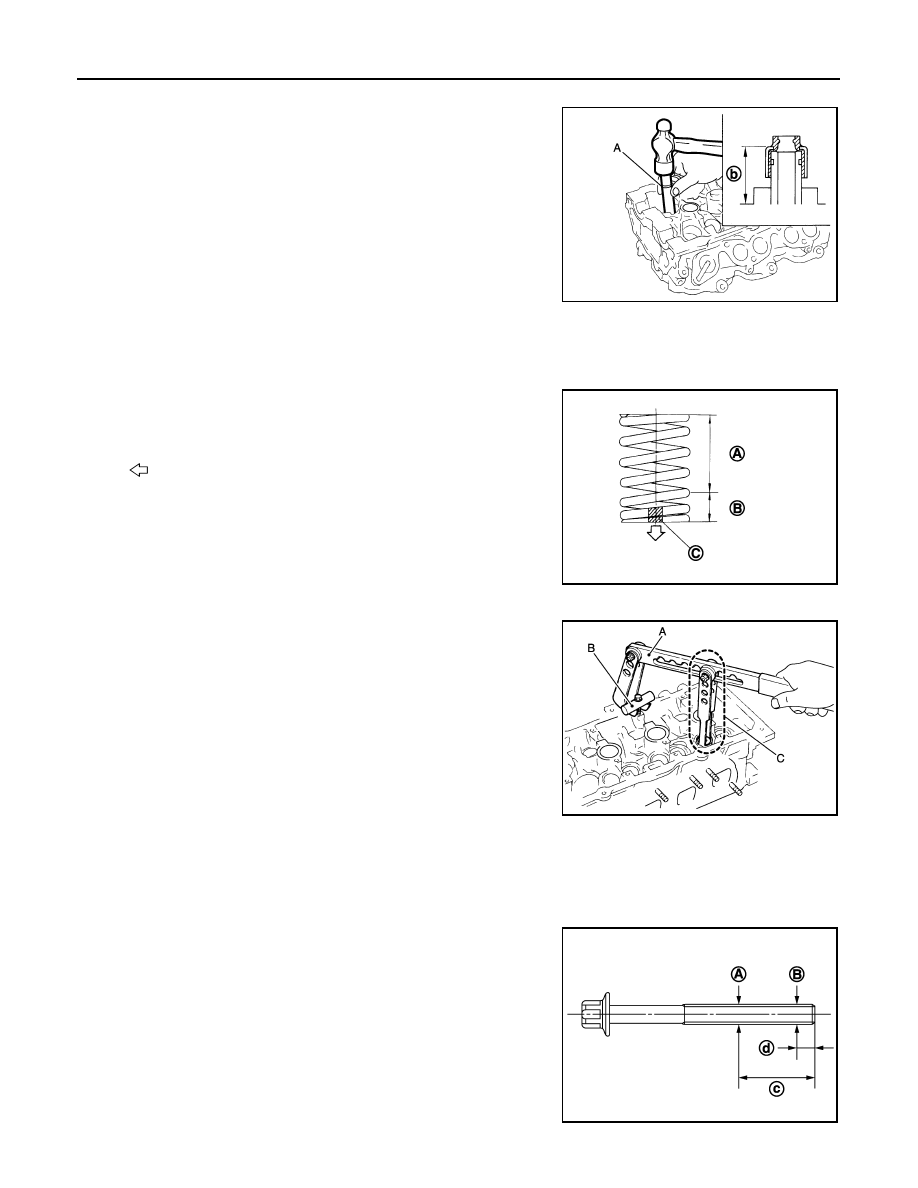

Apply new engine oil on new valve oil seal joint and seal lip.

b.

Using the valve oil seal drift [SST: KV10115600 (J-38958)] (A),
press fit valve seal to height (b) shown in figure.

4.

Install valve.
NOTE:
Larger diameter valves are for intake side.

5.

Install valve spring (with valve spring seat).
• Install narrow pitch (B) end [paint mark (C)] to cylinder head

side (valve spring seat side).

6.

Install valve spring retainer.

7.

Install valve collet.
• Compress valve spring with the valve spring compressor [SST:

KV10116200 (J26336-A)] (A), the attachment [SST:
KV10115900 (J26336-20)] (C) and the adapter [SST:
KV10109220 (

)] (B). Install valve collet with a magnet

hand.

CAUTION:

When working, take care not to damage valve lifter holes.

• Tap valve stem edge lightly with plastic hammer after installa-

tion to check its installed condition.

Inspection

INFOID:0000000006289573

INSPECTION AFTER DISASSEMBLY

Cylinder Head Bolts Outer Diameter

• Cylinder head bolts are tightened by plastic zone tightening

method. Whenever the size difference between (B) and (A)
exceeds the limit, replace them with new one.

• If reduction of outer diameter appears in a position other than (A),

use it as (A) point.

Height (b)

Intake, Exhaust

: 14.3 - 14.9 mm (0.563 - 0.587 in)

JPBIA1367ZZ

A

: Wide pitch

: Cylinder head side

Paint mark color

Intake

: Light green

Exhaust

: Light blue

JPBIA0179ZZ

JPBIA1365ZZ

Limit [(B) - (A)]

: 0.18 mm (0.0071 in)

c

: 55 mm (2.17 in)

d

: 12 mm (0.47 in)

JPBIA2144ZZ

CYLINDER HEAD

EM-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Cylinder Head Distortion

NOTE:
When performing this inspection, cylinder block distortion should be also checked. Refer to

EM-115, "Inspec-

tion"

.

1.

Using a scraper, wipe out oil, scale, gasket, sealant and carbon deposits from surface of cylinder head.

CAUTION:

Never allow gasket fragments to enter engine oil or engine coolant passages.

2.

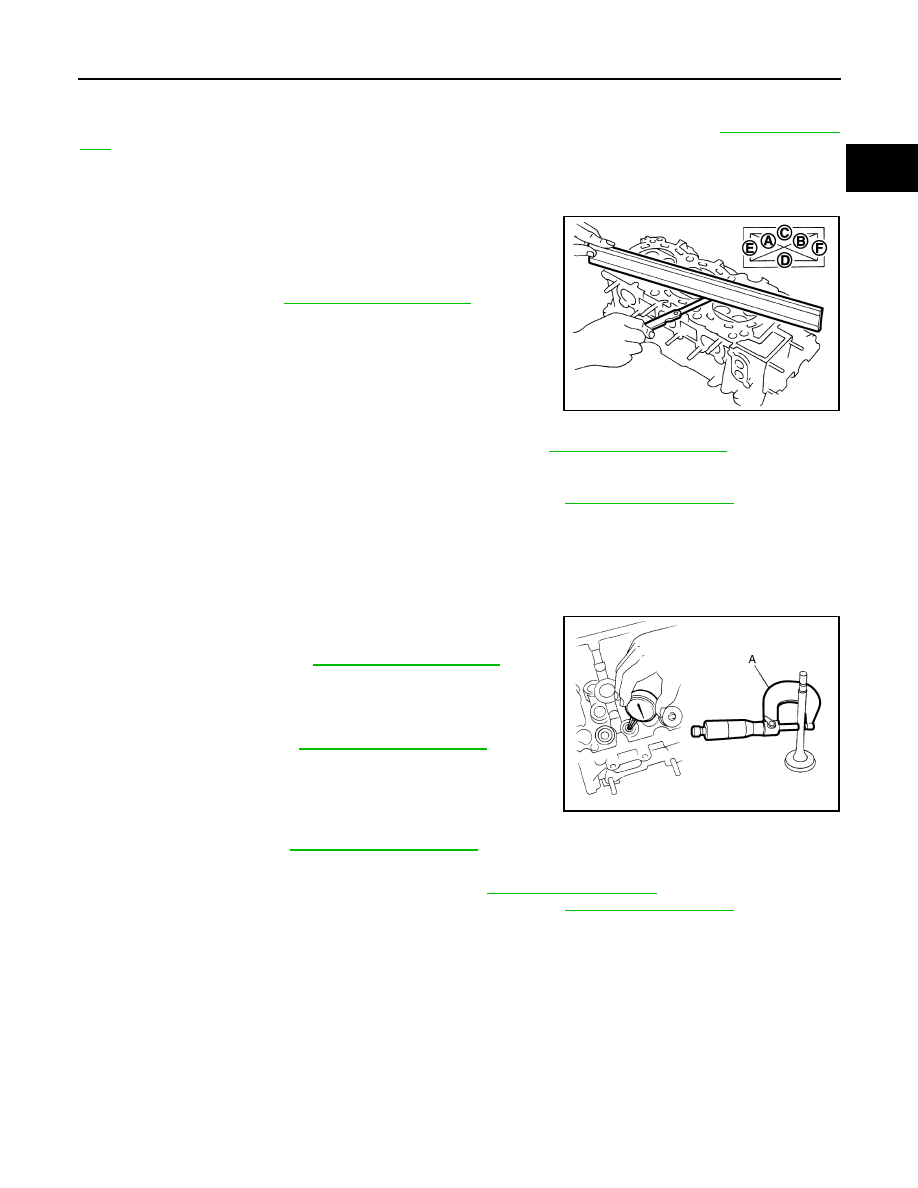

At each of several locations on bottom surface of cylinder head,
measure the distortion in six directions (A), (B), (C), (D), (E), and
(F).

• If it exceeds the limit, replace VVEL ladder assembly & cylinder

head assembly.
NOTE:
Cylinder head assembly cannot be replaced as a single part,
because it is machined together with VVEL ladder assembly.

Valve Dimensions

• Check the dimensions of each valve. For the dimensions, refer to

EM-135, "Cylinder Head"

.

• If dimensions are out of the standard.
- Replace valve (EXH) and check valve seat contact. Refer to "VALVE SEAT CONTACT". (Exhaust side)
- Replace VVEL ladder assembly & cylinder head assembly. Refer to

EM-86, "Exploded View"

. (Intake side)

NOTE:
Since the valve (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head assembly
replacement are required.

Valve Guide Clearance

Valve Stem Diameter

• Measure the diameter of valve stem with micrometer (A).

Valve Guide Inner Diameter

• Measure the inner diameter of valve guide with bore gauge.

Valve Guide Clearance

• (Valve guide clearance) = (Valve guide inner diameter) – (Valve

stem diameter)

• If the calculated value exceeds the limit.
- Replace valve (EXH) and/or valve guide (EXH). Refer to

EM-86, "Exploded View"

. (Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer to

EM-86, "Exploded View"

. (Intake side)

NOTE:
Since the valve (INT) and valve guide (INT) cannot be replaced by the piece, VVEL ladder assembly & cylin-
der head assembly replacement are required.

Valve Seat Contact

• After confirming that the dimensions of valve guides and valves are within the specifications, perform this

procedure.

• Apply prussian blue (or white lead) onto contacting surface of valve seat to check the condition of the valve

contact on the surface.

Limit

: Refer to

EM-135, "Cylinder Head"

.

JPBIA0176ZZ

Standard :

Refer

to

EM-135, "Cylinder Head"

.

Standard

: Refer to

EM-135, "Cylinder Head"

.

Standard

: Refer to

EM-135, "Cylinder Head"

.

JPBIA0183ZZ

EM-94

< REMOVAL AND INSTALLATION >

CYLINDER HEAD

• Check if the contact area band is continuous all around the circum-

ference.

- If not, grind to adjust valve fitting and check again. If the contacting

surface still has “NG” conditions even after the re-check, replace
valve seat (EXH). Refer to

EM-86, "Exploded View"

. (Exhaust

side)

- If not, replace VVEL ladder assembly & cylinder head assembly.

Refer to

EM-86, "Exploded View"

. (Intake side)

NOTE:
Since the valve seat (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head assem-
bly replacement are required.

Valve Spring (with valve spring seat) Squareness

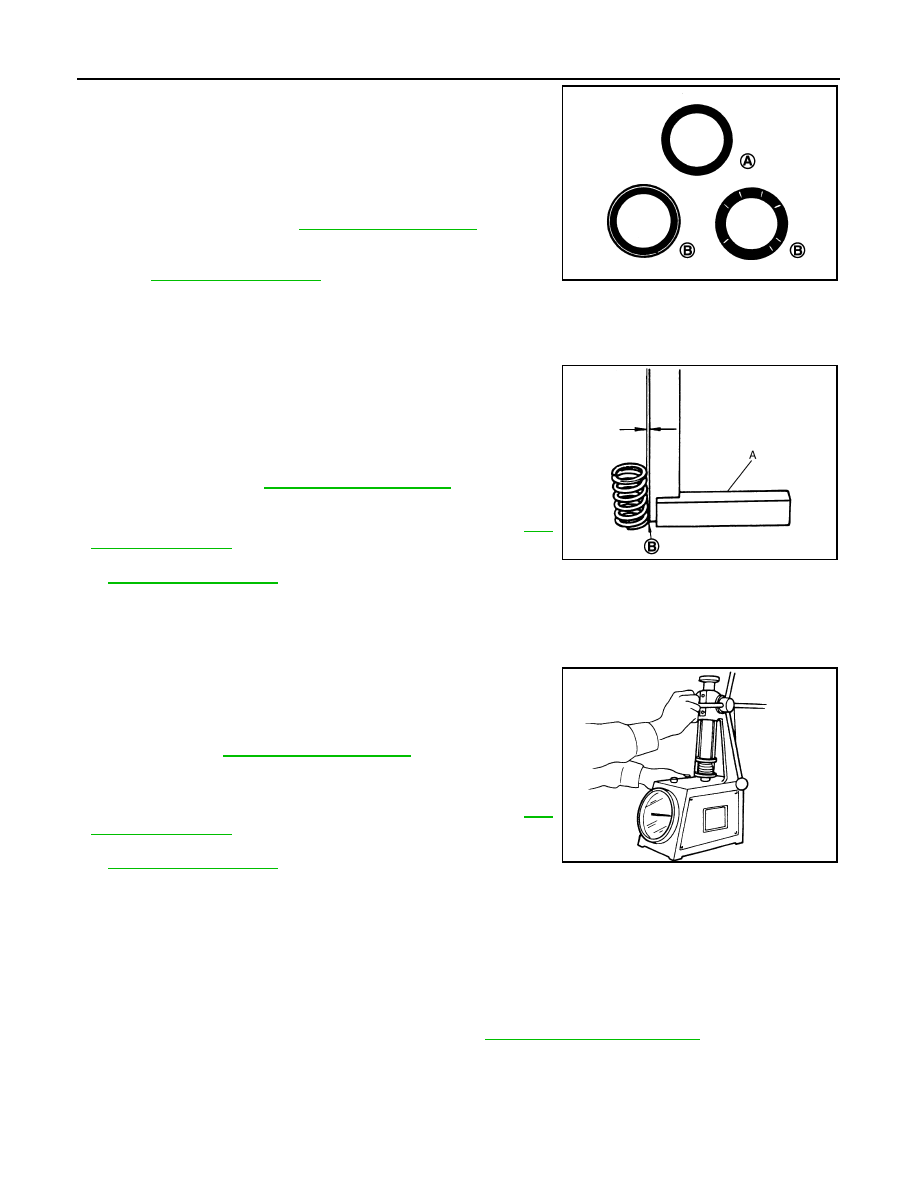

• Set a try square (A) along the side of valve spring (with valve

spring seat) and rotate spring. Measure the maximum clearance
between the top of spring and try square.

• If it exceeds the limit.
- Replace valve spring (with valve spring seat) (EXH). Refer to

EM-

86, "Exploded View"

. (Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer

to

EM-86, "Exploded View"

. (Intake side)

NOTE:
Since the valve spring (with valve spring seat) (INT) cannot be replaced by the piece, VVEL ladder assembly
& cylinder head assembly replacement are required.

Valve Spring Dimensions and Valve Spring Pressure Load

• Check the valve spring (with valve spring seat) pressure at speci-

fied spring height.

• If the installation load or load with valve open is out of the stan-

dard.

- Replace valve spring (with valve spring seat) (EXH). Refer to

EM-

86, "Exploded View"

. (Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer

to

EM-86, "Exploded View"

. (Intake side)

NOTE:
Since the valve spring (with valve spring seat) (INT) cannot be replaced by the piece, VVEL ladder assembly
& cylinder head assembly replacement are required.

INSPECTION AFTER ASSEMBLY

Inspection for Leakage

The following are procedures for checking fluid leakage, lubricant leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If any are less than the

required quantity, fill them to the specified level. Refer to

MA-10, "Fluids and Lubricants"

.

• Follow the procedure below to check for fuel leakage.
- Turn ignition switch to the “ON” position (with engine stopped). With fuel pressure applied to fuel piping,

check for fuel leakage at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:

A

:  OK

B

:  NG

JPBIA0187ZZ

B

: Contact

Limit

: Refer to

EM-135, "Cylinder Head"

.

JPBIA0189ZZ

Standard

: Refer to

EM-135, "Cylinder Head"

.

SEM113

CYLINDER HEAD

EM-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate a malfunction. The
noise will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check that there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill them to

the specified level, if necessary.

Summary of the inspection items:

* Power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage
