EC-34

< SYSTEM DESCRIPTION >

[VK56VD]

STRUCTURE AND OPERATION

On Board Refueling Vapor Recovery (ORVR)

INFOID:0000000006217696

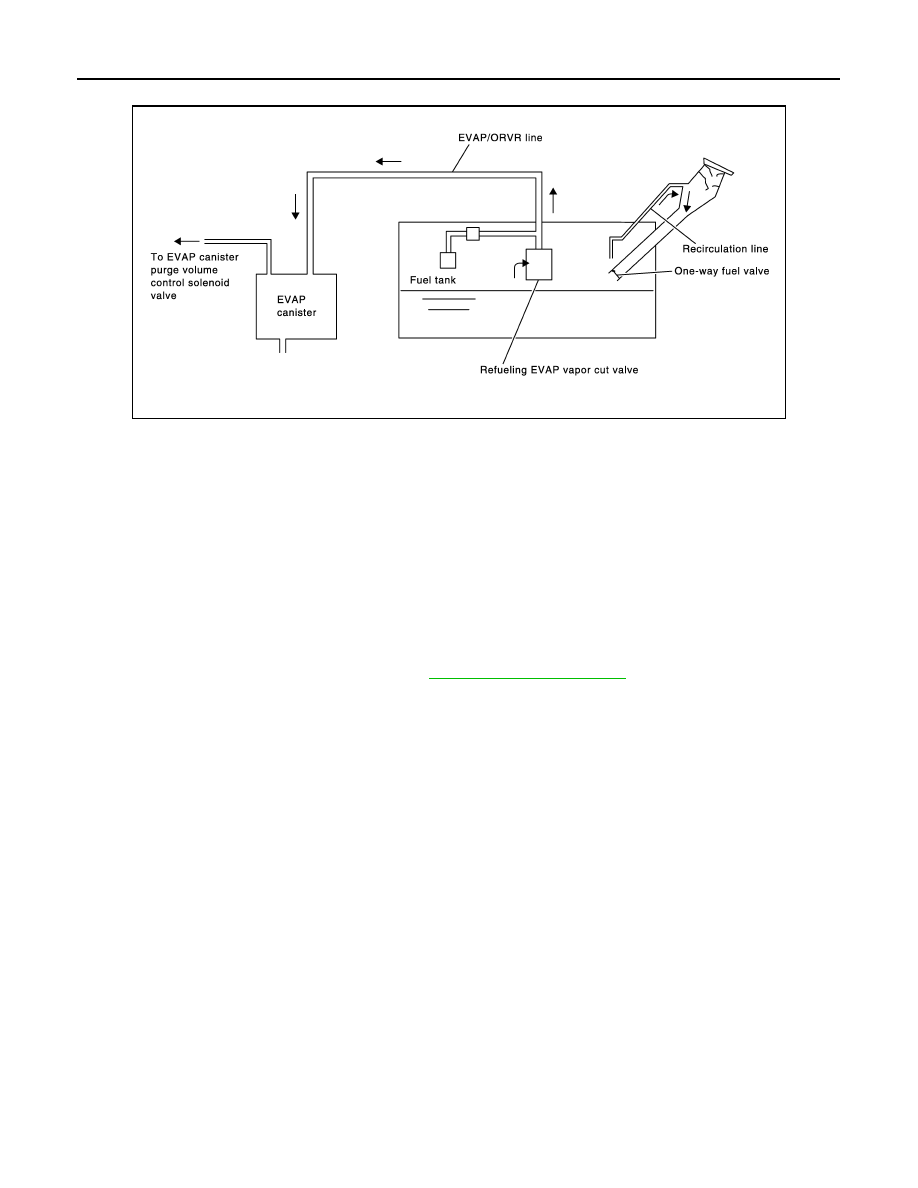

From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.

WARNING:

When conducting inspections below, be sure to observe the following:
• Put a “CAUTION: FLAMMABLE” sign in workshop.
• Never smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Always furnish the workshop with a CO

2

 fire extinguisher.

CAUTION:

• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof container and put lid on securely.
- Release fuel pressure from fuel line. Refer to

EC-153, "Work Procedure"

.

- Disconnect battery ground cable.
• Always replace O-ring when the fuel gauge retainer is removed.
• Never kink or twist hose and tube when they are installed.
• Never tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine and check for fuel leaks at connections.
• Never attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.

Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.

PBIB1068E

SYSTEM

EC-35

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SYSTEM

ENGINE CONTROL SYSTEM

ENGINE CONTROL SYSTEM : System Diagram

INFOID:0000000006217697

ENGINE CONTROL SYSTEM : System Description

INFOID:0000000006217698

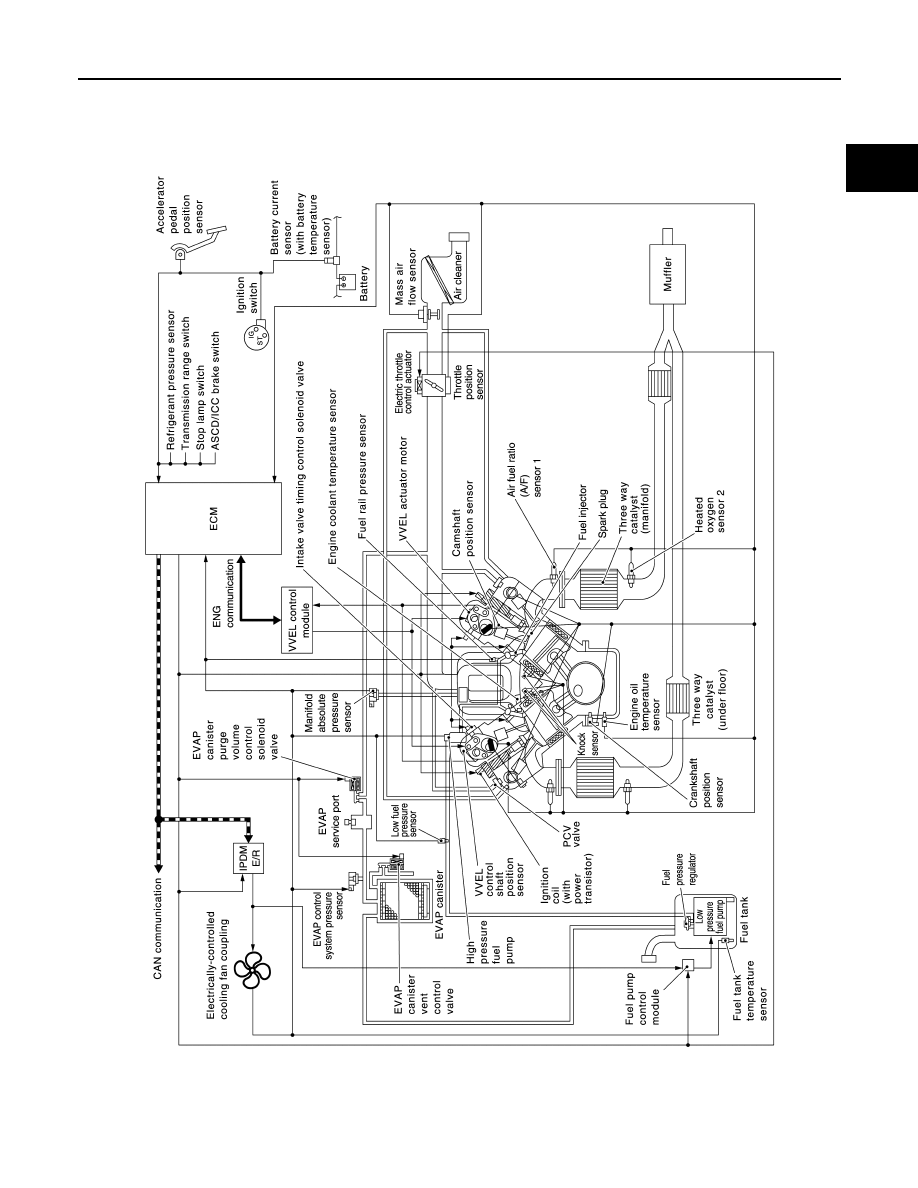

ECM controls the engine by various functions.

JSBIA0590GB

EC-36

< SYSTEM DESCRIPTION >

[VK56VD]

SYSTEM

DIRECT INJECTION GASOLINE SYSTEM

DIRECT INJECTION GASOLINE SYSTEM : System Diagram

INFOID:0000000006217699

DIRECT INJECTION GASOLINE SYSTEM : System Description

INFOID:0000000006217700

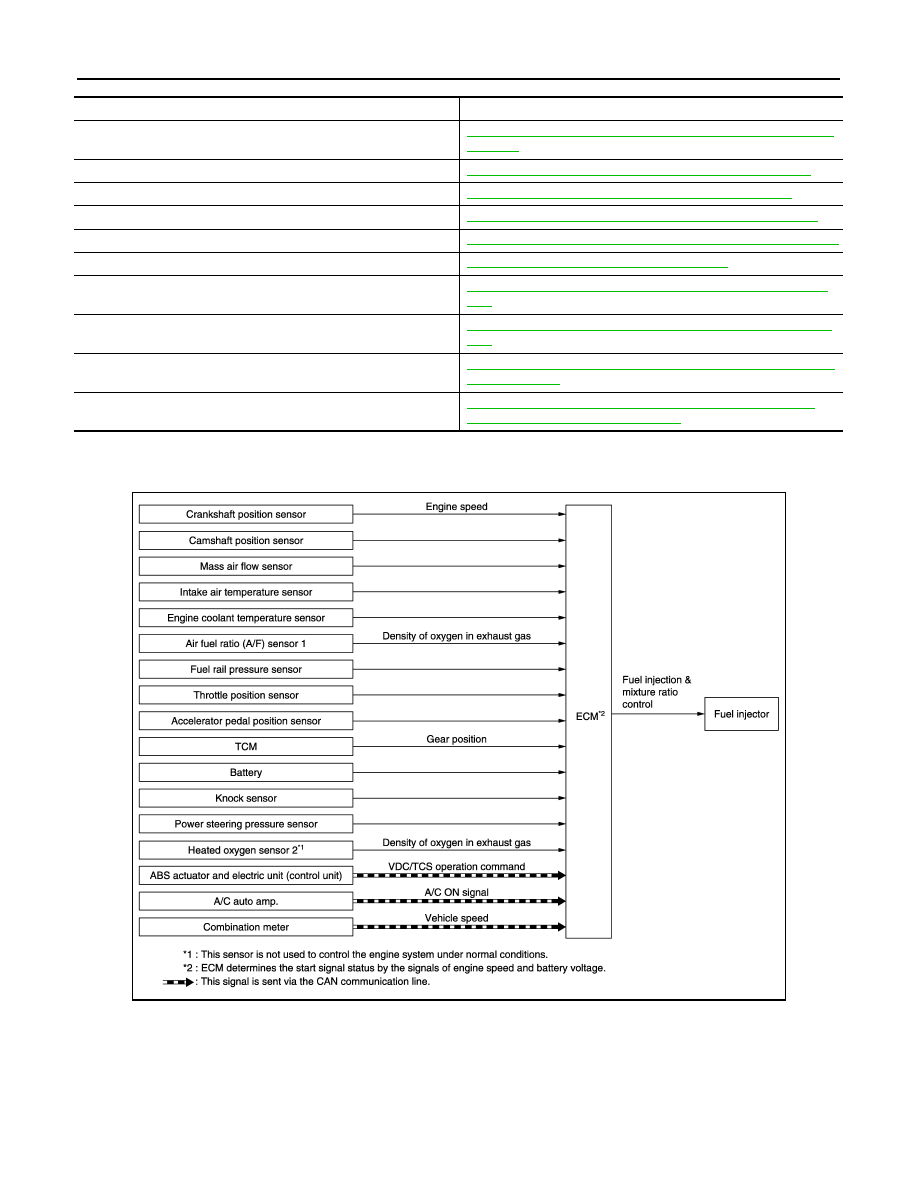

INPUT/OUTPUT SIGNAL CHART

Function

Reference

Fuel injection control

EC-36, "DIRECT INJECTION GASOLINE SYSTEM : System De-
scription"

Fuel pressure control

EC-39, "FUEL PRESSURE CONTROL : System Description"

Cooling fan control

EC-41, "COOLING FAN CONTROL : System Description"

Electric ignition control

EC-42, "ELECTRIC IGNITION SYSTEM : System Description"

Intake valve timing control

EC-43, "INTAKE VALVE TIMING CONTROL : System Description"

VVEL (Variable Valve Event & Lift)

EC-44, "VVEL SYSTEM : System Description"

Evaporative emission

EC-45, "EVAPORATIVE EMISSION SYSTEM : System Descrip-
tion"

Air conditioning cut control

EC-47, "AIR CONDITIONING CUT CONTROL : System Descrip-
tion"

ASCD (Auto speed control device)

EC-48, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Sys-
tem Description"

Power generation voltage variable control

CHG-7, "POWER GENERATION VOLTAGE VARIABLE CON-
TROL SYSTEM : System Description"

JSBIA0471GB

SYSTEM

EC-37

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*1: This sensor is not used to control the engine system under normal conditions.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

The adoption of the direct fuel injection method enables more accurate adjustment of fuel injection quantity by
injecting atomized high-pressure fuel directly into the cylinder. This method allows high-powered engine, low
fuel consumption, and emissions-reduction.
The amount of fuel injected from the fuel injector is determined by the ECM. The ECM controls the length of
time the valve remains open (injection pulse duration). The amount of fuel injected is a program value in the
ECM memory. The program value is preset by engine operating conditions. These conditions are determined
by input signals (for engine speed and intake air and fuel rail pressure) from the crankshaft position sensor,
camshaft position sensor, mass air flow sensor and the fuel rail pressure sensor.

VARIOUS FUEL INJECTION INCREASE/DECREASE COMPENSATION

In addition, the amount of fuel injected is compensated to improve engine performance under various operat-
ing conditions as listed below.

<Fuel increase>

• During warm-up
• When starting the engine
• During acceleration
• Hot-engine operation
• When selector lever position is changed from N to D
• High-load, high-speed operation

<Fuel decrease>

• During deceleration
• During high engine speed operation

FUEL INJECTION CONTROL

Stratified-charge Combustion

Stratified-charge combustion is a combustion method which enables extremely lean combustion by injecting
fuel in the latter half of a compression process, collecting combustible air-fuel around the spark plug, and form-
ing fuel-free airspace around the mixture.
Right after a start with the engine cold, the catalyst warm-up is accelerated by stratified-charge combustion.

Homogeneous Combustion

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor

Engine speed*

2

Fuel injection
& mixture ratio
control

Fuel injector

Camshaft position sensor

Camshaft position

Mass air flow sensor

Amount of intake air

Intake air temperature sensor

Intake air temperature

Engine coolant temperature sensor

Engine coolant temperature

Air fuel ratio (A/F) sensor 1

Density of oxygen in exhaust gas

Fuel rail pressure sensor

Fuel rail pressure

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

TCM

Gear position

Battery

Battery voltage*

2

Knock sensor

Engine knocking condition

Power steering pressure sensor

Power steering operation

Heated oxygen sensor 2*

1

Density of oxygen in exhaust gas

ABS actuator and electric unit (control unit)

VDC/TCS operation command

A/C auto amp.

A/C ON signal

Combination meter

Vehicle speed
