Infiniti QX56 (Z62). Manual - part 437





DLK-214

< SYMPTOM DIAGNOSIS >

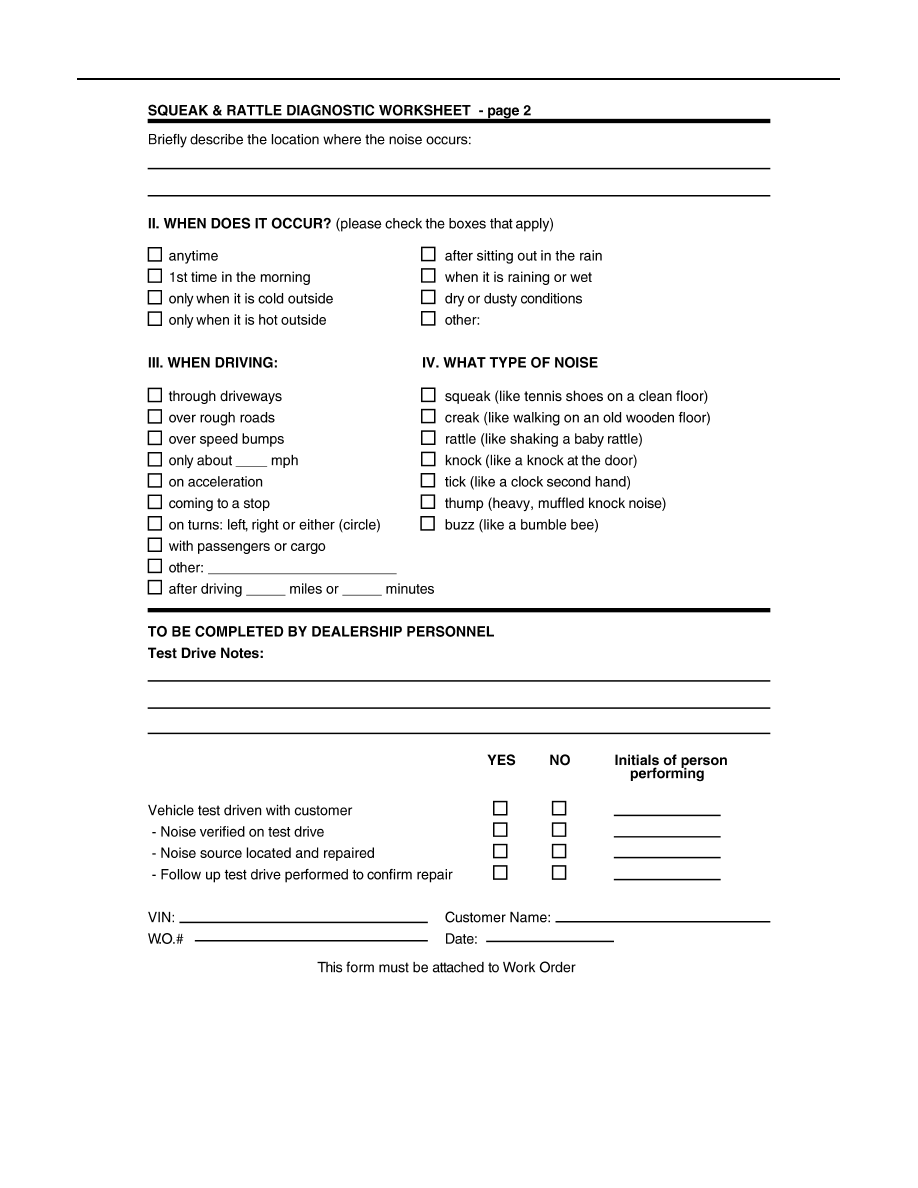

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

HOOD

DLK-215

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

HOOD

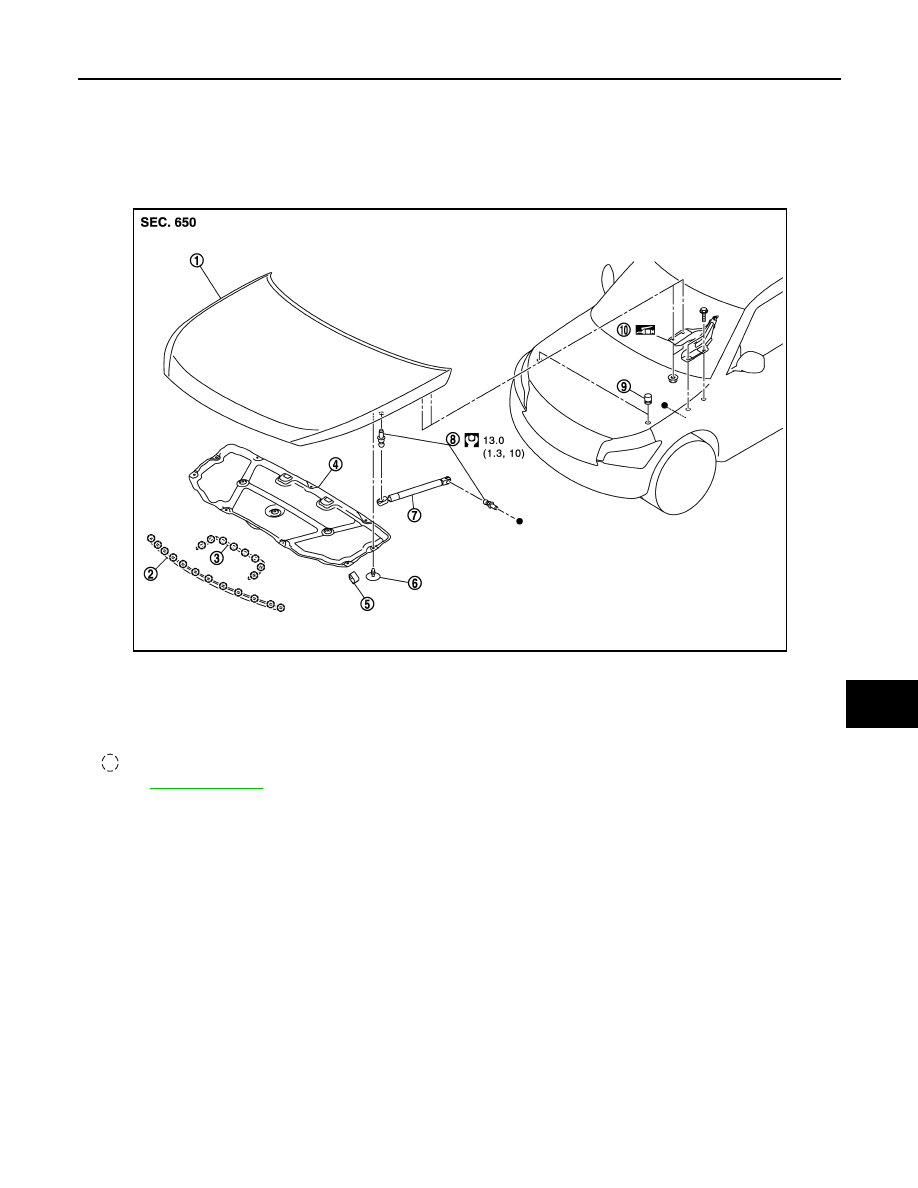

Exploded View

INFOID:0000000006226062

HOOD ASSEMBLY

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000006226063

CAUTION:

• Operate with two workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Support hood assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no proper material is holding hood open when removing hood stay.

1.

Hood assembly

2.

Hood front seal

3.

Radiator core seal

4.

Hood insulator

5.

Hood side bumper

6.

Clip

7.

Hood stay

8.

Stud ball

9.

Hood bumper rubber

10. Hood hinge

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5477GB

DLK-216

< REMOVAL AND INSTALLATION >

HOOD

2.

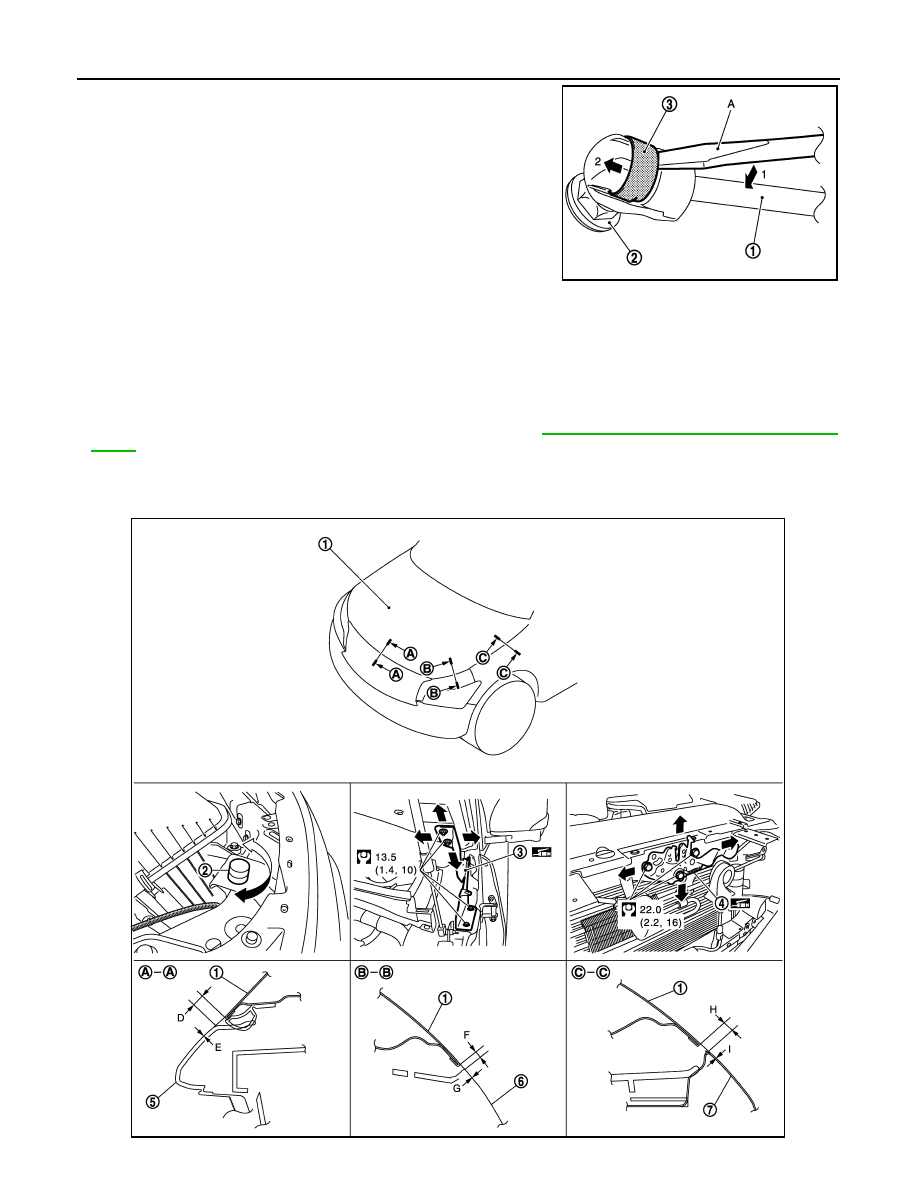

Remove the metal clip (3) located on the connection between
the hood stay (1) and the stud ball (2) (hood side), by using a
flatted-blade screwdriver (A).

3.

Disengage the stud ball from the hood stay (hood side).

4.

Remove hood hinge mounting nuts on the hood to remove the hood assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• After installing, perform hood fitting adjustment. Refer to

DLK-216, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD ASSEMBLY : Adjustment

INFOID:0000000006226064

JMKIA2255ZZ

JMKIA5818GB

HOOD

DLK-217

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check the clearance and the surface height between hood and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Remove hood lock and adjust the surface height of hood, bumper molding and front fender according to
the fitting standard dimension, by rotating hood bumper rubber.

2.

Loosen hood hinge mounting nuts on the hood.

3.

Adjust the clearance of hood, bumper molding and front fender according to the fitting standard dimen-
sion, for the hood.

4.

Temporarily tighten hood lock.

5.

Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from
approximately 200 mm (7.874 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5lb)].

6.

Install as static closing force of hood is 680N (69.0 kg, 502lb) or less.

7.

After adjustment, tighten hood hinge mounting nuts to the specified torque.

CAUTION:

• Before installing hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• Check hood hinge rotating part for poor lubrication. If necessary, apply body grease.

1.

Hood assembly

2.

Hood bumper rubber

3.

Hood hinge

4.

Hood lock assembly

5.

Front grille

6.

Bumper molding

7.

Front fender

Refer to

GI-4, "Components"

 for symbols in the figure.

Portion

Standard

Difference

(RH/LH,

MAX)

Hood – Front grille

A – A

D

Clearance

3.7 – 8.3 (0.146 – 0.327)

E Surface height

(-0.9) – (+3.9) [(-0.035) –

(+0.154)]

Hood – Bumper molding

B – B

F

Clearance

1.2 – 5.8 (0.047 – 0.228)

2.2 (0.087)

G Surface height

(-2.4) –– (+0.094)]

2.2 (0.087)

Hood – Front fender

C – C

H

Clearance

2.5 – 4.5 (0.098 – 0.177)

1.0 (0.039)

I

Surface height

(-1.0) – (+1.0) [(-0.039 –

(+0.039)]

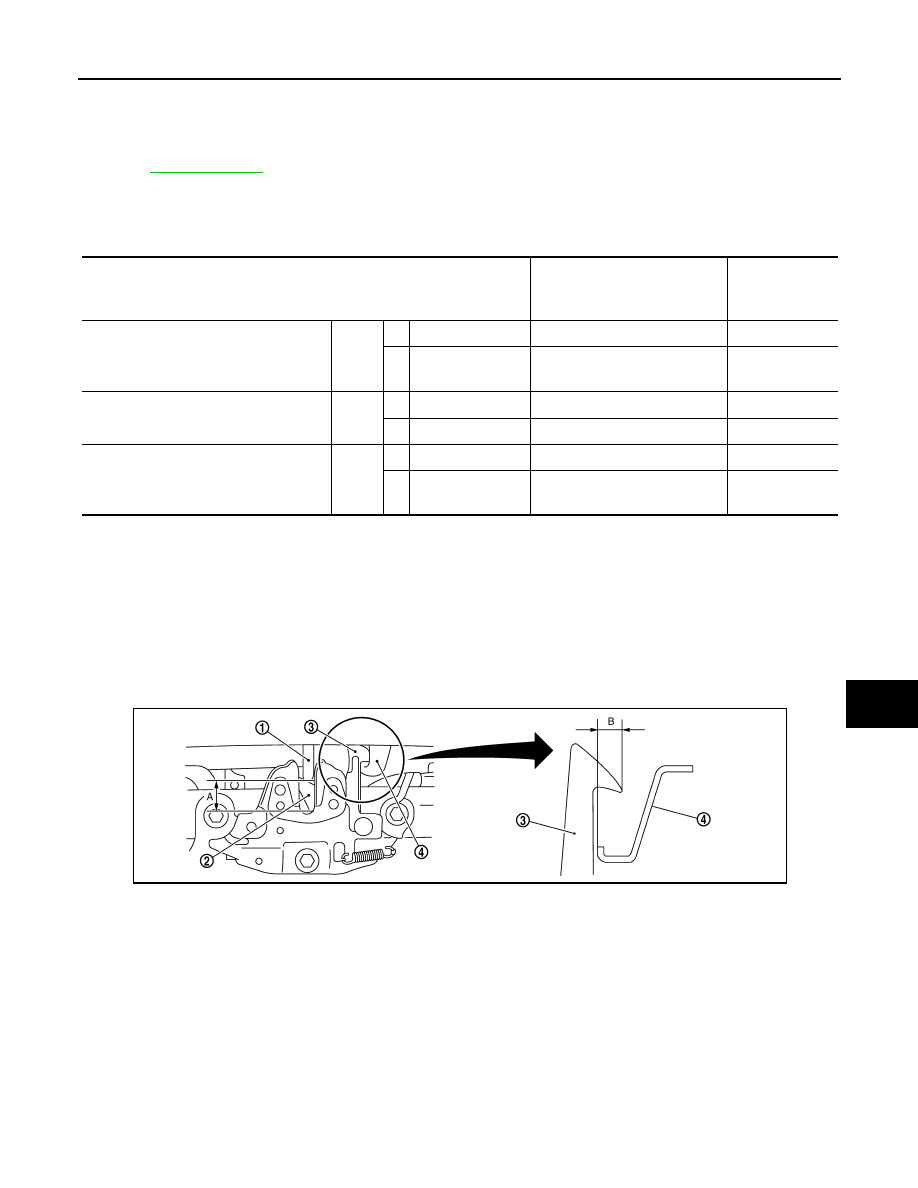

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A

: 20.0 mm (0.787 in)

B

: 6.8 mm (0.268 in)

PIIB5794E
