Infiniti QX56 (Z62). Manual - part 375





DEF-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000006349776

AUTO ACTIVE TEST

Description

In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation.
• Oil pressure warning lamp
• Rear window defogger
• Front wiper (LO, HI)
• Parking lamp
• License plate lamp
• Tail lamp
• Side marker lamp
• Front fog lamp
• Headlamp (LO, HI)
• A/C compressor (magnet clutch)

Operation Procedure

CAUTION:

Never perform auto active test in the following conditions.
• Engine is running.
• CONSULT-III is connected.

1.

Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper
operation)
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn the ignition switch OFF.

3.

Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the
ignition switch OFF.

CAUTION:

Close passenger door.

4.

Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test
starts.

CAUTION:

Engine starts when ignition switch is turned ON while brake pedal is depressed.

5.

The oil pressure warning lamp starts blinking when the auto active test starts.

6.

After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:
• When auto active test has to be cancelled halfway through test, turn the ignition switch OFF.
• When auto active test is not activated, door switch may be the cause. Check door switch. Refer to

DLK-117,

"Component Function Check"

.

Inspection in Auto Active Test

When auto active test is actuated, the following operation sequence is repeated 3 times.

Operation
sequence

Inspection location

Operation

1

Oil pressure warning lamp

Blinks continuously during operation of auto active test

2

Rear window defogger

10 seconds

3

Front wiper

LO for 5 seconds

 HI for 5 seconds

4

• Parking  lamp
• License plate lamp
• Tail lamp
• Side marker lamp
• Front fog lamp

10 seconds

DIAGNOSIS SYSTEM (IPDM E/R)

DEF-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

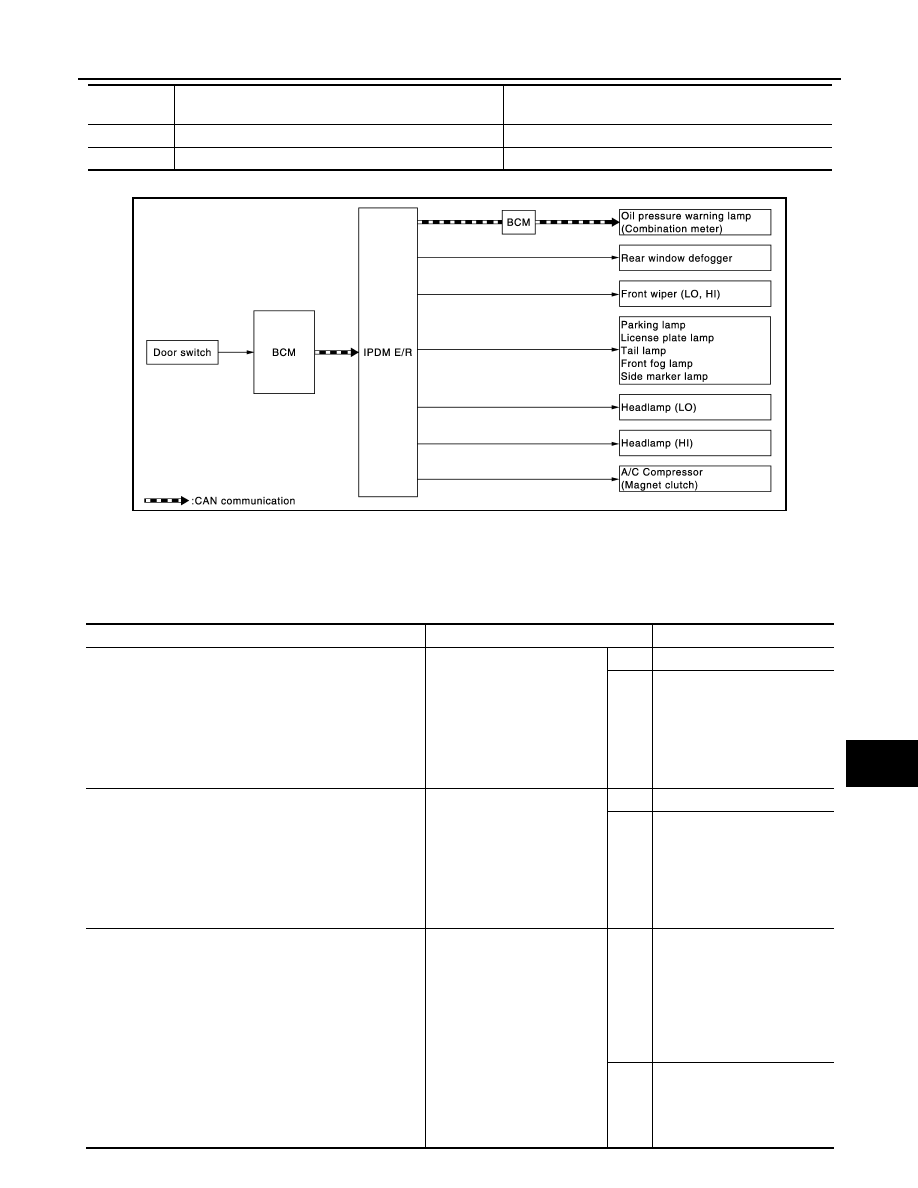

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test

5

Headlamp

LO for 10 seconds

HI ON

 OFF 5 times

6

A/C compressor (magnet clutch)

ON

 OFF 5 times

Operation
sequence

Inspection location

Operation

JMMIA0492GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger

ground circuit

• Harness or connector be-

tween IPDM E/R and rear
window defogger

• IPDM E/R

Any of the following components do not operate

• Parking  lamp
• License plate lamp
• Tail  lamp
• Side marker lamp
• Front fog lamp
• Headlamp (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground cir-

cuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM E/R

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• A/C auto amp. signal input

circuit

• CAN communication signal

between A/C auto amp. and
ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Magnet clutch
• Harness or connector be-

tween IPDM E/R and mag-
net clutch

• IPDM E/R

DEF-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT-III Function (IPDM E/R)

INFOID:0000000006349777

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

PCS-22, "DTC Index"

.

DATA MONITOR

Monitor item

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector be-

tween IPDM E/R and oil
pressure switch

• Oil pressure switch
• IPDM  E/R

NO

• CAN communication signal

between IPDM E/R and
BCM

• CAN communication signal

between BCM and combi-
nation meter

• Combination meter

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

RAD FAN REQ
[1/2/3/4]

×

Displays the value of the cooling fan speed request signal received from ECM via
CAN communication.

AC COMP REQ
[Off/On]

×

Displays the status of the A/C compressor request signal received from ECM via
CAN communication.

TAIL&CLR REQ
[Off/On]

×

Displays the status of the position light request signal received from BCM via CAN
communication.

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN
communication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN
communication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via
CAN communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN
communication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY1 -REQ
[Off/On]

Displays the status of the ignition switch ON signal received from BCM via CAN
communication.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

DIAGNOSIS SYSTEM (IPDM E/R)

DEF-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

ACTIVE TEST

Test item

PUSH SW
[Off/On]

Displays the status of the push-button ignition switch judged by IPDM E/R.

INTER/NP SW
[Off/On]

Displays the status of the shift position judged by IPDM E/R.

ST RLY CONT
[Off/On]

Displays the status of the starter relay status signal received from BCM via CAN
communication.

IHBT RLY -REQ
[Off/On]

Displays the status of the starter control relay signal received from BCM via CAN
communication.

ST/INHI RLY
[Off/ ST ON/INHI ON/UNKWN]

Displays the status of the starter relay and starter control relay judged by IPDM
E/R.

DETENT SW
[Off/On]

Displays the status of the A/T shift selector (detention switch) judged by IPDM E/
R.

S/L RLY -REQ
[Off/On]

Displays the status of the steering lock relay signal received from BCM via CAN
communication.

S/L STATE
[LOCK/UNLK/UNKWN]

Displays the status of the steering lock judged by IPDM E/R.

OIL P SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

HOOD SW
[Off/On]

Displays the status of the hood switch judged by IPDM E/R.

HL WASHER REQ
[Off/On]

Displays the status of the headlamp washer request signal received from BCM via
CAN communication.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM
via CAN communication.

HORN CHIRP
[Off/On]

Displays the status of the horn reminder signal received from BCM via CAN com-
munication.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

Test item

Operation

Description

CORNERING LAMP

LH

NOTE:
This item is indicated, but cannot be tested.

RH

HORN

On

Operates horn relay for 20 ms.

REAR DEFOGGER

Off

OFF

On

Operates the rear window defogger relay.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

MOTOR FAN*

1

OFF

2

Transmits 50% pulse duty signal (PWM signal) to the cooling fan control module.

3

Transmits 75% pulse duty signal (PWM signal) to the cooling fan control module.

4

Transmits 100% pulse duty signal (PWM signal) to the cooling fan control mod-
ule.

HEAD LAMP WASHER

On

Operates the headlamp washer relay for 1 second.
