DAS

BSW SYSTEM SYMPTOMS

DAS-521

< SYMPTOM DIAGNOSIS >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYMPTOM DIAGNOSIS

BSW SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006223979

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.
NOTE:
For the operational conditions of BSW, refer to

DAS-410, "System Description"

.

Symptom

Possible cause

Inspection item/Reference page

Indicator/warning lamps do not il-
luminate when ignition switch
OFF

⇒

 ON.

BSW warning lamp (Yellow)
does not illuminate

• BSW warning lamp signal

(CAN)

- Combination meter
- ADAS control unit
• BSW warning lamp (combina-

tion meter)

• ADAS control unit Active test

“BSW/BSI WARNING LAMP”
Refer to

DAS-419, "CON-

SULT-III Function (ICC/
ADAS)"

.

• ADAS control unit Data moni-

tor “BSW/BSI WARN LMP”
Refer to

DAS-419, "CON-

SULT-III Function (ICC/
ADAS)"

•  Combination meter Data mon-

itor “BSW W/L”
Refer to

MWI-30, "CONSULT-

III Function"

All of indicator/warning
lamps do not illuminate;
• BSW warning lamp
• Warning systems ON indi-

cator

• Power supply and ground cir-

cuit of ADAS control unit

• ADAS control unit
• Combination meter

Power supply and ground circuit
of ADAS control unit
Refer to

DAS-512, "ADAS CON-

TROL UNIT : Diagnosis Proce-
dure"

Warning systems ON indica-
tor (on the warning systems
switch) does not illuminate

• Harness between ADAS con-

trol unit and warning systems
switch

• Warning systems switch
• ADAS control unit

Warning systems ON indicator
circuit
Refer to

DAS-517, "Diagnosis

Procedure"

BSW indicator does not turn
ON

• Harness between side radar

and BSW indicator

• Side radar LH/RH
• BSW indicator

Perform self-diagnosis of side ra-
dar
Refer to

DAS-429, "CONSULT-III

Function (SIDE RADAR LEFT)"



or

DAS-431, "CONSULT-III Func-

tion (SIDE RADAR RIGHT)"

.

BSW system is not activated.
(Indicator/warning lamps illumi-
nate when ignition switch OFF

⇒



ON.)

Warning systems ON indica-
tor is not turned ON

⇔

 OFF

when operating warning sys-
tems switch

• Harness between ADAS con-

trol unit and waning systems
switch

• Harness between warning

systems switch and ground

• ADAS control unit
• Warning systems switch

Warning systems ON indicator
circuit
Refer to

DAS-517, "Diagnosis

Procedure"

.

Buzzer is not sounding

• Buzzer power supply circuit
• Harness between ADAS con-

trol unit and warning buzzer

• Harness between warning

buzzer and ground

• Warning buzzer
• ADAS control unit

Warning buzzer circuit
Refer to

DAS-519, "Diagnosis

Procedure"

DAS-522

< SYMPTOM DIAGNOSIS >

[BSW]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000006223980

PRECAUTIONS FOR BLIND SPOT WARNING (BSW)

• The BSW system is not a replacement for proper driving procedure and are not designed to prevent contact

with vehicles or objects. When changing lanes, always use the side and rear mirrors and turn and look in the
direction driver will move to ensure it is safe to change lanes. Never rely solely on the BSW system.

• The BSW system may not provide a warning for vehicles that pass through the detection zone quickly.
• Do not use the BSW system when towing a trailer because the system may not function properly.
• Excessive noise (e.g. audio system volume, open vehicle window) will interfere with the chime sound, and it

may not be heard.

• The side radar may not be able to detect and activate BSW when certain objects are present such as:
- Pedestrians, bicycles, animals.
- Several types of vehicles such as motorcycles.
- Oncoming vehicles.
- Vehicles remaining in the detection zone when driver accelerate from a stop.
- A vehicle merging into an adjacent lane at a speed approximately the same as vehicle.
- A vehicle approaching rapidly from behind.
- A vehicle which vehicle overtakes rapidly.
• Severe weather or road spray conditions may reduce the ability of the side radar to detect other vehicles.
• The side radar detection zone is designed based on a standard lane width. When driving in a wider lane, the

side radar may not detect vehicles in an adjacent lane. When driving in a narrow lane, the side radar may
detect vehicles driving two lanes away.

• The side radar are designed to ignore most stationary objects, however objects such as guardrails, walls,

foliage and parked vehicles may occasionally be detected. This is a normal operating condition.

DAS

SIDE RADAR

DAS-523

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REMOVAL AND INSTALLATION

SIDE RADAR

Removal and Installation

INFOID:0000000006223981

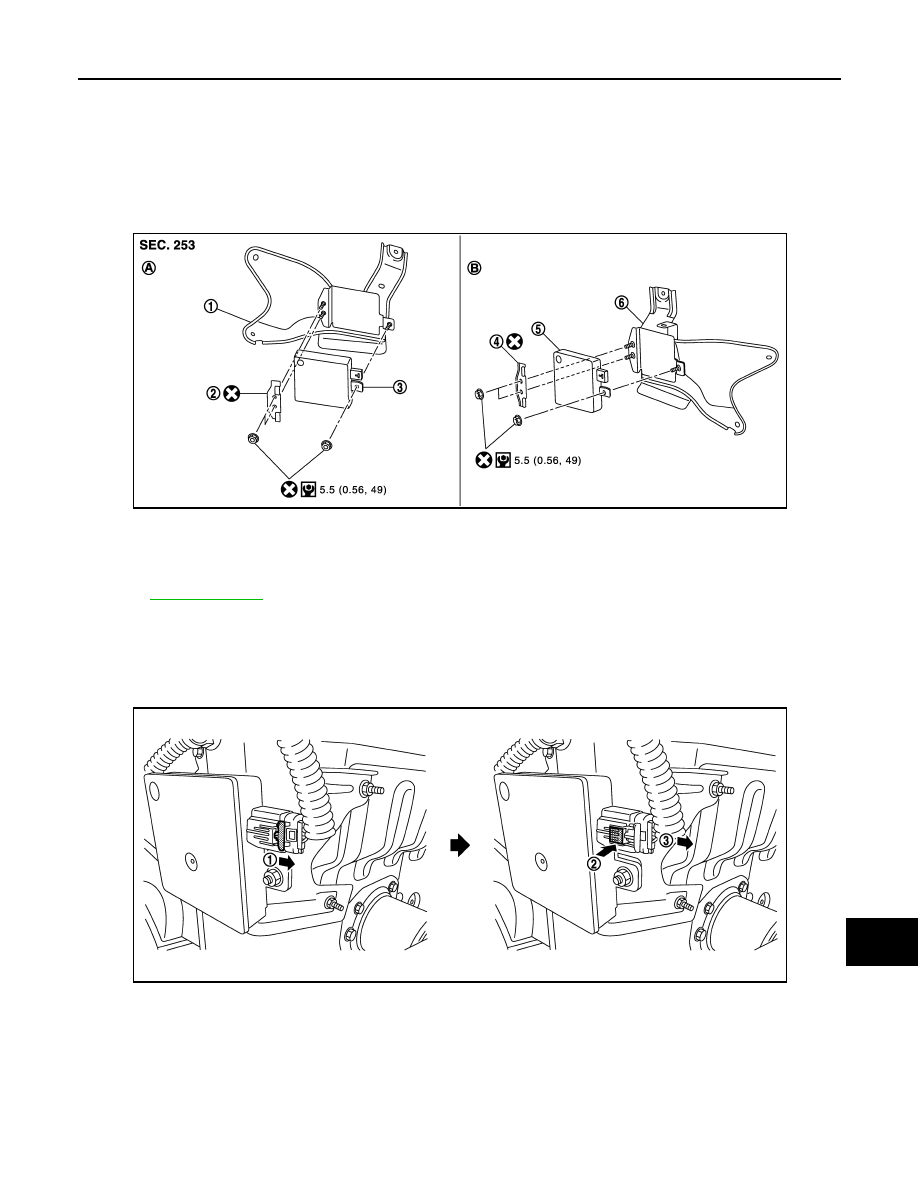

EXPLODED VIEW

REMOVAL AND INSTALLATION

Removal

1.

Remove the side radar RH/LH together with bracket.

2.

Remove the side radar connector.

NOTE:
This illustration is an example.

3.

Remove the mounting nuts to remove the side radar RH/LH from bracket.

Installation

Note the following, and install in the reverse order of removal.

1.

Bracket

2.

Bracket

3.

Side radar LH

4.

Bracket

5.

Side radar RH

6.

Bracket

A.

LH side

B.

RH side

Refer to

GI-4, "Components"

 for symbol makes in the figure.

JSOIA0379GB

JSOIA0280ZZ

DAS-524

< REMOVAL AND INSTALLATION >

[BSW]

SIDE RADAR

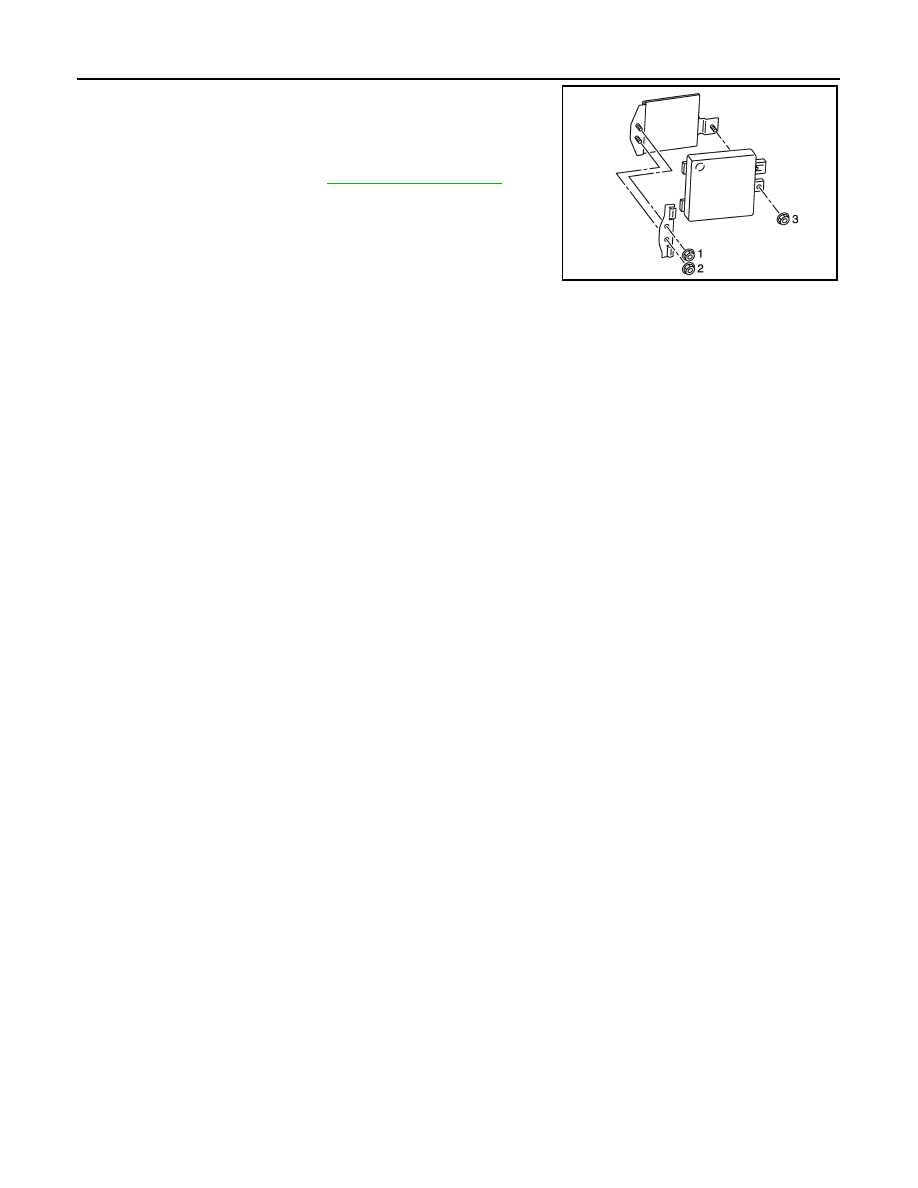

• Tighten mounting nuts in the numerical order as shown in the fig-

ure.

• Always lock the side radar connector.

CAUTION:

• After replacing the side radar, activate (normal usage mode) it

in work support mode. Refer to

DAS-467, "Description"

.

JSOIA0359ZZ
