Infiniti QX56 (Z62). Manual - part 312





DAS

OPERATION

DAS-285

< SYSTEM DESCRIPTION >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

OPERATION

LANE DEPARTURE WARNING (LDW) SYSTEM

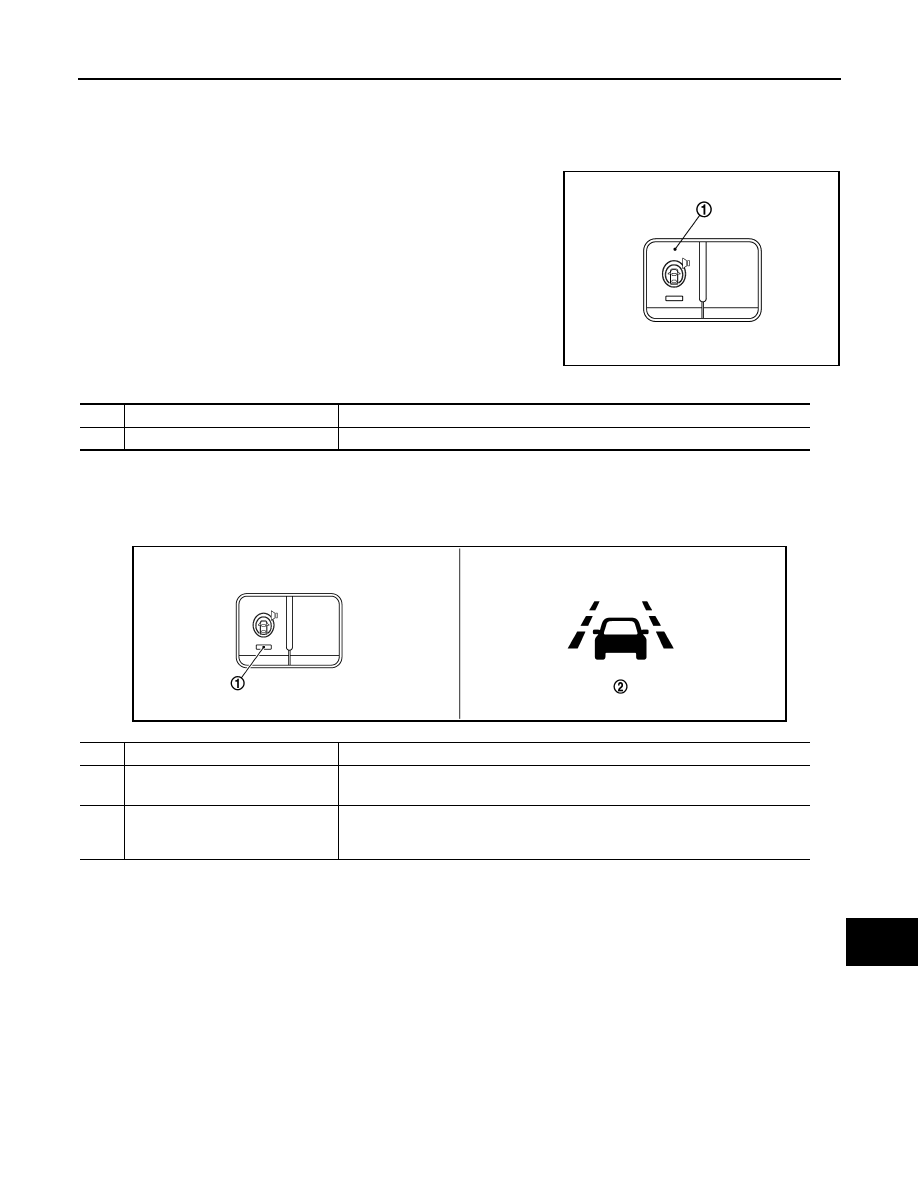

LANE DEPARTURE WARNING (LDW) SYSTEM : Switch Name and Function

INFOID:0000000006223710

LANE DEPARTURE WARNING (LDW) SYSTEM : Menu Displayed by Pressing Each
Switch

INFOID:0000000006223711

INDICATOR LAMP AND WARNING LAMP

DISPLAY AND WARNING

JSOIA0277ZZ

No.

Switch name

Description

1

Warning systems switch

Turns LDW/FCW/BSW systems ON/OFF

JSOIA0345ZZ

No.

Display item

Description

1

Warning systems ON indicator

• Indicates that the LDW/FCW/BSW systems are ON
• Blinks when the initial setting of LDW/FCW/BSW system is changed

2

Lane departure warning lamp

• Blinks when LDW system is activated
• Turns ON when LDW system has a malfunction
• Blinks when the temperature of the lane camera unit becomes high

DAS-286

< SYSTEM DESCRIPTION >

[LDW & LDP]

OPERATION

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches
approximately 60 km/h (40 MPH). Refer to

DAS-277, "LANE DEPARTURE WARNING (LDW) SYSTEM : Sys-

tem Description"

.

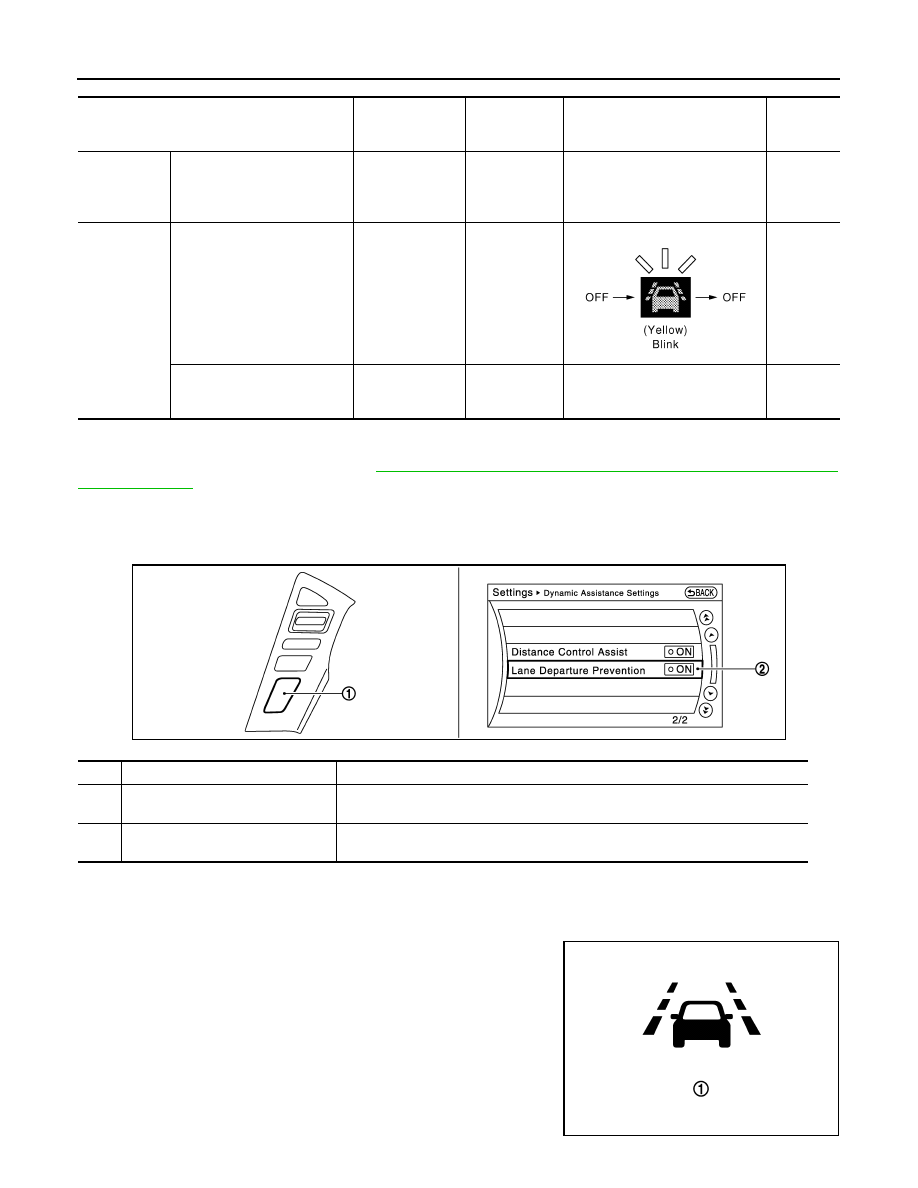

LANE DEPARTURE PREVENTION (LDP) SYSTEM

LANE DEPARTURE PREVENTION (LDP) SYSTEM : Switch Name and Function

INFOID:0000000006223712

LANE DEPARTURE PREVENTION (LDP) SYSTEM : Menu Displayed by Pressing
Each Switch

INFOID:0000000006223713

INDICATOR LAMP AND WARNING LAMP

Vehicle condition/ Driver's operation

Action

Driver warning

systems ON in-

dicator

Indication on the combination

meter

Buzzer

Less than Ap-
prox. 60 km/h
(40 MPH)

Close to lane marker

No action

ON

OFF

Approx. 70
km/h (45
MPH) or more

Close to lane marker

Warning

• Buzzer sounds
• Warning lamp

blinks

ON

Short con-

tinuous

beeps

• Close to lane marker
• Turn signal ON (Deviate

side)

No action

ON

OFF

JPOIA0018GB

JSOIA0369ZZ

No.

Switch name

Description

1

Dynamic driver assistance switch

Turns LDP system ON/OFF
(When the setting of LDP system on the navigation system setting screen is ON)

2

LDP system settings screen
(Navigation system settings screen)

The setting of LDP system can be switched between ON and OFF

JSOIA0243ZZ

DAS

OPERATION

DAS-287

< SYSTEM DESCRIPTION >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

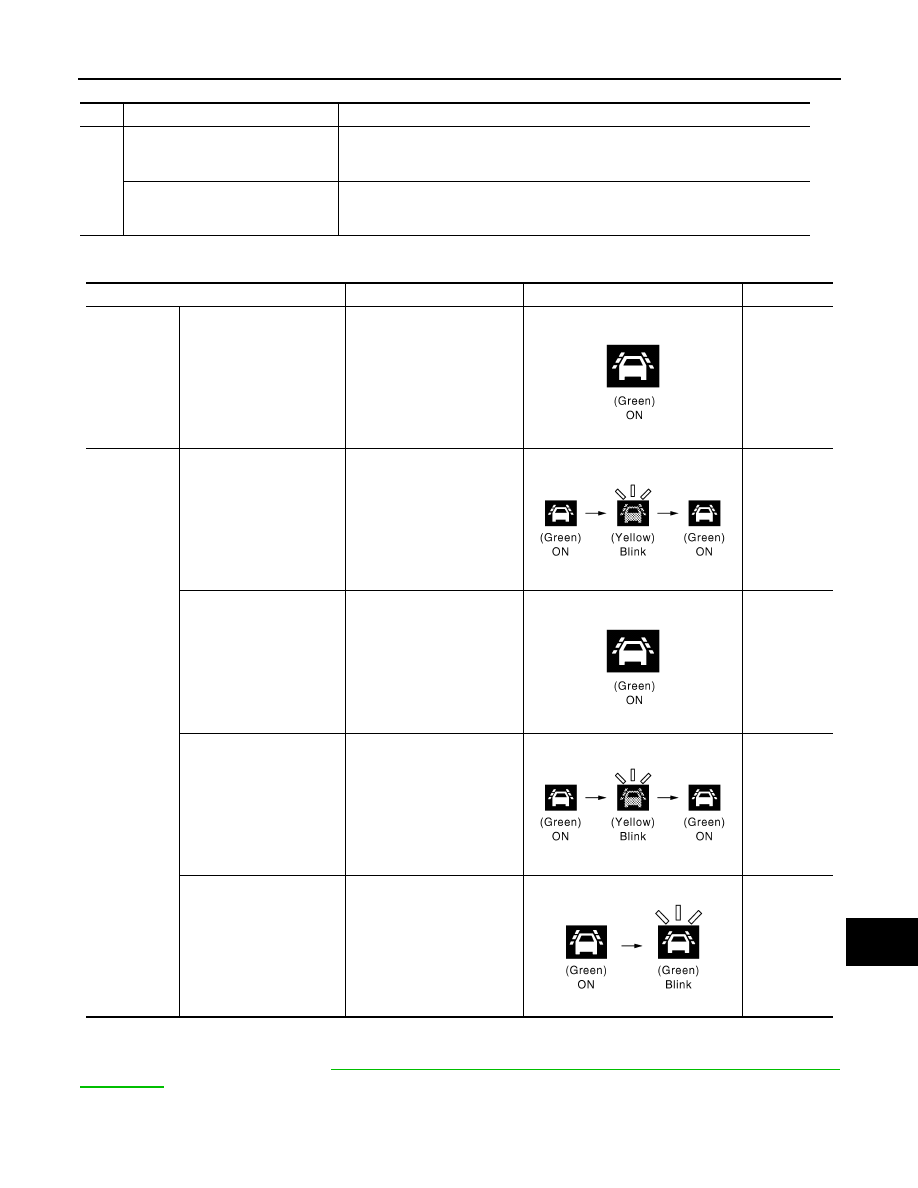

DISPLAY AND WARNING

NOTE:
After the operating conditions are satisfied, the control continues until the vehicle speed reaches approxi-
mately 60 km/h (40 MPH). Refer to

DAS-280, "LANE DEPARTURE PREVENTION (LDP) SYSTEM : System

Description"

.

No.

Display item

Description

1

LDP ON indicator (green)

• Indicates that LDP system is ON
• Blinks when dynamic driver assistance switch is pressed

(When the setting of LDP system and DCA system are “OFF”)

Lane departure warning lamp (yel-
low)

• Blinks when the warning of LDP system occurs
• Turns ON when LDP system has a malfunction
• Blinks when the temperature of lane camera unit becomes high

Vehicle condition/ Driver's operation

Action

Indication on the combination meter

Buzzer

Less than Ap-
prox. 60 km/h
(40 MPH)

Close to lane marker

No action

Approx. 70
km/h (45
MPH) or more

Close to lane marker

Warning and yawing
• Buzzer sounds
• Warning lamp blinks
• Brake control

Short continu-

ous beeps

• Close to lane marker
• Turn signal ON (Deviate

side)

No action

Close to lane with soft brak-
ing

Warning

• Buzzer sounds
• Warning lamp blinks

Short continu-

ous beeps

• VDC OFF Switch

OFF

 ON

(VDC system ON



OFF)

• SNOW mode switch

OFF

 ON

• 4WD shift switch is in the

4H or 4L

Cancellation
• Buzzer sounds
• Indicator lamp blinks
NOTE:
When dynamic driver assis-
tance switch is ON

 OFF, in-

dicator lamp is turned OFF

Beep

JPOIA0021GB

JPOIA0022GB

JPOIA0021GB

JPOIA0022GB

JPOIA0023GB

DAS-288

< SYSTEM DESCRIPTION >

[LDW & LDP]

HANDLING PRECAUTION

HANDLING PRECAUTION

Precautions for Lane Departure Warning/Lane Departure Prevention

INFOID:0000000006223714

LANE CAMERA UNIT HANDLING

To keep the proper operation of the LDW/LDP systems and prevent a system malfunction, be sure to observe
the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transparent material) or install an accessory near the lane camera unit.
• Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of

sunlight may adversely affect the lane camera unit capability of detecting the lane markers.

• Do not strike or damage the areas around the lane camera unit.
• Do not touch the camera lens.
• Do not remove the screw located on the lane camera unit.

LANE DEPARTURE WARNING (LDW)

• LDW system is only a warning device to inform the driver of a potential unintended lane departure. It will not

steer the vehicle or prevent loss of control. It is the driver’s responsibility to stay alert, drive safely, keep the
vehicle in the traveling lane, and be in control of the vehicle at all times.

• LDW system will not operate at speeds below approximately 70 km/h (45 MPH) or if it cannot detect lane

markers.

• Excessive noise will interfere with the warning chime sound, and the chime may not be heard.
• LDW system may not function properly under the following conditions:
- On roads where there are multiple parallel lane markers; lane markers that are faded or not painted clearly;

yellow painted lane markers; non-standard lane markers; or lane markers covered with water, dirt or snow,
etc.

- On roads where the discontinued lane markers are still detectable.
- On roads where there are sharp curves.
- On roads where there are sharply contrasting objects, such as shadows, snow, water, wheel ruts, seams or

lines remaining after road repairs. (The LDW system could detect these items as lane markers.)

- On roads where the traveling lane merges or separates.
- When the vehicle's traveling direction does not align with the lane marker.
- When traveling close to other vehicle in front of the vehicle, which obstructs the lane camera unit detection

range.

- When rain, snow or dirt adheres to the windshield in front of the lane camera unit.
- When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly.
- When strong light enters the lane camera unit. (For example, the light directly shines on the front of the vehi-

cle at sunrise or sunset.)

- When a sudden change in brightness occurs. (For example, when the vehicle enters or exits a tunnel or

under a bridge.)

LANE DEPARTURE PREVENTION (LDP)

• LDP system will not steer the vehicle or prevent loss of control. It is the driver’s responsibility to stay alert,

drive safely, keep the vehicle in the traveling lane, and be in control of vehicle at all times.

• LDP system is primarily intended for use on well-developed freeways or highways. It may not detect the lane

markers in certain roads, weather or driving conditions.

• Using the LDP system under some conditions of road, lane marker or weather, or when driver change lanes

without using the turn signal could lead to an unexpected system operation. In such conditions, driver needs
to correct the vehicle's direction with driver's steering operation to avoid accidents.

• When the LDP system is operating, avoid excessive or sudden steering maneuvers. Otherwise, driver could

lose control of the vehicle.

• The LDP system will not operate at speeds below approximately 70 km/h (45 MPH) or if it cannot detect lane

markers.

• The LDP system may not function properly under the following conditions, and do not use the LDP system:
- During bad weather (rain, fog, snow, wind, etc.).
- When driving on slippery roads, such as on ice or snow, etc.
- When driving off-road such as on sand or rock, etc.
- When driving on winding or uneven roads.
- When there is a lane closure due to road repairs.
- When driving in a makeshift lane.
- When driving on roads where the lane width is too narrow.
