BODY ALIGNMENT

BRM-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

Measurement Points

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

E - e

1442 (56.77)

G - j

1863 (73.35)*

M - o

1995 (78.54)*

Q - H

1217 (47.91)*

E - f

1638 (64.49)*

H - h

1528 (60.16)*

M - p

1760 (69.29)*

Q - J

823 (32.40)*

E - g

1987 (78.23)*

H - j

1776 (69.92)*

N - n

1416 (55.75)

R - K

1133 (44.61)*

E - h

1526 (60.08)*

J - j

1651 (65.00)

N - o

1475 (58.07)*

R - M

820 (32.28)*

E - j

1792 (70.55)*

K - k

1527 (60.12)

N - p

1839 (72.40)*

R - N

1182 (46.54)*

F - f

1615 (63.58)

K - m

1799 (70.83)*

O - o

1480 (58.27)

R - O

1198 (47.17)*

F - g

1802 (70.94)*

K - n

1582 (62.28)*

O - p

1829 (72.01)*

R - P

760 (29.92)*

F - h

1792 (70.55)*

K - o

1716 (67.56)*

P - p

1641 (64.61)

S - U

1183 (46.57)*

F - j

1864 (73.39)*

K - p

1906 (75.04)*

Q - E

1178 (46.38)*

S - V

1195 (47.05)*

G - g

1644 (64.72)

M - m

1648 (64.88)

Q - F

1031 (40.59)*

T - U

1293 (50.91)*

G - h

2104 (82.83)*

M - n

1919 (75.55)*

Q - G

876 (34.49)*

T - V

1158 (45.59)*

JSKIA1901ZZ

BRM-56

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

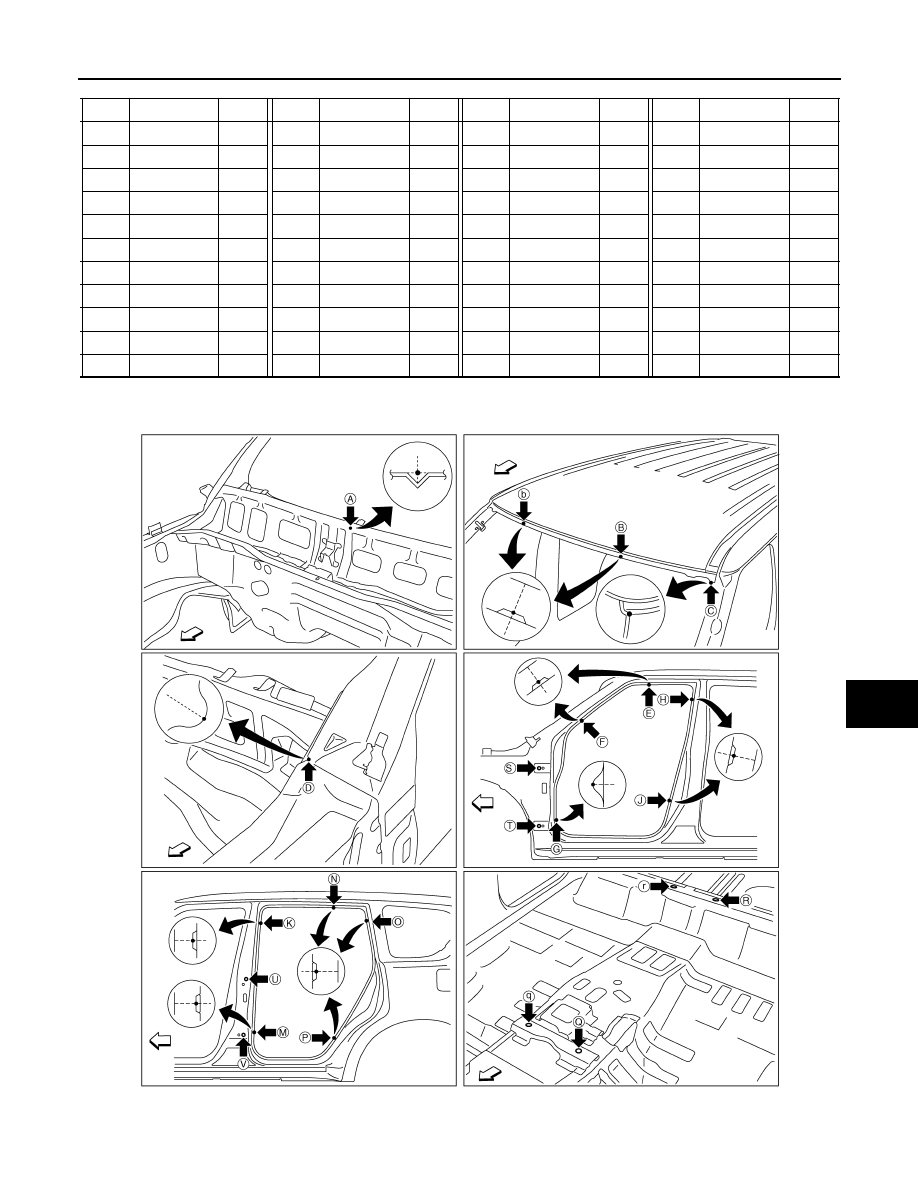

Unit: mm (in)

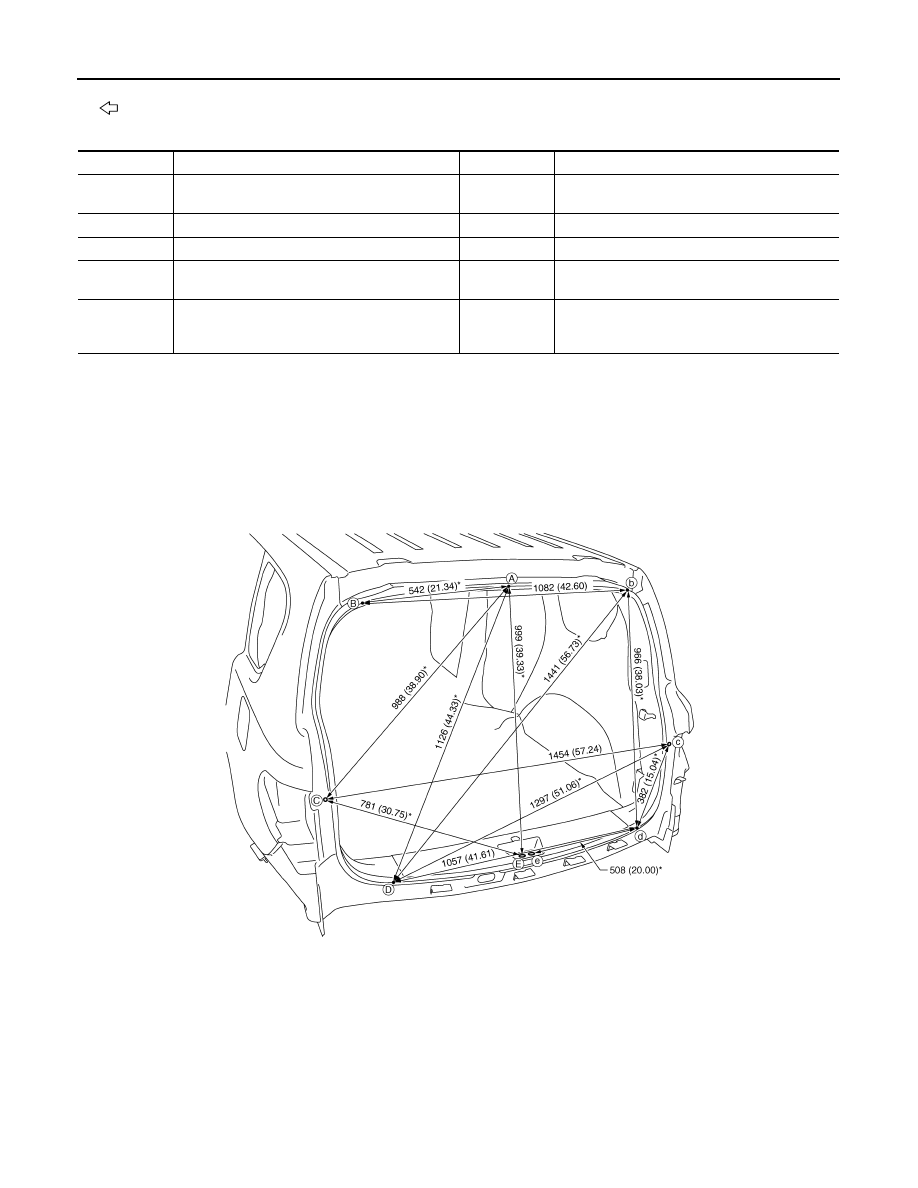

Rear Body

INFOID:0000000006248512

Measurement

Dimensions marked with

*

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

Measurement Points

: Vehicle front

Point

Material

Point

Material

A

Cowl top positioning mark of center positioning
mark

H, h, J, j, K, k,
M, m

Center pillar indent

B, b

Roof indent

O, o, P, p

Rear fender indent

C, c

Front pillar joggle

Q, q

Parking brake bracket hole center

φ

13 (0.51)

D, d, E, e, N, n

Outer side body indent

R, r

2nd seat mounting front crossmember hole cen-
ter

φ

7 (0.28)

F, f, G, g

Front pillar indent

S, s, T, t, U, u,
V, v

Door hinge installing hole center
S, s, U, u:

φ

9 (0.35)

T, t, V, v:

φ

12 (0.47)

Unit: mm (in)

JSKIA1902GB

BODY ALIGNMENT

BRM-57

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

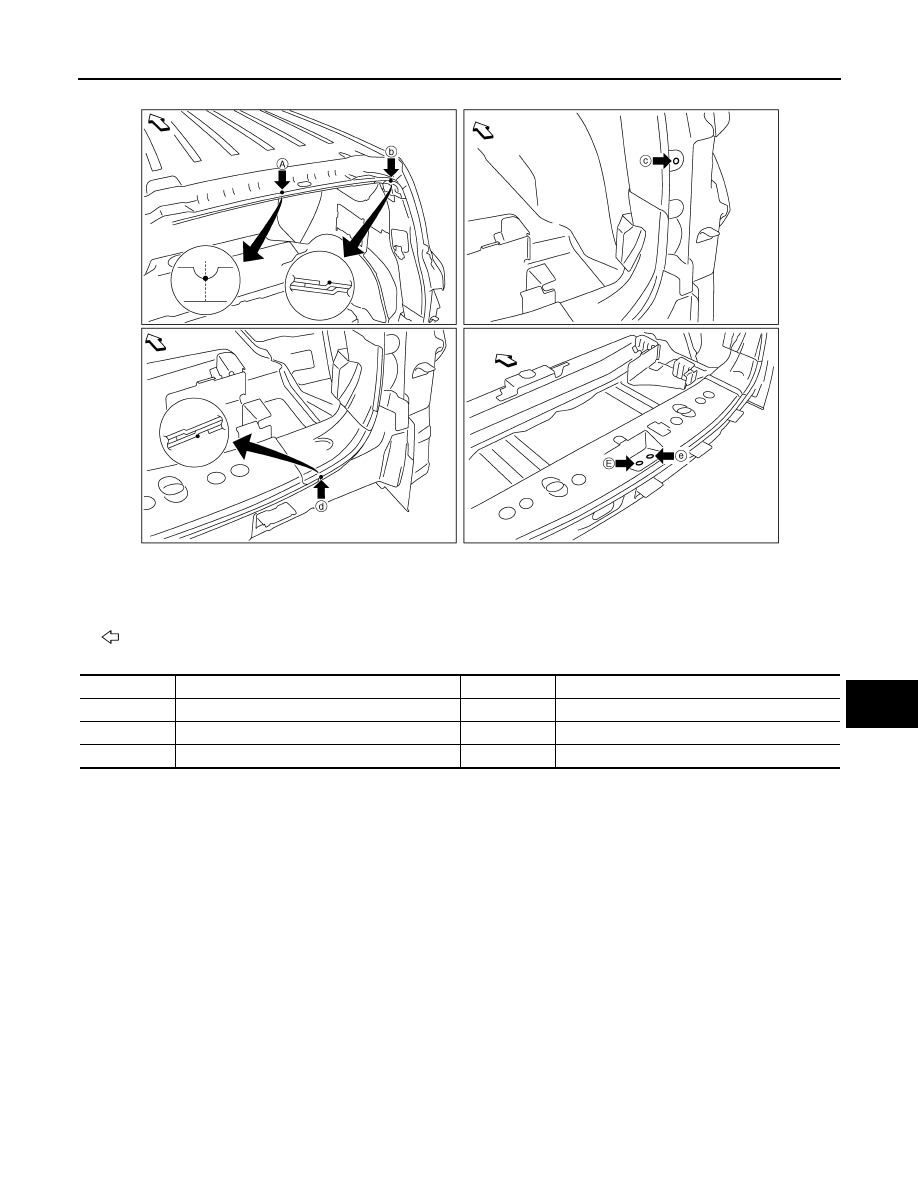

Unit: mm (in)

: Vehicle front

Point

Material

Point

Material

A

Roof indent of center positioning mark

D, d

Rear center crossmember joggle

B, b

Upper back pillar main joggle

E, e

Rear end crossmember hole center

φ

13 (0.51)

C, c

Upper back pillar main hole center

φ

7 (0.28)

JSKIA1903ZZ

BRM-58

< SERVICE DATA AND SPECIFICATIONS (SDS)

LOCATION OF PLASTIC PARTS

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000006248513

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

PMMA

Poly Methyl Methacrylate

85 (185)

EVAC

Ethylene Vinyl Acetate

90 (194)

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

UP

Unsaturated Polyester

90 (194)

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

Flammable

PPE

Poly Phenylene Ether

110 (230)

TPU

Thermoplastic Urethane

110 (230)

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

Flammable

PC

Polycarbonate

120 (248)

POM

Poly Oxymethylene

120 (248)

Avoid battery acid.

PA

Polyamide

140 (284)

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

PAR

Polyarylate

180 (356)

PET

Polyethylene terephthalate

180 (356)

PEI

Polyetherimide

200 (392)
