Infiniti QX56 (Z62). Manual - part 1399

WW-74

< REMOVAL AND INSTALLATION >

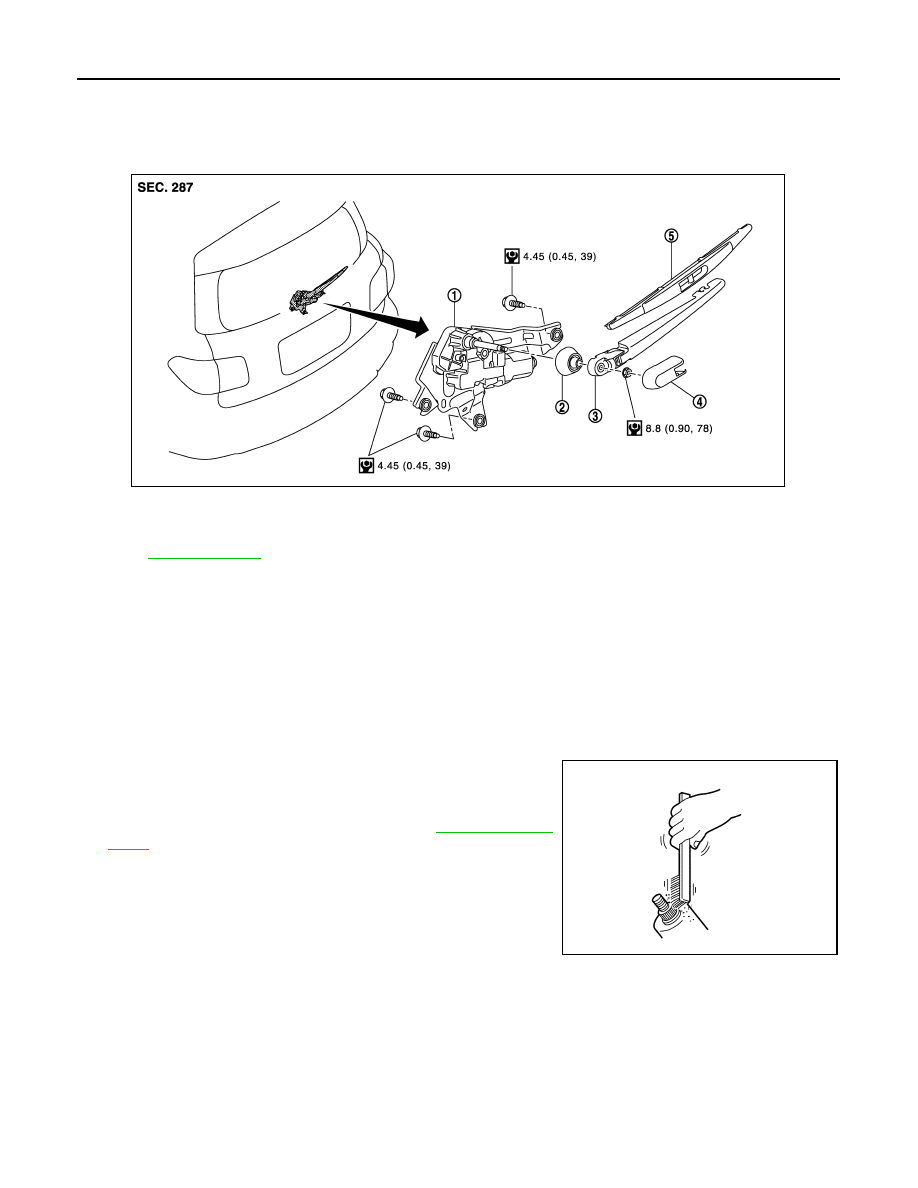

REAR WIPER ARM

REAR WIPER ARM

Exploded View

INFOID:0000000006220420

Removal and Installation

INFOID:0000000006220421

REMOVAL

1.

Operate rear wiper to the auto stop position.

2.

Remove rear wiper arm cover.

3.

Remove rear wiper arm mounting nut.

4.

Remove wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nut
from being loosened.

2.

Operate the rear wiper motor to the auto stop position.

3.

Adjust the rear wiper blade position. Refer to

WW-74, "Adjust-

ment"

.

4.

Install the rear wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the rear wiper to the auto stop position.

7.

Check that the rear wiper blades stop at the specified position.

8.

Install the rear wiper arm cover.

Adjustment

INFOID:0000000006220422

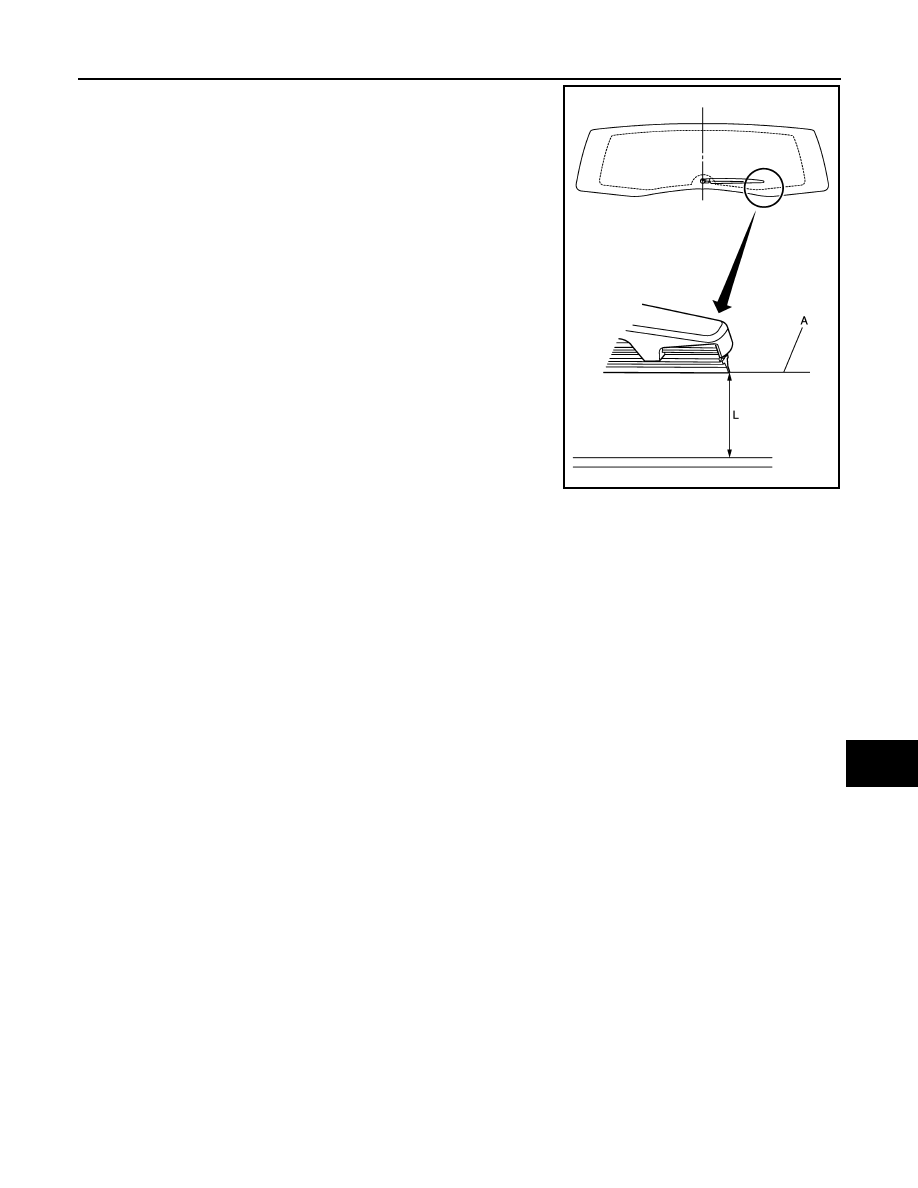

REAR WIPER BLADE POSITION ADJUSTMENT

Set the wiper blade top on the defrosting wire (A) (clearance between the end of back door glass and the top
of wiper blade center).

1.

Rear wiper motor

2.

Pivot seal

3.

Rear wiper arm

4.

Rear wiper arm cover

5.

Rear wiper blade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0942GB

SKIA0082J

REAR WIPER ARM

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

L

: 88.5

±

7.5 mm (3.484

±

 0.295 in)

JMLIA1112ZZ

WW-76

< REMOVAL AND INSTALLATION >

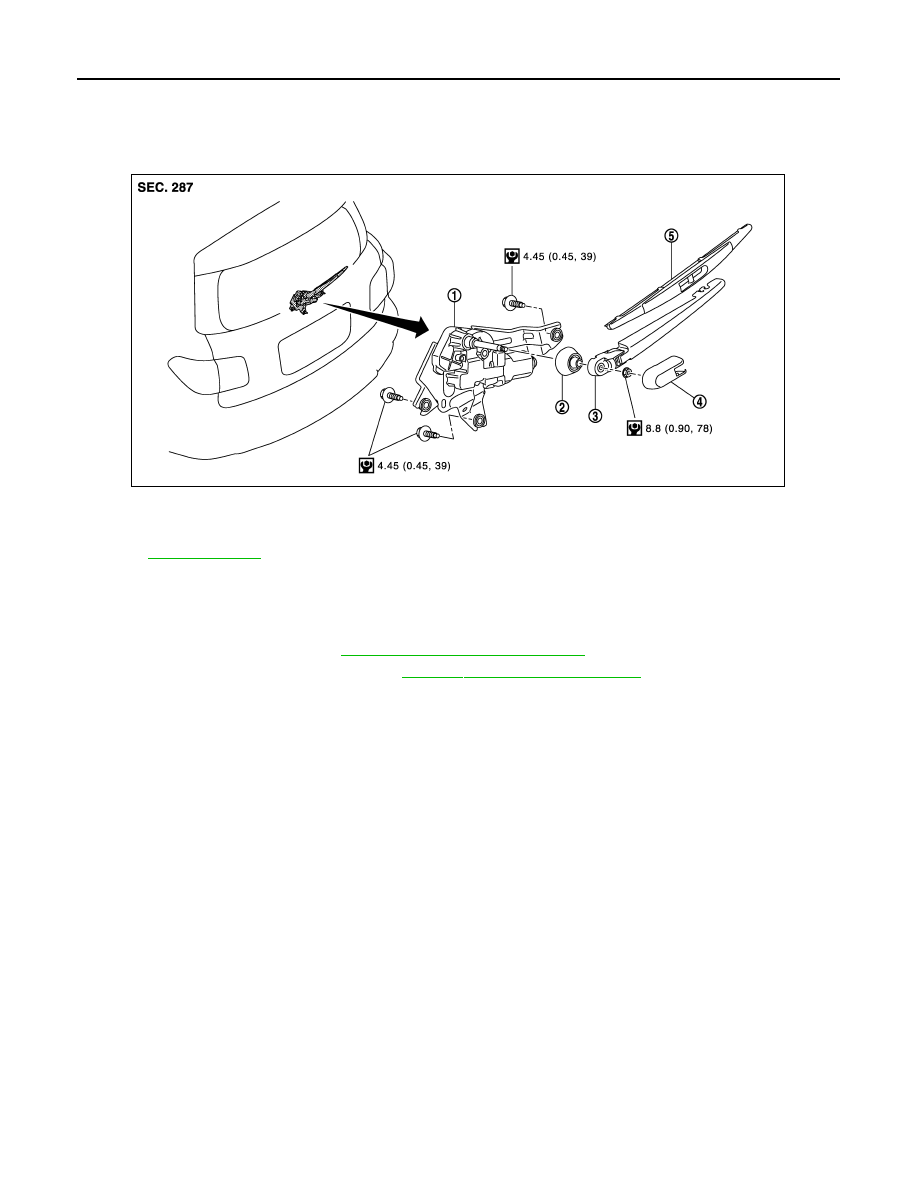

REAR WIPER MOTOR

REAR WIPER MOTOR

Exploded View

INFOID:0000000006220423

Removal and Installation

INFOID:0000000006220424

REMOVAL

1.

Remove rear wiper arm. Refer to

WW-74, "Removal and Installation"

.

2.

Remove back door finisher inner. Refer to

INT-39, "Removal and Installation"

.

3.

Disconnect rear wiper motor connector.

4.

Remove rear wiper motor mounting bolts.

5.

Remove rear wiper motor from the vehicle.

6.

Remove the pivot seal.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wiper motor

2.

Pivot seal

3.

Rear wiper arm

4.

Rear wiper arm cover

5.

Rear wiper blade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0942GB

REAR WASHER NOZZLE AND TUBE

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

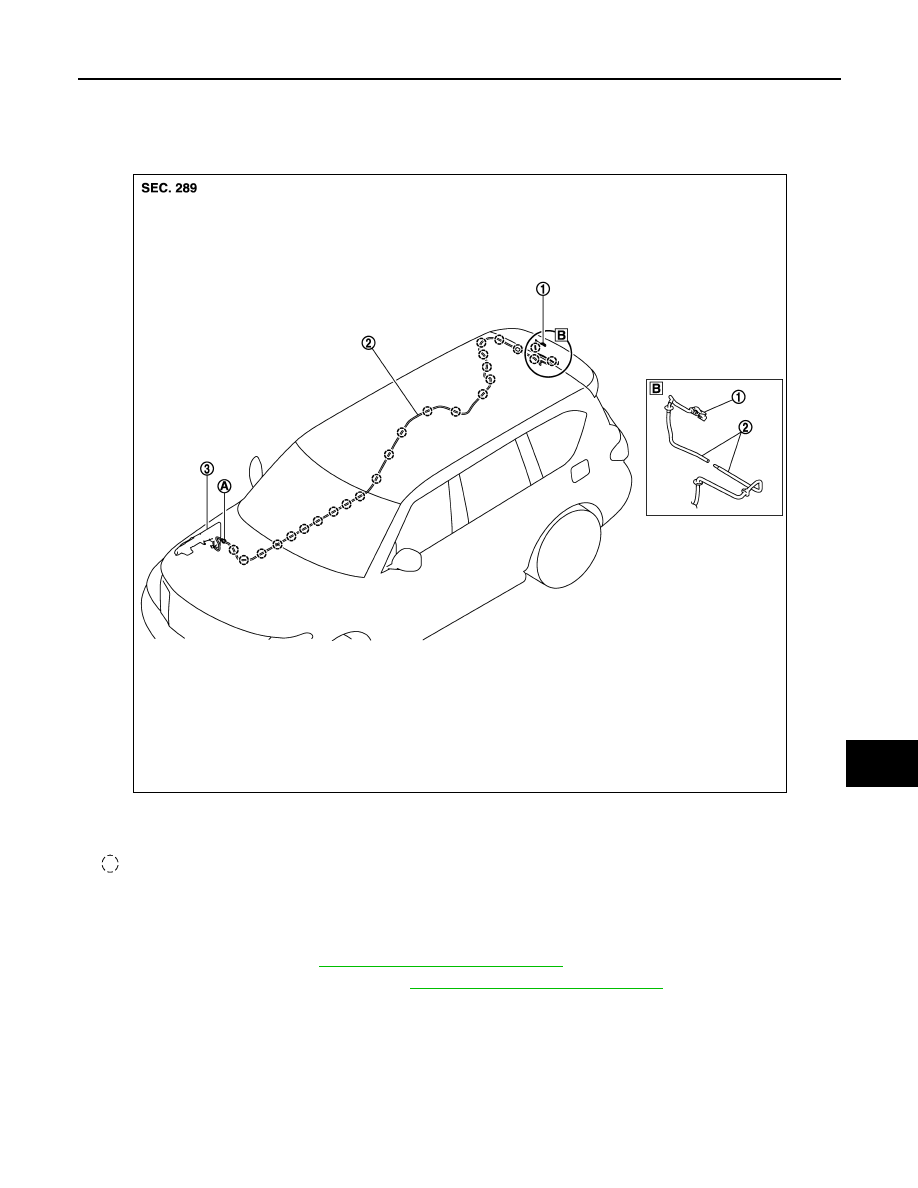

REAR WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000006220425

Removal and Installation

INFOID:0000000006220426

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-41, "Removal and Installation"

.

2.

Remove high-mounted stop lamp. Refer to

EXL-140, "Removal and Installation"

.

1.

Rear washer nozzle

2.

Rear washer tube

3.

Washer tank

A

:  Grommet

: Clip

JMLIA0946ZZ
