Infiniti QX56 (Z62). Manual - part 1397





WW-66

< REMOVAL AND INSTALLATION >

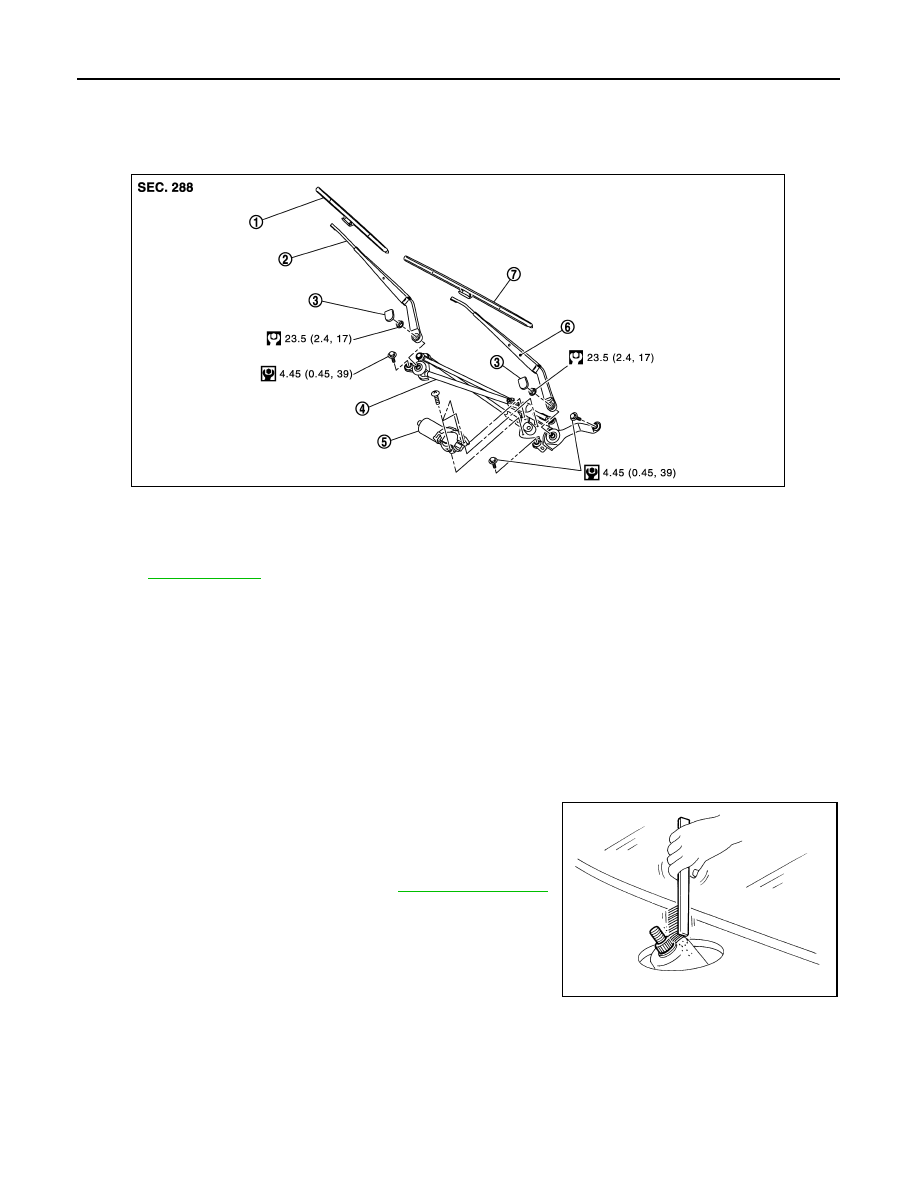

FRONT WIPER ARM

FRONT WIPER ARM

Exploded View

INFOID:0000000006220408

Removal and Installation

INFOID:0000000006220409

REMOVAL

1.

Operate front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove front wiper arm caps.

4.

Remove front wiper arm mounting nuts.

5.

Raise front wiper arm, and then remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate front wiper motor to move the front wiper to the auto
stop position.

3.

Adjust front wiper blade position. Refer to

WW-66, "Adjustment"

.

4.

Install front wiper arm by tightening the mounting nuts.

5.

Inject the washer fluid.

6.

Operate front wiper to move it to the auto stop position.

7.

Check that the front wiper blades stop at the specified position.

8.

Install front wiper arm caps.

Adjustment

INFOID:0000000006220410

WIPER BLADE POSITION ADJUSTMENT

1.

Front wiper blade RH

2.

Front wiper arm RH

3.

Front wiper arm cap

4.

Front wiper drive assembly

5.

Front wiper motor

6.

Front wiper arm LH

7.

Front wiper blade LH

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA0940GB

ELH0717D

FRONT WIPER ARM

WW-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

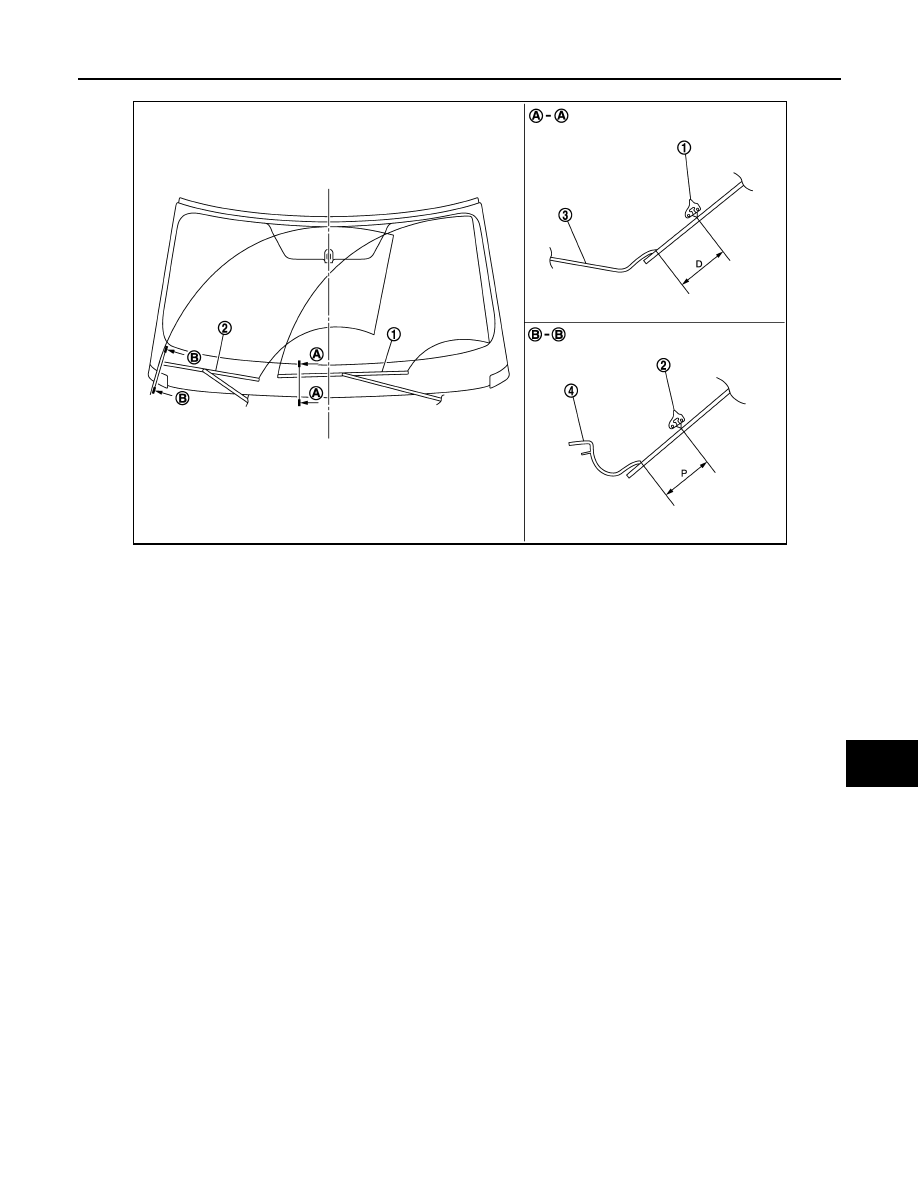

Clearance between the end of cowl top cover/ front fender protector and the top of wiper blade center

Standard clearance

1.

Wiper blade (Driver side)

2.

Wiper blade (Passenger side)

3.

Cowl top cover

4.

Front fender cover RH

JMLIA1100ZZ

P

: 51.6

±

7.5 mm (2.031

±

 0.295 in)

D

: 53.6

±

7.5 mm (2.110

±

 0.295 in)

WW-68

< REMOVAL AND INSTALLATION >

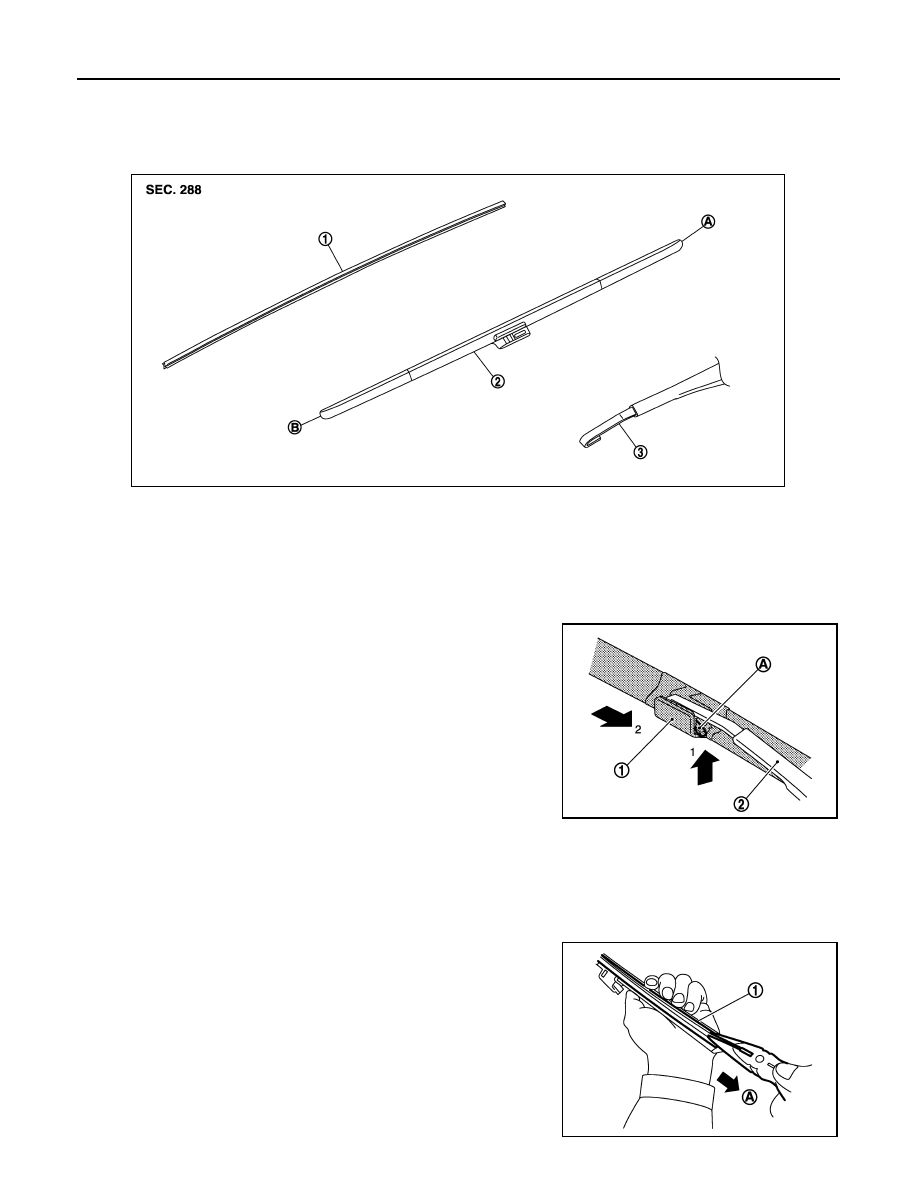

FRONT WIPER BLADE

FRONT WIPER BLADE

Exploded View

INFOID:0000000006220411

Removal and Installation

INFOID:0000000006220412

REMOVAL

1.

Push up the lever (A) of wiper blade (1), while sliding wiper
blade toward the direction of the arrow, to remove it from wiper
arm (2).

CAUTION:

Be careful not to drop the wiper blade onto the windshield
glass.

INSTALLATION

1.

Install wiper blade into wiper arm.

2.

Install wiper arm.

Replacement

INFOID:0000000006220413

1.

Hold the rip of old wiper refill (1) at the rear end of the wiper
blade with long-nose pliers, and pull out the wiper refill to the
direction (A).

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A.

Wiper blade end

B.

Wiper blade tip

JMLIA1127ZZ

JMLIA1044ZZ

JPLIA1583ZZ

FRONT WIPER BLADE

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

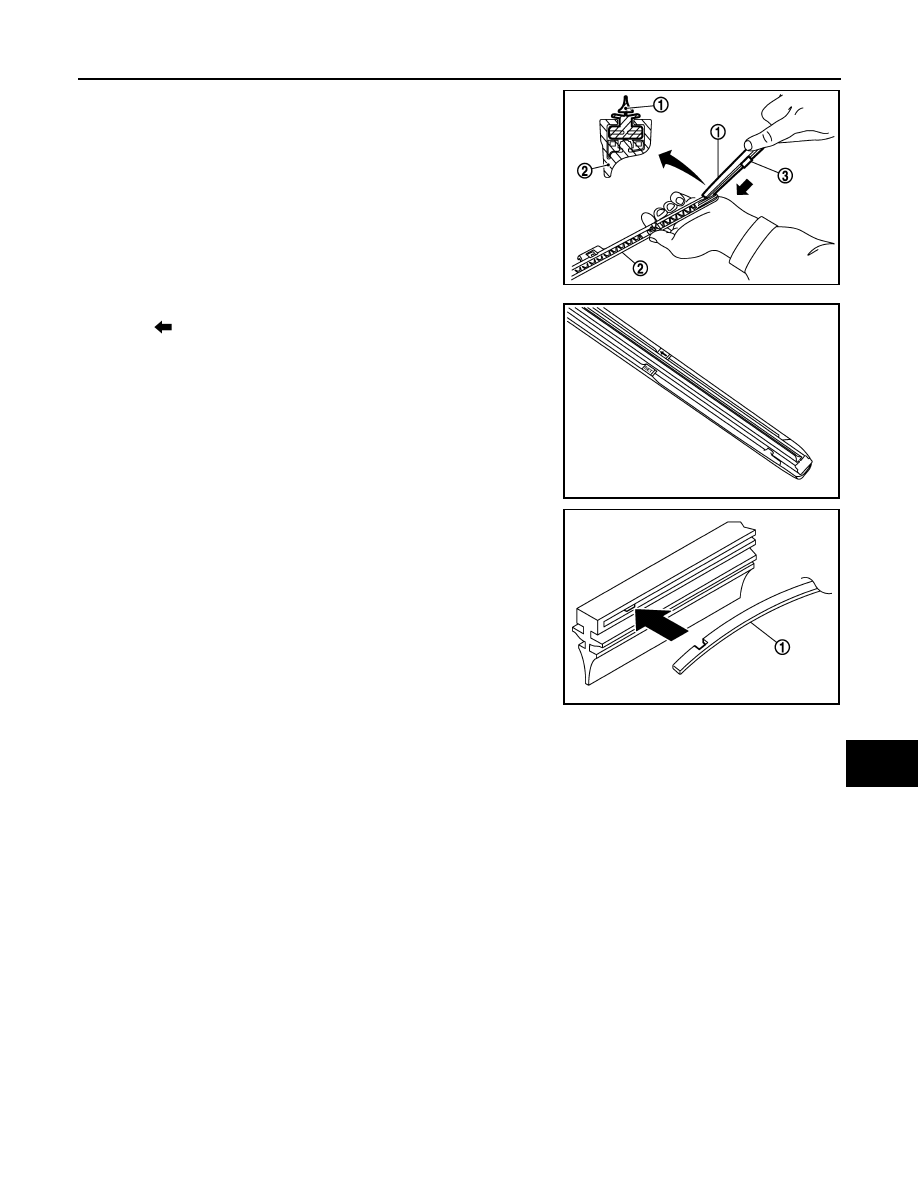

2.

Insert the tip of new wiper refill (1) into the rear end of wiper
blade (2). Slide the new wiper refill to the direction shown by the
arrow while pressing the new wiper refill onto the wiper blade
rear end.
NOTE:
• Insert the wiper refill to be held securely by tab of wiper blade

as shown in section.

• After the wiper refill is fully inserted, remove the holder

*

 (3).

*

: Attached to service parts.

3.

Insert the new wiper refill toward the direction shown by the
mark “

” until the stopper at the rear end of wiper refill fits in the

“SET” mark tab on wiper blade.

4.

Untwist the twisted wiper refill at the rear end of wiper blade, if
any.

5.

Check the following items after replacing wiper refill.
• Wiper refill is not twisted at all.
• Wiper refill thoroughly fits in the tab on wiper blade.
• Wiper refill is inserted from the proper direction.

NOTE:

When the vertebra is detached.

• Insert the vertebra (1) into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

JMLIA1128ZZ

JMLIA1129ZZ

JPLIA1586ZZ
