Infiniti QX56 (Z62). Manual - part 1396





WW-62

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000006220403

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-58,

"Removal and Installation"

.

FRONT WASHER NOZZLE AND TUBE

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

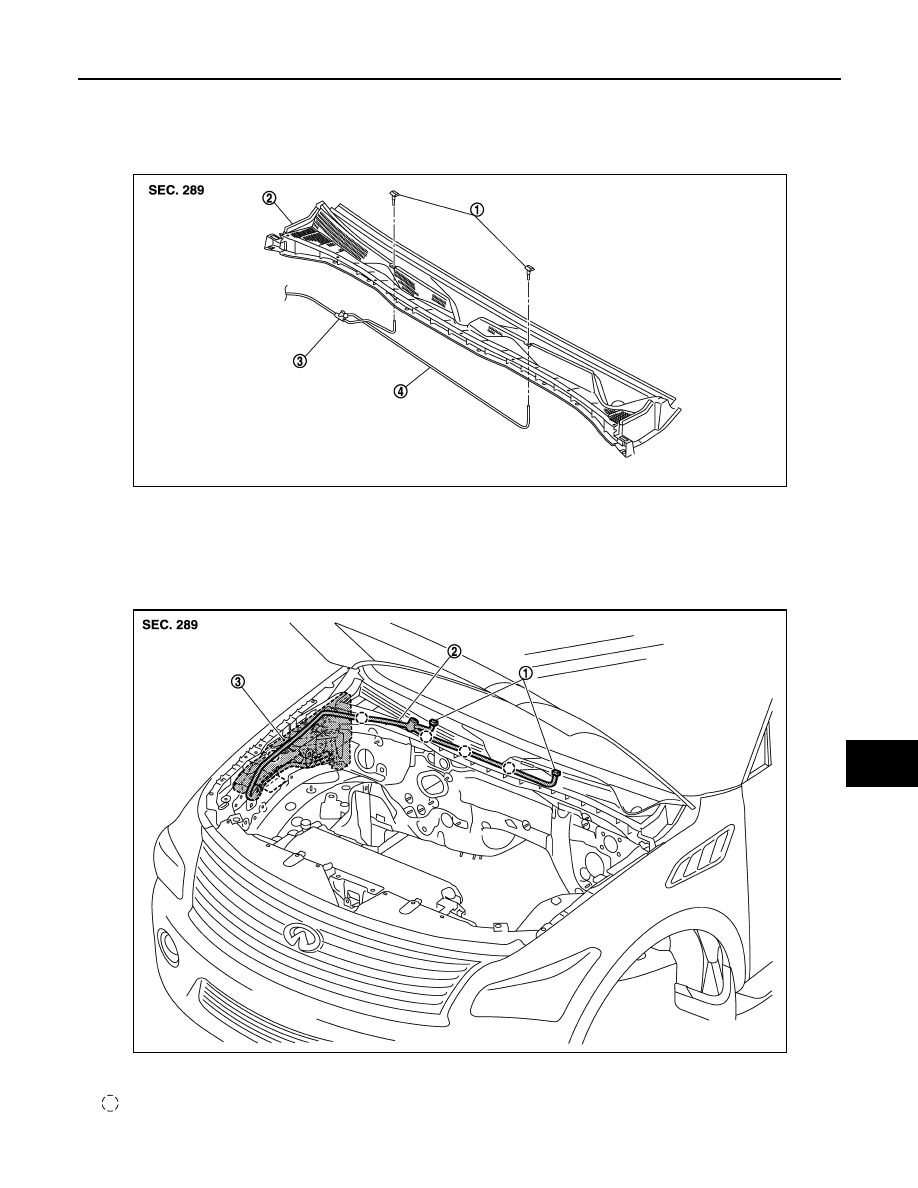

FRONT WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000006220404

Hydraulic Layout

INFOID:0000000006220405

1.

Front washer nozzle

2.

Cowl top cover

3.

Check valve

4

Front washer tube

JMLIA0936ZZ

1.

Front washer nozzle

2.

Front washer tube

3.

Washer tank

: Clip

JMLIA1153ZZ

WW-64

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

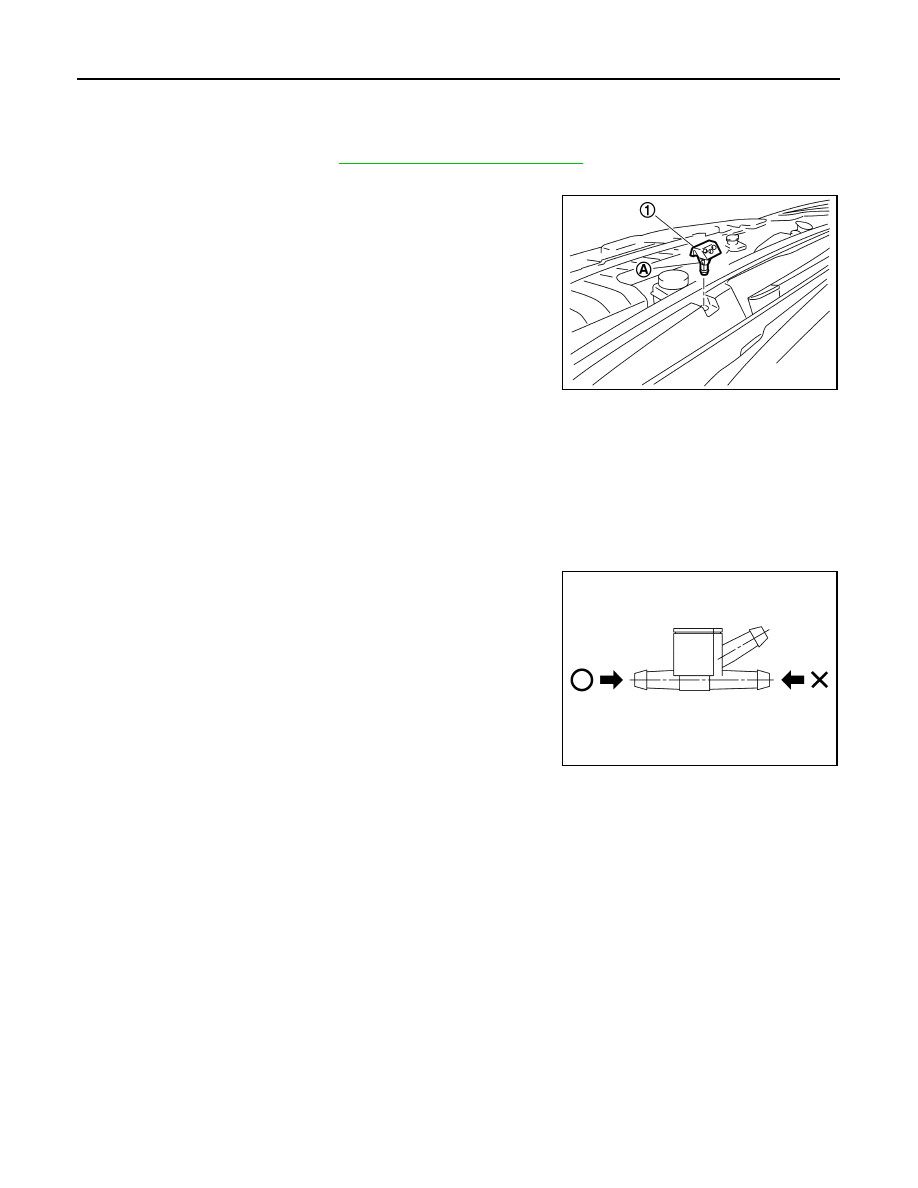

Removal and Installation

INFOID:0000000006220406

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-21, "Removal and Installation"

.

2.

Disconnect front washer tube from front washer nozzle.

3.

While pressing pawl (A) on the cowl top cover front side of front
washer nozzle (1), remove front washer nozzle from cowl top
cover.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000006220407

INSPECTION

Check valve Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

JPLIA0871ZZ

JPLIA0685ZZ

FRONT WASHER NOZZLE AND TUBE

WW-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

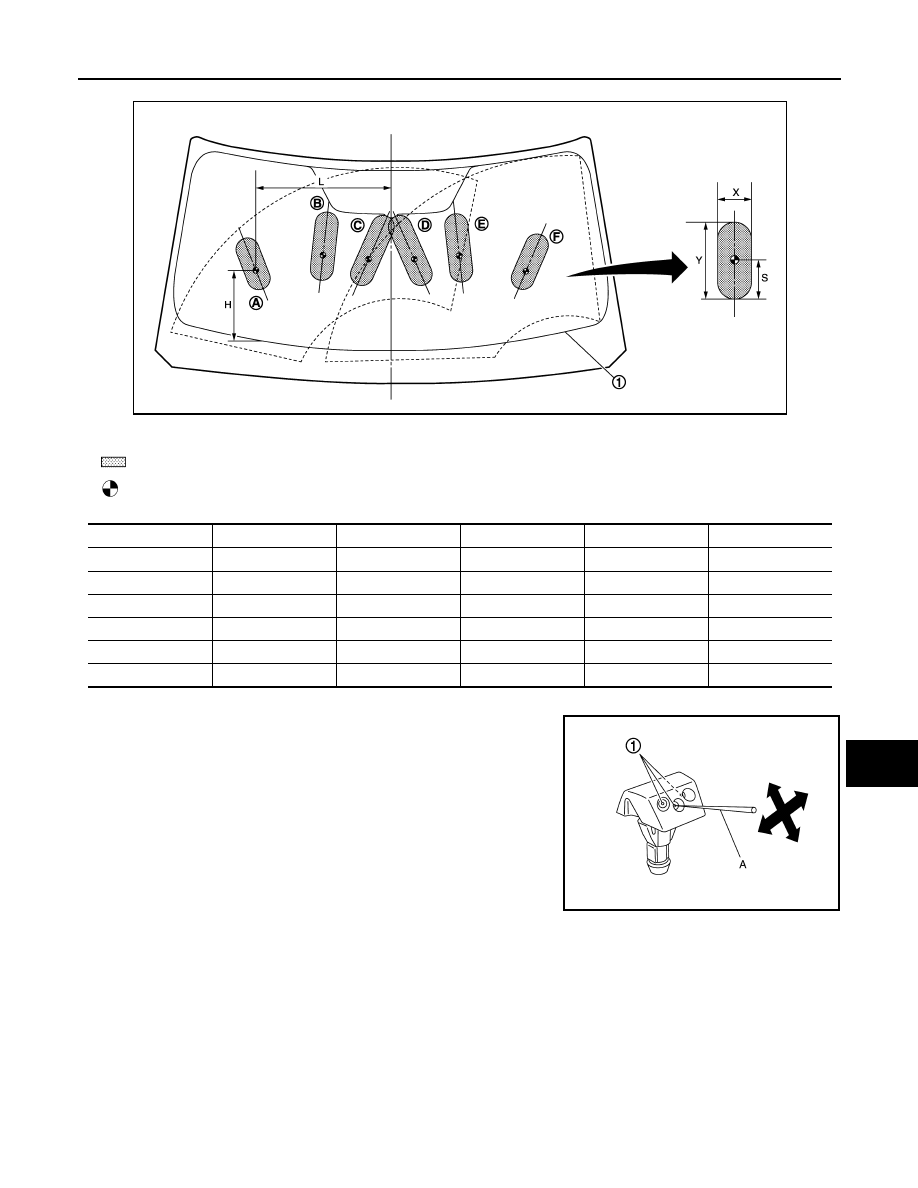

Unit: mm (in)

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

1.

Black printed frame line

: Spray area

: Target spray position

Spray position

H

L

X

Y

S

A

248.5 (9.78)

480.0 (18.93)

80.0 (3.15)

191.5 (7.54)

68.8 (2.71)

B

331.2 (13.04)

241.6 (9.51)

80.0 (3.15)

237.7 (9.36)

86.6 (3.41)

C

319.9 (12.59)

81.7 (3.22)

80.0 (3.15)

264.8 (10.43)

93.9 (3.70)

D

319.9 (12.59)

81.7 (3.22)

80.0 (3.15)

264.7 (10.42)

93.9 (3.70)

E

331.2 (13.04)

241.6 (9.51)

80.0 (3.15)

237.7 (9.36)

86.6 (3.41)

F

248.5 (9.78)

480.7 (18.93)

80.0 (3.15)

211.4 (8.32)

68.4 (2.70)

JMLIA0937ZZ

JPLIA0873ZZ
