Infiniti QX56 (Z62). Manual - part 1395





WW-58

< REMOVAL AND INSTALLATION >

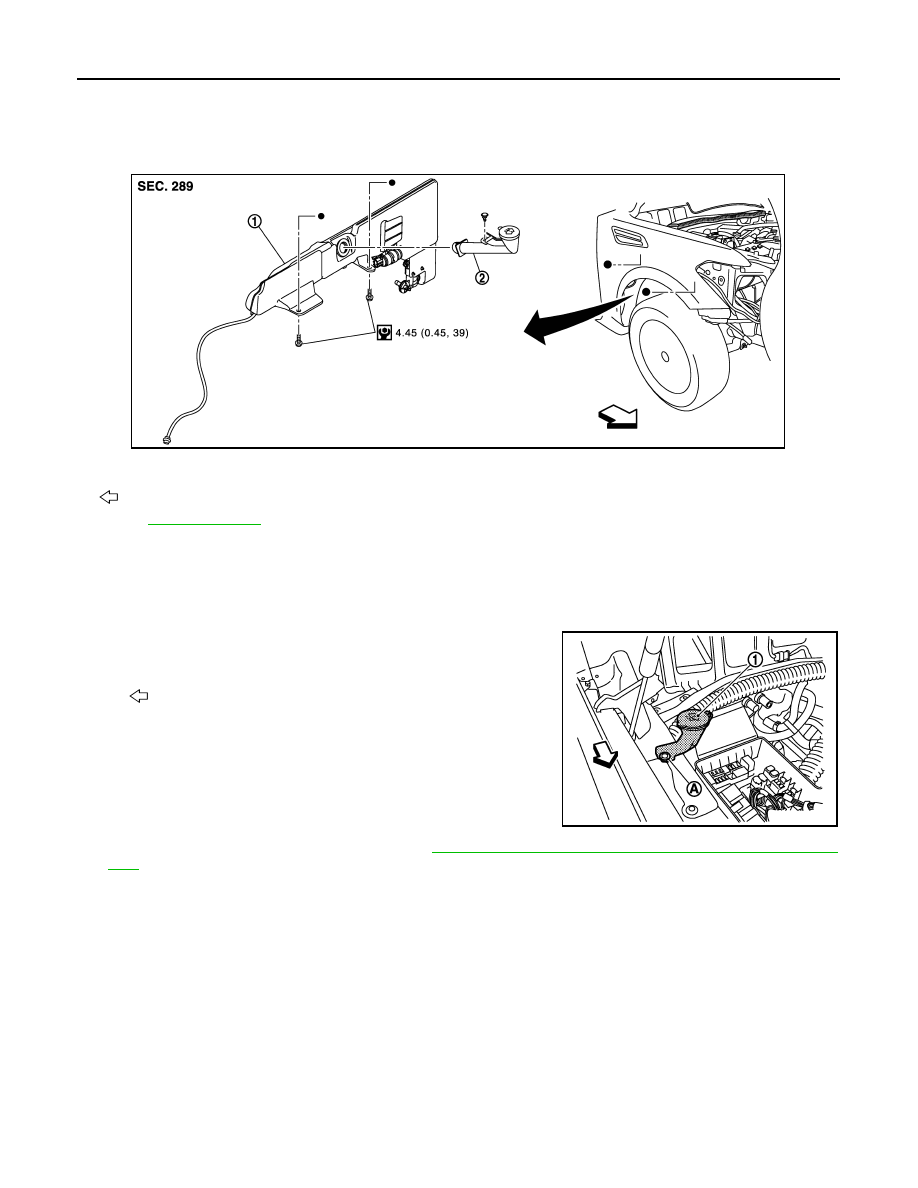

WASHER TANK

WASHER TANK

Exploded View

INFOID:0000000006220397

Removal and Installation

INFOID:0000000006220398

REMOVAL

1.

Fully open hood.

2.

Remove washer tank inlet fixing clip (A).

3.

Pull out washer tank inlet (1) from washer tank.

4.

Remove fender protector RH (front). Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installa-

tion"

.

5.

Disconnect washer pump connector.

6.

Disconnect headlamp washer pump connector.

7.

Disconnect washer level switch connector.

8.

Disconnect front washer tube and rear washer tube.

9.

Disconnect headlamp washer tube joint.

10. Remove washer tank mounting bolts.

1.

Washer tank

2.

Washer tank inlet

: Vehicle front

Refer to

GI-4, "Components"

 for the symbols in the figure.

JMLIA0932GB

: Vehicle front

JMLIA0933ZZ

WASHER TANK

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

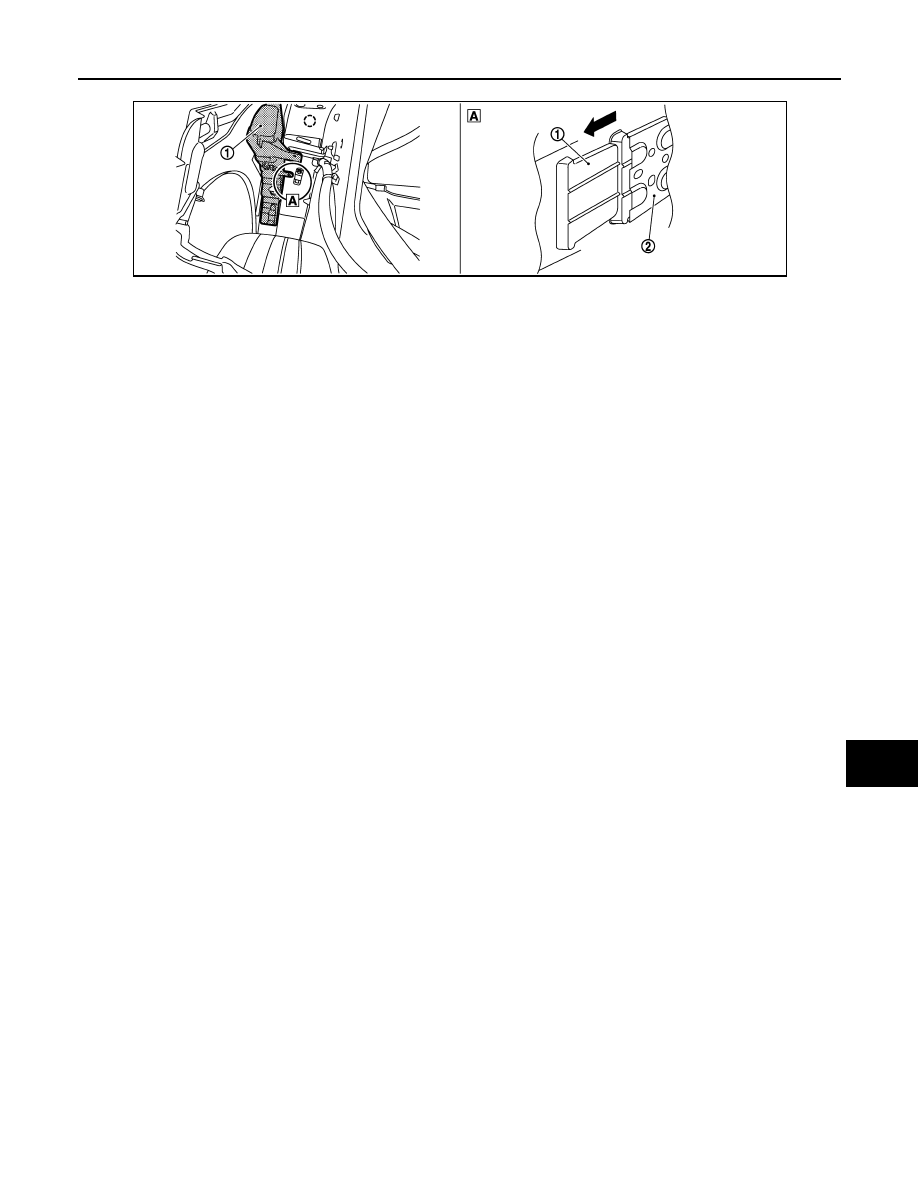

11. Pull washer tank (1) out of body panel bracket (2) to remove from the vehicle.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Add water up to the top of washer tank inlet after installing and check that there is no leakage.

JMLIA1130ZZ

WW-60

< REMOVAL AND INSTALLATION >

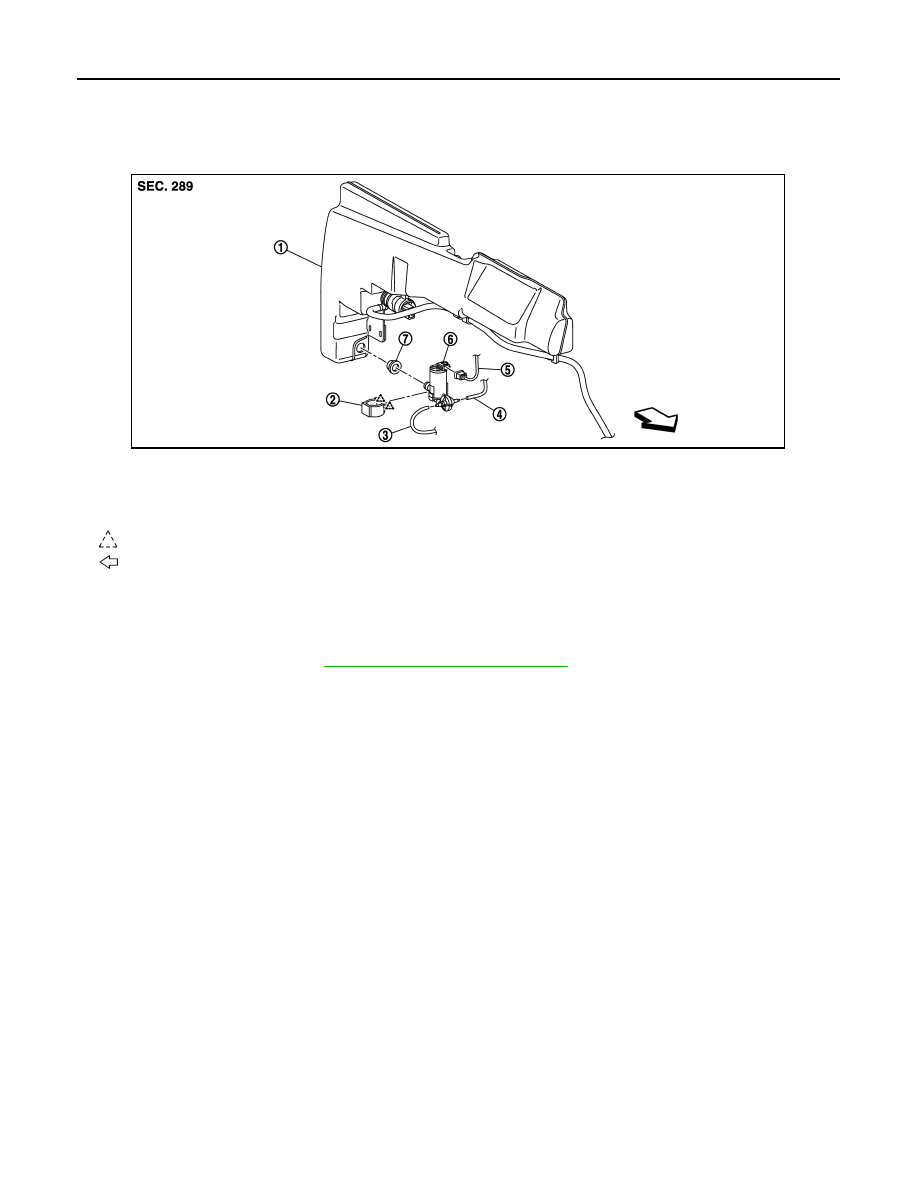

WASHER PUMP

WASHER PUMP

Exploded View

INFOID:0000000006220399

Removal and Installation

INFOID:0000000006220400

REMOVAL

1.

Remove washer tank. Refer to

WW-58, "Removal and Installation"

.

2.

Remove washer pump from washer tank.

3.

Remove packing from washer tank.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Check that there is no leakage after installation or replace packing with new part if it has been dam-

age.

• Never twist the packing when installing the washer pump.

1.

Washer tank

2.

Bracket

3.

Rear washer tube

4.

Front washer tube

5.

Washer pump harness connector

6.

Washer pump

7.

Packing

: Pawl

: Vehicle front

JMLIA0934ZZ

HEADLAMP WASHER PUMP

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

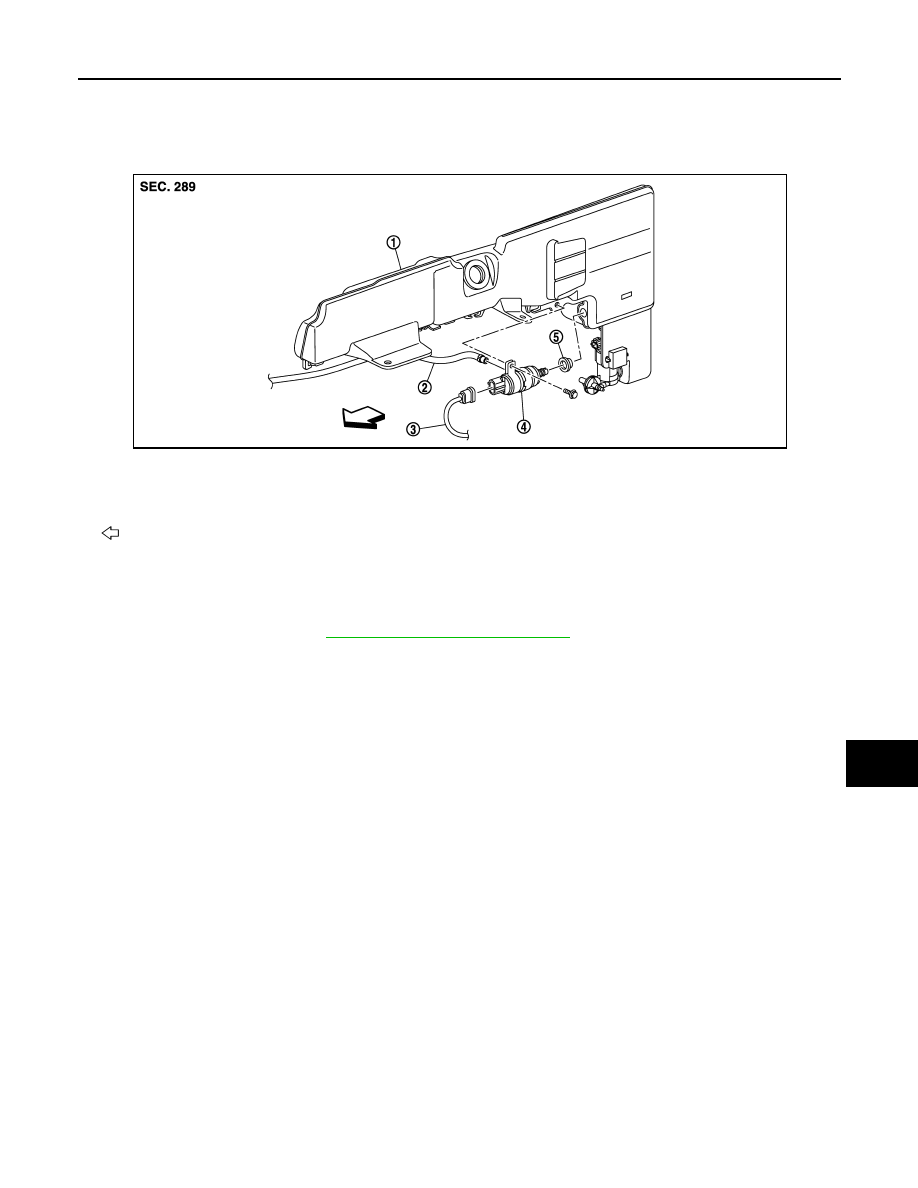

HEADLAMP WASHER PUMP

Exploded View

INFOID:0000000006220401

Removal and Installation

INFOID:0000000006220402

REMOVAL

1.

Remove washer tank. Refer to

WW-58, "Removal and Installation"

.

2.

Remove the mounting bolt, and then remove headlamp washer pump from the washer tank.

3.

Remove the packing from the washer tank.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Check that there is no leakage after installation or replace packing with new part if it has been dam-

age.

• Never twist the packing when installing the headlamp washer pump.

1.

Washer tank

2.

Headlamp washer tube

3.

Headlamp washer pump harness
connector

4.

Headlamp washer pump

5.

Packing

: Vehicle front

JMLIA0935ZZ
