Infiniti QX56 (Z62). Manual - part 1354





WCS

SYSTEM

WCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

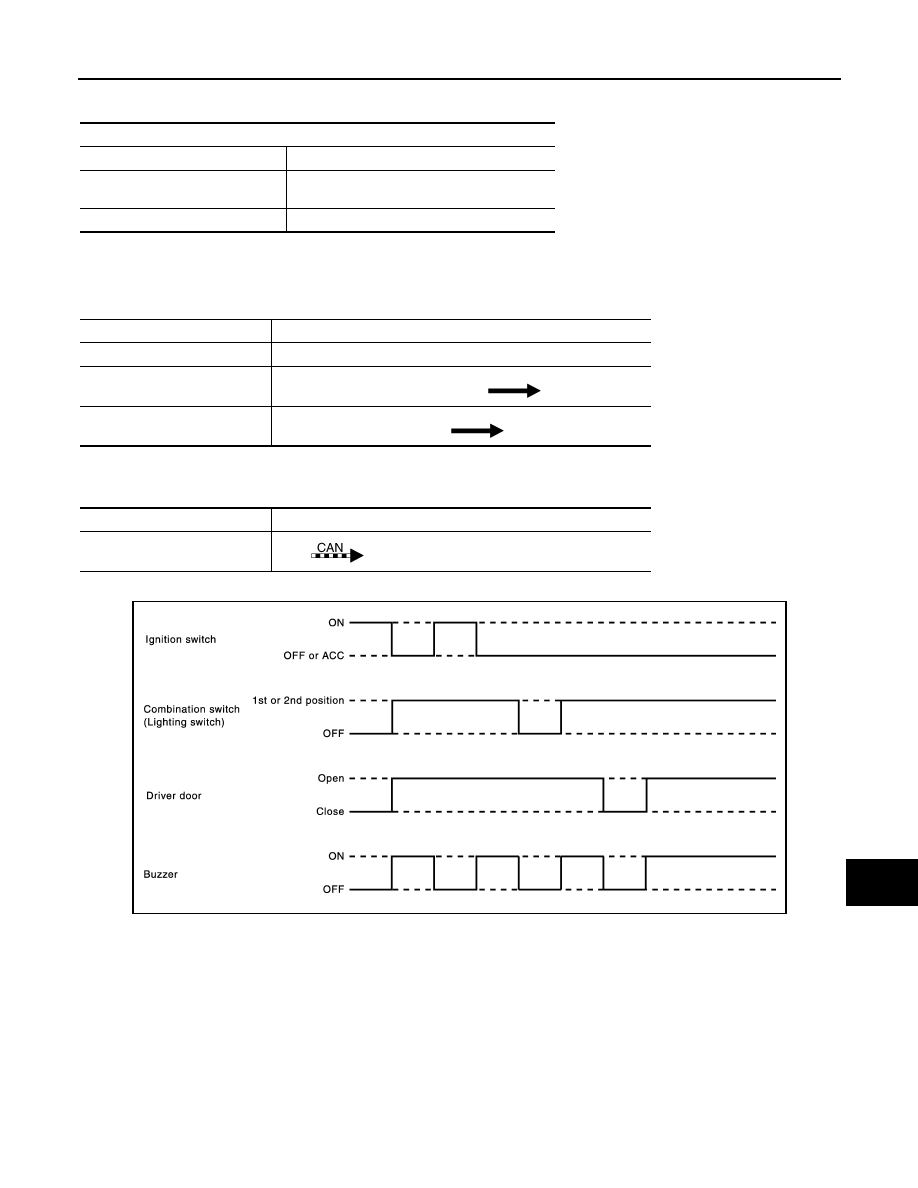

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1.

BCM requires warning chime output to combination meter when it judges light reminder warning chime is
necessary from signals below.

2.

Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-
nal) from BCM.

TIMING CHART

FRONT FOG LIGHT REMINDER WARNING CHIME

Operation conditions

Ignition switch

ON

Combination switch (Lighting
switch)

OFF or AUTO position

Driver door

Close [front door switch (driver side) OFF]

Signal name

Signal path

Ignition switch signal

Combination switch signal

Combination switch (Lighting switch)

 BCM

Driver door switch signal

Front door switch (driver side)

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

JSNIA2426GB

WCS-10

< SYSTEM DESCRIPTION >

SYSTEM

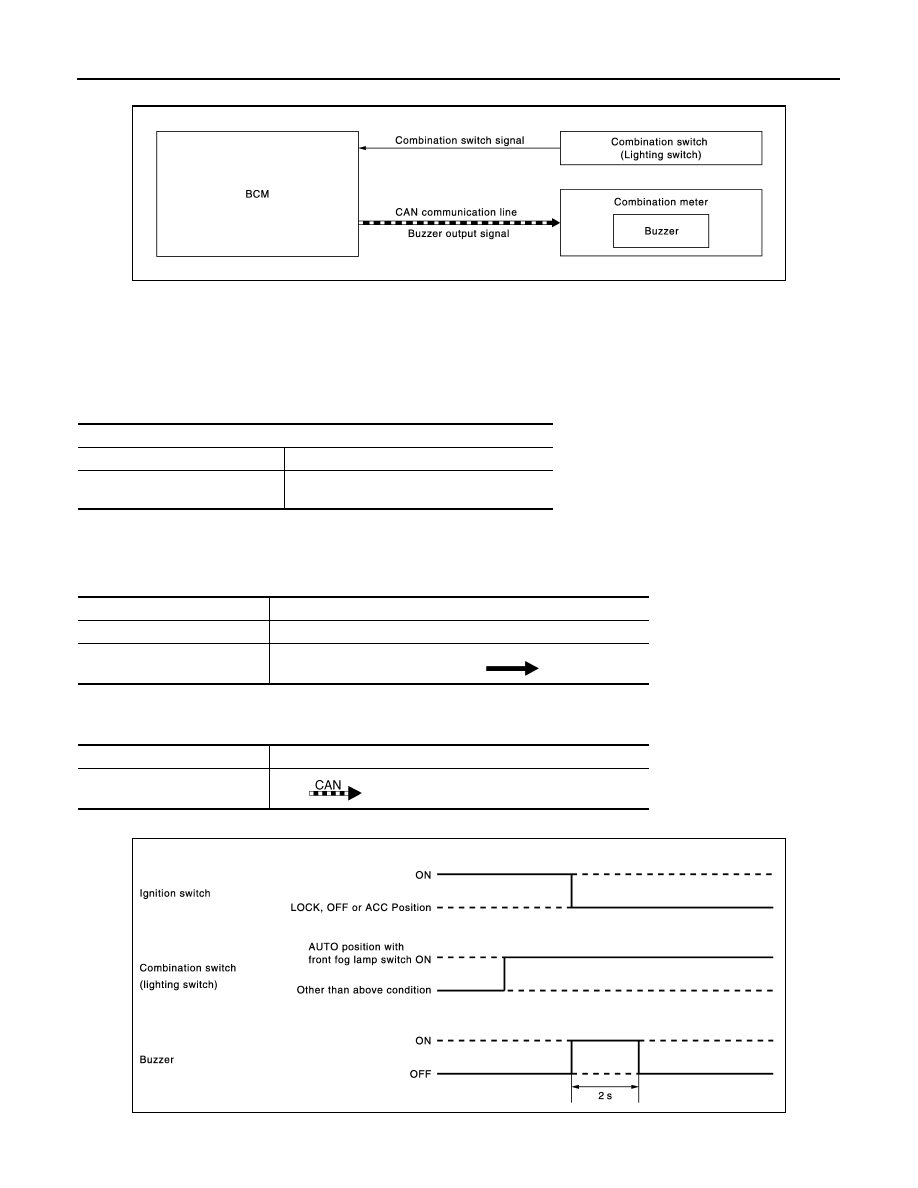

FRONT FOG LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000006222545

FRONT FOG LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000006222546

WARNING CHIME OPERATION CONDITIONS

Warning chime sounds during 2 seconds when the ignition switch is in LOCK, OFF or ACC position, if all of
below operation conditions is met.

SIGNAL PATH

1.

BCM requires warning chime output to combination meter when it judges front fog light reminder warning
chime is necessary from signals below.

2.

Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-
nal) from BCM.

TIMING CHART

SEAT BELT WARNING CHIME

JSNIA3117GB

Operation conditions

Ignition switch

ON position

Combination switch (Lighting
switch)

AUTO position and front fog lamp switch ON
position

Signal name

Signal path

Ignition switch signal

Combination switch signal

Combination switch (Lighting switch)

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

JSNIA3110GB

WCS

SYSTEM

WCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

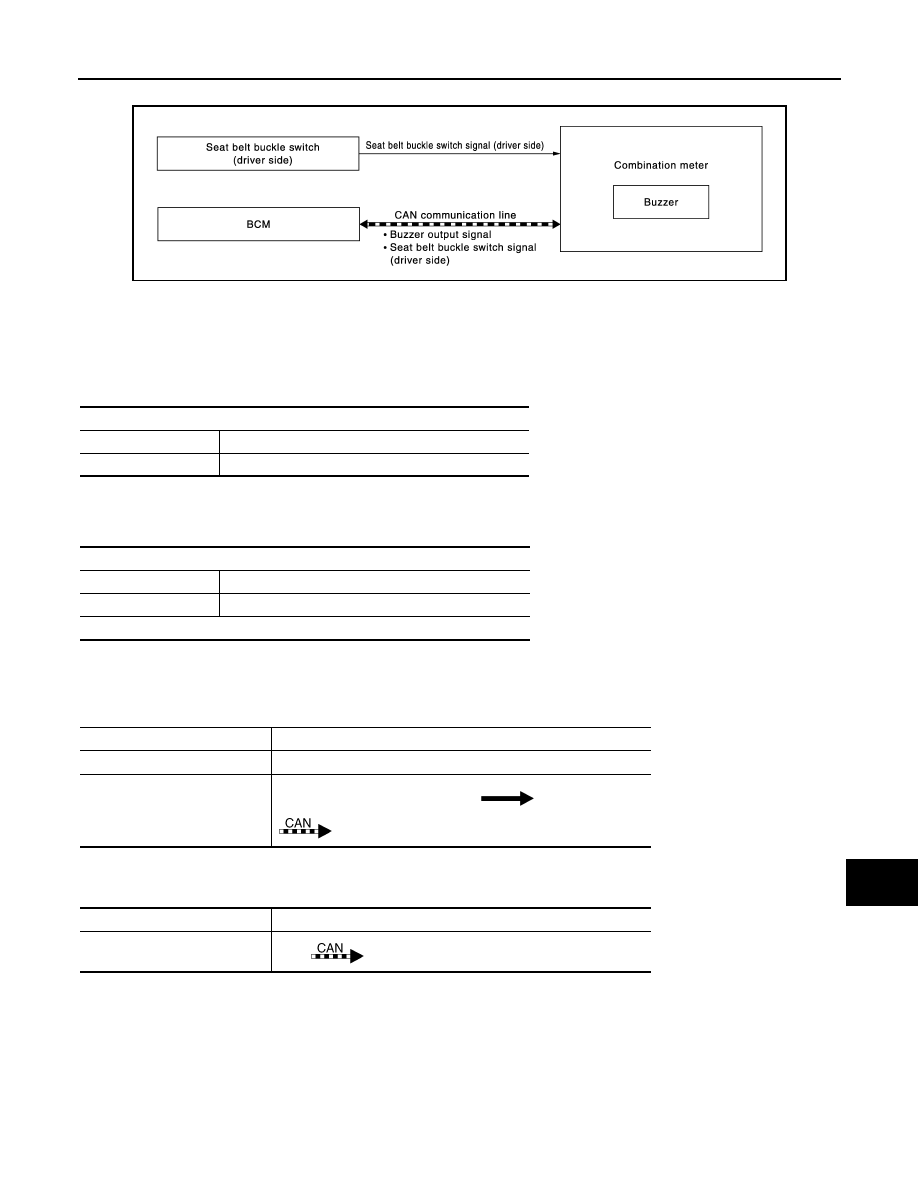

SEAT BELT WARNING CHIME : System Diagram

INFOID:0000000006222685

SEAT BELT WARNING CHIME : System Description

INFOID:0000000006222686

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1.

BCM requires warning chime output to combination meter when it judges seat belt warning chime is nec-
essary from signals below.

2.

Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-
nal) from BCM.

JSNIA3118GB

Operation conditions

Ignition switch

ON

Driver seat belt

Unfastened [seat belt buckle switch (driver side) ON]

Operation conditions

Ignition switch

OFF

Seat belt (driver side)

Fastened (driver side seat belt buckle switch OFF)

6 seconds after the start of warning sound

Signal name

Signal path

Ignition switch signal

Seat belt buckle switch signal
(driver side)

Seat belt buckle switch (driver side)

 Combination meter

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

WCS-12

< SYSTEM DESCRIPTION >

SYSTEM

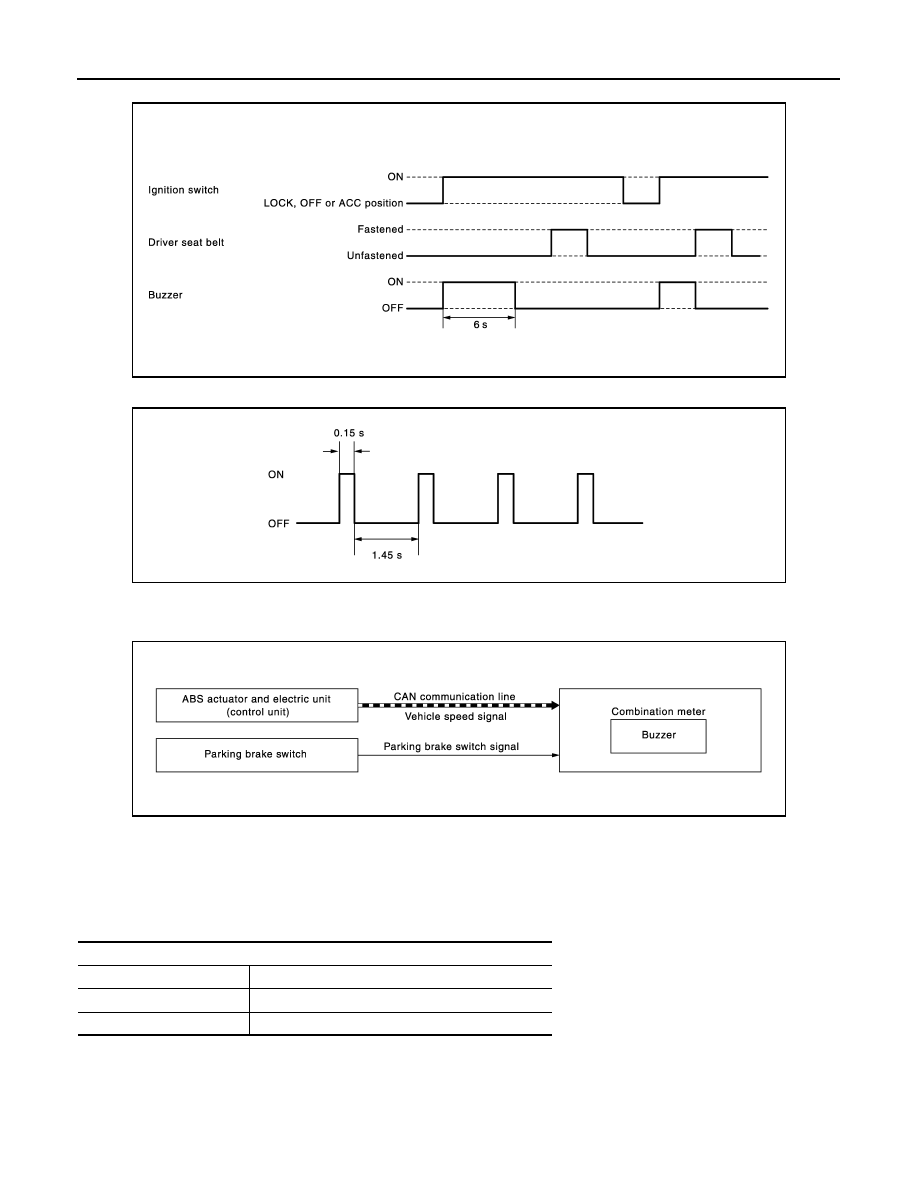

TIMING CHART

SOUND SPECIFICATION

PARKING BRAKE RELEASE WARNING CHIME

PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000006222547

PARKING BRAKE RELEASE WARNING CHIME : System Description

INFOID:0000000006222548

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions are fulfilled.

JSNIA3123GB

JSNIA3111GB

JSNIA2422GB

Operation conditions

Ignition switch

ON

Parking brake

During the operation (parking brake switch ON)

Vehicle speed

Approximately 7 km/h (4.3 MPH) or more
