DUCT AND GRILLE

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

2.

Remove front defroster nozzle. Refer to

VTL-11, "FRONT DEFROSTER NOZZLE : Removal and Installa-

tion"

.

3.

Remove fixing screws, and then remove upper ventilator duct.

INSTALLATION

Install in the reverse order of removal.

FRONT DEFROSTER NOZZLE

FRONT DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000006276293

REMOVAL

1.

Remove instrument panel assembly. Refer to

VTL-8, "Exploded View"

.

2.

Remove fixing screws, and then remove front defroster nozzle.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER NOZZLE

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000006276294

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove fixing screw, and then remove side defroster nozzle.

INSTALLATION

Install in the reverse order of removal.

FLOOR DUCT 1

FLOOR DUCT 1 : Removal and Installation

INFOID:0000000006276295

REMOVAL

1.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

.

2.

Remove floor duct 1.

INSTALLATION

Install in the reverse order of removal.

FLOOR DUCT 2

FLOOR DUCT 2 : Removal and Installation

INFOID:0000000006276296

REMOVAL

1.

Pull up front of front floor carpet of securing work space. Refer to

INT-25, "FRONT FLOOR CARPET :

Removal and Installation"

.

2.

Remove fixing clip, and then remove floor duct 2.

INSTALLATION

Install in the reverse order of removal.

FLOOR DUCT 3

FLOOR DUCT 3 : Removal and Installation

INFOID:0000000006276297

REMOVAL

1.

Pull up front of front floor carpet of securing work space. Refer to

INT-25, "FRONT FLOOR CARPET :

Removal and Installation"

.

2.

Remove mounting bolt, and then remove floor duct 1.

INSTALLATION

VTL-12

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

Install in the reverse order of removal.

REAR FLOOR GRILLE

REAR FLOOR GRILLE : Removal and Installation

INFOID:0000000006276298

REMOVAL

Disengage fixing metal clips, and then remove rear floor grille.

INSTALLATION

Install in the reverse order of removal.

FOOT DUCT

FOOT DUCT : Removal and Installation

INFOID:0000000006276299

REMOVAL

1.

Remove steering member. Refer to

HA-42, "HEATER  & COOLING UNIT ASSEMBLY : Removal and

Installation"

.

2.

Remove fixing screws, and then remove foot duct.

INSTALLATION

Install in the reverse order of removal.

FOOT GRILLE

FOOT GRILLE : Removal and Installation

INFOID:0000000006276300

REMOVAL

Driver side

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

2.

Remove fixing screws, and then remove foot grille.

Passenger side

1.

Remove instrument lower cover. Refer to

IP-14, "Removal and Installation"

.

2.

Remove fixing screws and clip, and then remove foot grille.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT LOWER

REAR VENTILATOR DUCT LOWER : Removal and Installation

INFOID:0000000006276301

REMOVAL

1.

Remove luggage side lower finisher RH. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Remove mounting bolts, and then remove rear ventilator duct lower.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT UPPER

REAR VENTILATOR DUCT UPPER : Removal and Installation

INFOID:0000000006276302

REMOVAL

1.

Remove back pillar garnish RH. Refer to

INT-37, "BACK PILLAR GARNISH : Removal and Installation"

.

2.

Remove mounting bolt, and then remove rear ventilator grille upper.

INSTALLATION

Install in the reverse order of removal.

DUCT AND GRILLE

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ROOF DUCT

ROOF DUCT : Removal and Installation

INFOID:0000000006276303

REMOVAL

1.

Remove headlining. Refer to

INT-29, "Removal and Installation"

.

2.

Remove mounting bolts and clip, and then remove roof duct (LH/RH).

3.

Remove rear ventilator duct upper.

4.

Remove roof duct (center).

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR GRILLE

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006276304

REMOVAL

1.

Remove headlining. Refer to

INT-29, "Removal and Installation"

.

2.

Remove fixing screws, and then remove rear ventilator grille A and B from headlining.

INSTALLATION

Install in reverse order of removal.

VTL-14

< REMOVAL AND INSTALLATION >

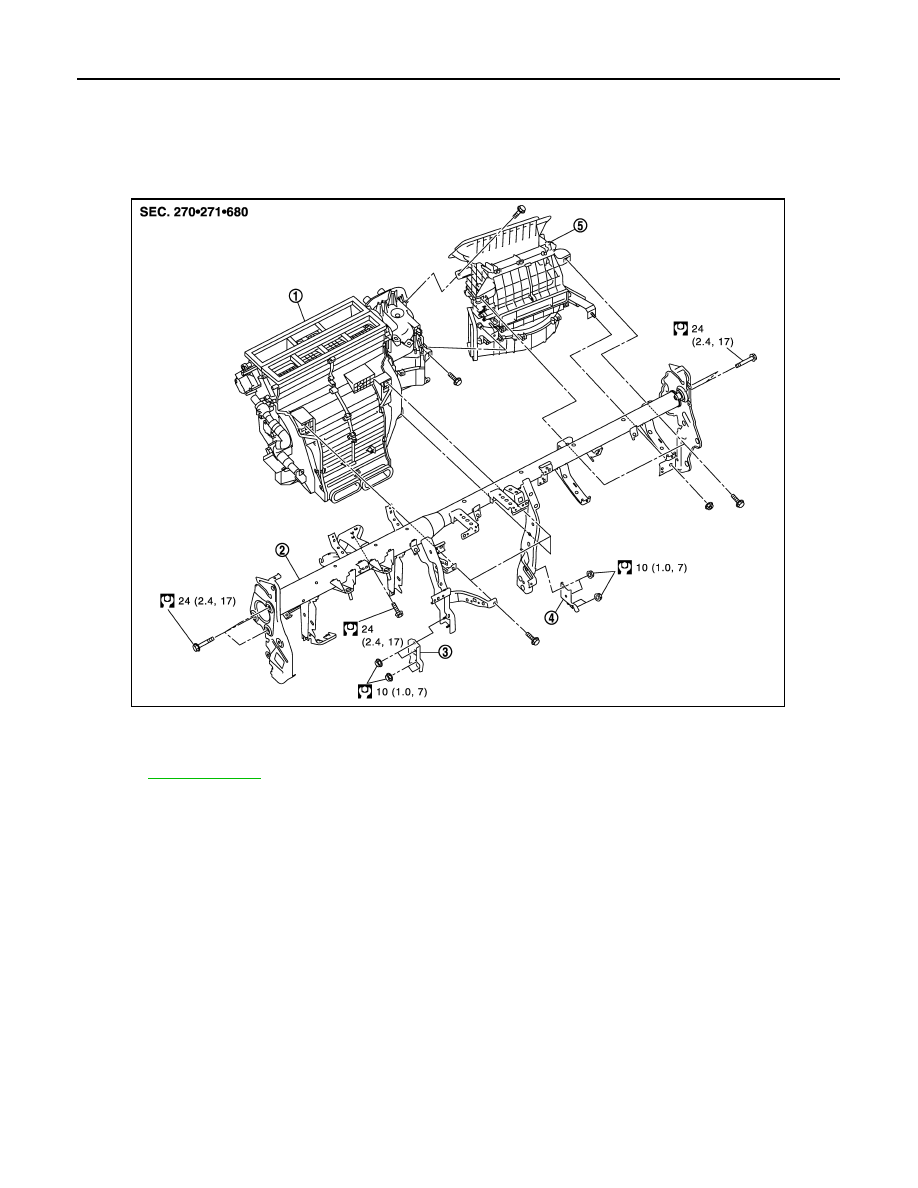

BLOWER UNIT

BLOWER UNIT

Exploded View

INFOID:0000000006276305

REMOVAL

DISASSEMBLY

1.

Heater & cooling unit assembly

2.

Steering member

3.

Instrument stay LH

4.

Instrument stay RH

5.

Blower unit assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMIIA0628GB
