VENTILATION SYSTEM

VTL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

VENTILATION SYSTEM (REAR AIR CONDITIONING)

VENTILATION SYSTEM (REAR AIR CONDITIONING) : System Description

INFOID:0000000006276285

OUTLINE

Rear cooling system is controlled by rear blower switch. Refer to

HAC-23, "REAR AUTOMATIC AIR CONDI-

TIONING SYSTEM : System Description"

.

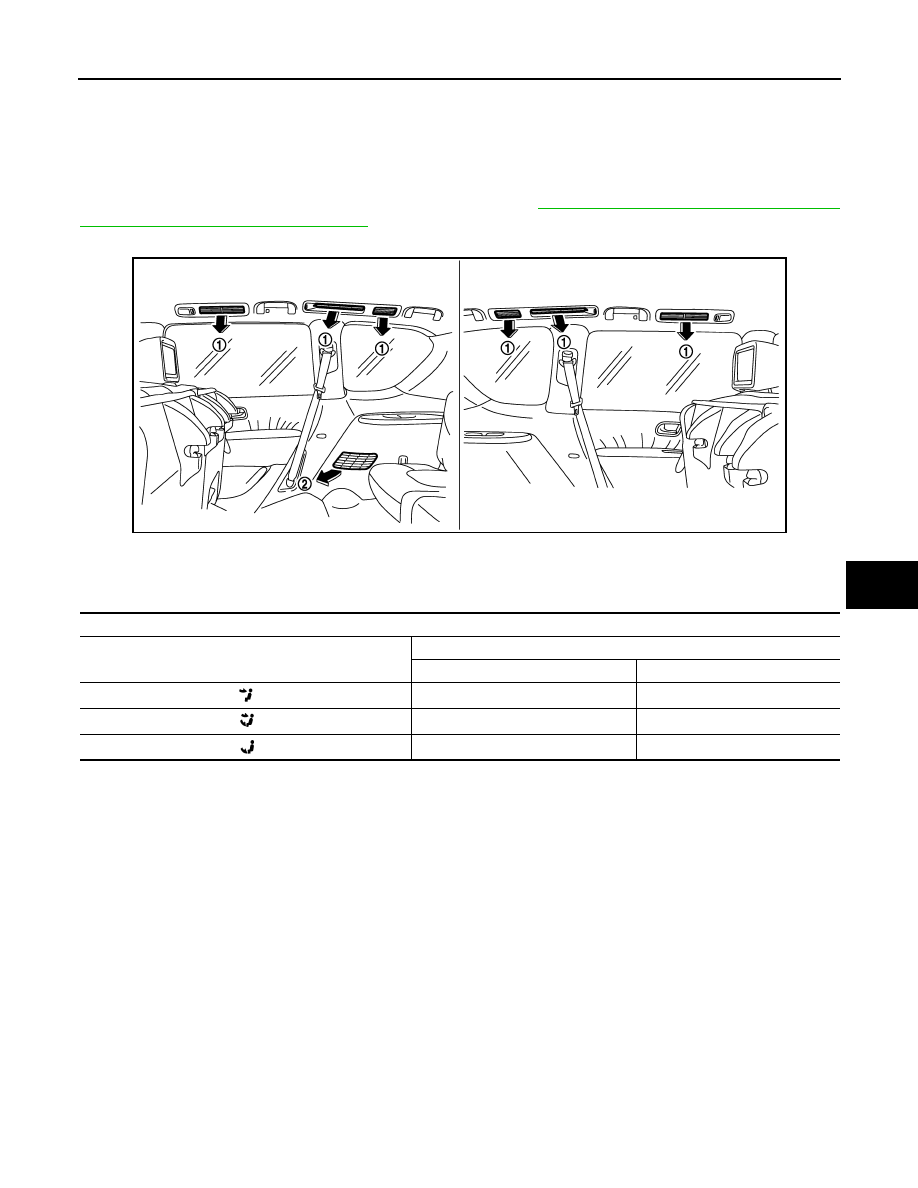

AIR FLOW

AIR DISTRIBUTION

Rear A/C Unit

JMIIA0649ZZ

Discharge air flow

Mode position

Air outlet/distribution

VENT (1)

FOOT (2)

×

—

×

×

—

×

VTL-8

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

REMOVAL AND INSTALLATION

DUCT AND GRILLE

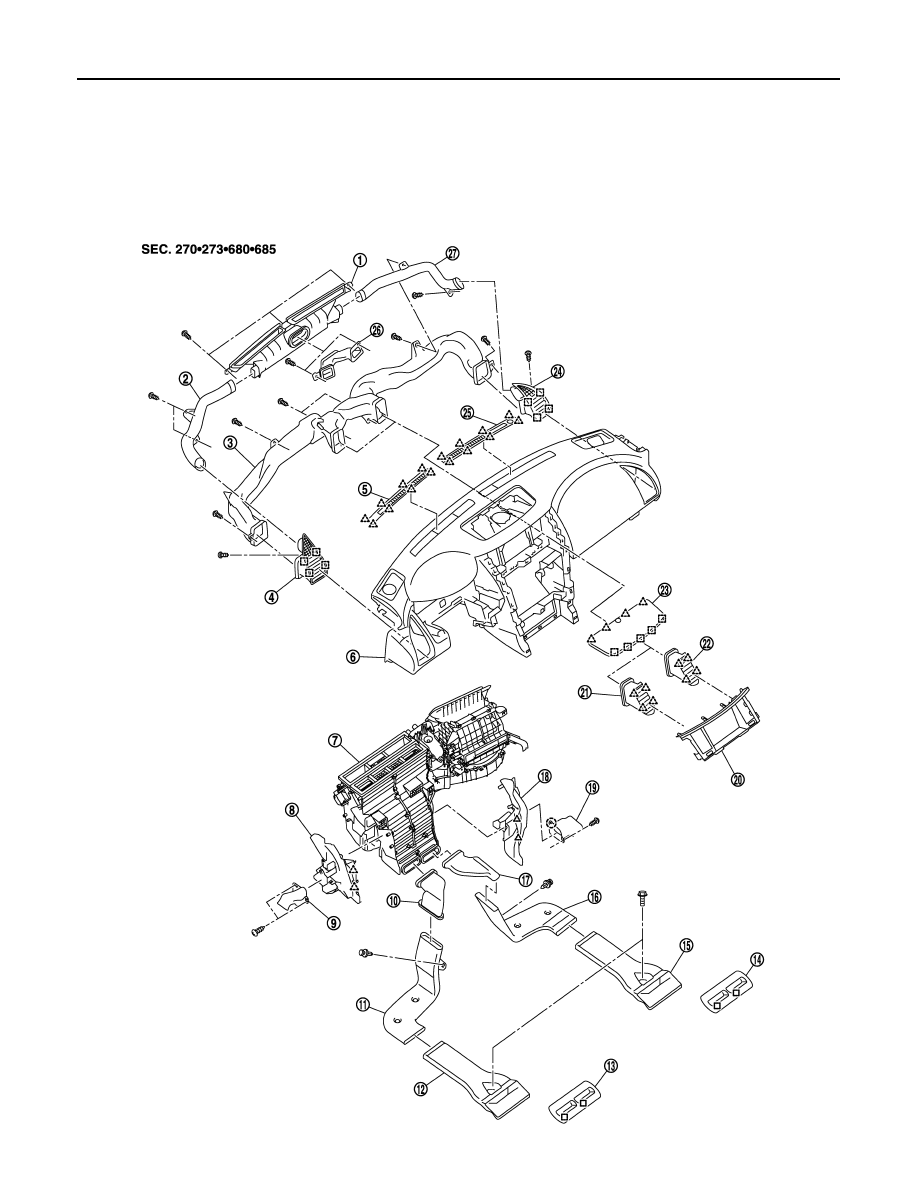

Exploded View

INFOID:0000000006276286

FRONT

JMIIA0644ZZ

DUCT AND GRILLE

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR

1.

Front defroster nozzle

2.

Side defroster nozzle LH

3.

Side ventilator duct

4.

Side ventilator grille LH

5.

Front defroster grille LH

6.

Instrument panel

7.

A/C unit assembly

8.

Foot duct LH

9.

Foot grille LH

10. Floor duct 1 LH

11. Floor duct 2 LH

12. Floor duct 3 LH

13. Floor grille LH

14. Floor grille RH

15. Floor duct 3 RH

16. Floor duct 2 RH

17. Floor duct 1 RH

18. Foot duct RH

19. Foot grill RH

20. Cluster lid D

21. Center ventilator grille LH

22. Center ventilator grille RH

23. Upper ventilator grille

24. Side ventilator grille LH

25. Front defroster grille RH

26. Upper ventilator duct

27. Side ventilator nozzle RH

: Clip

: Pawl

: Metal clip

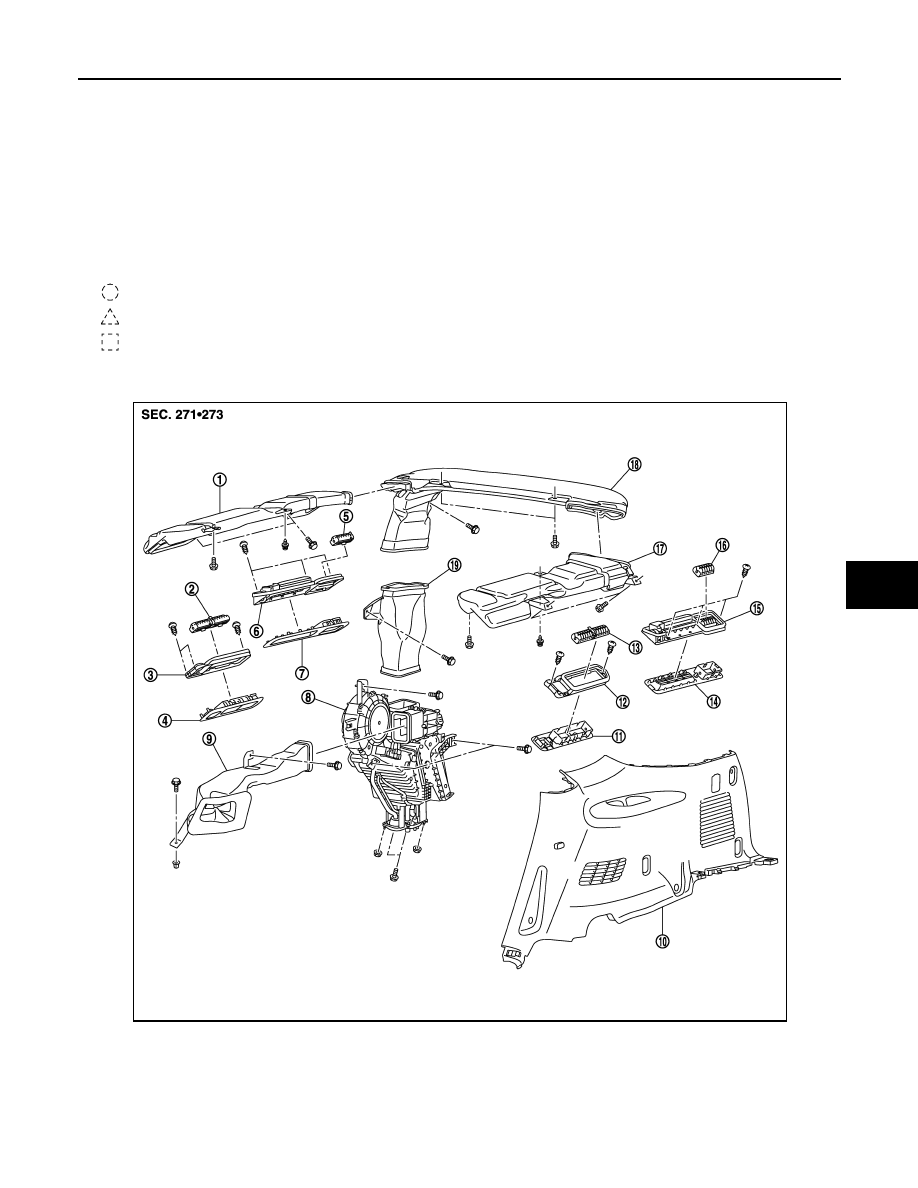

1.

Roof duct RH

2.

Rear ventilator outlet grille A RH

3.

Rear ventilator base RH

4.

Rear ventilator garnish A RH

5.

Rear ventilator outlet grille B RH

6.

Rear ventilator grille RH

7.

Rear ventilator garnish B RH

8.

Rear A/C unit assembly

9.

Rear ventilator duct lower

10. Luggage side finisher RH

11. Rear ventilator garnish A LH

12. Rear ventilator base LH

13. Rear ventilator outlet grille A LH

14. Rear ventilator garnish B LH

15. Rear ventilator grille LH

JMIIA0643ZZ

VTL-10

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006276287

REMOVAL

1.

Remove cluster lid D. Refer to

IP-14, "Removal and Installation"

.

2.

Remove center ventilator grille from cluster lid D.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006276288

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove fixing screw, and then remove side ventilator grille from instrument panel.

INSTALLATION

Install in the reverse order of removal.

FRONT DEFROSTER GRILLE

FRONT DEFROSTER GRILLE : Removal and Installation

INFOID:0000000006276289

REMOVAL

Remove front defroster grilles, using remover tools.

INSTALLATION

Install in the reverse order of removal.

UPPER VENTILATOR GRILLE

UPPER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006276290

REMOVAL

Remove upper ventilator grille, using remover tools.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR DUCT

SIDE VENTILATOR DUCT : Removal and Installation

INFOID:0000000006276291

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove fixing screws, and then remove side ventilator duct from instrument panel.

INSTALLATION

Install in the reverse order of removal.

UPPER VENTILATOR DUCT

UPPER VENTILATOR DUCT : Removal and Installation

INFOID:0000000006276292

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

16. Rear ventilator outlet grille B LH

17. Roof duct LH

Roof duct center

19. Rear ventilator duct upper
